ZLTMM-122-02-G-D: DescriptionBoard Connector, 44 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size294KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

ZLTMM-122-02-G-D Overview

Board Connector, 44 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT

ZLTMM-122-02-G-D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH TEMPERATURE
body width	0.237 inch
subject depth	0.25 inch
body length	1.981 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Manufacturer's serial number	ZLTMM
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	20u inch
polarization key	CENTER
reliability	COMMERCIAL
Terminal length	0.09 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	44

Preview

Download Datasheet

View All

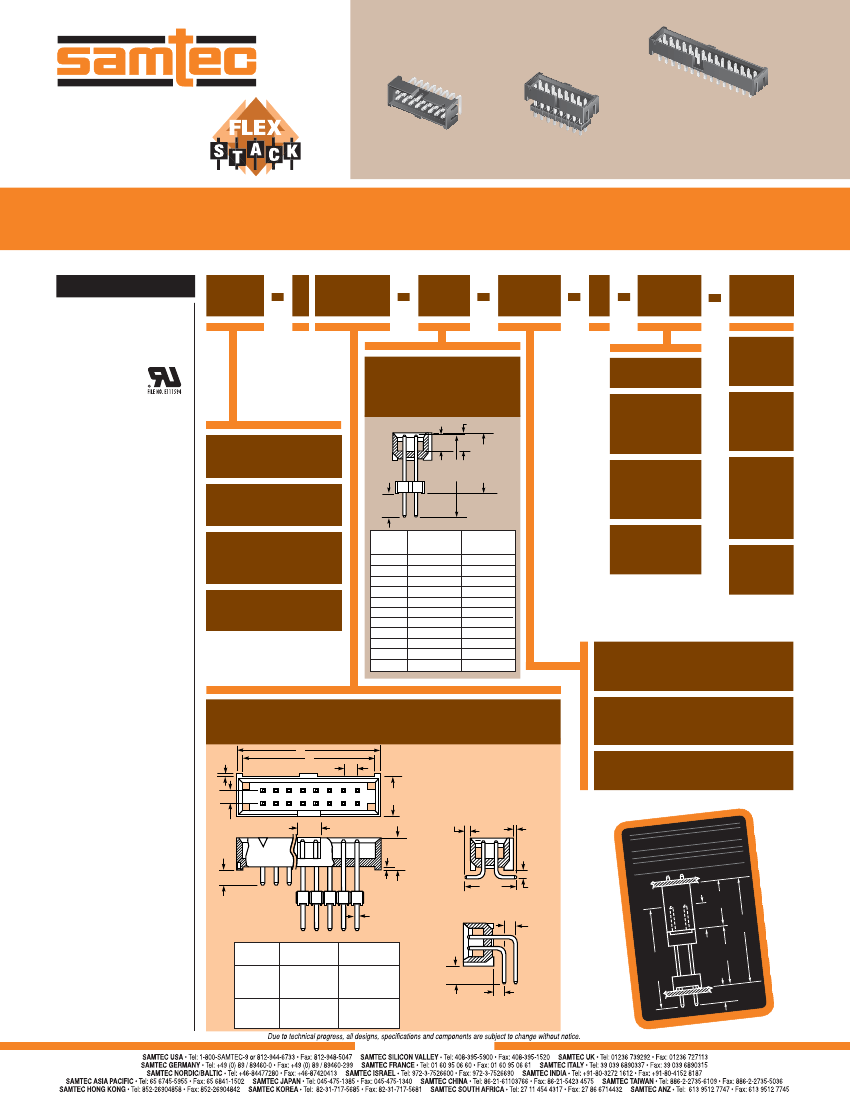

F-208

ZLTMM–108–75–S–D–285

STMM–115–02–G–D

LTMM–108–02–G–D–RA

2mm SHROUDED STACKER

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?STMM,

www.samtec.com?LTMM,

www.samtec.com?ZSTMM or

www.samtec.com?ZLTMM

Insulator Material:

High Temperature

Nylon

Terminal Material:

Phosphor Bronze

Plating:

Sn or Au over 50µ"

(1,27µm) Ni

Current Rating:

3A @ 80°C ambient

Operating Temp Range:

-55°C to +105°C with Tin;

-55°C to +125°C with Gold

RoHS Compliant:

Yes

STMM, LTMM,

ZSTMM, ZLTMM

OTHER

OPTION

TYPE

STRIP

1

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

D

BODY

HEIGHT

Mates with:

SQT, SQW, ESQT,

SMM, TCSD

–02

= STMM & LTMM

Specify ZSTMM & ZLTMM

from chart

(3,18) .125

–“XX”

Leave blank for

Through-hole

= Polarized

Position

–RA

= Right Angle

(STMM & LTMM

only)

–LC

= Locking

Clip

(-SM only)

STMM

= Cable Strip

(3,05)

.120

BODY

HEIGHT

B

(6,35)

(OAL) .250

MIN

–SM

= Surface Mount

(STMM & LTMM

only)

–K

= (6,50mm)

.256" DIA

Film Pick &

Place Pad

(-SM only)

LTMM

= Connector Strip

Processing:

Max Processing Temp:

230°C for 60 seconds, or

260°C for 20 seconds 3x

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10mm) .004" max

(2,29)

.090

MIN

ZSTMM

= Elevated

Cable Strip

ZLTMM

= Elevated Connector Strip

LEAD

STYLE

-75

-62

-65

-73

-63

-66

-69

-74

-70

-71

-72

B

(OAL)

(9,58) 0.377

(10,08) 0.397

(10,49) 0.413

(12,09) 0.476

(14,10) 0.555

(15,09) 0.594

(15,60) 0.614

(17,09) 0.673

(17,60) 0.693

(21,08) 0.830

(21,62) 0.851

MAX BODY

HEIGHT

(7,42) 0.292

(7,92) 0.312

(8,33) 0.328

(9,93) 0.391

(11,94) 0.470

(12,93) 0.509

(13,44) 0.529

(14,94) 0.588

(15,44) 0.608

(18,92) 0.745

(19,46) 0.766

–“XXX”

= ZSTMM & ZLTMM

Body Height

–TR

= Tape & Reel

(–SM only)

–G

= 20µ" (0,51µm)

Gold on post, Gold ﬂash on tail

05, 08, 10, 12, 13, 15, 17, 20, 22, 25

(Call Samtec for other sizes)

(0,51)

.020

02 04

–S

= 30µ" (0,76µm) Gold on post,

Matte Tin on tail

Y

X

(2,00) .0787

(6,00)

.237

–T

= Matte Tin

(0,89)

.035

(4,80)

.190

(0,38)

.015

(0,51)

.020 SQ

(7,79)

.307

(1,27)

.050

(0,38)

.015

(2,00)

.0787

01 03

(3,55)

.140

B o a rd

S t a ck i n g

SO C K ET

PR O FI LE

PO ST

BO A RD

SP A C E

(2,97)

.117

STMM

LTMM

ZSTMM / ZLTMM

TYPE

STRIP

X

(2,00)

.0787

O V ER A LL

LE

TH RU H O

PI N

(O A L)

Y

(2,29)

.090

(1,52)

.060

ST A C K ER

H EI G H T

LTMM/

(2,00) .0787 x (2,00) .0787 x

of Positions

ZLTMM

No. of Positions No.(2,39) .094

+ (0,61) .024 +

Note:

This Series is

non-standard, non-returnable.

(2,00) .0787 x

STMM/

No. of Positions (2,00) .0787 x

of Positions

ZSTMM

+ (4,39) .173 No.(6,17) .243

+

TA IL

–RA

WWW.SAMTEC.COM
