540-88-068-24-000-1: DescriptionIC Socket, PLCC68, 68 Contact(s), Solder, ROHS COMPLIANT; CategoryThe connector socket; File Size423KB，2 Pages; ManufacturerPRECI-DIP; Websitehttp://www.precidip.com/en/index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

540-88-068-24-000-1 Overview

IC Socket, PLCC68, 68 Contact(s), Solder, ROHS COMPLIANT

540-88-068-24-000-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	PRECI-DIP
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	1.19 inch
subject depth	0.358 inch
body length	1.19 inch
Contact structure	17X17
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact material	P-CUSN
Contact style	BELLOWED TYPE
current rating	2 A
Device slot type	IC SOCKET
Type of equipment used	PLCC68
Dielectric withstand voltage	830VAC V
Shell material	POLYPHENYLENE SULPHIDE PLASTIC
Insulation resistance	5000000000 Ω
JESD-609 code	e3
Manufacturer's serial number	540
Installation method	STRAIGHT
Number of contacts	68
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Termination type	SOLDER

Preview

Download Datasheet

View All

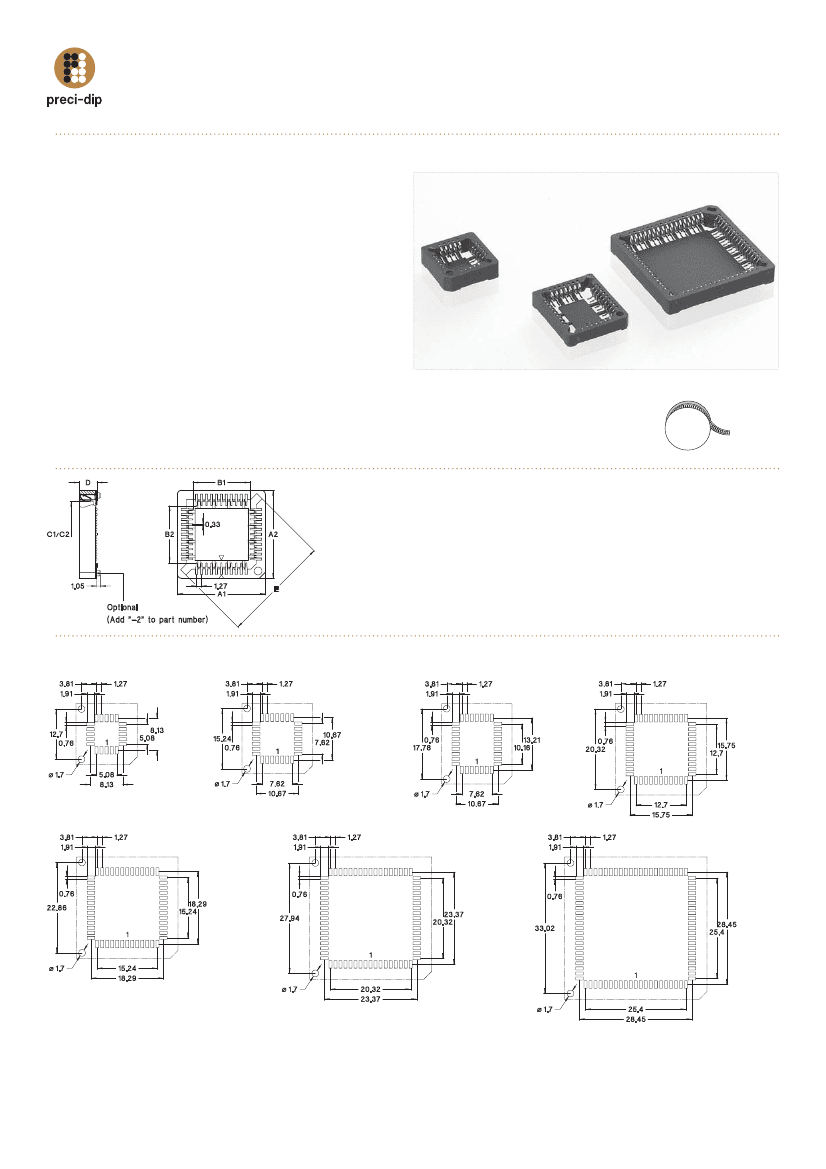

SOCKETS FOR PLASTIC LEADED

CHIP CARRIERS (PLCC)

WWW.PRECIDIP.COM

TEL +41 32 421 04 00

SALES@PRECIDIP.COM

SMT TERMINATIONS

Series 540 PLCC sockets with SMT terminations come with square sizes for IC-packages according to JEDEC MO-047 and rectangular size (32) according

to JEDEC MO-052, low profile.

TECHNICAL SPECIFICATIONS

(FOR GENERAL SPECS, SEE PAGE 155)

INSUL ATOR

FL AMMABILIT Y

CONTACT

CONTACT PRESSURE

MECHANICAL LIFE

RATED CURRENT

CONTACT RESISTANCE

DIELECTRIC STRENGTH

INSUL ATION RESISTANCE

CAPACITANCE

COPL ANARIT Y

SMD TERMINATIONS

Glass filled thermoplastic PPS-GF30-FR

UL 94V-O

Phosphor bronze

Min. 1.5 N per contact

Min. 50 cycles

1A

Max. 20 mΩ

Min. 600 V

RMS

Min. 5’000 MΩ

Max. 2 pF

Max. 0.1 mm

Option:

parts with positioning pegs add suffix

-2

to part number (only

available for No. of poles 32, 44, 68 and 84).

Tape & Reel packaging:

See

page 155

add suffix

-TR

to part number.

T & R Packaging

NO. OF POLES

A1/A2

B1/B2

C1/C2

D

E

ORDER CODES

ORDERING INFORMATION ROHS COMPLIANT PARTS

PP PL ATING CODE

TERMINATION

CONTACT

88

Tin

20

28

32*

44

52

68

84

* RECTANGUL AR

14.86 7.02 9.20 4.60

17.34 9.50 11.76 4.60

16.95 / 9.40 / 11.60 /

3.80

19.50 11.90 14.20

22.42 14.50 16.70 4.60

25.40 17.24 19.46 4.60

30.54 22.26 24.40 4.60

35.56 27.34 29.58 4.60

16.00

19.70

22.00

27.00

30.80

37.65

45.10

540-88-020-17-400

540-88-028-17-400

540-88-032-17-400

540-88-044-17-400

540-88-052-17-400

540-88-068-17-400

540-88-084-17-400

PCB LAYOUT SERIES 540, SMD TYPES

172

Due to technical progress, all information provided is subject to change without prior notice.
