QS3384PA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> QS3384PA

QS3384PA: DescriptionBus Driver, 1-Func, 10-Bit, True Output, CMOS, PDSO24,; Categorylogic logic; File Size131KB，4 Pages; ManufacturerQuality Semiconductor Inc

Download Datasheet Parametric Compare View All

QS3384PA Overview

Bus Driver, 1-Func, 10-Bit, True Output, CMOS, PDSO24,

QS3384PA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Quality Semiconductor Inc
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
Logic integrated circuit type	BUS DRIVER
Number of digits	10
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP24,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
propagation delay (tpd)	1.25 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL

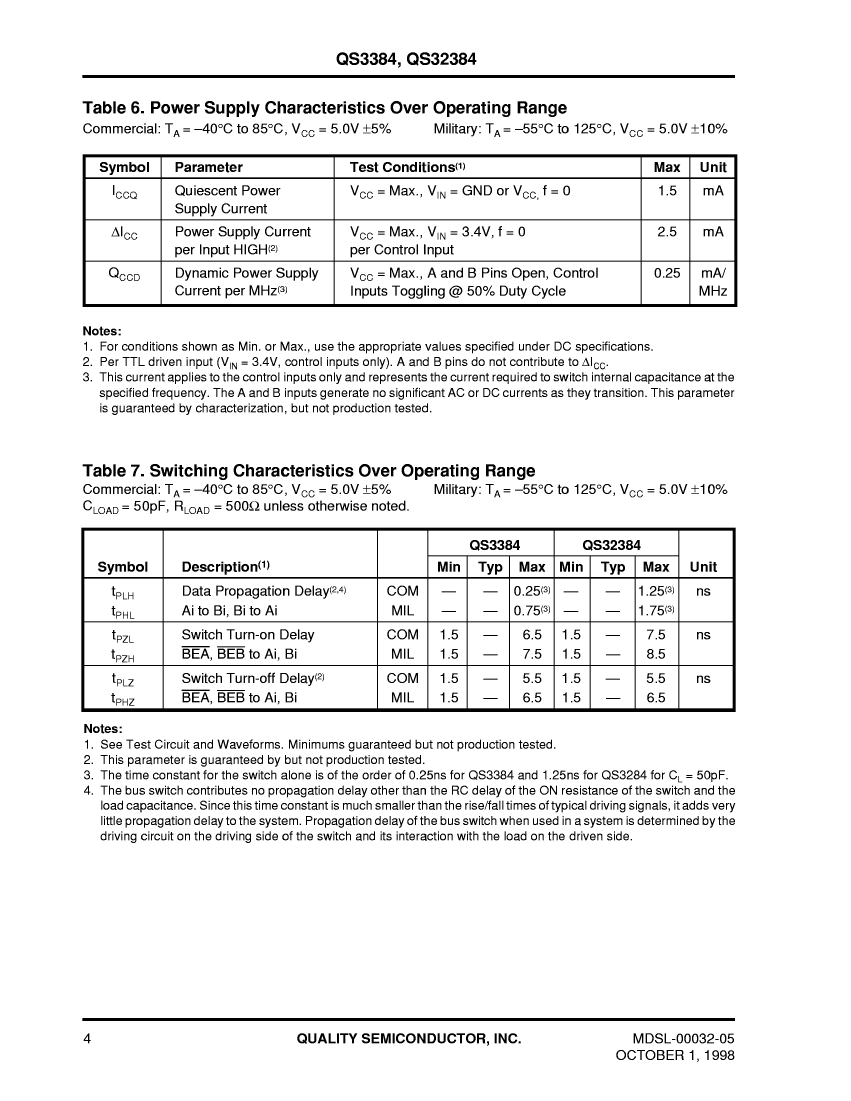

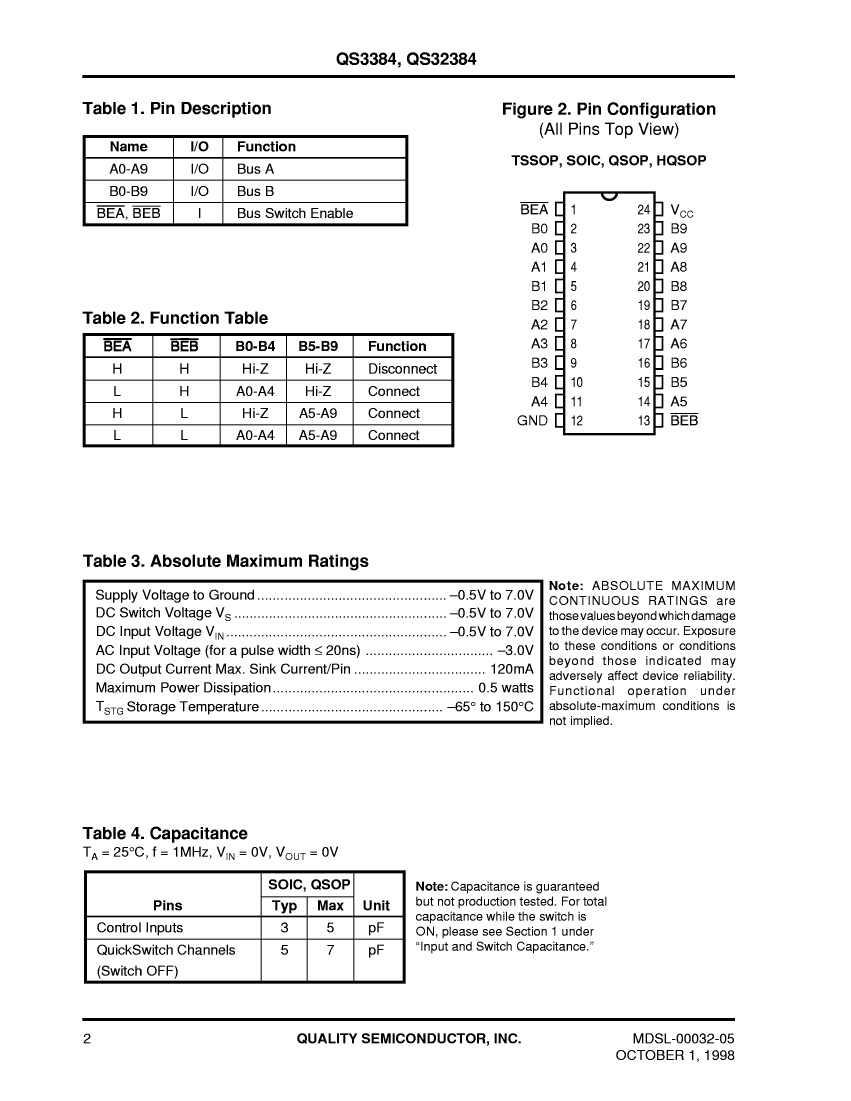

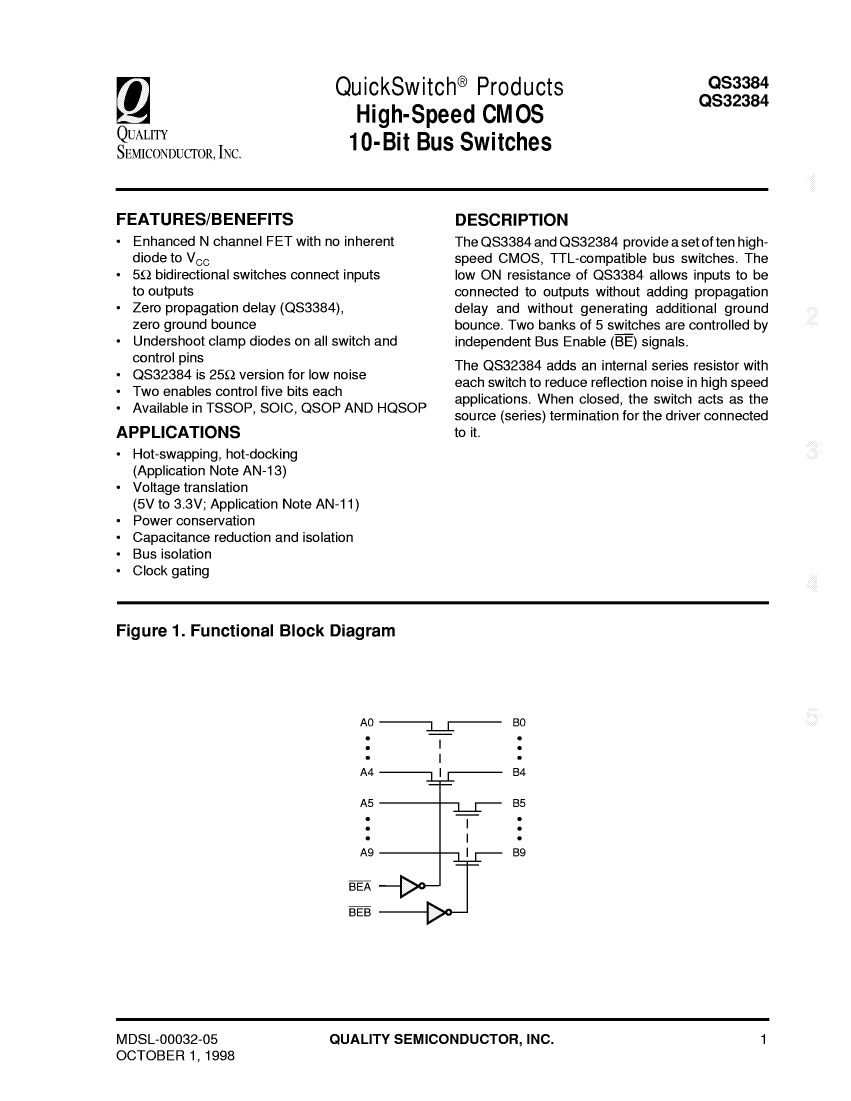

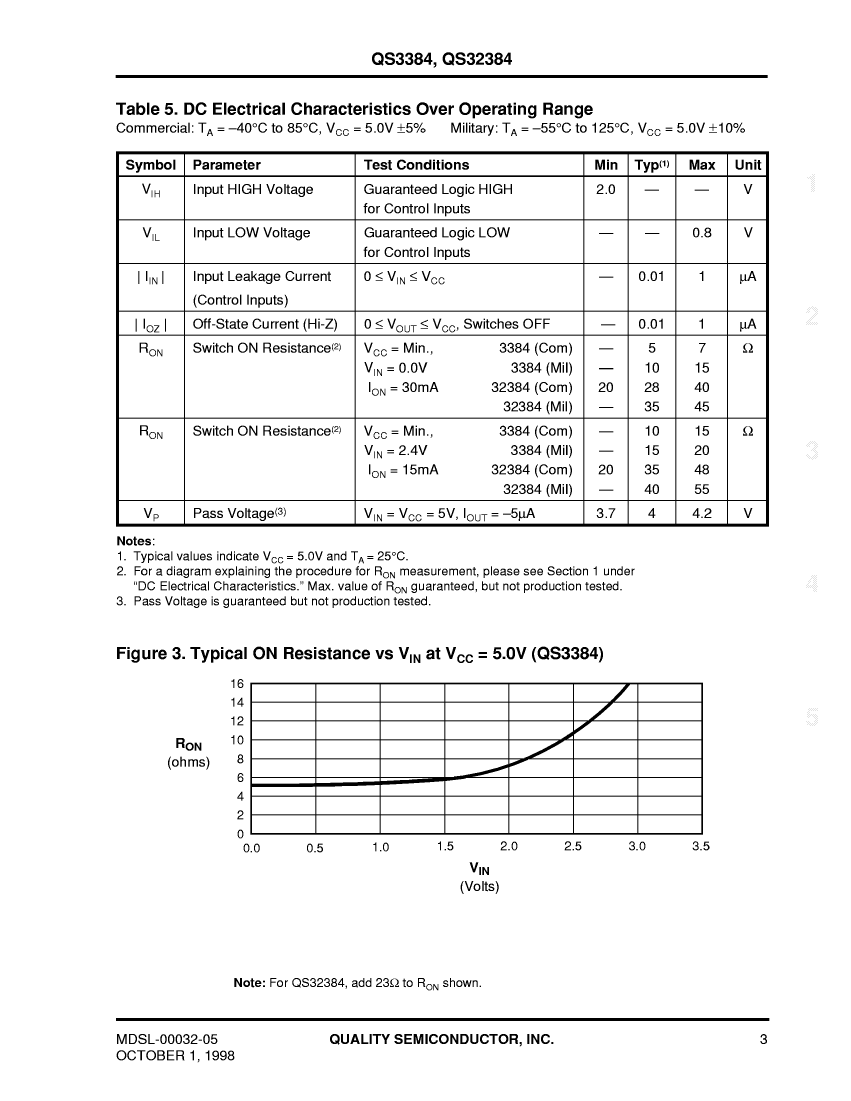

QS3384PA Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

QS3384PA Related Products

	QS3384PA	QS3384Q	QS32384PA	QS32384Q	QS3384SO	QS32384H	QS32384SO	QS3384H
Description	Bus Driver, 1-Func, 10-Bit, True Output, CMOS, PDSO24,	Bus Driver, 1-Func, 10-Bit, True Output, CMOS, PDSO24,	Bus Driver, 1-Func, 10-Bit, True Output, CMOS, PDSO24,	Bus Driver, 1-Func, 10-Bit, True Output, CMOS, PDSO24,	Bus Driver, 1-Func, 10-Bit, True Output, CMOS, PDSO24,	Bus Driver, 1-Func, 10-Bit, True Output, CMOS, CDSO24,	Bus Driver, 1-Func, 10-Bit, True Output, CMOS, PDSO24,	Bus Driver, 1-Func, 10-Bit, True Output, CMOS, CDSO24,
Maker	Quality Semiconductor Inc	Quality Semiconductor Inc	Quality Semiconductor Inc	Quality Semiconductor Inc	Quality Semiconductor Inc	Quality Semiconductor Inc	Quality Semiconductor Inc	Quality Semiconductor Inc
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-CDSO-G24	R-PDSO-G24	R-CDSO-G24
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	10	10	10	10	10	10	10	10
Number of functions	1	1	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2	2	2
Number of terminals	24	24	24	24	24	24	24	24
Maximum operating temperature	85 °C	70 °C	85 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	1.25 ns	0.25 ns	0.25 ns	1.25 ns	0.25 ns	1.25 ns	1.25 ns	0.25 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	-	incompatible	-
JESD-609 code	e0	e0	e0	e0	e0	-	e0	-
encapsulated code	TSSOP	SSOP	TSSOP	SSOP	SOP	-	SOP	-
Encapsulate equivalent code	TSSOP24,.25	SSOP24,.24	TSSOP24,.25	SSOP24,.24	SOP24,.4	-	SOP24,.4	-
power supply	5 V	5 V	5 V	5 V	5 V	-	5 V	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	-
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.635 mm	1.27 mm	-	1.27 mm	-
package instruction	-	SSOP, SSOP24,.24	TSSOP, TSSOP24,.25	SSOP, SSOP24,.24	SOP, SOP24,.4	-	SOP, SOP24,.4	,
Other features	-	TTL COMPATIBLE BUS SWITCH	-	TTL COMPATIBLE BUS SWITCH	TTL COMPATIBLE BUS SWITCH	TTL COMPATIBLE BUS SWITCH	TTL COMPATIBLE BUS SWITCH	TTL COMPATIBLE BUS SWITCH
Load capacitance (CL)	-	50 pF	-	50 pF	50 pF	50 pF	50 pF	50 pF
