Part Number

Search

54F153/BEA

Description
Multiplexer, 2-Func, 4 Line Input, TTL, CDIP16
Categorylogic    logic
File Size254KB,4 Pages
ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.)
Websitehttps://www.nxp.com/
Download Datasheet Parametric Compare View All

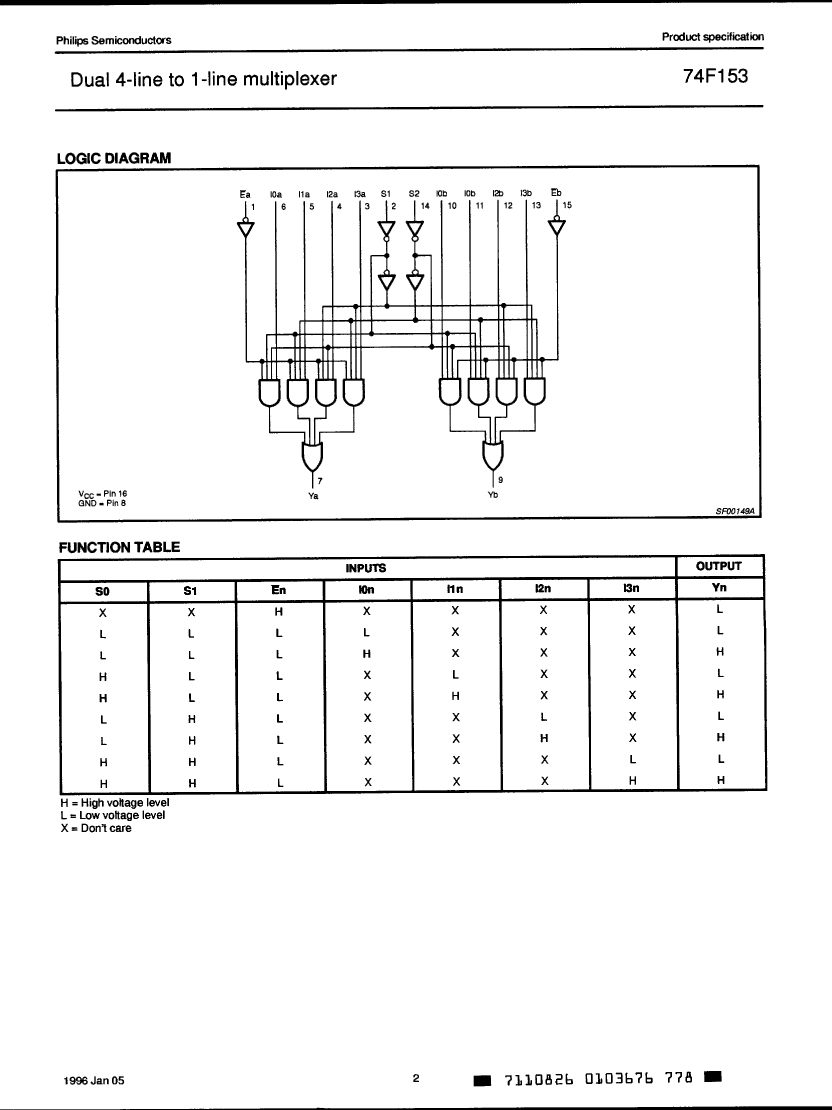

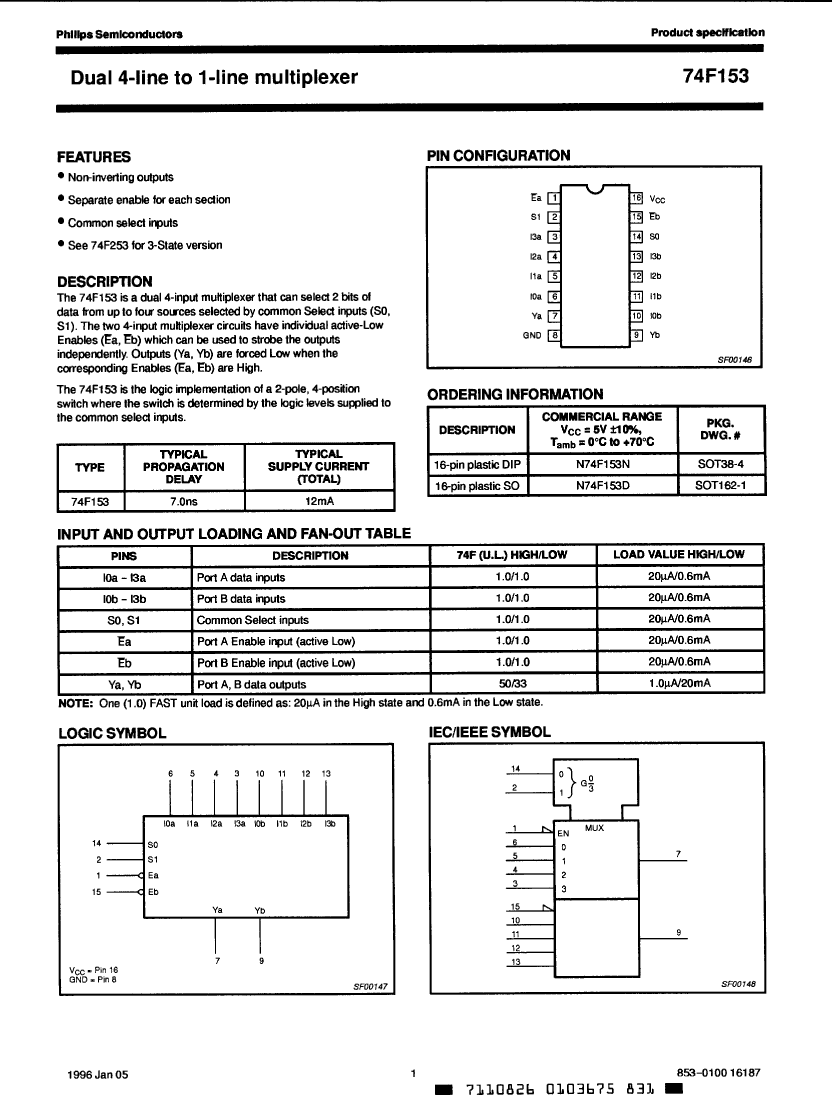

54F153/BEA Overview

Multiplexer, 2-Func, 4 Line Input, TTL, CDIP16

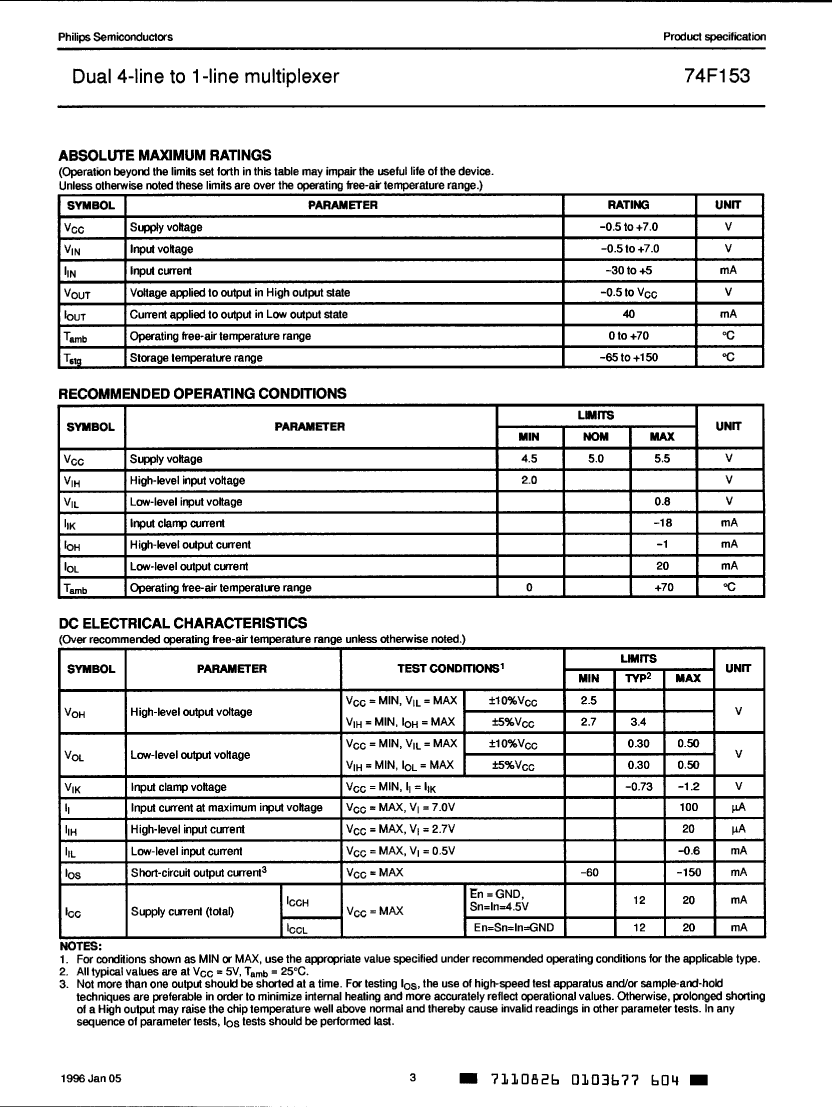

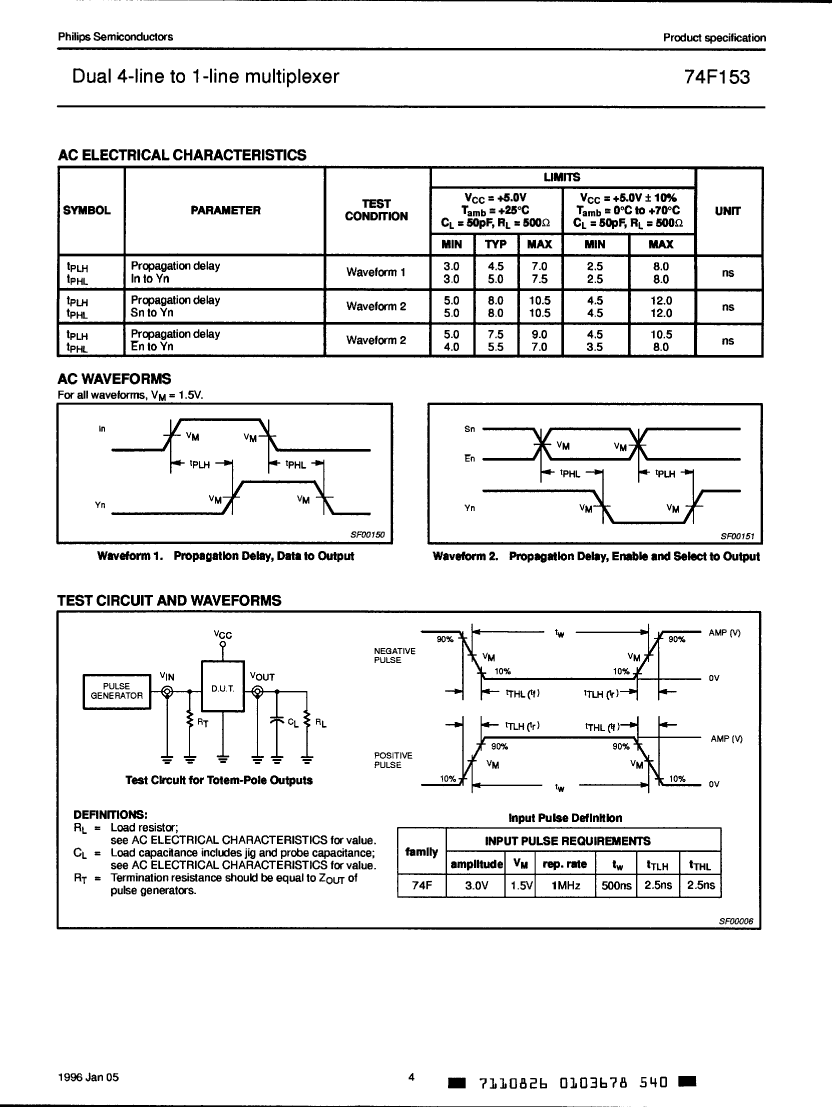

54F153/BEA Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerPhilips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Codeunknown
JESD-30 codeR-XDIP-T16
JESD-609 codee0
Logic integrated circuit typeMULTIPLEXER
MaximumI(ol)0.02 A
Number of functions2
Number of entries4
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC
encapsulated codeDIP
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
power supply5 V
Maximum supply current (ICC)20 mA
Prop。Delay @ Nom-Sup8 ns
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL

54F153/BEA Related Products

54F153/BEA N74F153N-B
Description Multiplexer, 2-Func, 4 Line Input, TTL, CDIP16 Multiplexer, 2-Func, 4 Line Input, TTL, PDIP16
Is it Rohs certified? incompatible incompatible
Maker Philips Semiconductors (NXP Semiconductors N.V.) Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code unknown unknown
JESD-30 code R-XDIP-T16 R-PDIP-T16
JESD-609 code e0 e0
Logic integrated circuit type MULTIPLEXER MULTIPLEXER
MaximumI(ol) 0.02 A 0.02 A
Number of functions 2 2
Number of entries 4 4
Number of terminals 16 16
Maximum operating temperature 125 °C 70 °C
Package body material CERAMIC PLASTIC/EPOXY
encapsulated code DIP DIP
Encapsulate equivalent code DIP16,.3 DIP16,.3
Package shape RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE
power supply 5 V 5 V
Maximum supply current (ICC) 20 mA 20 mA
Prop。Delay @ Nom-Sup 8 ns 12 ns
Nominal supply voltage (Vsup) 5 V 5 V
surface mount NO NO
technology TTL TTL
Temperature level MILITARY COMMERCIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE
Terminal pitch 2.54 mm 2.54 mm
Terminal location DUAL DUAL
