RJ3-25V101MF3# datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> RJ3-25V101MF3#

RJ3-25V101MF3#: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 100uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size67KB，2 Pages; ManufacturerELNA; Environmental Compliance

Download Datasheet Parametric View All

RJ3-25V101MF3# Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 100uF, Through Hole Mount, RADIAL LEADED

RJ3-25V101MF3# Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ELNA
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	100 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	6.3 mm
dielectric materials	ALUMINUM (WET)
ESR	2320 mΩ
leakage current	0.025 mA
length	11 mm
Manufacturer's serial number	RJ3
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
ripple current	220 mA
series	RJ3
surface mount	NO
Delta tangent	0.14
Terminal pitch	2.5 mm
Terminal shape	WIRE

Preview

Download Datasheet

View All

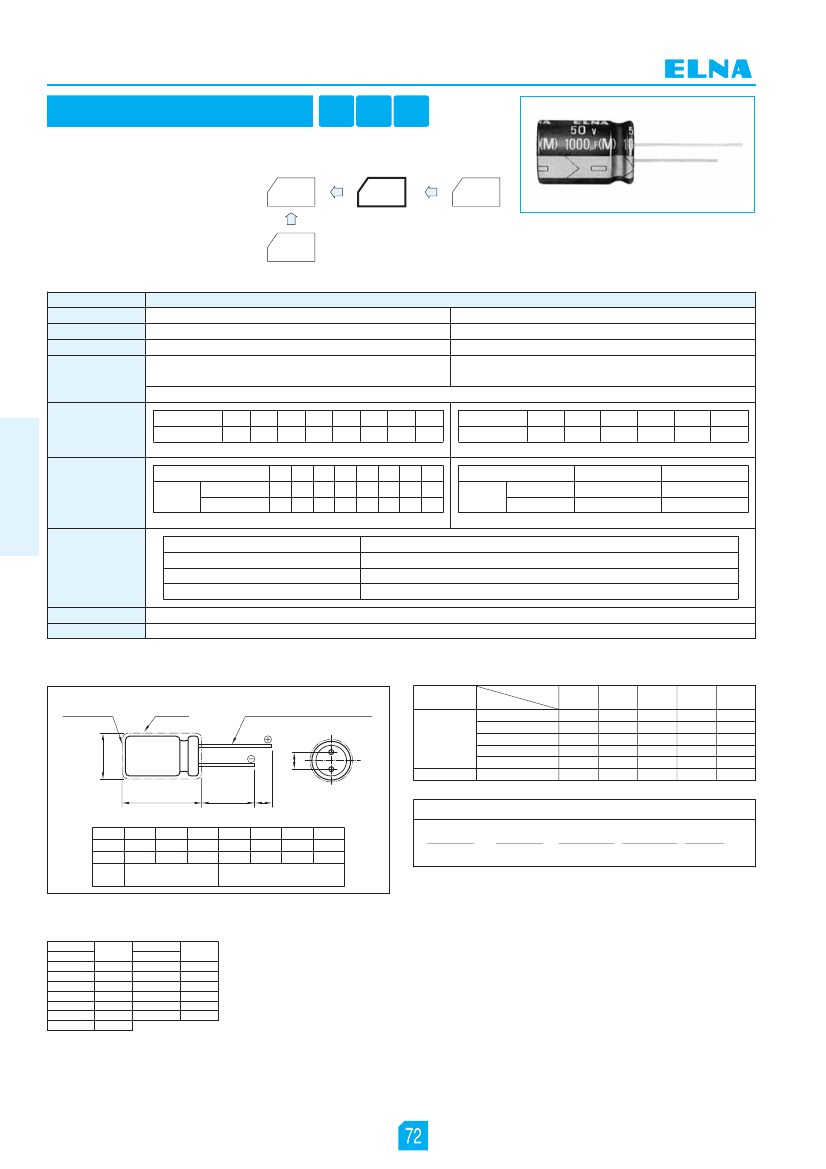

RJ3

●

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

GREEN 105˚C

cleaning

CAP

2000hours

solvent

Anti-

250V Max.

105°C Use, Standard Capacitors

Guarantees 2000 hours at 105℃ (φ5∼8 : 1000 hours).

Miniaturized

RJ4

RJ3

High temperature

RJJ

Marking color : White print on a black sleeve

RE3

Speciﬁcations

Item

Category temperature range (℃)

Performance

−55 to ＋105

6.3 to 100

±20

(20°

C,120Hz)

−40 to ＋105

160 to 450

±20

(20°

C,120Hz)

Rated voltage (V)

Tolerance at rated capacitance (%)

Leakage current (µA)

Less than 0.01CV or 3 whichever is larger (after 2 minutes)

(20°

CV≦1000 : Less than 0.1CV＋40 (after 1 minute)

CV＞1000 : Less than 0.04CV＋100 (after 1 minute)

(20°

C : Rated capacitance (µF) V : Rated voltage (V)

Tangent of loss angle

(tanδ)

Rated voltage (V)

6.3

0.22

0.19

0.16

0.14

0.12

0.10

0.09

100

0.08

Rated voltage (V)

160

0.15

200

0.15

250

0.15

315

0.20

350

0.20

400

0.20

φD＋0.5max.

F±0.5

Miniature

Aluminum Electrolytic Capacitors

tanδ (max.)

0.02 is added to every 1000µF increase over 1000µF

Rated voltage (V)

Characteristics at high

and low temperature

6.3

(20°

C,120Hz)

100

Rated voltage (V)

Impedance Z−25℃/Z＋20℃

ratio

Z−40℃/Z＋20℃

(max.)

160 to 250

(20°

C,120Hz)

315 to 400

(120Hz)

2000 hours (φ5 to φ8 : 1000 hours)

The initial speciﬁed value or less

Within ±20% of initial value

200% or less of the initial speciﬁed value

Impedance Z−25℃/Z＋20℃ 5

ratio

Z−55℃/Z＋20℃ 10

(max.)

(120Hz)

Test time

Endurance (105℃)

(Applied ripple current)

Leakage current

Percentage of capacitance change

Tangent of the loss angle

Shelf life (105℃)

Applicable standards

Test time : 1000 hours; other items are the same as those for the endurance. Voltage application treatment

JIS C5101-1, -4 1998 (IEC 60384-1 1992, -4 1985)

Outline Drawing

Vent (exceptφ5)

Unit : mm

Coeﬃcient of Frequency for Rated Ripple Current

Rated voltage (V)

Rated

Frequency (Hz)

capacitance (µF)

50・60

0.8

120

0.4

0.5

0.7

0.8

0.9

0.7

0.8

0.9

1.0

1.3

10k

0.8

0.9

1.0

1.4

100k

1.6

Sleeve

φd±0.05 copper clad steel wire (tinned)

6.3 to 100

160 to 400

0.1

100

330

2200

0.47

4.7

220

1000

15000

220

L＋ max.

15min

min.

Part numbering system (example : 63V1000µF)

φD

φd

2.0

0.5

6.3

2.5

0.5

1.5

3.5

0.6

5.0

0.6

12.5

5.0

7.5

0.6

0.8

1.5 for L16 max.

2.0 for L 20 min.

7.5

0.8

RJ3

Series code

Rated voltage

symbol

102

Rated capacitance

symbol

Capacitance

tolerance symbol

Casing

symbol

Casing symbol

Size

Casing

φD×L (mm) Symbol φD×L (mm) Symbol

5×11

Ⅰ

12.5×25

6.3×11

16×25

8×11.5

16×31.5

10×12.5

16×35.5

10×16

18×35.5

10×20

18×40

12.5×20

Ⅰ

NOTE

CAT.No.2008/2009E(2008.10.1)

Design, Speciﬁcations are subject to change without notice.

Ask factory for technical speciﬁcations before purchase and/or use.
