A6 Series — Miniature Switches and Pilot Devices: 16mm
Switches & Pilot Lights

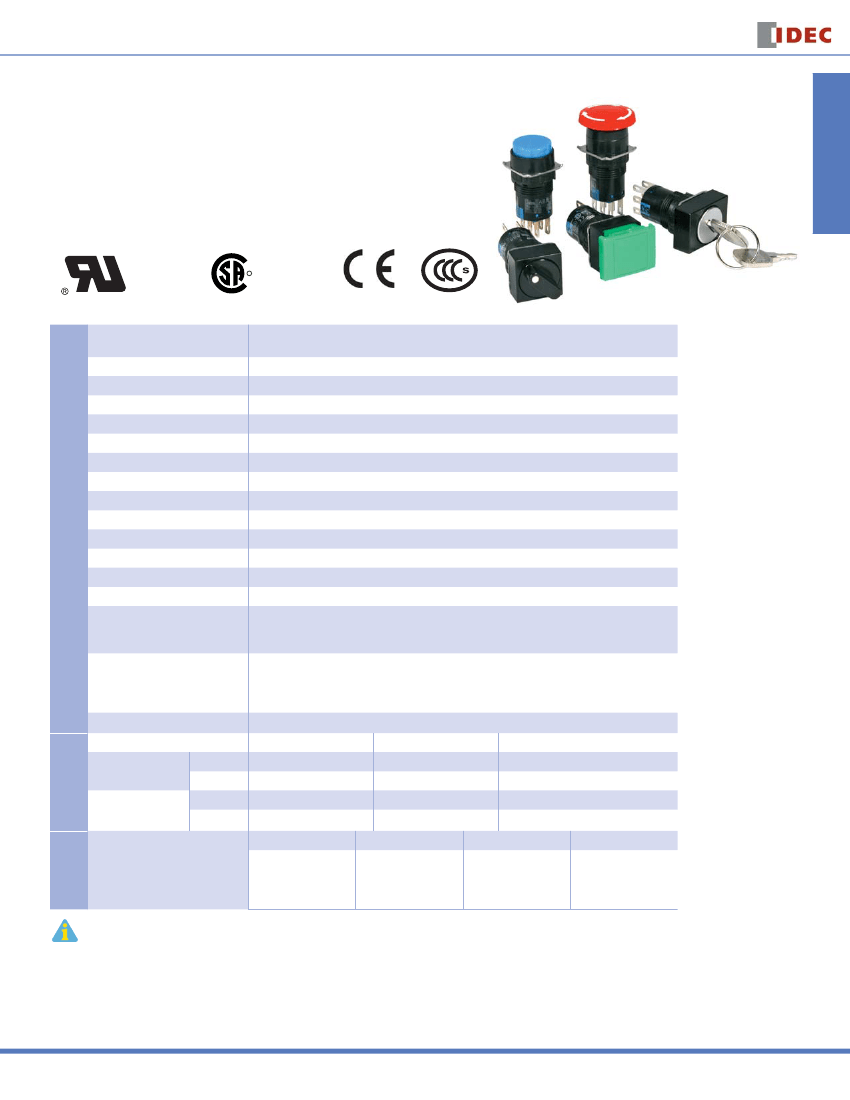

Key features:
•
•
•
•
•
•
•
16mm (5/8”) mounting hole
LED illumination
Compact design saves space
Momentary, Maintained, Selectors, and E-Stops
Gold-clad Silver contacts for reliable low level switching
Snap action contacts
IP40 (dustproof) or IP65 (oiltight) versions
UL Recognized
File No.E55996
CSA Certified
File No. LR21451
R
Display Lights
Degree of Protection
Contact Configuration
Maximum Voltage
Thermal Current
Minimum Applicable Load
Contact Material
Terminal Style
Operating Temperature
Specifications
Operating Humidity
Contact Resistance
Insulation Resistance
Vibration Resistance
Shock Resistance
Electrical Life
Mechanical Life
IP40: Dustproof
IP65 Watertight/Oiltight
SPDT, DPDT
250V AC/DC
3A
5V AC/DC, 1mA
Relays & Sockets
Gold-clad silver
.110” Solder/ Quick Connect
-25º to +55ºC (no freezing)
45 to 85% RH
50mΩ maximum (initial value)
100MΩ minimum (500V DC megger)
10 to 55Hz, amplitude 1.5mm p-p
Damage limits: 500m/sec
2
(approx. 50G) Operating extremes: 200m/sec
2
(approx. 20G)
100,000 operations minimum (at full rated load)
Maintained: 100,000 operations minimum
Momentary: 1,000,000 operations minimum
Selector/Keylock: 250,000 operations minimum
Switch Unit: 2,000V AC, 1 min. between live/dead part and terminals of different poles;
1,000V AC, 1 minute between terminals of the same pole;
1,500V AC, 1 minute between contact and lamp terminals.
Illumination Unit: 2,000V AC, 1 min. between live part/ground
20W/5 seconds or 260ºC/3 seconds
24V
Resistive
Inductive
Resistive
Inductive
—
—
1.0A
0.7A
5V DC ±5%
120V
1.0A
0.7A
0.2A
0.1A
6V AC/DC (±10%)
AC: A, R, W, Y: 8mA
G, S: 7mA
DC: A, R, W, Y: 6mA
G, S: 5mA
240V
Timers
Dielectric Strength
Soldering Temperature
Contact Ratings
Operating Voltage
AC (50/60Hz)
DC
Terminal Blocks
0.5A
0.5A
—
—
12V AC/DC (±10%)
AC: 9mA
DC: 8mA
24V AC/DC (±10%)
AC: 9mA
DC: 8mA
LED Lamp
Ratings
Rated Voltage/Current
8mA
Circuit Breakers
1. AC Inductive Load, PF = 0.6 – 0.7; DC Inductive Load, L/R = 7ms.
2. LED lamp contains a built-in current limiting resistor and a protection diode.
3. LED’s don’t “burn out.” Luminance is reduced to 50% of initial intensity after being lit for 50,000 hours continuously.
USA: 800-262-IDEC
Canada: 888-317-IDEC
457
16mm A6

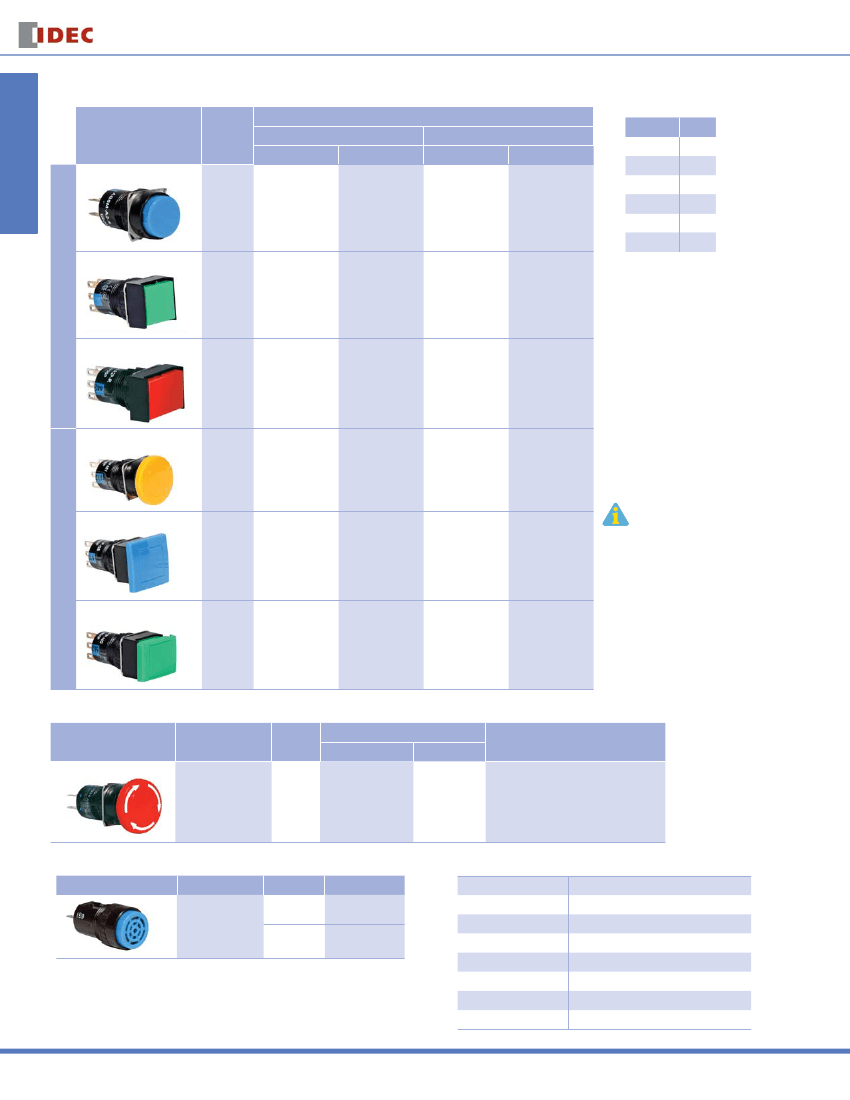

AB6 Non-Illuminated Pushbuttons (Assembled)
Switches & Pilot Lights
Switches & Pilot Devices
Non-Illuminated Pushbuttons
Part Number
Style
Round 18mm
SPDT
DPDT
AB6M-M1-j
AB6M-M2-j
AB6M-M1P-j
AB6M-M2P-j
AB6M-A1-j
AB6M-A2-j
AB6M-A1P-j
AB6M-A2P-j
Contact
Momentary
Dustproof (IP40)
Oiltight (IP65)
Maintained (Latching)
Dustproof (IP40)
Oiltight (IP65)
jButton
Color Code
Color
Black
Green
Red
Blue
White
Yellow
Code
B
G
R
S
W
Y
Display Lights
Standard Button
Square 18mm
SPDT
DPDT
AB6Q-M1-j
AB6Q-M2-j
AB6Q-M1P-j
AB6Q-M2P-j
AB6Q-A1-j
AB6Q-A2-j
AB6Q-A1P-j
AB6Q-A2P-j
Rectangular 18mm x 24mm
SPDT
DPDT
AB6H-M1-j
AB6H-M2-j
AB6H-M1P-j
AB6H-M2P-j
AB6H-A1-j
AB6H-A2-j
AB6H-A1P-j
AB6H-A2P-j
Relays & Sockets
Round 23.5mm
SPDT
DPDT
–
AB6M-M1P-Mj
AB6M-M2P-Mj
–
AB6M-A1P-Mj
AB6M-A2P-Mj
1. In place of
j
, specify Button Color Code
from the table at right.
2. To order as sub-assembled, see page 459.
3. For accessories, see page 466.
4. For dimensions, see page 468.
Oversize Button
Square 23.5mm
SPDT
DPDT
–
AB6Q-M1P-Qj
AB6Q-M2P-Qj
–
AB6Q-A1P-Qj
AB6Q-A2P-Qj
Rectangular 17.5 X 23.5mm
Timers
SPDT
DPDT
–
AB6Q-M1P-Hj
AB6Q-M2P-Hj
–
AB6Q-A1P-Hj
AB6Q-A2P-Hj
AB6-V Pushlock Turn Reset
Shape
Operation
Contact
Part Number
Dustproof (IP40)
Oiltight (IP65)
Remarks
Terminal Blocks
23.5mm Round Mushroom
Pushlock Turn Reset
SPDT
DPDT
AB6M-V1-R
AB6M-V2-R
AB6M-V1P-R
AB6M-V2P-R
1. Button available in red only.
2. Replacement button: order AB6M-V-R
Buzzer
Style
Shape
Voltage
12V DC
Round (18mm)
24V DC
UZ6-12
Part Number
UZ6-11
Buzzer Ratings
Frequency
Amplitude
Operating Voltage
Adjustable Cycle
Current Draw
Life
Insulation Voltage
Operating Temperature
2 khz ± 500 HZ
80db @ 0.1m (at rated voltage)
6V AC/DC or 12 - 24V AC/DC ± 10%
55 to 600 cycles per minute
DC: 7mA, AC: 20mA
1000 hrs. minimum
60V AC/DC
-20 to 55 C (no freezing), 45 to 85% rh
Circuit Breakers
458
www.idec.com
Switches & Pilot Devices

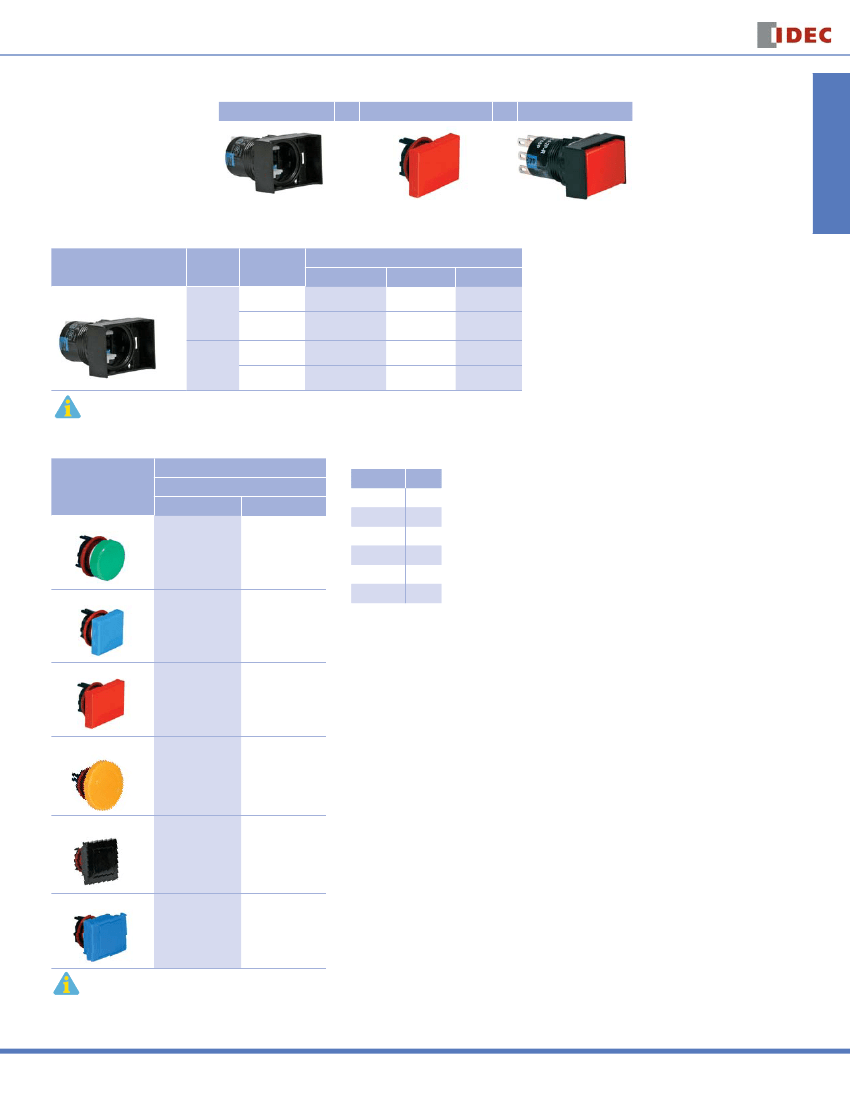

AB6 Non-Illuminated Pushbuttons (Sub-Assembled)
16mm A6
Switches & Pilot Lights
Operator
+
Button
=
Completed Unit
Operators
Style
Non-Illuminated Pushbuttons
SPDT
Maintained
Momentary
DPDT
Maintained
Oversize rectangular button uses square operator.
Contact
Operator
Momentary
Part Number
Round
AB6M-M100
AB6M-A100
AB6M-M200
AB6M-A200
Square
AB6Q-M100
AB6Q-A100
AB6Q-M200
AB6Q-A200
Rectangular
AB6H-M100
AB6H-A100
AB6H-M200
AB6H-A200
Display Lights
Relays & Sockets
Buttons
Part Number
Description
Round
AB6M-BK1-j
AB6M-BK2-j
Button
Dustproof (IP40)
Oiltight (IP65)
jButton
Color Code
Color
Black
Green
Red
Blue
White
Yellow
Code
B
G
R
S
W
Y
Square
AB6Q-BK1-j
AB6Q-BK2-j
Timers
Rectangular
AB6H-BK1-j
AB6H-BK2-j
Round Oversize
Terminal Blocks
–
AB6M-BK2-Mj
Square Oversize
–
AB6Q-BK2-Qj
Rectangular Oversize
Circuit Breakers
–
AB6Q-BK2-Hj
1. In place of
j
, specify Button Color Code from table.
2. Buttons which are rated IP65 include a waterproof rubber gasket.
3. For accessories, see page 466.
USA: 800-262-IDEC
Canada: 888-317-IDEC
459
16mm A6

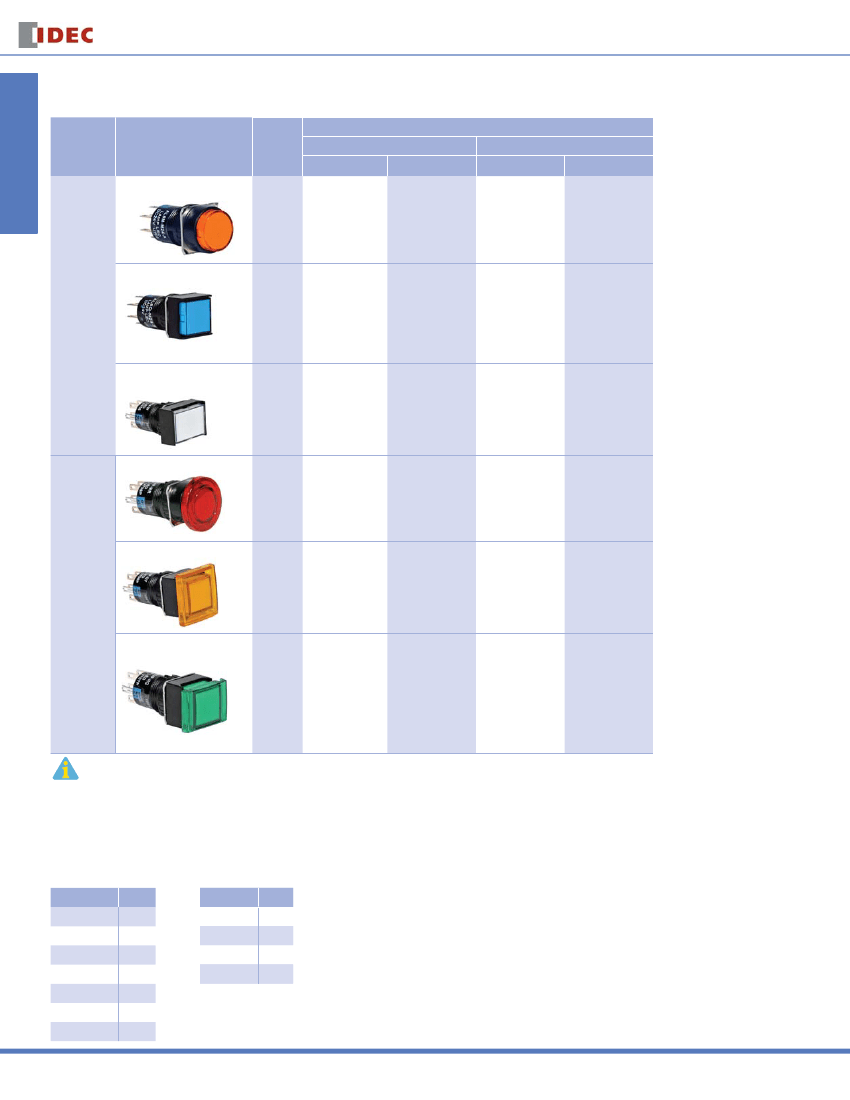

AL6 Illuminated Pushbuttons (Assembled)
Switches & Pilot Lights
Switches & Pilot Devices
LED Illuminated Pushbuttons
Part Numbers
Description
Style
Round (18mm lens)
SPDT
DPDT
AL6M-M1l-k
AL6M-M2l-k
AL6M-M1lP-k
AL6M-M2lP-k
AL6M-A1l-k
AL6M-A2l-k
AL6M-A1lP-k
AL6M-A2lP-k
Contact
Momentary
Dustproof (IP40)
Oiltight (IP65)
Maintained (Latching)
Dustproof (IP40)
Oiltight (IP65)
Square (18mm lens)
Display Lights
Standard
Lens
SPDT
DPDT
AL6Q-M1l-k
AL6Q-M2l-k
AL6Q-M1lP-k
AL6Q-M2lP-k
AL6Q-A1l-k
AL6Q-A2l-k
AL6Q-A1lP-k
AL6Q-A2lP-k
Rectangular (18mm x
24mm lens)
SPDT
DPDT
AL6H-M1l-k
AL6H-M2l-k
AL6H-M1lP-k
AL6H-M2lP-k
AL6H-A1l-k
AL6H-A2l-k
AL6H-A1lP-k
AL6H-A2lP-k
Relays & Sockets
Round (24mm lens)
SPDT
DPDT
–
AL6M-M1lP-Mk
AL6M-M2lP-Mk
–
AL6M-A1lP-Mk
AL6M-A2lP-Mk
Square (24mm lens)
SPDT
DPDT
–
AL6Q-M1lP-Qk
AL6Q-M2lP-Qk
–
AL6Q-A1lP-Qk
AL6Q-A2lP-Qk
Timers
Oversize
Lens
Rectangular (18mm x
24mm lens)
SPDT
DPDT
–
AL6Q-M1lP-Hk
AL6Q-M2lP-Hk
–
AL6Q-A1lP-Hk
AL6Q-A2lP-Hk
Terminal Blocks
1. In place of
k
, specify Lens/LED Color Code from table below.
2. In place of
l
, specify Voltage Code from table below.
3. Lamps also available in 5V DC, 6V AC/DC or 12 V AC/DC, change “4” using voltage/lamp codes (ie AL6M-M13-
k
uses 12V AC/DC LED).
4. LED lamp is included in unit and contains a current-limiting resistor and a protection diode. (External resistor not required.)
5. To order as sub-assembled, see page 461.
6. For accessories, see page 466.
7. For dimensions, see page 468.
8. Light independent of switch position.
kLens/LED
Color Code
Color
Code
A
G
R
S
W
JW
Y
lVoltage
Code
Voltage
5V DC
6V AC/DC
12V AC/DC
24V AC/DC
Code
1
2
3
4
Circuit Breakers
Amber
Green
Red
Blue
Warm White
Cool White
Yellow
460
www.idec.com
Switches & Pilot Devices

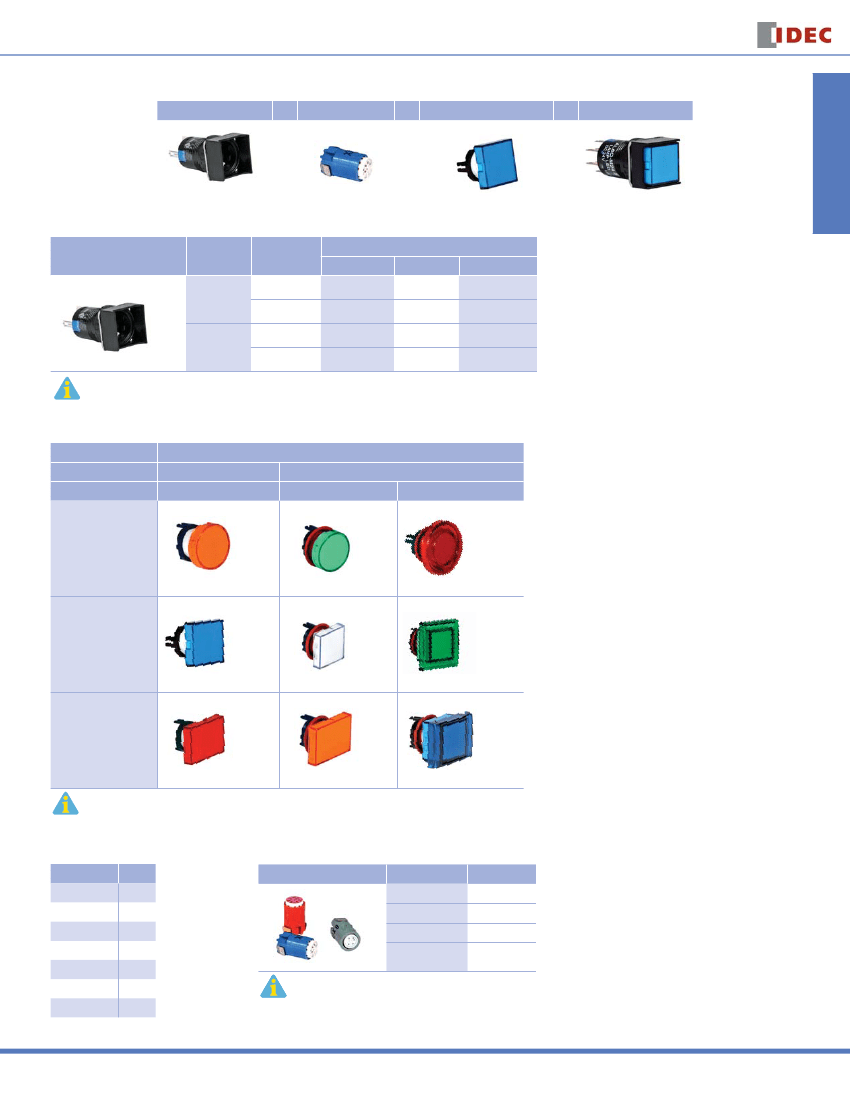

AL6 Illuminated Pushbuttons (Sub-Assembled)
16mm A6
Switches & Pilot Lights
Operator
+
LED Lamp
+
Lens
=
Completed Unit
Operators
Style
AL6 Illuminated Pushbuttons
Contact
Operator
Momentary
SPDT
Maintained
Momentary
DPDT
Maintained
Oversize rectangular button uses square operator.
Part Number
Round
AL6M-M100
AL6M-A100
AL6M-M200
AL6M-A200
Square
AL6Q-M100
AL6Q-A100
AL6Q-M200
AL6Q-A200
Rectangular
Display Lights
AL6H-M100
AL6H-A100
AL6H-M200
AL6H-A200
Lenses
Unit
Degree of Protection
Size
Dustproof (IP40)
Standard
AL6M-LK1-k
Round
Standard
AL6M-LK2-k
Part Number
Oiltight (IP65)
Oversize
AL6M-LK2-M
k
Relays & Sockets
AL6Q-LK1-k
Square
AL6Q-LK2-k
AL6Q-LK2-Q
k
Timers
AL6H-LK1-k
Rectangular
AL6H-LK2-k
AL6Q-LK2-H
k
Terminal Blocks
1. In place of
k
, specify Lens Color Code from table below.
2. Lenses which are rated IP65 include a waterproof rubber gasket.
3. For accessories, see page 466.
kLens/LED
Color Code
Color
Amber
Green
Red
Blue
Warm White
Cool White
Yellow
Code
A
G
R
S
W
JW
Y
LED Lamps
Appearance
Rated Voltage
5V DC
6V AC/DC
12V AC/DC
24V AC/DC
Part Number
LATD-5
k
LATD-6
k
LATD-1
k
LATD-2
k
Circuit Breakers
1. In place of
k
, specify LED Color Code from table at left.
USA: 800-262-IDEC
Canada: 888-317-IDEC
461
