and 21 dBm output P1dB provide excellent linearity
for transmit lineups.
The packaged amplifier comes in an industry
standard lead free 4 mm QFN package. The device
includes on-chip ESD protection structures and DC
by-pass capacitors to ease the implementation and
volume assembly of the packaged part.
The device is specifically designed for use in 18 and
23 GHz point-to-point radios for cellular backhaul
applications.
3
10
4
9
5
6
7
8
N/C
N/C
N/C
N/C
Pin Configuration
3
Pin No.
1
2
3
4
Function
No Connection
Ground
RF Input
Ground
No Connection
No Connection
No Connection
No Connection
Pin No.
9
10
11
12
13
14
15
16
17
Function
No Connection
Ground
RF Output
Ground
VD2
VG2
VD1
VG1
Paddle
4
Ordering Information
1,2
Part Number
MAAM-011132-TR0500
MAAM-011132-TR1000
MAAM-011132-000SMB
Package
500 Piece Reel
1000 Piece Reel
Sample Board
5
6
7
8
1. Reference Application Note M513 for reel size information.
2. All sample boards include 5 loose parts.
3. For optimum RF performance, all N/C’s should be terminated
to ground.
4. The exposed pad centered on the package bottom must be
connected to RF and DC ground.
* Restrictions on Hazardous Substances, European Union Directive 2011/65/EU.
1
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macomtech.com for additional data sheets and product information.
5. Apply gate voltages prior to drain voltages. Adjust VG1 and VG2 between –1.0 and –0.1 V to achieve specified drain current.
Typical current,180 mA = 90 (ID1) + 90 (ID2)
Absolute Maximum Ratings
6,7,8
Parameter
Drain Voltage
Gate Bias Voltage (VG1,2)
Input Power
Storage Temperature
Operating Temperature
Junction Temperature
Absolute Max.
+4.3 V
-1.5V < VG < 0V
+3 dBm
-55°C to +150°C
-40°C to +85°C
150°C
Handling Procedures
Please observe the following precautions to avoid
damage:
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
static sensitive devices.
6. Exceeding any one or combination of these limits may cause
permanent damage to this device.
7. MACOM does not recommend sustained operation near
these survivability limits.
8. Operating at nominal conditions with T
J
≤ 150°C will ensure
MTTF > 1 x 10
6
hours.
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macomtech.com for additional data sheets and product information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
MAAM-011132
Driver Amplifier
17.7 - 23.6 GHz

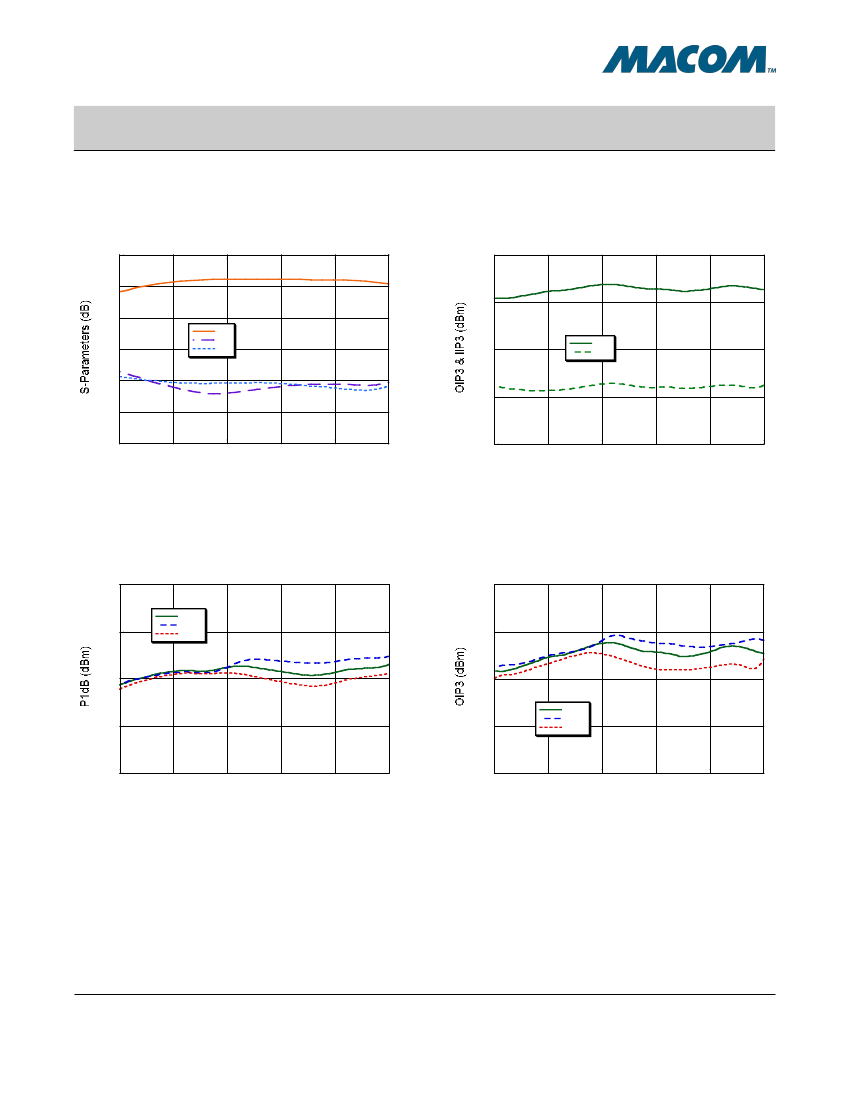

Typical Performance Curves:
VD1,2 = 4 V, ID1 = ID2 = 90 mA
S-Parameters vs. Frequency
30
20
30
Rev. V1
Output / Input IP3 vs. Frequency
40
10
0
-10
10
S21
S11
S22
20
OIP3
IIP3
-20
-30
0
15
17
19
21
23
25
15
17
19
21
23
25
Frequency (GHz)
Frequency (GHz)
Output P1dB vs. Frequency
30
+25°C
-40°C
+85°C
Output IP3 vs. Frequency
40
25
35
20
30
+25°C
-40°C
+85°C
15
25
10
15
17
19
21
23
25
20
15
17
19
21
23
25
Frequency (GHz)
Frequency (GHz)
3
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macomtech.com for additional data sheets and product information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
MAAM-011132
Driver Amplifier
17.7 - 23.6 GHz

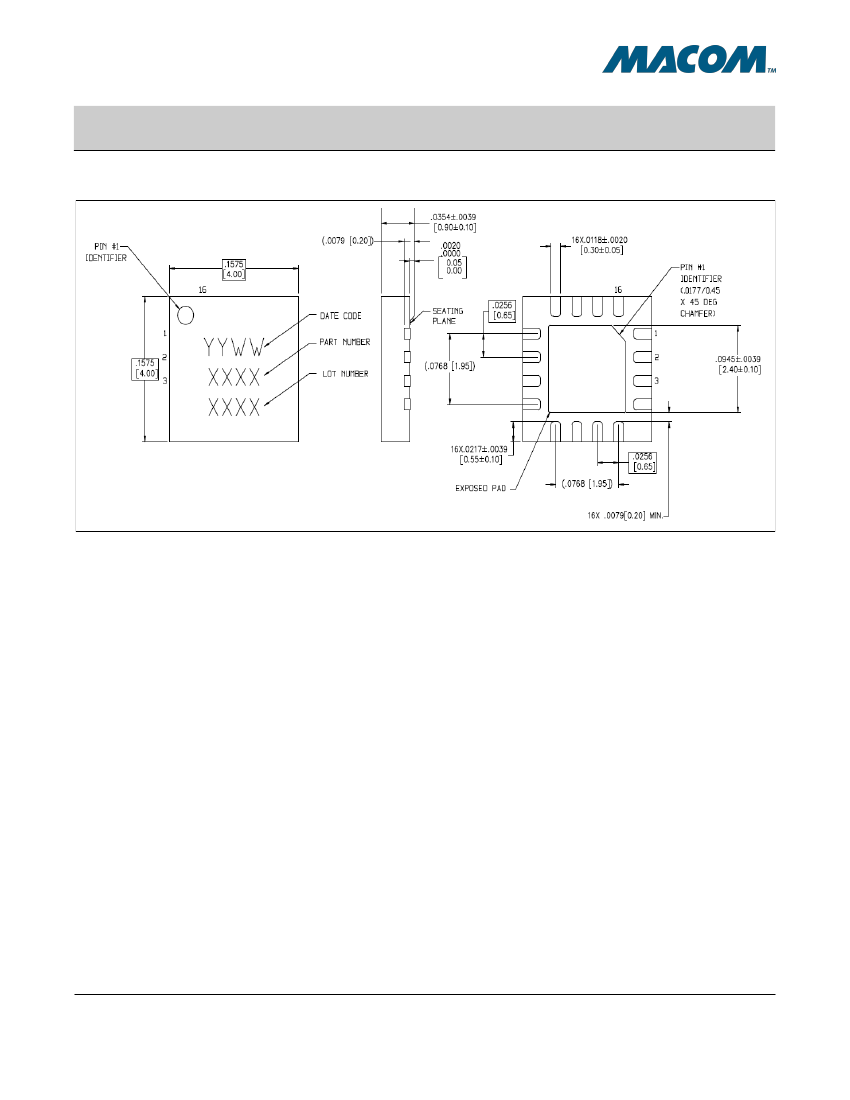

Lead-Free
4 mm 16-Lead PQFN
†
Rev. V1
†
Reference Application Note S2083 for lead-free solder reflow recommendations and PCB footprint information.
Reference JEDEC MO-220,VAR,VGGC for additional dimensional and tolerance information.
All dimensions shown as in/mm
4
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macomtech.com for additional data sheets and product information.
