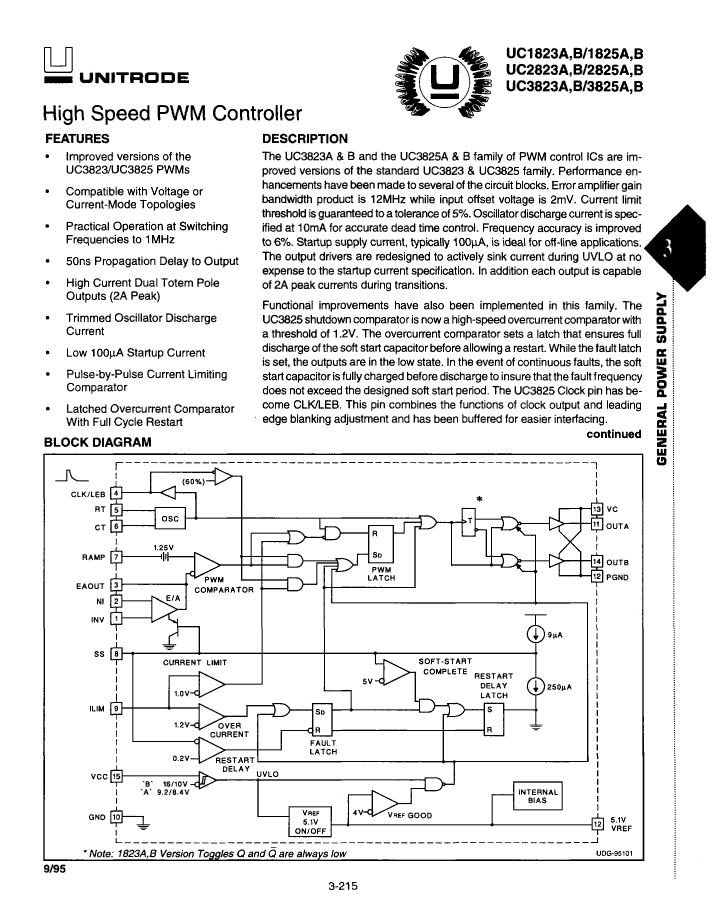

UC1825AJ/883B datasheet, PDF - EEWORLD Datasheet

UC1825AJ/883B: DescriptionSwitching Controller, Current-mode, 2.2A, 1000kHz Switching Freq-Max, CDIP16,; CategoryPower/power management The power supply circuit; File Size346KB，8 Pages; ManufacturerUnitrode Corporation

Download Datasheet Parametric View All

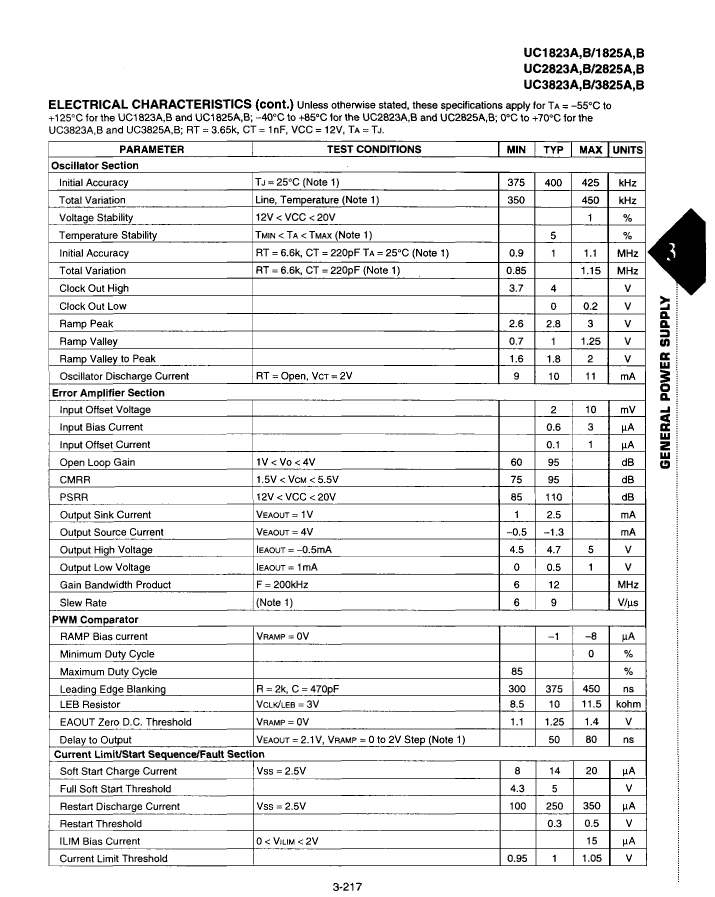

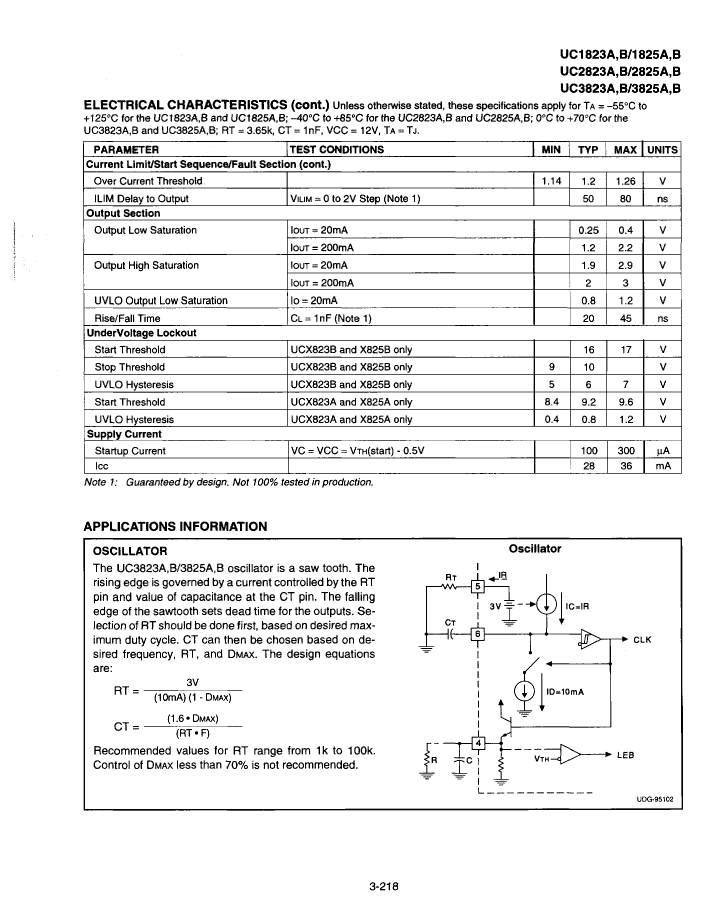

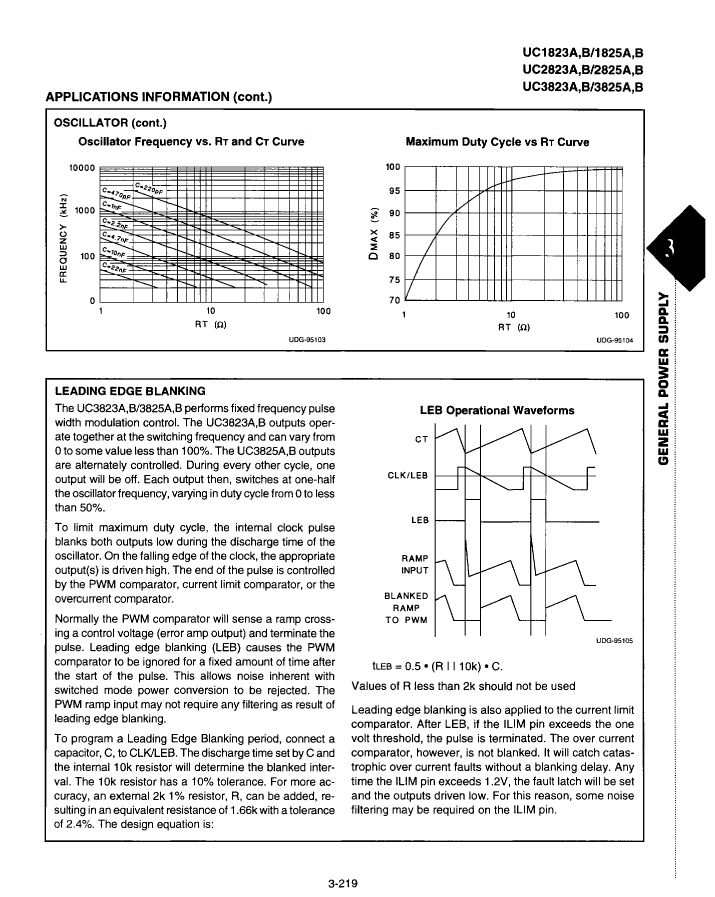

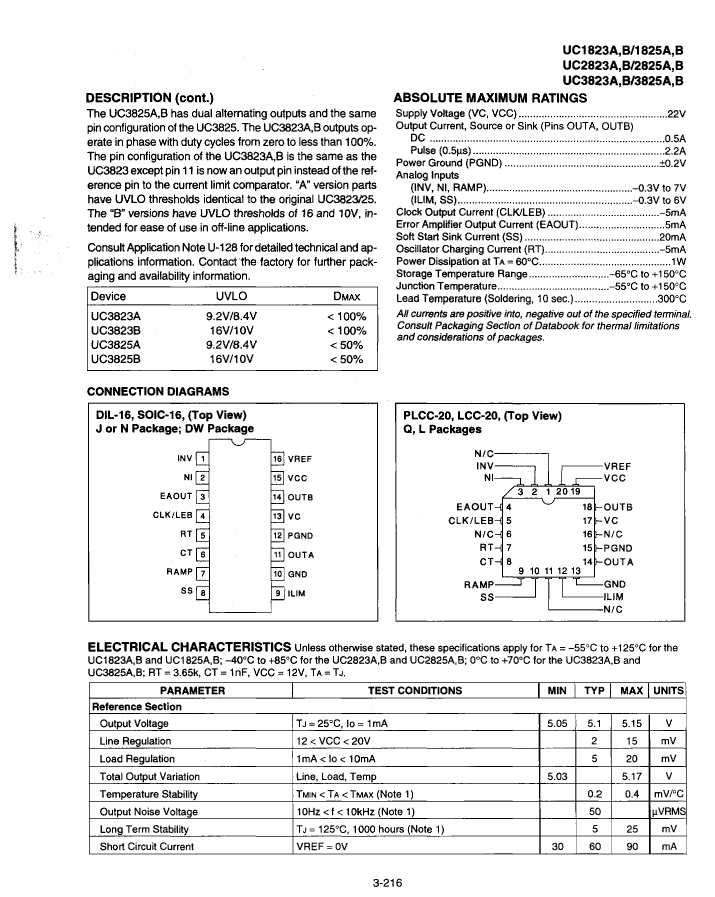

UC1825AJ/883B Overview

Switching Controller, Current-mode, 2.2A, 1000kHz Switching Freq-Max, CDIP16,

Parameter Name	Attribute value
Maker	Unitrode Corporation
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	20 V
Minimum input voltage	12 V
Nominal input voltage	12 V
JESD-30 code	R-CDIP-T16
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	2.2 A
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply current (Isup)	36 mA
surface mount	NO
Switch configuration	SINGLE
Maximum switching frequency	1000 kHz
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
