UC1825J/883B: DescriptionSwitching Controller, Current-mode, 2A, 1000kHz Switching Freq-Max, CDIP16,; CategoryPower/power management The power supply circuit; File Size231KB，7 Pages; ManufacturerUnitrode Corporation

Download Datasheet Parametric Compare View All

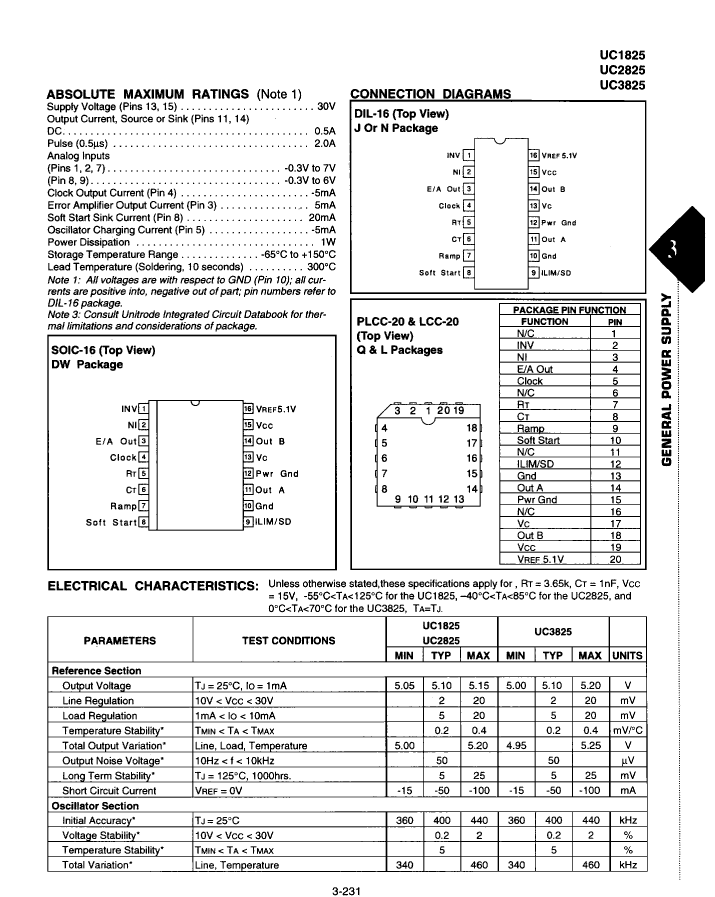

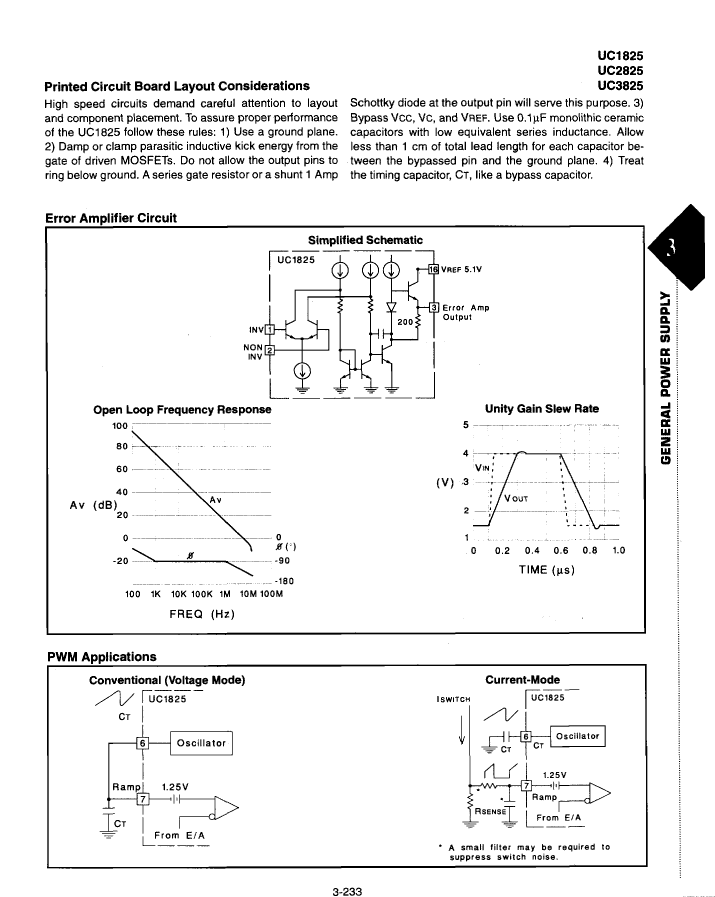

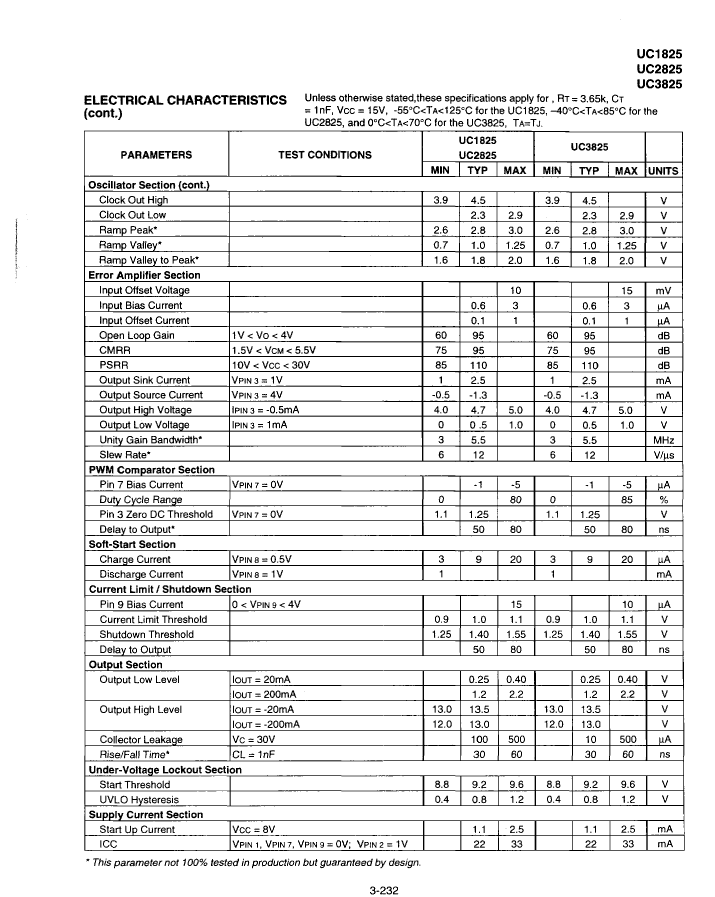

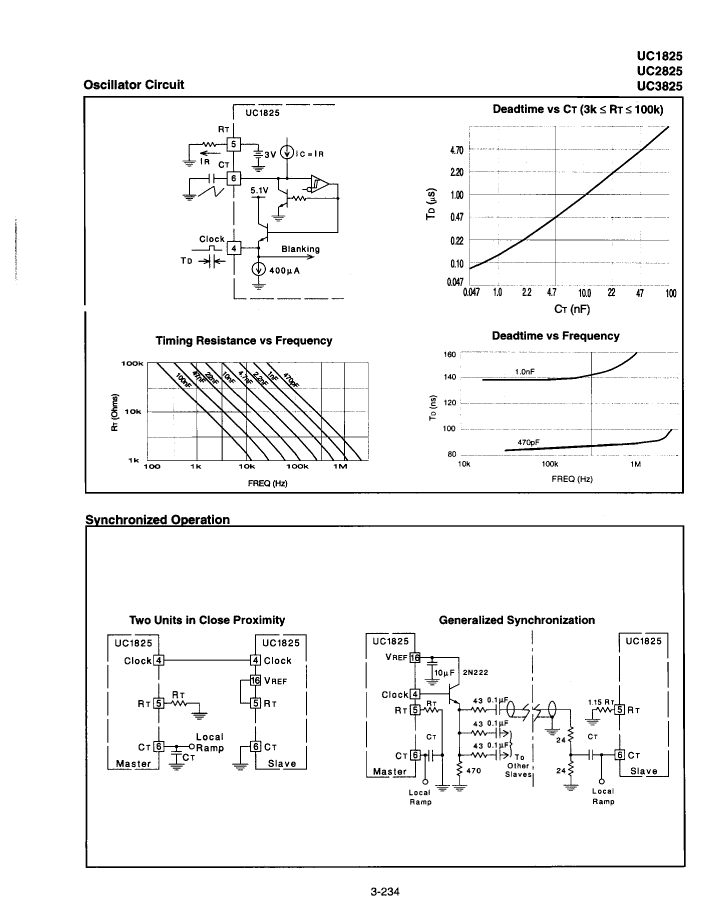

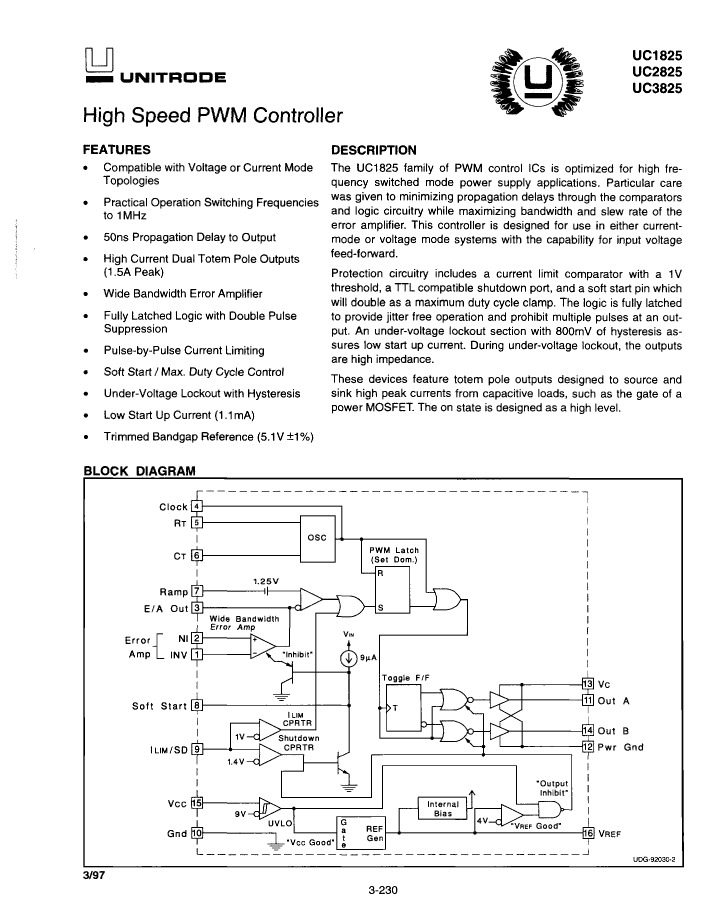

UC1825J/883B Overview

Switching Controller, Current-mode, 2A, 1000kHz Switching Freq-Max, CDIP16,

Parameter Name	Attribute value
Maker	Unitrode Corporation
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	30 V
Minimum input voltage	10 V
Nominal input voltage	15 V
JESD-30 code	R-CDIP-T16
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	2 A
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply current (Isup)	33 mA
surface mount	NO
Switch configuration	SINGLE
Maximum switching frequency	1000 kHz
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL

	UC1825J/883B	UC1825L/883B	5962-87681012A
Description	Switching Controller, Current-mode, 2A, 1000kHz Switching Freq-Max, CDIP16,	Switching Controller, Current-mode, 2A, 1000kHz Switching Freq-Max, CQCC20,	Switching Controller, Current-mode, 2A, 1000kHz Switching Freq-Max, BIPolar, CQCC20,
Maker	Unitrode Corporation	Unitrode Corporation	Unitrode Corporation
Reach Compliance Code	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER
control mode	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum input voltage	30 V	30 V	30 V
Minimum input voltage	10 V	10 V	10 V
Nominal input voltage	15 V	15 V	15 V
JESD-30 code	R-CDIP-T16	S-CQCC-N20	S-CQCC-N20
Number of functions	1	1	1
Number of terminals	16	20	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Maximum output current	2 A	2 A	2 A
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	SQUARE	SQUARE
Package form	IN-LINE	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	33 mA	33 mA	33 mA
surface mount	NO	YES	YES
Switch configuration	SINGLE	SINGLE	SINGLE
Maximum switching frequency	1000 kHz	1000 kHz	1000 kHz
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD	NO LEAD
Terminal location	DUAL	QUAD	QUAD
Base Number Matches	-	1	1
