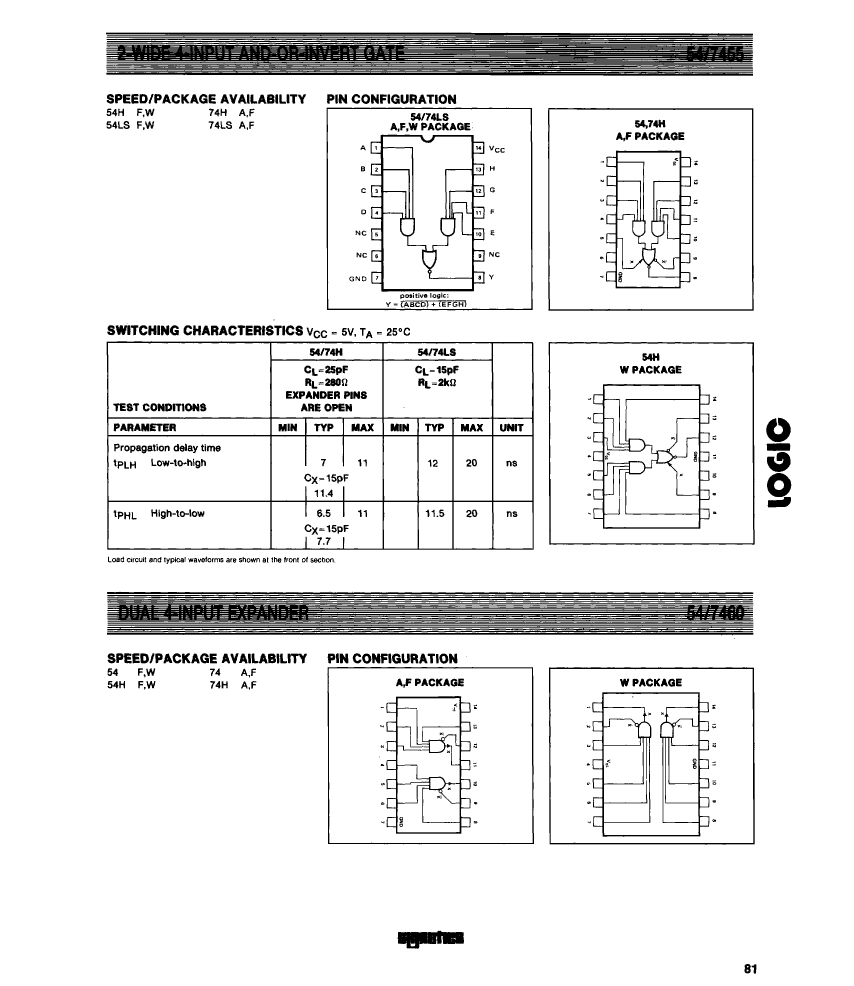

JM38510/04005BCB

Description
AND-OR-Invert Gate, TTL/H/L Series, 1-Func, 8-Input, TTL, CDIP14
Categorylogic    logic
File Size57KB,2 Pages
ManufacturerSignetics
Download Datasheet Parametric View All

JM38510/04005BCB Overview

AND-OR-Invert Gate, TTL/H/L Series, 1-Func, 8-Input, TTL, CDIP14

JM38510/04005BCB Parametric

Parameter NameAttribute value
MakerSignetics
package instruction,
Reach Compliance Codeunknown
Other featuresEXPANDABLE
seriesTTL/H/L
JESD-30 codeR-GDIP-T14
Load capacitance (CL)25 pF
Logic integrated circuit typeAND-OR-INVERT GATE
Number of functions1
Number of entries8
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC, GLASS-SEALED
Package shapeRECTANGULAR
Package formIN-LINE
Maximum supply current (ICC)12 mA
propagation delay (tpd)11 ns
Certification statusNot Qualified
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelMILITARY
Terminal formTHROUGH-HOLE
Terminal locationDUAL
