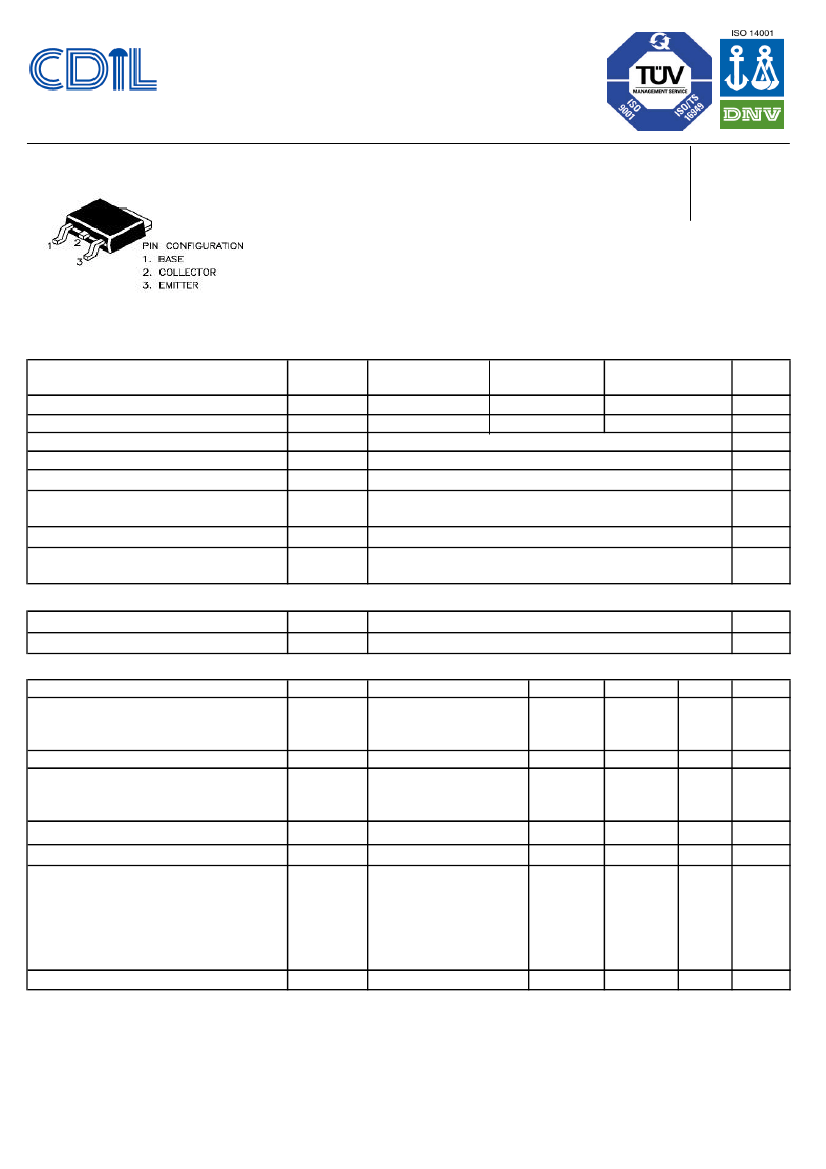

Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company
EPITAXIAL SILICON POWER TRANSISTORS
CJD175
CJD177
CJD179
NPN
CJD176
CJD178
CJD180
PNP
DPAK (TO-252)
Plastic Package
Intended for use in Medium Power Linear Switching Applications
ABSOLUTE MAXIMUM RATINGS
DESCRIPTION
Collector -Emitter Voltage
Collector -Base Voltage
Emitter Base Voltage
Collector Current
Collector Peak Current
Power Dissipation @ T
a
=25ºC
Derate above 25ºC
Power Dissipation @ T
c
=25ºC
Operating and Storage Junction
Temperature Range
THERMAL CHARACTERISTICS
Junction to Ambient in free air
Junction to Case
SYMBOL
V
CEO
V
CBO
V
EBO
I
C
I
CM
P
D
P
D
T
j
, T
stg
CJD175
CJD176
45
45
CJD177
CJD178
60
60
5.0
3.0
7.0
1.25
10
30
- 65 to +150
CJD179
CJD180
80
80
UNIT
V
V
V
A
A
W
mW/ºC
W
ºC
R
th (j-a)
R
th (j-c)
100
4.16
MIN
CJD175/76
CJD177/78
CJD179/80
CJD175/76
CJD177/78
CJD179/80
45
60
80
0.8
1.3
40
15
-6
- 10
- 16
40
63
100
3.0
100
160
250
MAX
100
100
100
1.0
ºC/W
ºC/W
UNIT
µA
µA
µA
mA
V
V
V
V
V
ELECTRICAL CHARACTERISTICS (T
c
=25ºC unless specified otherwise)
DESCRIPTION
SYMBOL
TEST CONDITION
I
CBO
V
CB
=45V
,
I
E
=0
Collector Cut off Current
V
CB
=60V
,
I
E
=0
V
CB
=80V
,
I
E
=0
I
EBO
V
EB
=5V, I
C
=0
Emitter Cut off Current
*V
CEO (sus)
I
C
=100mA, I
B
=0
Collector Emitter Sustaining Voltage
Collector Emitter Saturation Voltage
Base Emitter on Voltage
DC Current Gain
*V
CE (sat)
*V
BE (on)
*h
FE
*h
FE
Group
I
C
=1A, I
B
=0.1A
I
C
=1A, V
CE
=2V
I
C
=150mA, V
CE
=2V
I
C
=1A, V
CE
=2V
I
C
=150mA, V
CE
=2V
Only CJD175/76/79
f
T
Transition Frequency
*Pulse test:- Pulse width=300µs, Duty cycle=1.5%
µ
CJD175_180Rev110106E
I
C
=250mA, V
CE
=10V
ΜΗz
Continental Device India Limited
Data Sheet
Page 1 of 3

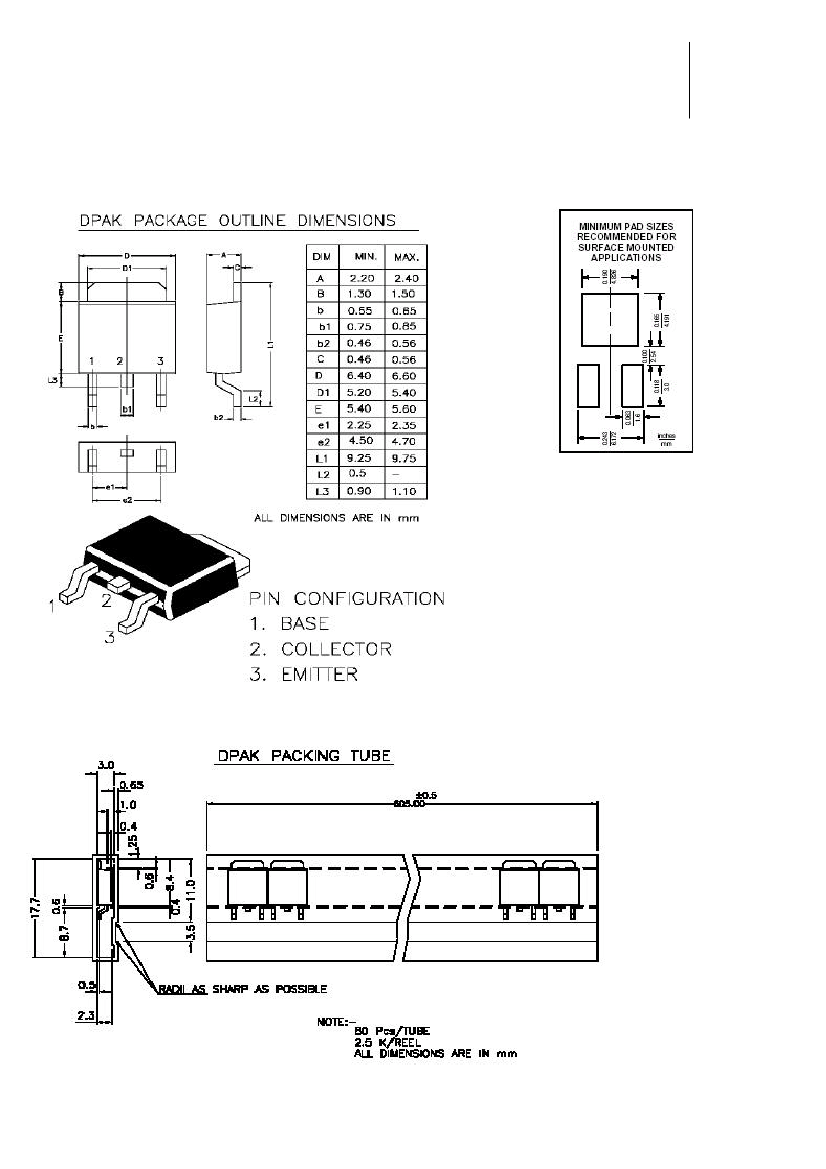

Customer Notes
CJD175
CJD177
CJD179
NPN
CJD176
CJD178
CJD180
PNP
DPAK (TO-252)
Plastic Package
Component Disposal Instructions
1. CDIL Semiconductor Devices are RoHS compliant, customers are requested to please
dispose as per prevailing Environmental Legislation of their Country.
2.
In Europe, please dispose as per EU Directive 2002/96/EC on Waste Electrical and
Electronic Equipment (WEEE).
Disclaimer
The product information and the selection guides facilitate selection of the CDIL's Semiconductor Device(s) best suited for
application in your product(s) as per your requirement. It is recommended that you completely review our Data Sheet(s) so as to
confirm that the Device(s) meet functionality parameters for your application. The information furnished in the Data Sheet and on
the CDIL Web Site/CD are believed to be accurate and reliable. CDIL however, does not assume responsibility for inaccuracies
or incomplete information. Furthermore, CDIL does not assume liability whatsoever, arising out of the application or use of any
CDIL product; neither does it convey any license under its patent rights nor rights of others. These products are not designed for
use in life saving/support appliances or systems. CDIL customers selling these products (either as individual Semiconductor
Devices or incorporated in their end products), in any life saving/support appliances or systems or applications do so at their own
risk and CDIL will not be responsible for any damages resulting from such sale(s).
CDIL strives for continuous improvement and reserves the right to change the specifications of its products without prior notice.
CDIL is a registered Trademark of
Continental Device India Limited
C-120 Naraina Industrial Area, New Delhi 110 028, India.
Telephone + 91-11-2579 6150, 4141 1112 Fax + 91-11-2579 5290, 4141 1119
email@cdil.com
www cdilsemi.com
CJD175_180Rev110106E
Continental Device India Limited
Data Sheet
Page 3 of 3
