DS2013 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> DS2013

DS2013: DescriptionFIFO, 8KX9, 120ns, Asynchronous, CMOS, PDIP28,; Categorystorage storage; File Size376KB，14 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric Compare View All

DS2013 Overview

FIFO, 8KX9, 120ns, Asynchronous, CMOS, PDIP28,

DS2013 Parametric

Parameter Name	Attribute value
Maker	DALLAS
Reach Compliance Code	unknown
Maximum access time	120 ns
Other features	RETRANSMIT
period time	140 ns
JESD-30 code	R-PDIP-T28
memory density	73728 bit
memory width	9
Number of functions	1
Number of terminals	28
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8KX9
Exportable	NO
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL

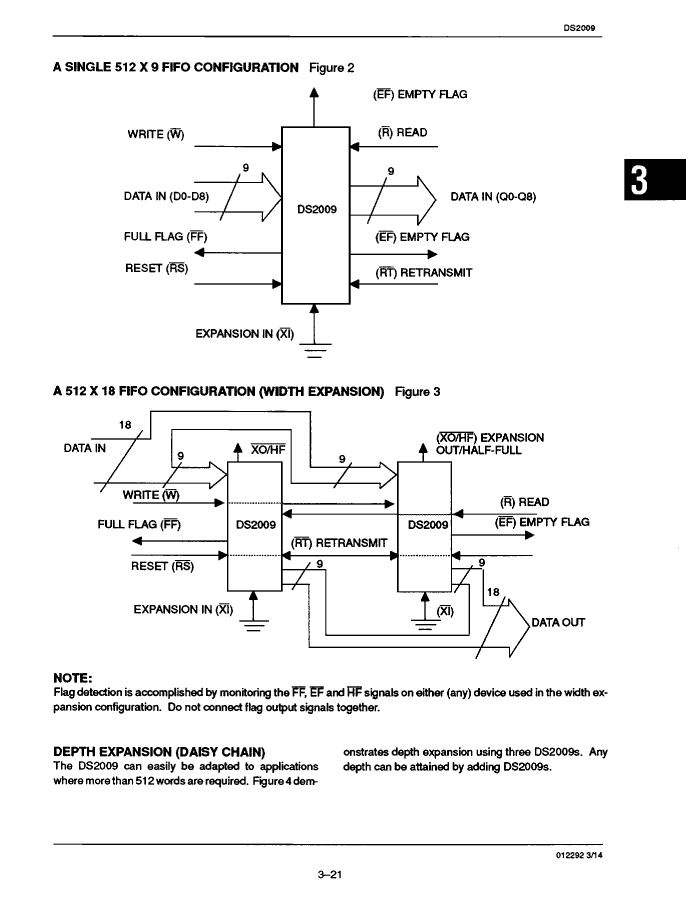

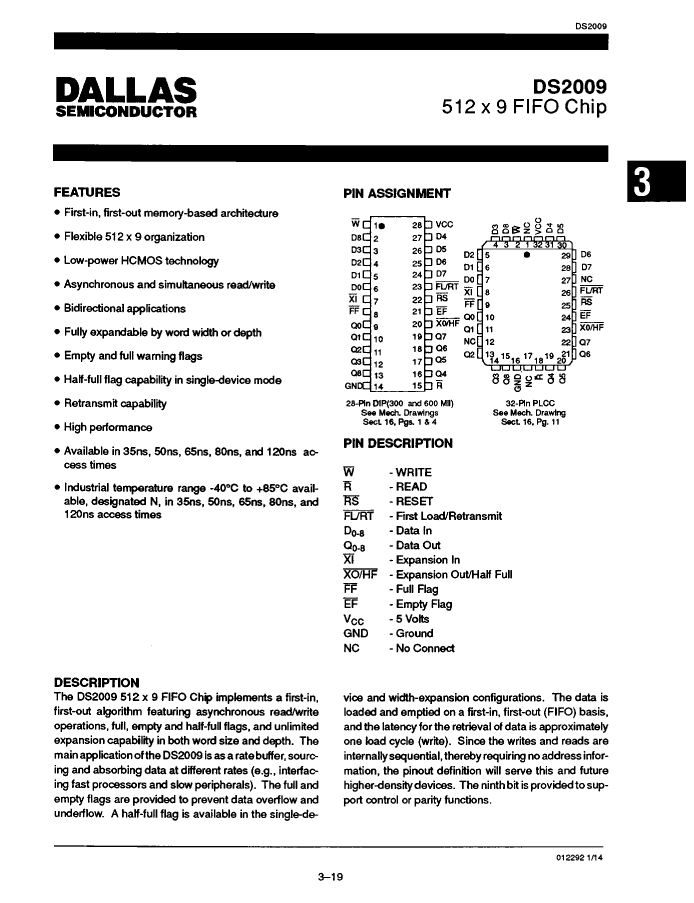

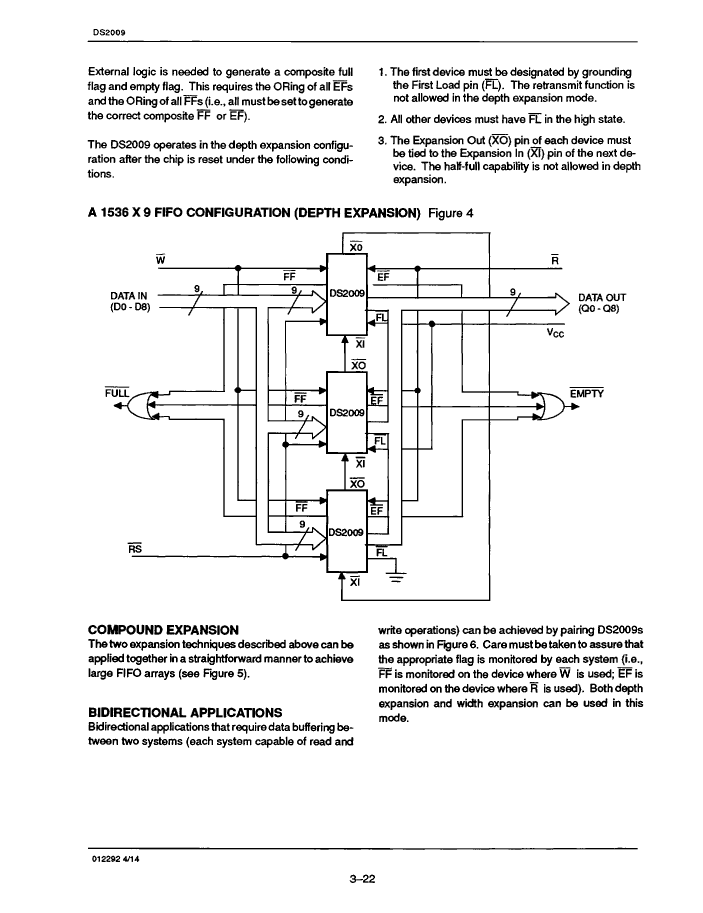

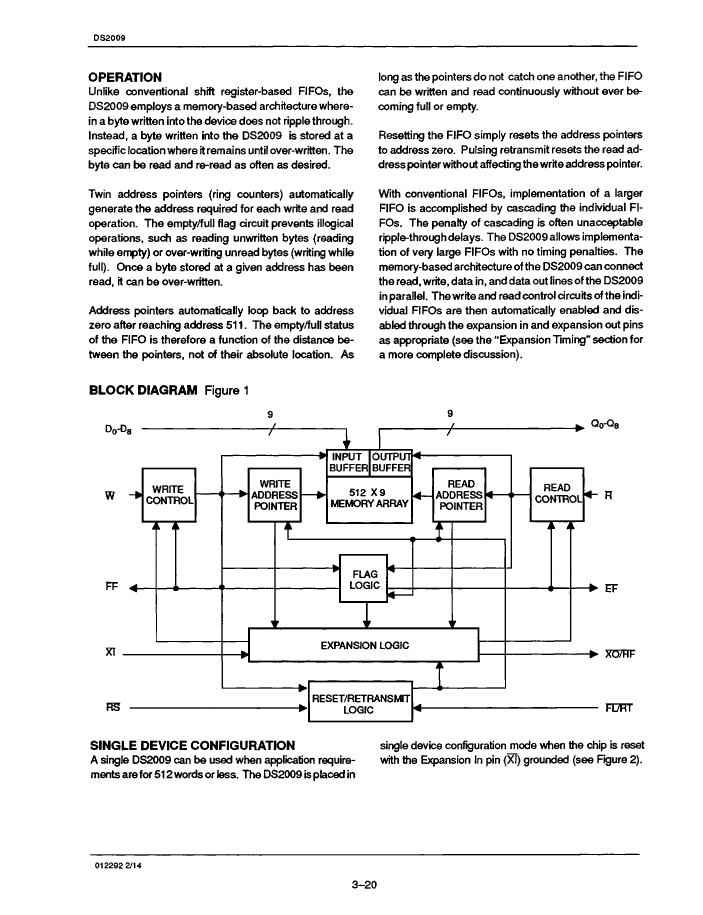

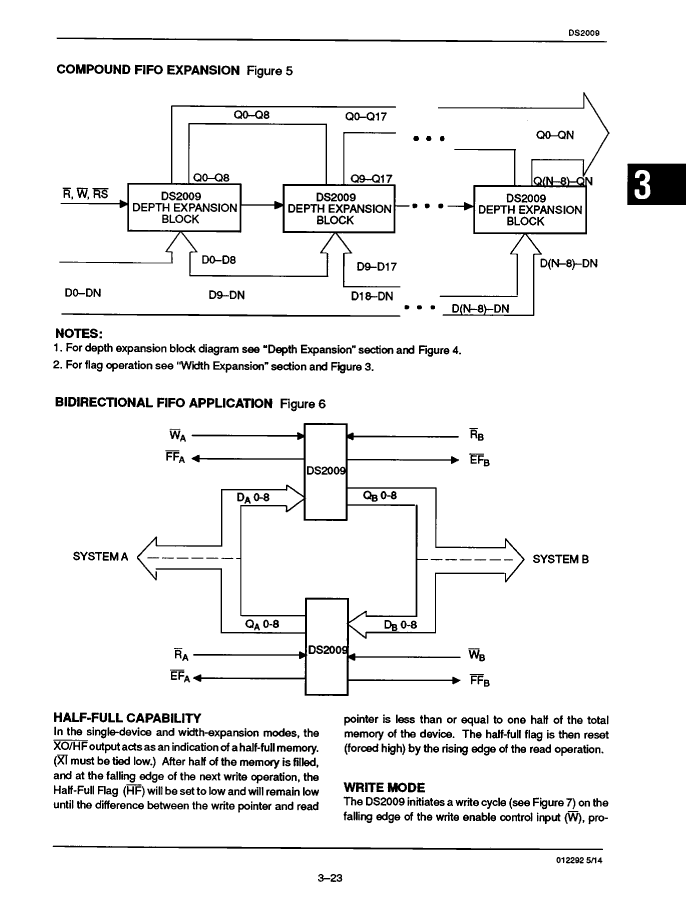

Preview

Download Datasheet

View All

DS2013 Related Products

	DS2013	DS2010R	DS2011R	DS2011D	DS2013D	DS2009D	DS2009R	DS2011	DS2010	DS2010D
Description	FIFO, 8KX9, 120ns, Asynchronous, CMOS, PDIP28,	FIFO, 1KX9, 120ns, Asynchronous, CMOS, PQCC32,	FIFO, 2KX9, 120ns, Asynchronous, CMOS, PQCC32,	FIFO, 2KX9, 120ns, Asynchronous, CMOS, PDIP28,	FIFO, 8KX9, 120ns, Asynchronous, CMOS, PDIP28,	FIFO, 512X9, 120ns, Asynchronous, CMOS, PDIP28,	FIFO, 512X9, 120ns, Asynchronous, CMOS, PQCC32,	FIFO, 2KX9, 120ns, Asynchronous, CMOS, PDIP28,	FIFO, 1KX9, 120ns, Asynchronous, CMOS, PDIP28,	FIFO, 1KX9, 120ns, Asynchronous, CMOS, PDIP28,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	120 ns	120 ns	120 ns	120 ns	120 ns	120 ns	120 ns	120 ns	120 ns	120 ns
Other features	RETRANSMIT	RETRANSMIT	RETRANSMIT	RETRANSMIT	RETRANSMIT	RETRANSMIT	RETRANSMIT	RETRANSMIT	RETRANSMIT	RETRANSMIT
period time	140 ns	140 ns	140 ns	140 ns	140 ns	140 ns	140 ns	140 ns	140 ns	140 ns
JESD-30 code	R-PDIP-T28	R-PQCC-J32	R-PQCC-J32	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28	R-PQCC-J32	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28
memory density	73728 bit	9216 bit	18432 bit	18432 bit	73728 bit	4608 bit	4608 bit	18432 bit	9216 bit	9216 bit
memory width	9	9	9	9	9	9	9	9	9	9
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	28	32	32	28	28	28	32	28	28	28
word count	8192 words	1024 words	2048 words	2048 words	8192 words	512 words	512 words	2048 words	1024 words	1024 words
character code	8000	1000	2000	2000	8000	512	512	2000	1000	1000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	8KX9	1KX9	2KX9	2KX9	8KX9	512X9	512X9	2KX9	1KX9	1KX9
Exportable	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	NO	NO	YES	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	J BEND	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	QUAD	QUAD	DUAL	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL
Maker	DALLAS	-	-	-	DALLAS	DALLAS	DALLAS	DALLAS	DALLAS	DALLAS
