MC74F38J datasheet, PDF - EEWORLD Datasheet

MC74F38J: DescriptionNAND Gate, TTL, CDIP14; Categorylogic logic; File Size594KB，8 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

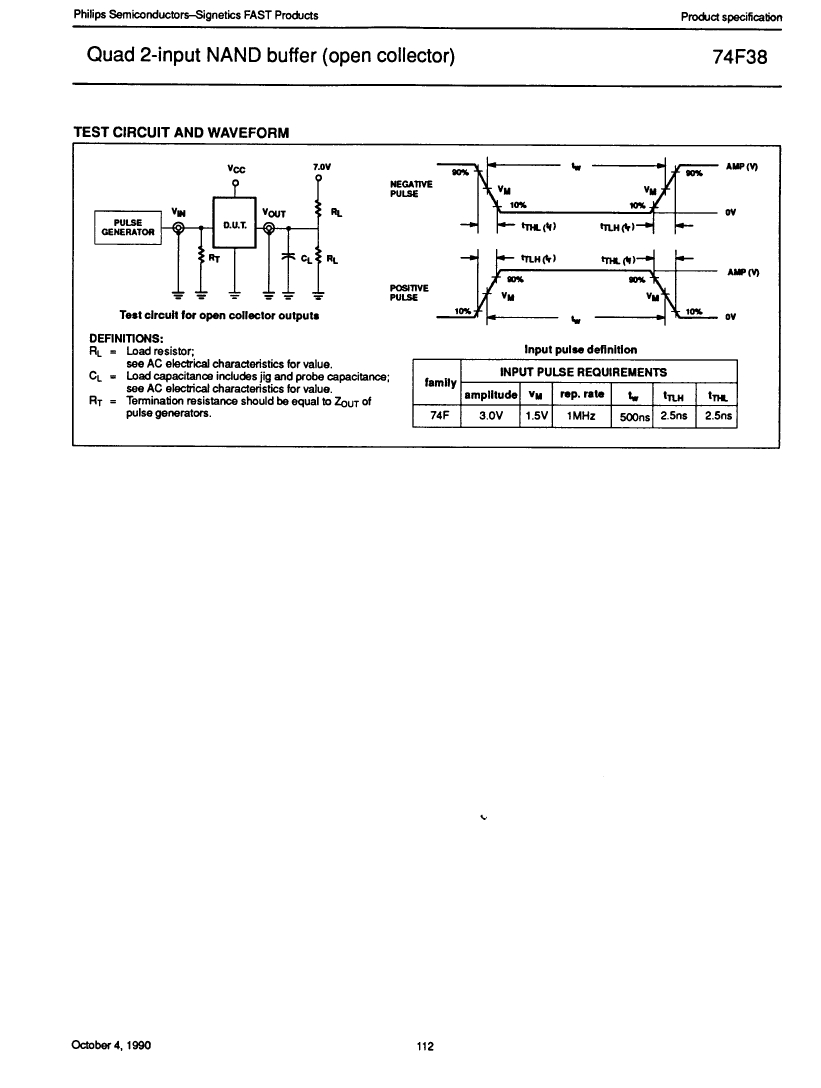

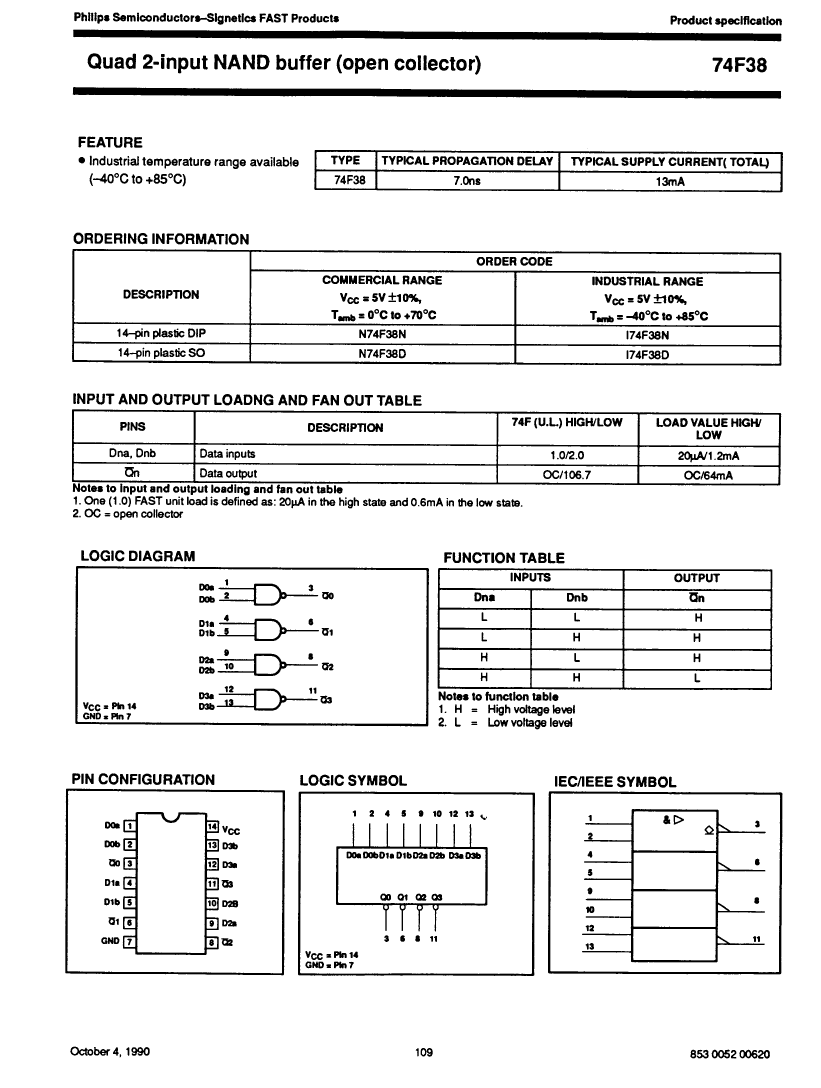

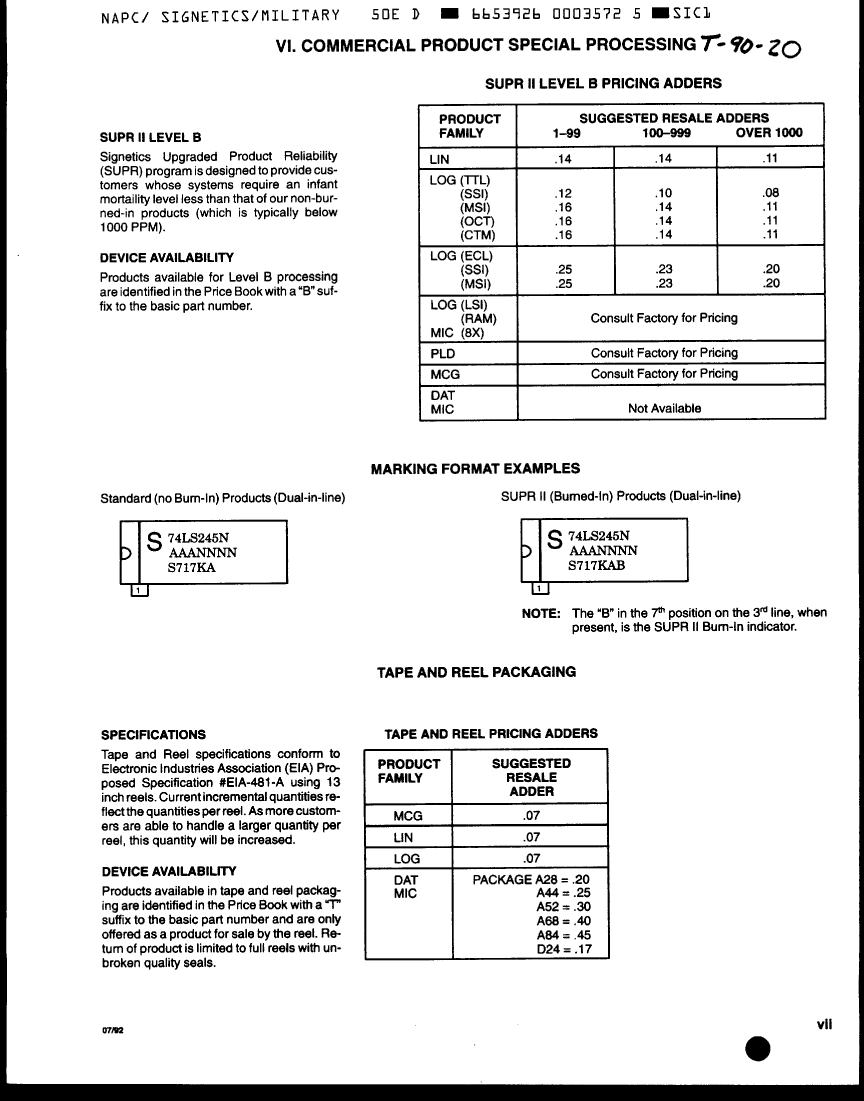

MC74F38J Overview

NAND Gate, TTL, CDIP14

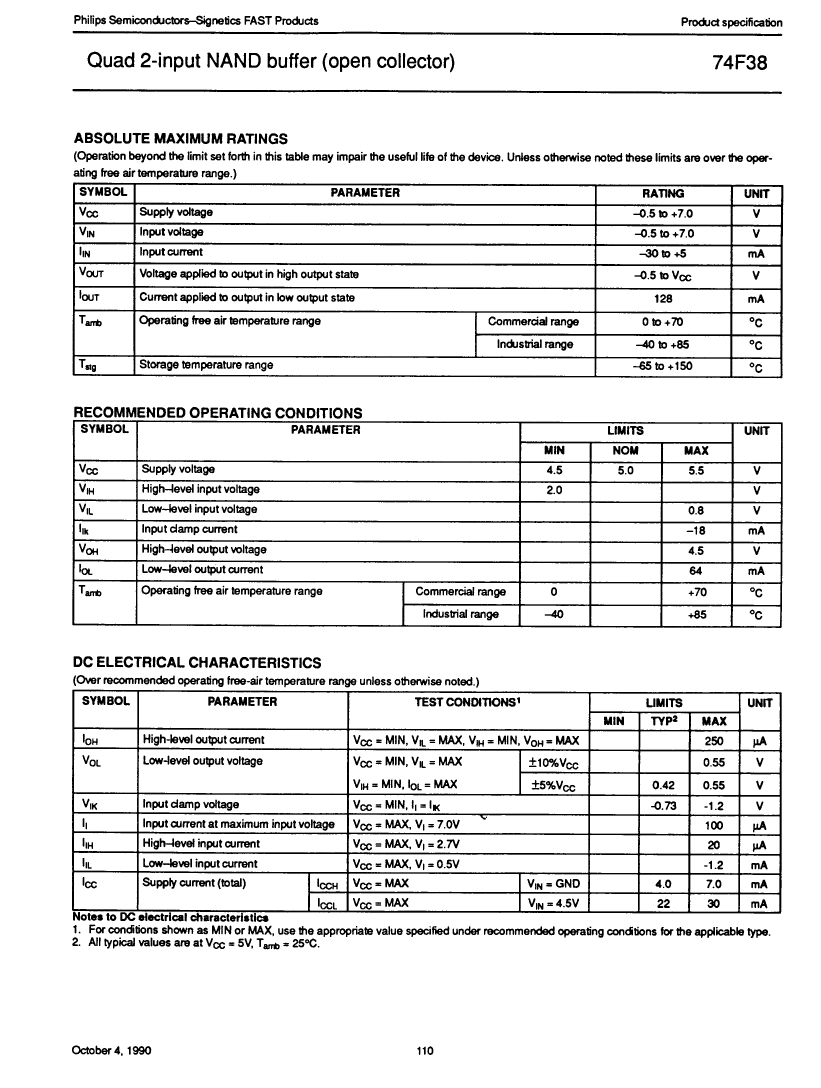

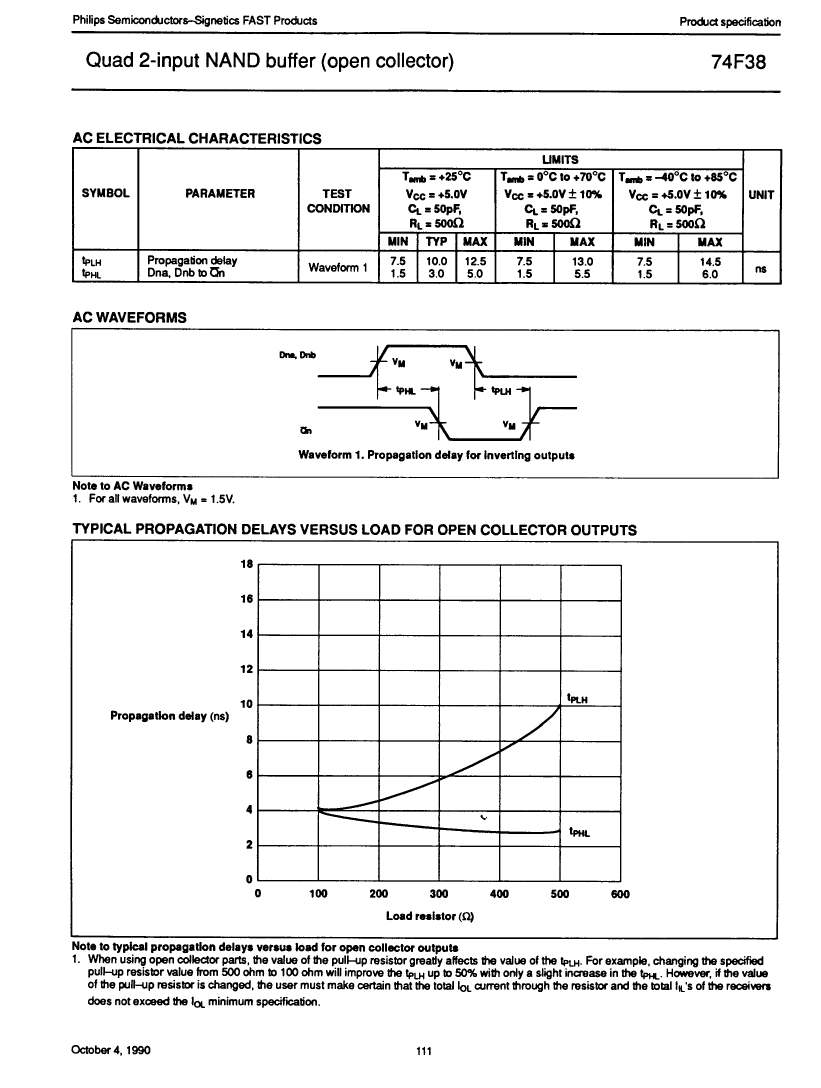

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.064 A
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	OPEN-COLLECTOR
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	30 mA
Prop。Delay @ Nom-Sup	13 ns
Certification status	Not Qualified
Schmitt trigger	NO
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	MC74F38J	54F38/B2C	N74F38N-B
Description	NAND Gate, TTL, CDIP14	NAND Gate, TTL, CQCC20	NAND Gate, TTL, PDIP14,
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code	unknown	unknown	unknown
JESD-30 code	R-XDIP-T14	S-XQCC-N20	R-PDIP-T14
JESD-609 code	e0	e0	e0
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE
MaximumI(ol)	0.064 A	0.02 A	0.064 A
Number of terminals	14	20	14
Maximum operating temperature	70 °C	125 °C	70 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	QCCN	DIP
Encapsulate equivalent code	DIP14,.3	LCC20,.35SQ	DIP14,.3
Package shape	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	IN-LINE
power supply	5 V	5 V	5 V
Maximum supply current (ICC)	30 mA	30 mA	30 mA
Prop。Delay @ Nom-Sup	13 ns	14.5 ns	13 ns
Schmitt trigger	NO	NO	NO
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	NO
technology	TTL	TTL	TTL
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	NO LEAD	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL
Certification status	Not Qualified	Not Qualified	-
