SCPI-X2520B-332NJL datasheet, PDF

Datasheet> All Categories > Passive components> inductor> SCPI-X2520B-332NJL

SCPI-X2520B-332NJL: DescriptionGeneral Purpose Inductor, 3.3uH, 30%, 1 Element, SMD, CHIP, ROHS COMPLIANT; CategoryPassive components inductor; File Size460KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance; Related ProductsFound2parts with similar functions to SCPI-X2520B-332NJL

Download Datasheet Parametric View All

SCPI-X2520B-332NJL Overview

General Purpose Inductor, 3.3uH, 30%, 1 Element, SMD, CHIP, ROHS COMPLIANT

SCPI-X2520B-332NJL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
DC Resistance	0.21 Ω
Nominal inductance(L)	3.3 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	SCPI-X2520B
Number of functions	1
Number of terminals	2
Maximum rated current	1.1 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	DCR IS MEASURED AT 30% TOLERANCE
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	1 MHz
Tolerance	30%
Base Number Matches	1

Preview

Download Datasheet

View All

Multilayer

Chip Power Inductors

——SCPI-X2520B

Features

1. The multi-layered Power Inductors provide high reliability for your products.

2. Magnetic shielded structure

3. Condensed SMT available.

4. Minimized design that is suitable for portable electronic equipments requiring low profile.

5. Lead free (ROHS Compliance).

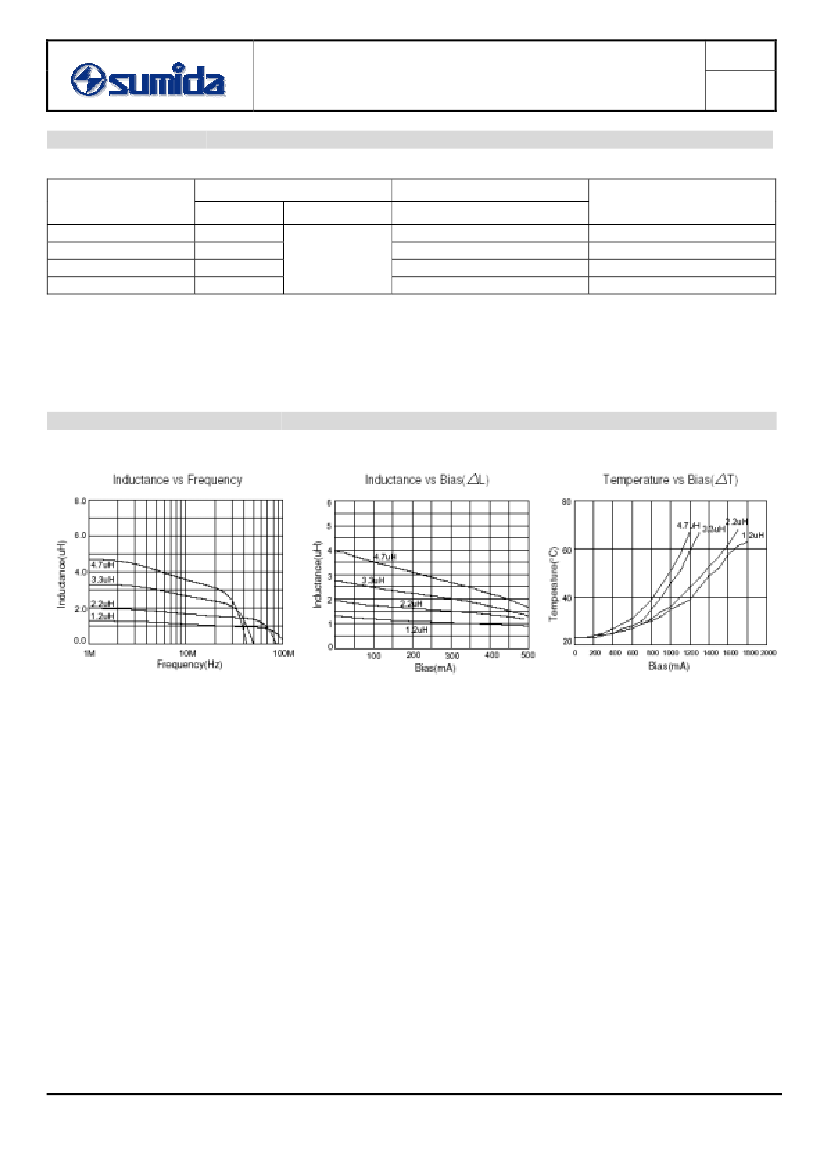

PAGE

1/2

Applications

1. DC-DC converter for mobile phone

2. MP3 Player

3. Digital still cameras / DVR

4. LCD Driver Module

5. Portable digital equipment

Ordering Information

SCPI

(1)

(2)

2520

(3)

(4)

472

(5)

(6)

(7)

(8)

(5) Inductance

First two digits are inductance values.

Last digit is the number of zeros .

(6) Tolerance

M : ±20%

N : ±30%

(7) Termination

J : Nickel barrier

(1) Products Series

SCPI : Inductor for Power Line

(2) Materials & Design

X: For low resistance

(3) Dimension

First two digits : length (㎜)

Last two digits : width (㎜)

(4) Thickness

B : T size Max 0.6mm

(8) Packaging

B : Bulk Packing

T : Tape & Reel (Φ 178㎜ [ 7inches])

L : Tape & Reel (Φ 254㎜ [10inches])

Shape and Dimensions

Unit : mm[ inches ]

Type

2.5±0.20

.098±.008〕

2.0±0.20

〔.079±.008〕

0.6 Max

〔.024

Max〕

0.5±0.20

〔.020±.008〕

SCPI X2520B

*All specifications are subject to change without notice.

Recommended Resources

Fully functional touch dimming circuit-b

Bidirectional thyristor dimming circuit diagram

Low dropout three-terminal voltage regulator MC33269 circuit diagram

Star connection motor phase failure protector circuit diagram

Ultra-low noise precision operational amplifier circuit

IGBT collector overcurrent detection circuit

SCPI-X2520B-332NJL Similar Products

Part Number	Manufacturer	Description
SCPI-X2520B-332NJB	SUMIDA	General Purpose Inductor, 3.3uH, 30%, 1 Element, SMD, CHIP, ROHS COMPLIANT
SCPI-X2520B-332NJT	SUMIDA	General Purpose Inductor, 3.3uH, 30%, 1 Element, SMD, CHIP, ROHS COMPLIANT
