SF10U60F
Elektronische Bauelemente
RoHS Compliant Product
A suffix of “-C” specifies halogen free
Voltage 600 V
10 Amp Low Loss Ultrafast Rectifier
FEATURES
High Surge Capacity
150°C Operating Junction Temperature
Low Power Loss, High Efficiency
High-Switching Speed 50 Nanosecond Recovery Time
Low Forward Voltage, High Current Capability
Low Stored Charge Majority Carrier Conduction
Plastic Material Used Carries Underwriters Laboratory
Flammability Classification 94V-O
ITO-220A
B
N
D
E
M
1 3 2
A
H
J
K
L
C
G
F
L
Dimensions in millimeters
PACKAGING INFORMATION
Weight: 1.64 grams (approximate)
1
3
2
REF.
A
B
C
D
E
F
G
Millimeter
Min.
Max.
14.70
15.30
9.50
10.50
13.00 Min
4.30
4.70
2.50
3.10
2.40
2.80
0.30
0.70
REF.
H
J
K
L
M
N
Millimeter
Min.
Max.
3.50
3.90
1.10
1.50
0.50
0.90
2.44
2.64
2.50
2.90
φ
3.1
φ
3.4
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
CHARACTERISTICS
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectifier Forward Current
Non-Repetitive Peak Surge Current
(Surge applied at rate load conditions half-wave, single phase, 60Hz)
Max. Instantaneous Forward Voltage (I
F
= 10 A, T
C
=25°C)
Typical Forward Voltage (I
F
= 10 A, T
C
=25°C)
Max. Instantaneous Reverse Current
(Rated DC Voltage, T
C
=25
°
C)
(Rated DC Voltage, T
C
=125
°
C)
Max. Reverse Recovery Time (I
F
= 0.5A,V
R
= 30V,dI
F
/ dt = 100 A /
μs)
Typical Reverse Recovery Time (I
F
= 0.5A,V
R
= 30V,dI
F
/ dt = 100 A /
μs)
Typical Junction Capacitance
(Reverse Voltage of 0V & f=1MHz)
Thermal Resistance
Operating Junction and Storage Temperature Range
SYMBOL
V
RRM
V
RWM
V
R
I
F(AV)
I
FSM
V
F
I
R
T
RR
C
P
R
θJC
T
J
, T
STG
SF10U60F
600
480
10
110
1.5
1.2
10
500
70
40
220
5.0
-65~+150
UNITS
V
V
V
A
A
V
μA
nS
pF
°
C / W
°
C
01-June-2009 Rev. A
Page 1 of 2
SF10U60F
Elektronische Bauelemente
Voltage 600 V
10 Amp Low Loss Ultrafast Rectifier

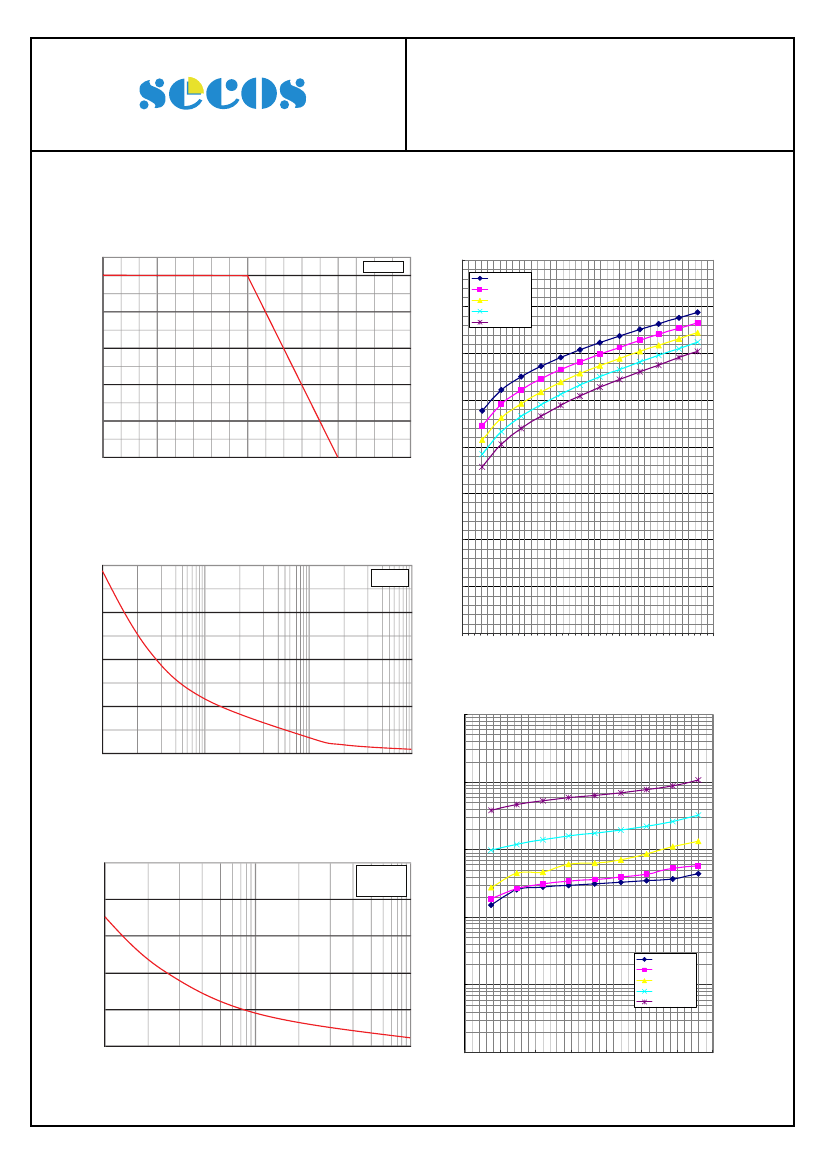

RATINGS AND CHARACTERISTIC CURVES (SF10U60F)
Typical Forward Current Derating Curve
DC Curve
10
1.6
VF (V, 25°C)
VF (V, 50°C)
VF (V, 75°C)
VF (V, 100°C)
VF (V, 125°C)
Typical Forward Characteristic
Average Forward Current (A)
8
1.4
6
1.2
4
Forward Voltage (V)
1
2
0.8
0
20
50
100
150
190
Tc, Case Temperature (℃)
0.6
0.4
Typical Junction Capacitance
200
F = 1 MHz
Tj = 25℃
0.2
Junction Capacitance (pF)
15
0
0
2
4
6
8
10
12
14
16
10
Instantaneous Forward Current (A)
50
Typical Reverse Curve
100000
0
0
1
10
100
10000
Revise Voltage (V)
Reverse Current (nA)
Maximum Non- Repetitive Forward Surge Current
150
1000
Peak Forwad surge Current (A)
8.3mS Single half
Sine Wave
JEDEC Method
Tj=25℃
130
100
90
IR (nA, 25°C)
60
10
IR (nA, 50°C)
IR (nA, 75°C)
IR (nA, 100°C)
IR (nA, 125°C)
30
0
1
10
100
1
0
100
200
Number of Cycles at 60Hz
Reverse Voltage (V)
300
400
500
600
700
01-June-2009 Rev. A
Page 2 of 2
