FEATURES AND SPECIFICATIONS
Features and Benefits
s
Sizes 1 to 5 circuits
s
For 2.36mm (.093") diameter pins
s
Polarization through varied spacing between circuits
1 and 2
s
Fully isolated terminals to protect contact from damage
Reference Information
Product Specification: PS-35183
Packaging: Bag
UL File No.: E29179
CSA File No.: LR19980
TUV License No.: R9651149
Mates With:
35309
Use With:
35716
Designed In: Millimeters
Electrical
Voltage: 250V
Current: 7.0A
Contact Resistance: 10m
Ω
max.
Dielectric Withstanding Voltage: 1500V
Insulation Resistance: 100 M
Ω
min.
Mechanical
Contact Retention to Housing: 49.0N (11.0 lb) min.
Mating Force: 19.6N (4.4 lb) max.
Unmating Force: 5.9N (1.3 lb) min.
Durability: 30 cycles
Physical
Housing: Gray PPO, UL 94V-1
Operating Temperature: -25 to +85
˚
C
8.00mm (.315") Pitch
Wire-to-Board
Housing
35183
Power Connectors
F

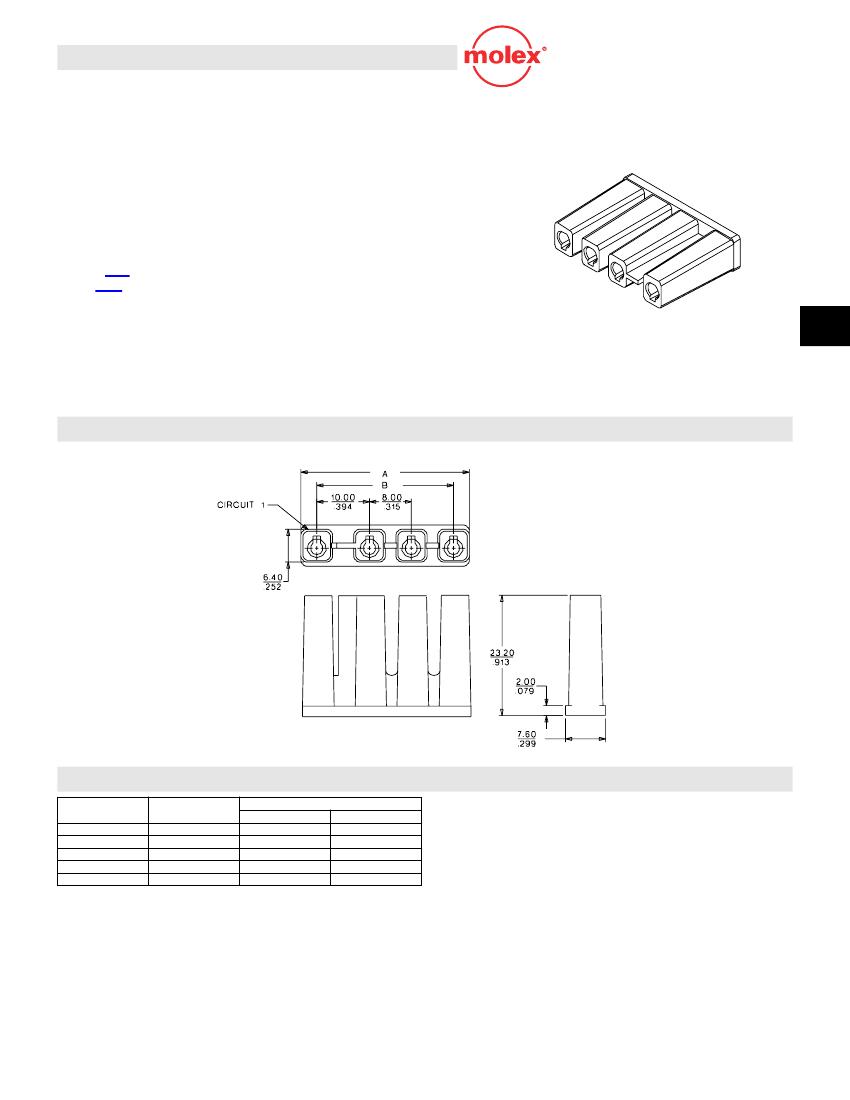

CATALOG DRAWING (FOR REFERENCE ONLY)
ORDERING INFORMATION AND DIMENSIONS
Circuits
1
2
3
4
5
Order No.
35183-0117
35183-0217
35183-0317
35183-0417
35183-0517
6.00
15.80
24.00
32.00
40.00
Dimension
A
(.236)
(.622)
(.945)
(1.260)
(1.575)
B
10.00
18.00
26.00
34.00
(.394)
(.709)
(1.024)
(1.339)
MX01
F-101
