Cord Connectors (rewireable)
www.schurter.com/pg07b
IEC Connector C15, Rewireable, Straight
80
C15
120° C
Description
- Connector:
Screwing cable terminal, Pin temperature 120 °C, Protection class
I, Cable
- Note: Please order pvc strain relief seperately, mating strain reliefs
please find under accessories.
References
Weblinks
We recommend for new applications the type 4781
pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,
Mating Connectors, e-Shop, SCHURTER-Stock-Check, Distributor-
Stock-Check, Accessories
Approvals
- VDE Certificate Number: 40008187
- CSA File Number: 1612079
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
15 A / 250 VAC; 60 Hz
> 3 kVAC between L-N
> 1.5 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 120 °C
from front side IP 20 acc. to IEC 60529
Suitable for appliances with protection
class 1 acc. to IEC 61140
Screw clamps
PA6, black / grey / white, UL 94V-0
29.5 mm
Connector
C15 acc. to IEC/EN 60320-2-2
UL 498, CSA C22.2 no. 42 (For hot
conditions) pin-temperature 120 °C,
10 A, Protection Class 1
Allowable Operation Temp.
Degree of Protection
Protection Class
Terminal
Material: Housing

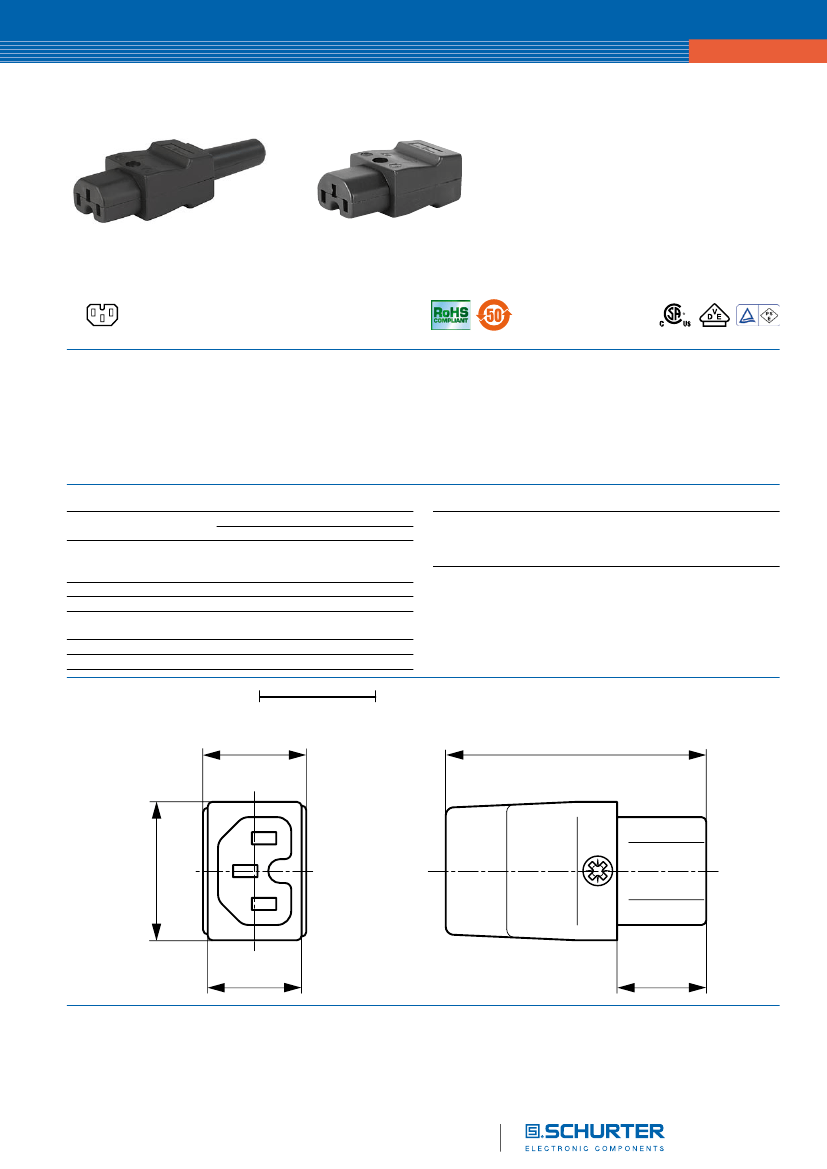

Dimensions
22
55
29.5
20
18.5
Connectors
80
www.schurter.com/pg07b
Config. Code
8101
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
J
|
Cord Connectors (rewireable)
The characters are placeholders for the correspondingly keys of selections from the key tables.
8101
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
J
|
= Type
Type
protection class 1
8101
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
J
|
= Color
Configuration
key
X
Color
Black
Grey
White
Configuration
key
A
Configuration
key
A
B
D
8101
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
J
|
= Terminals
Terminal L
screw terminal
8101
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
J
|
= Style
Style
for cord assembly
8101
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
J
|
= Terminals
Terminal N
screw terminal
Symbols similar as in table A
Configuration
key
8
Configuration
key
A
8101
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
J
|
= Condition
Condition
Configuration
key
1
2
8101
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
J
|
= Terminals
Terminal Ground
screw terminal
Symbols similar as in table A
assembled
Configuration
key
A
disassembled
Packaging unit
Accessories
50 Pcs
Description

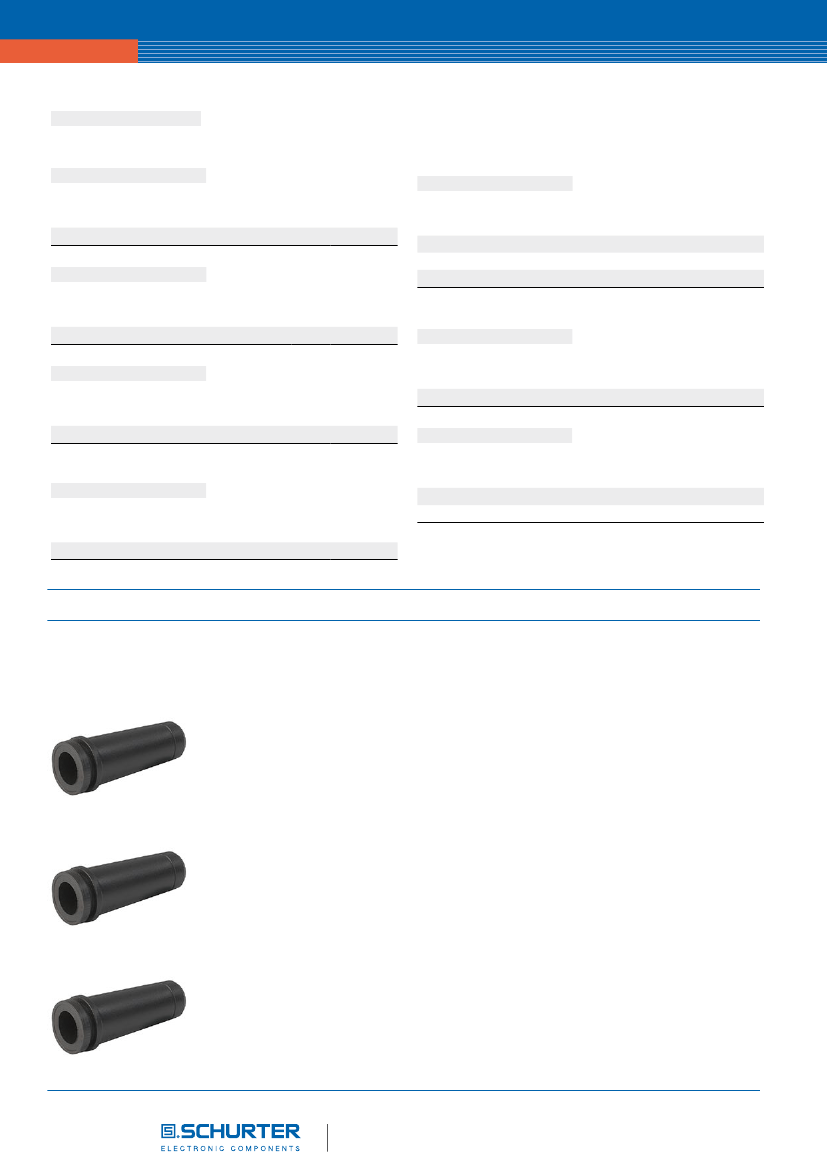

HN 14.110
PVC Strain Relief for cable outside diameter 8.7mm-10mm, 3 x 14AWG
HN 14.45
PVC Strain Relief for cable outside diameter 8.7mm, 3 x 16AWG
HN 14.46
PVC Strain Relief for cable outside diameter 10mm, 3 x 14AWG
Connectors
Cord Connectors (rewireable)
www.schurter.com/pg07b

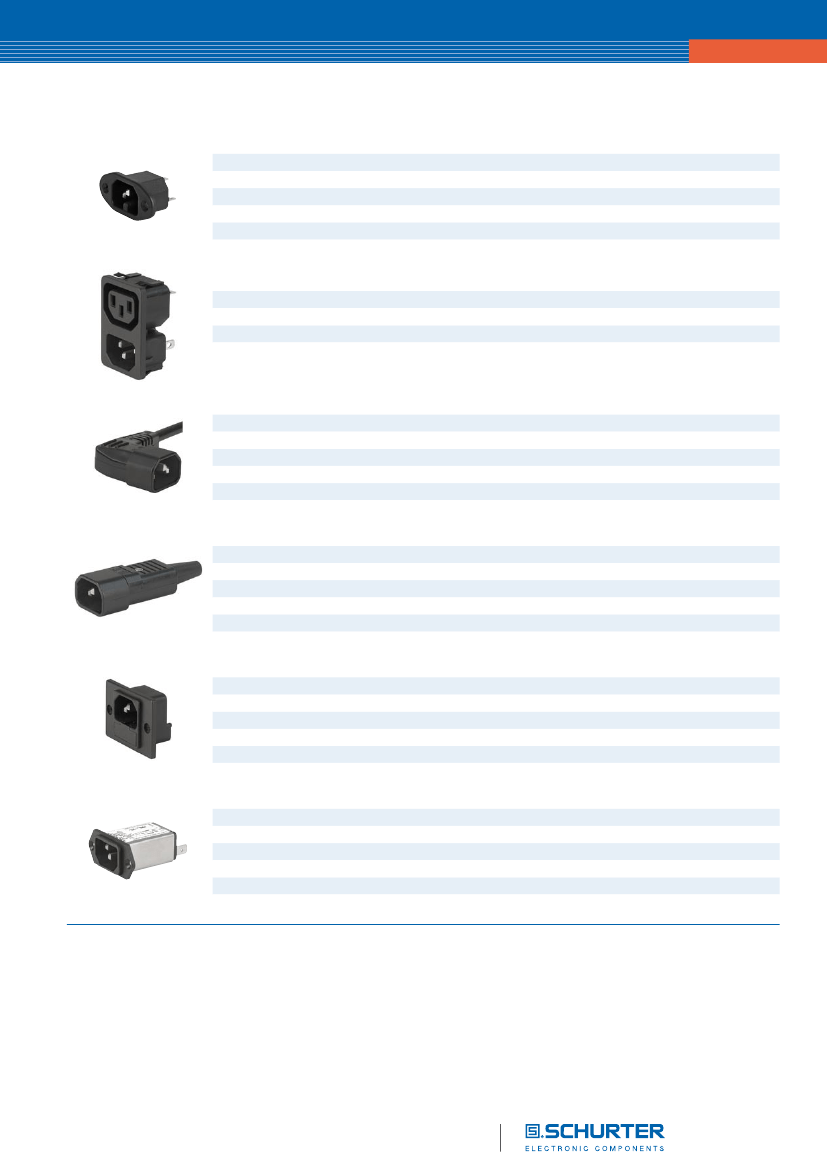

Mating Inlets/Plugs
Category / Description
Appliance InletOverview complete
IEC Appliance Inlet C16, Screw-on Mounting, Front Side, Quick-connect or Screw-on Terminal
IEC Appliance Inlet C16, Screw-on Mounting, Front Side, Quick-connect or Screw-on Terminal
IEC Appliance Inlet C16, Screw-on Mounting, Front or Rear Side, Quick-connect or Screw-on Terminal
IEC Appliance Inlet C16, Screw-on Mounting, Front Side, Screw-on Terminal
IEC Appliance Inlet C16, Snap-in Mounting, Front Side, Quick-connect Terminal
Appliance Inletfurther types to8101
Distribution UnitOverview complete
Distribution Unit for Snap-in Mounting with 1 IEC Appliance Inlet C14 and 1 Appliance Outlet F
Distribution Unit with 1 IEC Appliance Inlet C14 or Power Cord, 4 IEC Appliance Outlets F and Extra Components
Distribution Unit with 1 IEC Appliance Inlet C14 and 2 Appliance Outlets F, Shuttered
Distribution Unit with 1 IEC Appliance Inlet C14 and 4 Appliance Outlets F
Distribution Unitfurther types to8101
Interconnection CordOverview complete
Interconnection Cord with IEC Plug E, Angled
Interconnection Cord with IEC Plug E, Angled
Interconnection Cord with IEC Plug E, Straight
Interconnection Cord with IEC Plug G, Angled
Interconnection Cord with IEC Plug G, Angled
Interconnection Cordfurther types to8101
PlugOverview complete
IEC Plug E, Cord Connector (Rewireable), Straight, max. cable Diameter 8.5 mm
IEC Plug E, Cord Connector (Rewireable), Angled, max. Cable Diameter 10 mm
IEC Plug E, Cord Connector (Rewireable), Straight, max. Cable Diameter 10 mm
IEC Plug E, Cord Connector (Rewireable), Angled, max. Cable Diameter 10 mm
IEC Plug E, Cord Connector (Rewireable), Straight
Plugfurther types to8101
Power Entry ModuleOverview complete
IEC Appliance Inlet C14 or C18 with Fuseholder 1- or 2-pole
IEC Appliance Inlet C14 or C18 with Fuseholder 1- or 2-pole
IEC Appliance Inlet C18 with Fuseholder 1-pole
IEC Appliance Inlet C18 with Fuseholder 1- or 2-pole
IEC Appliance Inlet C14 with Fuseholder 1- or 2-pole
Power Entry Modulefurther types to8101
Power Entry Module with line filterOverview complete
IEC Appliance Inlet C14 with Filter
IEC Appliance Inlet C14 with Filter, Circuit Breaker TA45
IEC Appliance Inlet C14 with Filter, Fuseholder 1-pole
IEC Appliance Inlet C14 with Filter, Fuseholder 1- or 2-pole
IEC Appliance Inlet C14 with Filter, Fuseholder 2-pole
Power Entry Module with line filterfurther types to8101
5110
5145
5200
5220
8843-8
...
1062
1064
1065
1066
1092
...
4732
4733
4735
4736
9009
...
0607
0608
0609
607B
608B
...
0712
4740
4741
4747
0161
0161-Y
0163
0164
0165
...
80
The specifications, descriptions and illustrations indicated in this document are based on
Connectors
current information. All content is subject to modifications and amendments.
