3D3.5UM: DescriptionV-EA-Series - UL508 Manual Motor Controller; File Size540KB，2 Pages; ManufacturerAltech; Websitehttp://www.altechcorp.com/

Download Datasheet Compare View All

3D3.5UM Overview

V-EA-Series - UL508 Manual Motor Controller

Preview

Download Datasheet

View All

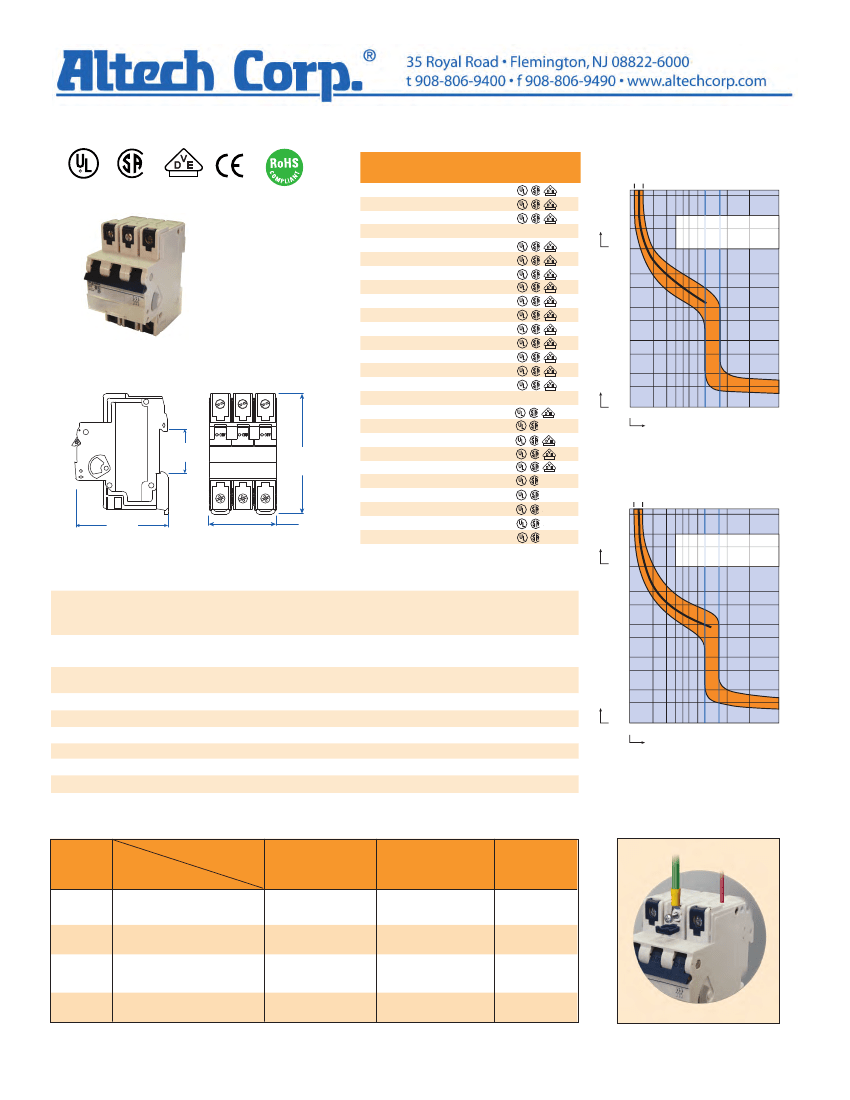

V-EA-Series - UL508 Manual Motor Controller -

3 pole D-Trip

UL508 Listed

E137938

Standard Pack:

Weight:

0.3A - 32A

1.8kg (3.97 lb.)

40A - 63A

1.98kg (4.37 lb.)

Three Pole

35 mm

(1.38 in.)

93.3 mm

(3.67 in.)

Minutes

74.7 mm

(2.94 in.)

52.5 mm

(2.07 in.)

Rated

Current

0.3A

0.5A

0.75A

0.8A

1.0A

1.6A

2.0A

2.5A

3.0A

3.5A

4.0A

5.0A

6.0A

8.0A

10A

12A

13A

15A

16A

20A

25A

30A

32A

40A

50A

60A

63A

Type/

Cat. No.

3D03UM

3D05UM

3D075UM

3D1UM

3D1.6UM

3D2UM

3D2.5UM

3D3UM

3D3.5UM

3D4UM

3D5UM

3D6UM

3D8UM

3D10UM

3D13UM

3D15UM

3D16UM

3D20UM

3D25UM

3D30UM

3D32UM

3D40UM

3D50UM

3D60UM

3D63UM

Approvals

V-EA-D Trip

0.3A Through 10A Rated Current

1.13-1.45xI

Minutes

Thermal Overload

“Must Trip” < 1 hr = 145% RC

“Must Not Trip” > 1 hr = 113% RC

Tripping time t

0.4

-1

4x10

-2

Seconds

-2

4x10

-3

3 4 5 6 8

10 16

100

Multiple of Rated Current

V-EA-D Trip

13A Through 63A Rated Current

1.13-1.45xI

Thermal Overload

“Must Trip” < 1 hr = 145% RC

“Must Not Trip” > 1 hr = 113% RC

Voltage Rating

Short Circuit Withstand Rating

(UL/CSA - Ratings)

Group Short Circuit Withstand Rating

(UL/CSA - Ratings)

Interrupting Capacity (VDE - Ratings)

Calibration Temperature

Operating Temperature

Storage Temperature

Terminal Size Acceptability

Terminal Torque

Terminal Protection Degree

480Y/277VAC

0.3-25A: 1 pole - 42VDC; 2 Pole - 80VDC

30-60A: 1 pole - 24VDC; 2 Pole - 60VDC

0.3-60A (RC): 10kA with UL-listed

RK5 back-up fuse or MCCB

0.3-10A (RC): 10kA; 13-60A (RC): 5kA

no branch circuit protection required

0.3-63A (RC): 10kA

40°C (104°F)

-25°C to 55°C (-13°F to 131°F)

-40°C to 70°C (-40°F to 158°F)

Top: 18-3 AWG; Bottom: 18-2 AWG (Line/Load reversible)

20 lb.in.

IP20

Tripping time t

0.4

-1

4x10

-2

Seconds

-2

4x10

-3

3 4 5 6 8

10 16

100

Multiple of Rated Current

Standard Dual

Connection Terminal

All parts are ring tongue compatible.

short circuit Withstand ratings for v-ea manual motor controller

Trip

Curve

all

Backup

Protection

Amp Range

0.3 - 10A

12 - 30/32A

40 - 50A

60 / 63A

UL-Listed

RK5-Fuse

up to 10kA

4xRC*

min 15A, max 70A

4xRC*

max 125A

4xRC*

max 200A

4xRC*

max 250A

UL-Listed

MCCB

up to 10kA

4xRC*

min 15A, max 70A

4xRC*

max 125A

4xRC*

max 200A

4xRC*

max 250A

No BCP

Required

up to:

10kA

5kA

Ring

tongue

Box

clamp

*up to nearest rated current
