VC377D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> VC377D

VC377D: DescriptionIC LVC/LCX/Z SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDSO20, PLASTIC, SOT163-1, SO-20, FF/Latch; Categorylogic logic; File Size128KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

VC377D Overview

IC LVC/LCX/Z SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDSO20, PLASTIC, SOT163-1, SO-20, FF/Latch

VC377D Parametric

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	SOIC
package instruction	SOP,
Contacts	20
Reach Compliance Code	unknown
Other features	WITH HOLD MODE
series	LVC/LCX/Z
JESD-30 code	R-PDSO-G20
length	12.8 mm
Logic integrated circuit type	D FLIP-FLOP
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	9.5 ns
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	1.2 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	7.5 mm
minfmax	200 MHz

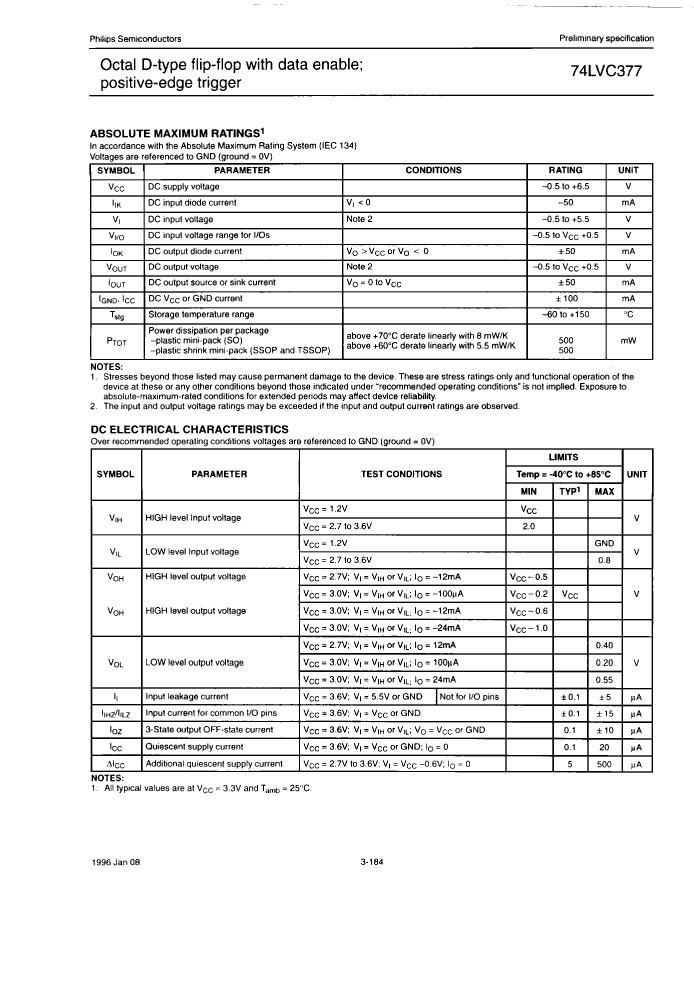

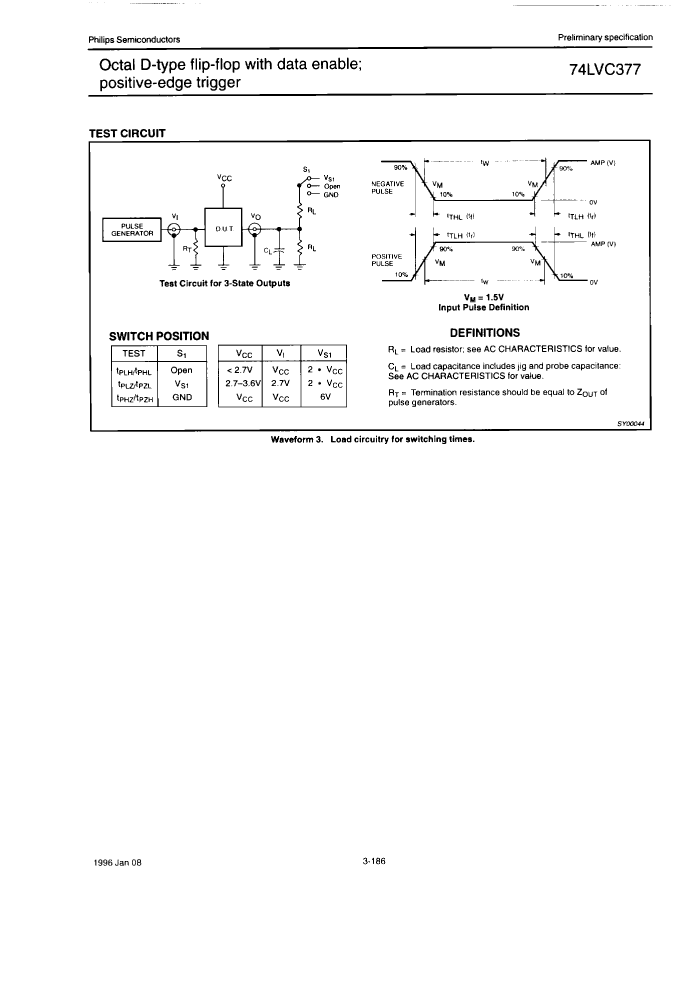

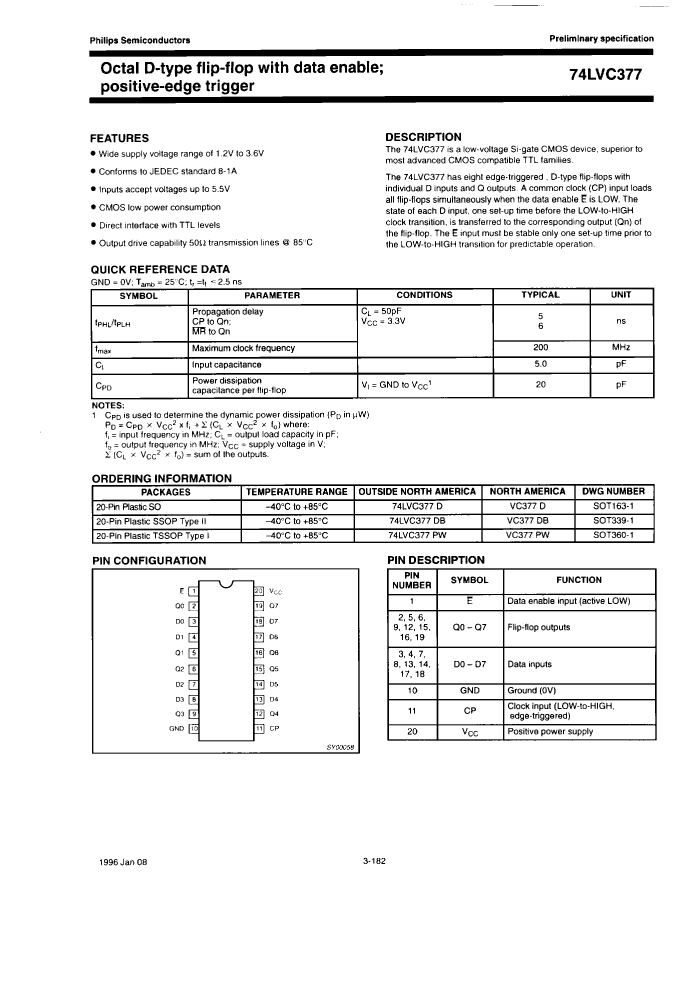

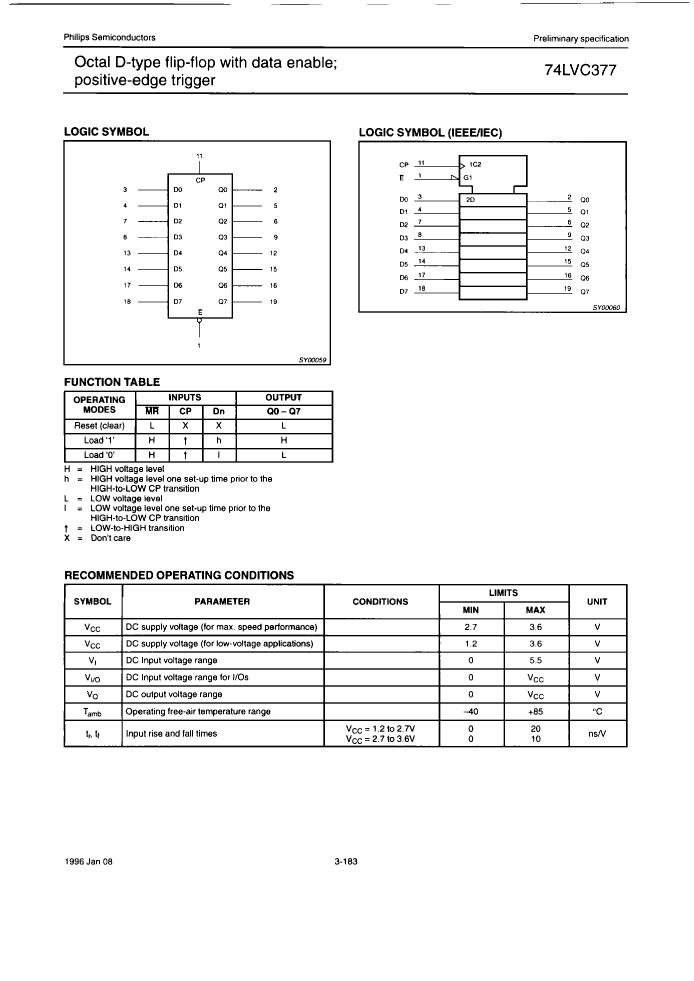

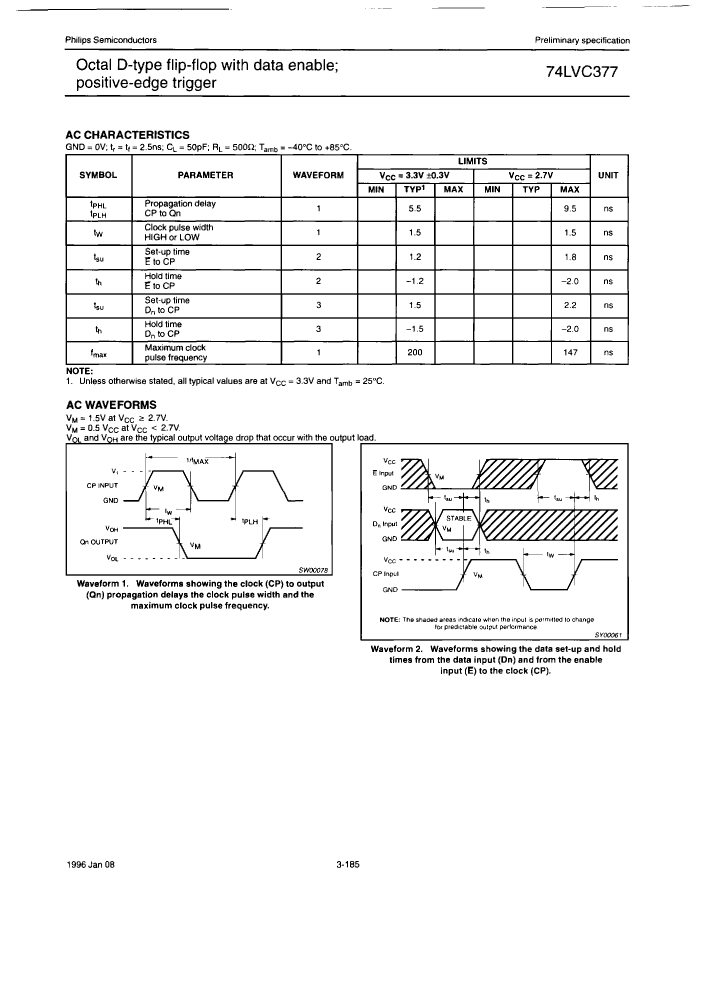

VC377D Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

VC377D Related Products

	VC377D	VC377PW-T	VC377PW	VC377D-T	VC377DB-T	VC377DB
Description	IC LVC/LCX/Z SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDSO20, PLASTIC, SOT163-1, SO-20, FF/Latch	IC LVC/LCX/Z SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDSO20, FF/Latch	IC LVC/LCX/Z SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDSO20, FF/Latch	IC LVC/LCX/Z SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDSO20, PLASTIC, SOT163-1, SO-20, FF/Latch	IC LVC/LCX/Z SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDSO20, PLASTIC, SOT339-1, SSOP-20, FF/Latch	IC LVC/LCX/Z SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDSO20, PLASTIC, SOT339-1, SSOP-20, FF/Latch
Maker	NXP	NXP	NXP	NXP	NXP	NXP
package instruction	SOP,	TSSOP,	TSSOP,	SOP,	SSOP,	SSOP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	WITH HOLD MODE	WITH HOLD MODE	WITH HOLD MODE	WITH HOLD MODE	WITH HOLD MODE	WITH HOLD MODE
series	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20
length	12.8 mm	6.5 mm	6.5 mm	12.8 mm	7.2 mm	7.2 mm
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
Number of digits	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	TSSOP	TSSOP	SOP	SSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
propagation delay (tpd)	9.5 ns	9.5 ns	9.5 ns	9.5 ns	9.5 ns	9.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	1.1 mm	1.1 mm	2.65 mm	2 mm	2 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.65 mm	0.65 mm	1.27 mm	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	7.5 mm	4.4 mm	4.4 mm	7.5 mm	5.3 mm	5.3 mm
minfmax	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz
Parts packaging code	SOIC	-	-	SOIC	SSOP	SSOP
Contacts	20	-	-	20	20	20
