BFJ26 datasheet, PDF - EEWORLD Datasheet

BFJ26: Description40A, 1000V, N-CHANNEL IGBT, TO-247AD; CategoryDiscrete semiconductor The transistor; File Size50KB，1 Pages; ManufacturerSEMELAB

Download Datasheet Parametric View All

BFJ26 Overview

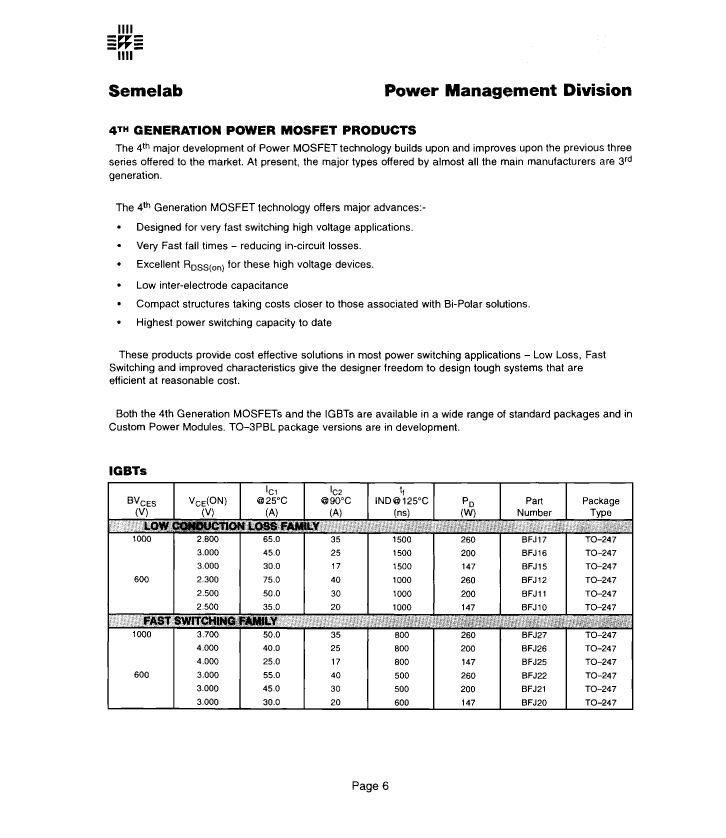

40A, 1000V, N-CHANNEL IGBT, TO-247AD

Parameter Name	Attribute value
Maker	SEMELAB
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown
Other features	FAST
Maximum collector current (IC)	40 A
Collector-emitter maximum voltage	1000 V
Configuration	SINGLE
JEDEC-95 code	TO-247AD
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	200 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Transistor component materials	SILICON
VCEsat-Max	4 V
