LSH603-RSW-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LSH603-RSW-2

LSH603-RSW-2: DescriptionSingle Color LED, Red, Diffused White, 1mm, 1.60 X 0.80 MM, 0.80 MM HEGHT, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size60KB，2 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/

Download Datasheet Parametric Compare View All

LSH603-RSW-2 Overview

Single Color LED, Red, Diffused White, 1mm, 1.60 X 0.80 MM, 0.80 MM HEGHT, SMD, 2 PIN

LSH603-RSW-2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SENSITRON
package instruction	1.60 X 0.80 MM, 0.80 MM HEGHT, SMD, 2 PIN
Reach Compliance Code	compliant
color	RED
Configuration	SINGLE
Lens type	DIFFUSED WHITE
Nominal luminous intensity	40.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	0.8 mm
method of packing	BULK
peak wavelength	660 nm
shape	RECTANGULAR
size	1 mm
surface mount	YES
perspective	140 deg

Preview

Download Datasheet

View All

LSH603-GW

LSH603-RSW-x

LSH603-GTW

LSH603-YEW

LSH603-OTW

LSH603-BHW

LSH603-REW

LSH603-YTW

LSH603-GHW-x

SMD LED

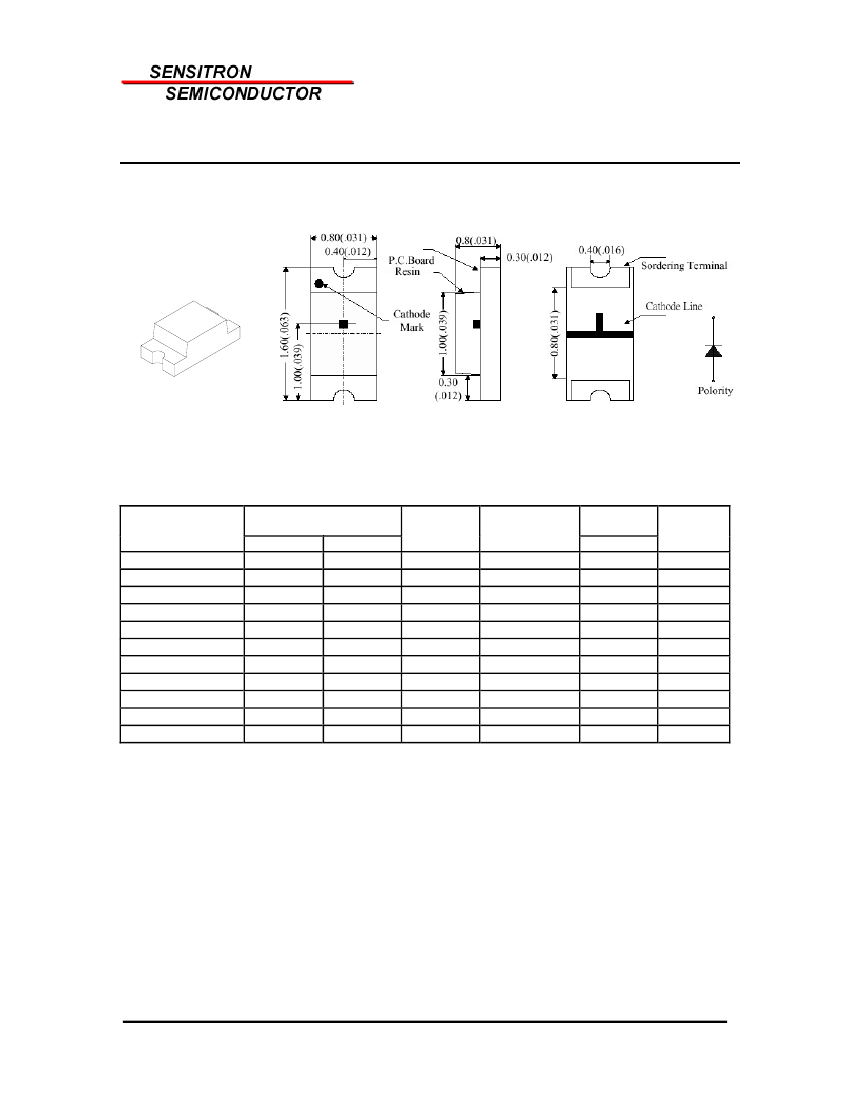

TECHNICAL DATA

DATA SHEET 3512, REV.1.2

1.6 x 0.8 x 0.8 mm (0603),

LSH603

Note: All dimensions are in mm (inch)

Electro-optical Characteristic: (T

=25

°C)

Part No.

Material

Chip

Color

Wavelength

(nm)

Lens Type

Iv (mcd)

@20mA

Typical

Viewing

Angle

(degree)

LSH603-GW

GaP

LSH603-YEW GaAsP/GaP

LSH603-REW GaAsP/GaP

LSH603-RSW-1

GaAIAs

LSH603-RSW-2

GaAIAs

LSH603-OTW

GaAlInP

LSH603-YTW

GaAlInP

LSH603-GTW

GaAlInP

LSH603-BHW

GaInN

LSH603-GHW-1

GaInN

LSH603-GHW-2

GaInN

Features

•

Green

Yellow

Red

Orange

Yellow

Green

Blue

Green

565

585

635

660

625

592

565

470

505

525

white diffused

140

Variety of LED colors

Compatible with automatic placement equipment

EIA STD package

Compatible with Sensitron’s light pipe and flexible light pipe

•

221 West Industry Court

•

Deer Park, NY 11729-4681

•

Phone: (631) 586-7600

•

Fax: (631) 242-9798

•

http://www.sensitron.com

•

E-Mail: sales@sensitron.com

DISCLAIMER:

1- The information given herein, including the specifications and dimensions, is subject to change without prior not ice to

improve product characteristics. Before ordering, purchasers are advised to contact the Sensitron Semiconductor sales

department for the latest version of the datasheet(s).

2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation,

traffic equipment, medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices

that feature assured safety or by means of users’ fail-safe precautions or other arrangement .

3- In no event shall Sensitron Semiconductor be liable for any damages that may result from an accident or any other

cause during operation of the user’s units according to the datasheet(s). Sensitron Semiconductor assumes no

responsibility for any intellectual property claims or any other problems that may result from applications of information,

products or circuits described in the datasheets.

4- In no event shall Sensitron Semiconductor be liable for any failure in a semiconductor device or any secondary damage

resulting from use at a value exceeding the absolute maximum rating.

5- No license is granted by the datasheet(s) under any patents or other rights of any third party or Sensitron

Semiconductor.

6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written

permission of Sensitron Semiconductor.

7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their

application will hinder maintenance of international peace and safety nor are they to be applied to that purpose by their

direct purchasers or any third party. When exporting these products (technologies), the necessary procedures are to be

taken in accordance with related laws and regulations.

•

221 West Industry Court

•

Deer Park, NY 11729-4681

•

Phone: (631) 586-7600

•

Fax: (631) 242-9798

•

http://www.sensitron.com

•

E-Mail: sales@sensitron.com
