FHW0402HC036JGB: DescriptionGeneral Purpose Inductor, 0.036uH, 5%, 1 Element, Ceramic-Core, SMD, CHIP, 0402; CategoryPassive components inductor; File Size662KB，10 Pages; ManufacturerFenghua (HK) Electronics Ltd.

Download Datasheet Parametric View All

FHW0402HC036JGB Overview

General Purpose Inductor, 0.036uH, 5%, 1 Element, Ceramic-Core, SMD, CHIP, 0402

FHW0402HC036JGB Parametric

Parameter Name	Attribute value
Maker	Fenghua (HK) Electronics Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
core material	CERAMIC
DC Resistance	0.403 Ω
Nominal inductance(L)	0.036 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e4
Manufacturer's serial number	0402HC
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	24
Maximum rated current	0.32 A
self resonant frequency	2320 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	GOLD
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	250 MHz
Tolerance	5%

Preview

Download Datasheet

View All

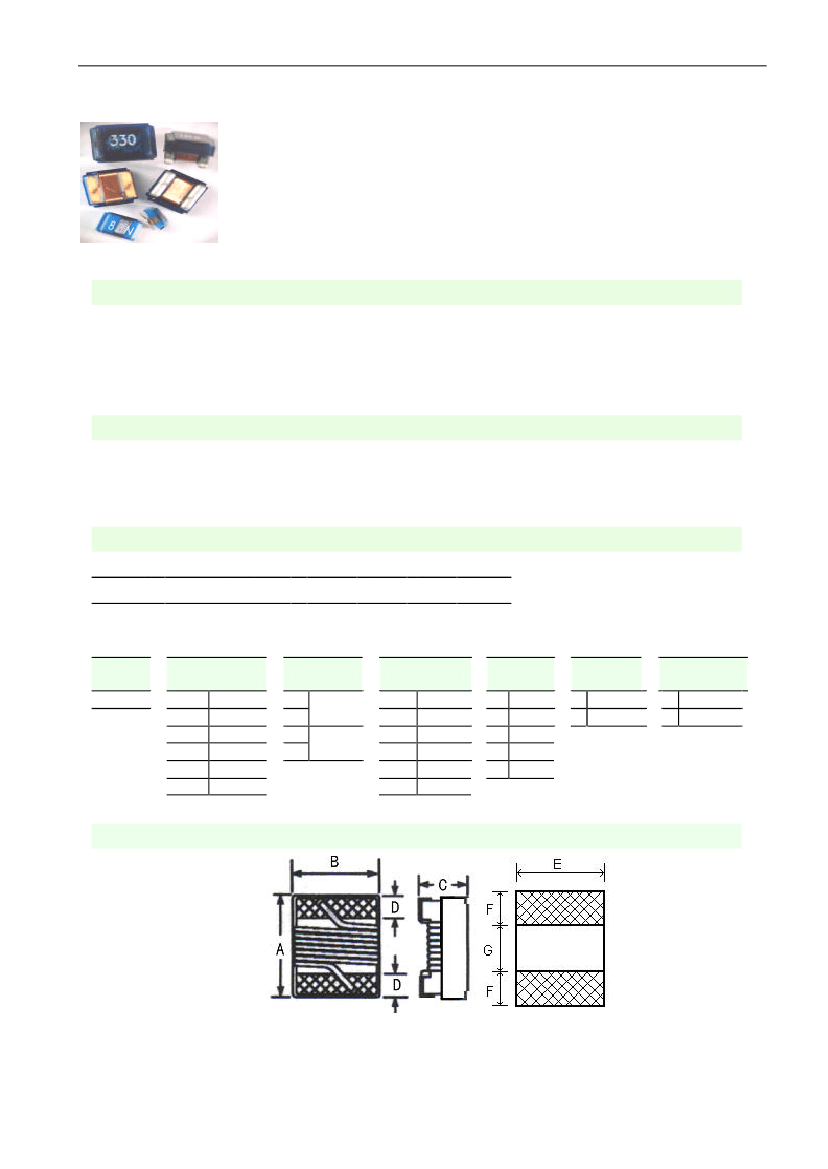

GUANGDONG ZHAOQING YINGDA INDUCTOR CO.，LTD

SMD COMPONENTS

Ｗ½½½　Ｗ½½½½　Ｃ½½½　Ｉ½½½½½½½　

Wire wound chip inductor is a perfect combine by means of combining hing

precision coil framework with superb wound technology. Comparable with

traditional inductor, it is improved technology, reduced volume and changed the

lead into a kind of terminal electrode structure suitable for SMT.

ＦＥＡＴＵＲＥＳ　

・Minature

size, suitable for SMT

・Using

terminal electrode structure to restrain the parasitic component effect quite caused by lead;

・Execellent

in solderability and heat resistance;

・Best

frequency special property and intense ability to resist interference.

ＡＰＰＬＩＣＡＴＩＯＮＳ　

・Portable

communication equipment and PDA

・High

speed electronic device

・Used

for radiation high speed noise suppression

ＯＲＤＥＲＩＮＧ　ＣＯＤＥ　

FHW

①

Code

FHW

0805

②

Dimensions

(L×W) (mm)

0402

0603

0805

1008

1210

1812

1.0×0.5

1.6×0.8

2.0×1.2

2.5×2.0

3.2×2.5

4.5×3.2

③

068

④

⑤

④

⑥

⑦

⑤

Tolerance

(%)

±1

±2

±5

±10

±20

⑥

Terminal

G GOLD

S TIN

⑦

Packaging Style

T Tape&Reel

Bulk

Meterial

Ceramic

Ferrite

Inductance (nH)

1N0

010

R10

1R0

100

101

1.0

100

1000

10000

100000

Ｄ½½½½½½½½½

(Unit): mm/inch
