TC74ACT258F(TP1) datasheet, PDF

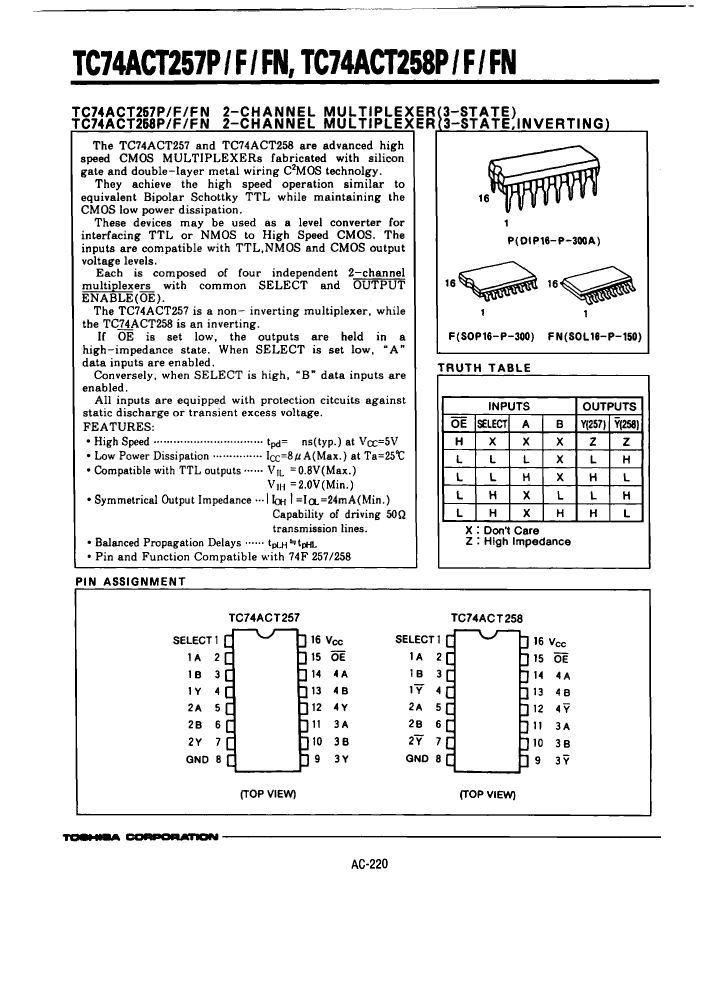

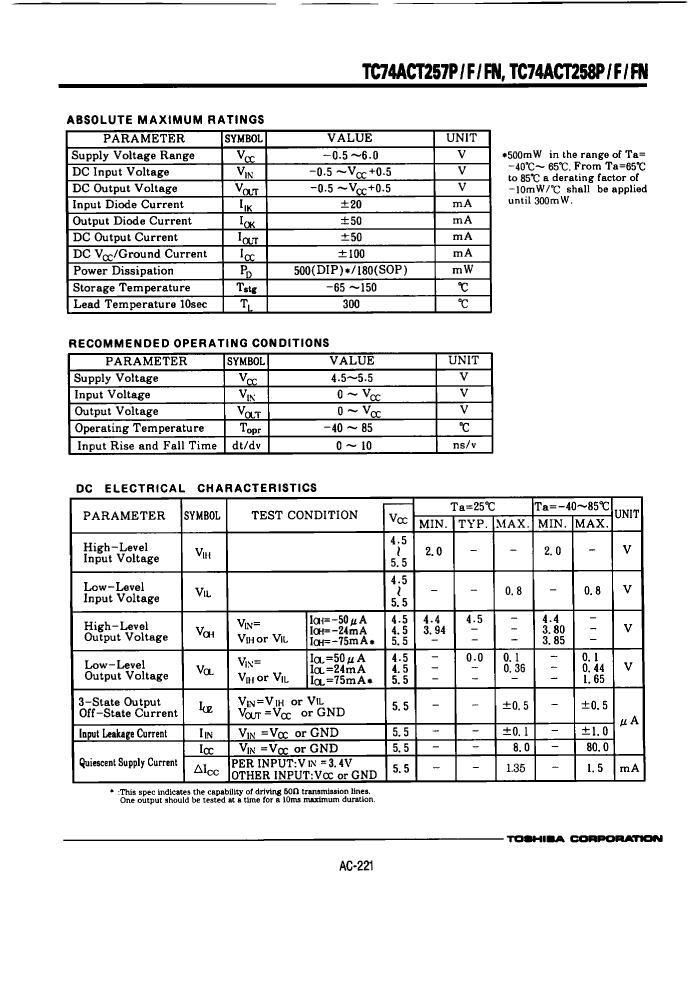

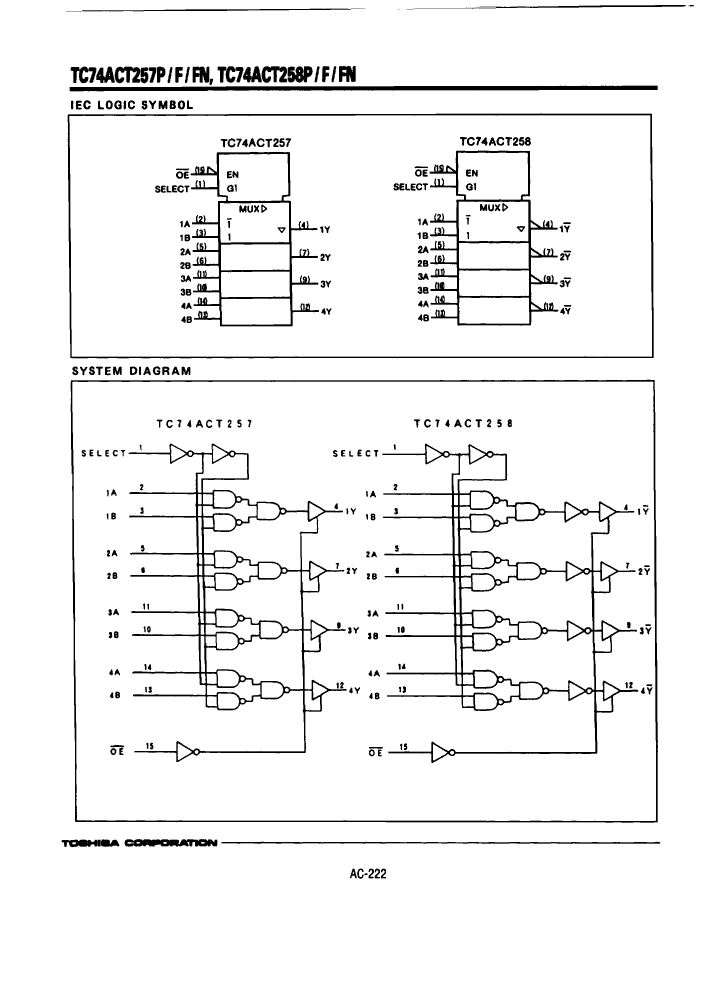

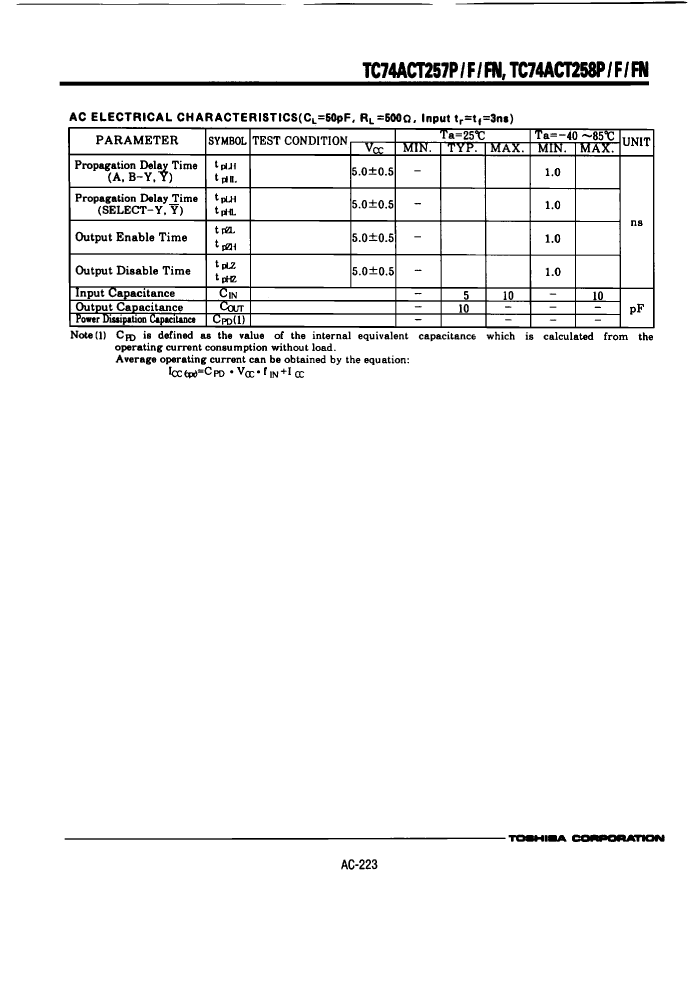

TC74ACT258F(TP1): DescriptionIC ACT SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOP-16, Multiplexer/Demultiplexer; Categorylogic logic; File Size107KB，4 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

TC74ACT258F(TP1) Overview

IC ACT SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOP-16, Multiplexer/Demultiplexer

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	0.300 INCH, PLASTIC, SOP-16
Contacts	16
Reach Compliance Code	unknown
series	ACT
JESD-30 code	R-PDSO-G16
length	10.3 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
Number of functions	4
Number of entries	2
Output times	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5.3 mm
