D15XB20H-4003 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> D15XB20H-4003

D15XB20H-4003: DescriptionBridge Rectifier Diode, 1 Phase, 3.5A, Silicon,; CategoryDiscrete semiconductor diode; File Size358KB，2 Pages; ManufacturerSHINDENGEN; Websitehttps://www.shindengen.com

Download Datasheet Parametric Compare View All

D15XB20H-4003 Overview

Bridge Rectifier Diode, 1 Phase, 3.5A, Silicon,

D15XB20H-4003 Parametric

Parameter Name	Attribute value
Maker	SHINDENGEN
package instruction	R-PSFM-T4
Reach Compliance Code	unknown
Minimum breakdown voltage	200 V
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.05 V
JESD-30 code	R-PSFM-T4
Maximum non-repetitive peak forward current	240 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	3.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum reverse current	10 µA
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

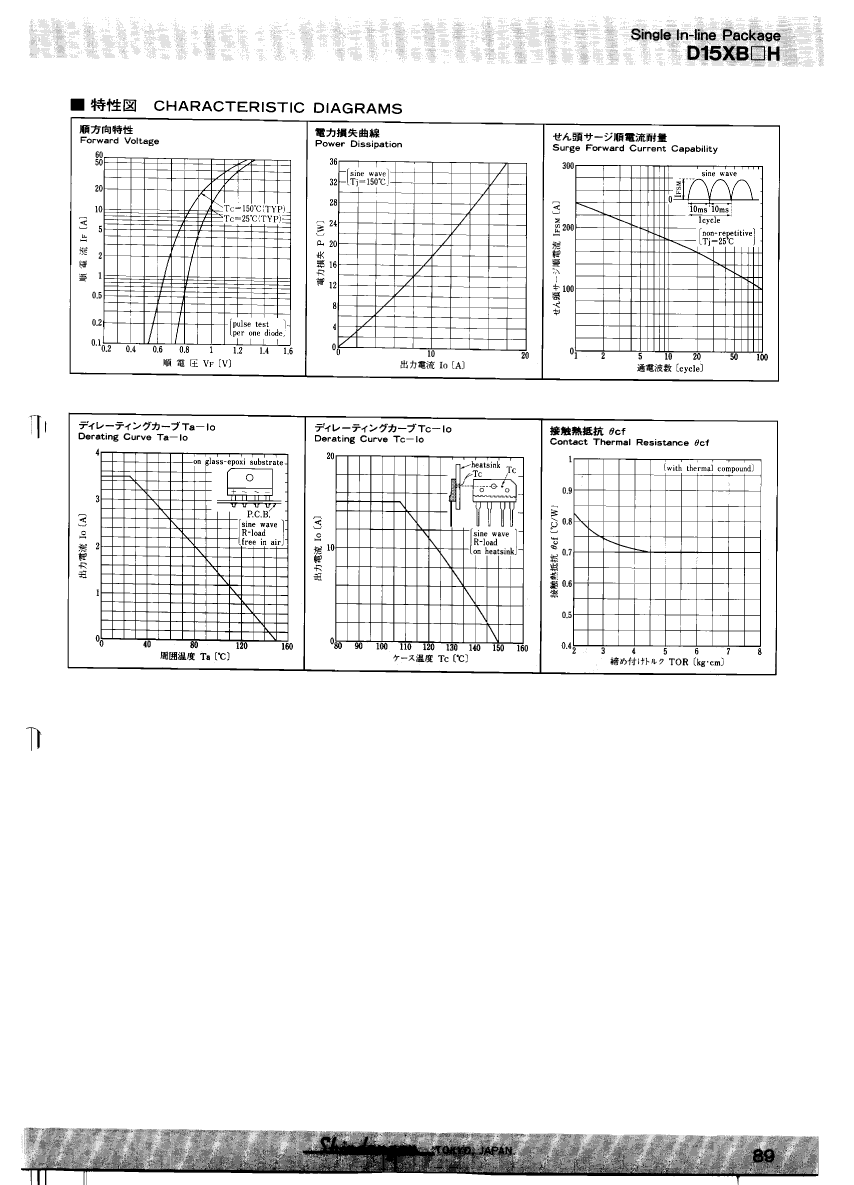

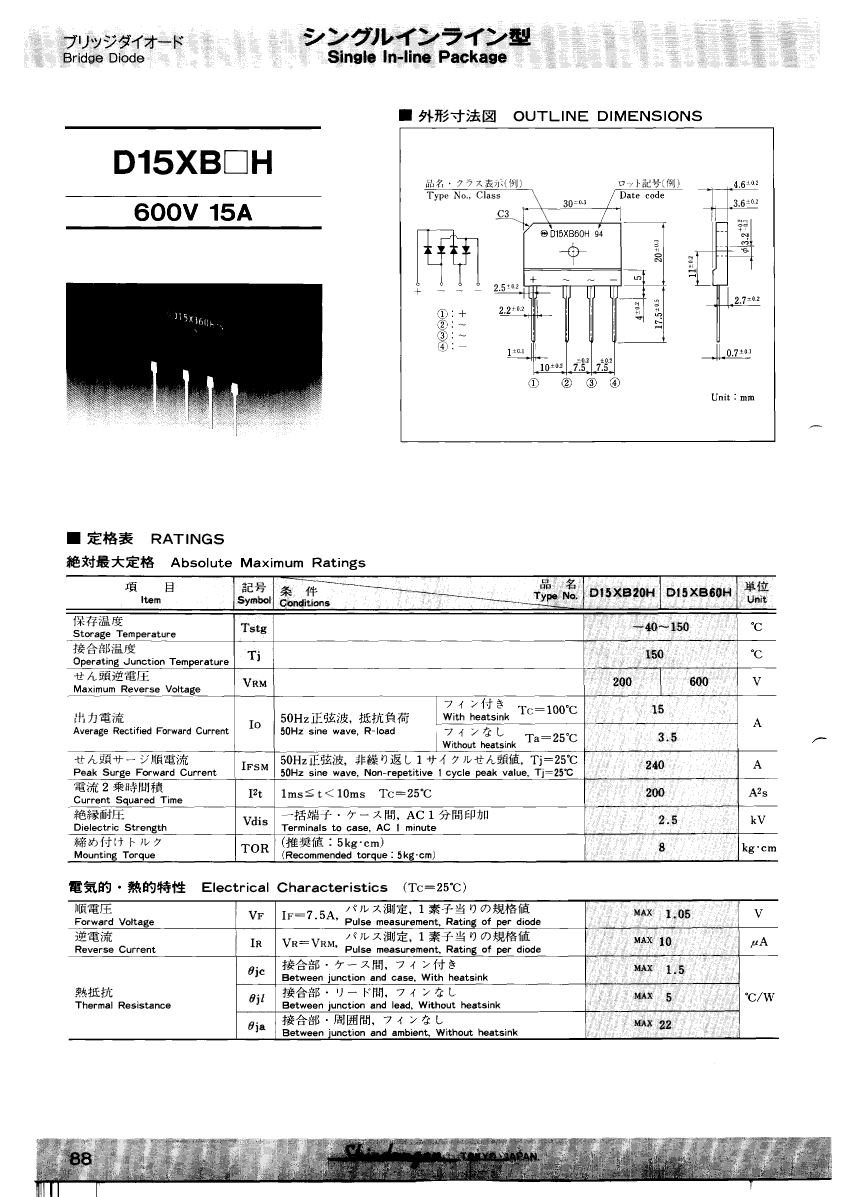

Preview

Download Datasheet

View All

D15XB20H-4003 Related Products

	D15XB20H-4003	D15XB60H-4003	D15XB60H-4001	D15XB60H-4002	D15XB20H-4001	D15XB20H-4002
Description	Bridge Rectifier Diode, 1 Phase, 3.5A, Silicon,	Bridge Rectifier Diode, 1 Phase, 3.5A, Silicon,	Bridge Rectifier Diode, 1 Phase, 3.5A, Silicon,	Bridge Rectifier Diode, 1 Phase, 3.5A, Silicon,	Bridge Rectifier Diode, 1 Phase, 3.5A, Silicon,	Bridge Rectifier Diode, 1 Phase, 3.5A, Silicon,
Maker	SHINDENGEN	SHINDENGEN	SHINDENGEN	SHINDENGEN	SHINDENGEN	SHINDENGEN
package instruction	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Minimum breakdown voltage	200 V	600 V	600 V	600 V	200 V	200 V
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.05 V	1.05 V	1.05 V	1.05 V	1.05 V	1.05 V
JESD-30 code	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4
Maximum non-repetitive peak forward current	240 A	240 A	240 A	240 A	240 A	240 A
Number of components	4	4	4	4	4	4
Phase	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	3.5 A	3.5 A	3.5 A	3.5 A	3.5 A	3.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Base Number Matches	-	1	1	1	1	-
