DF20LC20U-4102 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DF20LC20U-4102

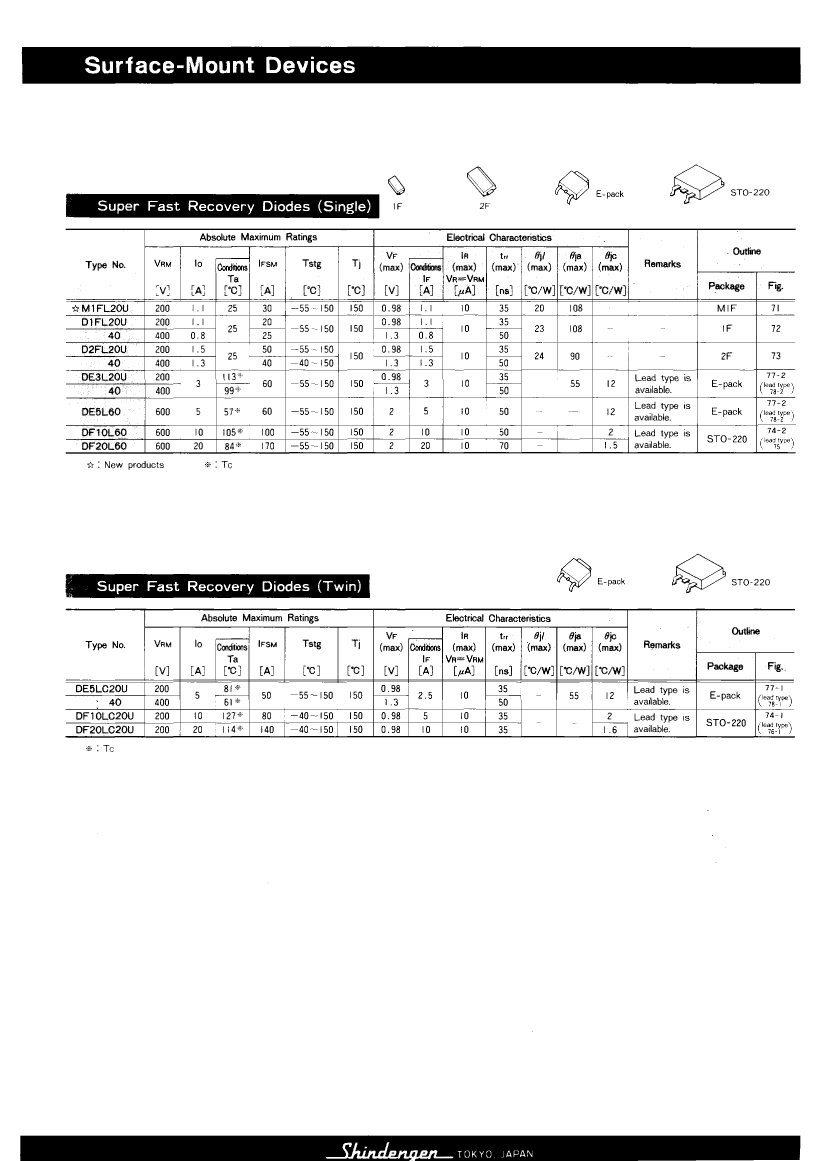

DF20LC20U-4102: DescriptionRectifier Diode, 1 Phase, 2 Element, 10A, 200V V(RRM), Silicon, STO-220, 3 PIN; CategoryDiscrete semiconductor diode; File Size37KB，1 Pages; ManufacturerSHINDENGEN; Websitehttps://www.shindengen.com

Download Datasheet Parametric Compare View All

DF20LC20U-4102 Overview

Rectifier Diode, 1 Phase, 2 Element, 10A, 200V V(RRM), Silicon, STO-220, 3 PIN

DF20LC20U-4102 Parametric

Parameter Name	Attribute value
Maker	SHINDENGEN
Parts packaging code	SFM
package instruction	R-PSIP-T3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
application	SUPER FAST RECOVERY
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.98 V
JESD-30 code	R-PSIP-T3
Maximum non-repetitive peak forward current	140 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	10 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse current	10000 µA
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

DF20LC20U-4102 Related Products

	DF20LC20U-4102	DE5L60-4101	DF10L60-4102	DE5LC20U-4101	DE5LC40-4101	D2FL20U-4103	DF10LC20U-4102	DF20L60-4102	DE3L40-4101
Description	Rectifier Diode, 1 Phase, 2 Element, 10A, 200V V(RRM), Silicon, STO-220, 3 PIN	Rectifier Diode, 1 Phase, 1 Element, 5A, Silicon, SURFACE MOUNT PACKAGE-4	Rectifier Diode, 1 Phase, 1 Element, 10A, Silicon, STO-220, 3 PIN	Rectifier Diode, 1 Phase, 2 Element, 2.5A, Silicon, EPACK-3	Rectifier Diode, 1 Phase, 2 Element, 2.5A, Silicon, EPACK-3	Rectifier Diode, 1 Phase, 1 Element, 1.5A, 200V V(RRM), Silicon, 2F, 2 PIN	Rectifier Diode, 1 Phase, 2 Element, 5A, 200V V(RRM), Silicon, STO-220, 3 PIN	Rectifier Diode, 1 Phase, 1 Element, 20A, Silicon, STO-220, 3 PIN	Rectifier Diode, 1 Phase, 1 Element, 3A, 400V V(RRM), Silicon, EPACK-3
package instruction	R-PSIP-T3	SURFACE MOUNT PACKAGE-4	S-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PDSO-C2	STO-220, 3 PIN	STO-220, 3 PIN	R-PSIP-T3
Contacts	3	4	3	3	3	2	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	SUPER FAST RECOVERY	SUPER FAST RECOVERY	SUPER FAST RECOVERY	SUPER FAST RECOVERY	SUPER FAST RECOVERY	SUPER FAST RECOVERY	SUPER FAST RECOVERY	SUPER FAST RECOVERY	SUPER FAST RECOVERY
Configuration	COMMON CATHODE, 2 ELEMENTS	SINGLE	SINGLE	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	SINGLE	COMMON CATHODE, 2 ELEMENTS	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PSIP-T3	R-PSSO-G2	S-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PDSO-C2	R-PSIP-T3	S-PSSO-G2	R-PSIP-T3
Maximum non-repetitive peak forward current	140 A	60 A	100 A	50 A	50 A	50 A	80 A	170 A	60 A
Number of components	2	1	1	2	2	1	2	1	1
Phase	1	1	1	1	1	1	1	1	1
Number of terminals	3	2	2	2	2	2	3	2	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	10 A	5 A	10 A	2.5 A	2.5 A	1.5 A	5 A	20 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse recovery time	0.035 µs	0.05 µs	0.05 µs	0.035 µs	0.05 µs	0.035 µs	0.035 µs	0.07 µs	0.05 µs
surface mount	NO	YES	YES	YES	YES	YES	NO	YES	NO
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING	C BEND	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	DUAL	SINGLE	SINGLE	SINGLE
Maker	SHINDENGEN	SHINDENGEN	-	-	SHINDENGEN	SHINDENGEN	SHINDENGEN	SHINDENGEN	SHINDENGEN
Maximum forward voltage (VF)	0.98 V	-	-	0.98 V	1.3 V	0.98 V	0.98 V	-	1.3 V
Maximum reverse current	10000 µA	-	-	10 µA	10 µA	10 µA	10000 µA	-	10000 µA
Shell connection	-	CATHODE	CATHODE	CATHODE	CATHODE	-	-	CATHODE	CATHODE
