592D158X96W3X8T25H

Description
Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 10% +Tol, 10% -Tol, 1500uF, Surface Mount, 5729, CHIP
CategoryPassive components    capacitor
File Size120KB，10 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric Compare View All

592D158X96W3X8T25H Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 10% +Tol, 10% -Tol, 1500uF, Surface Mount, 5729, CHIP

592D158X96W3X8T25H Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerVishay
package instruction, 5729
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance1500 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
ESR35 mΩ
high2.5 mm
JESD-609 codee0
leakage current0.095 mA
length14.5 mm
Manufacturer's serial number592D
Installation featuresSURFACE MOUNT
negative tolerance10%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
Package formSMT
method of packingTR, 7 INCH
polarityPOLARIZED
positive tolerance10%
Rated (DC) voltage (URdc)6.3 V
ripple current2300 mA
series592D
size code5729
surface mountYES
Delta tangent0.2
Terminal surfaceTin/Lead (Sn60Pb40)
Terminal shapeWRAPAROUND
width7.37 mm

592D158X96W3X8T25H Preview

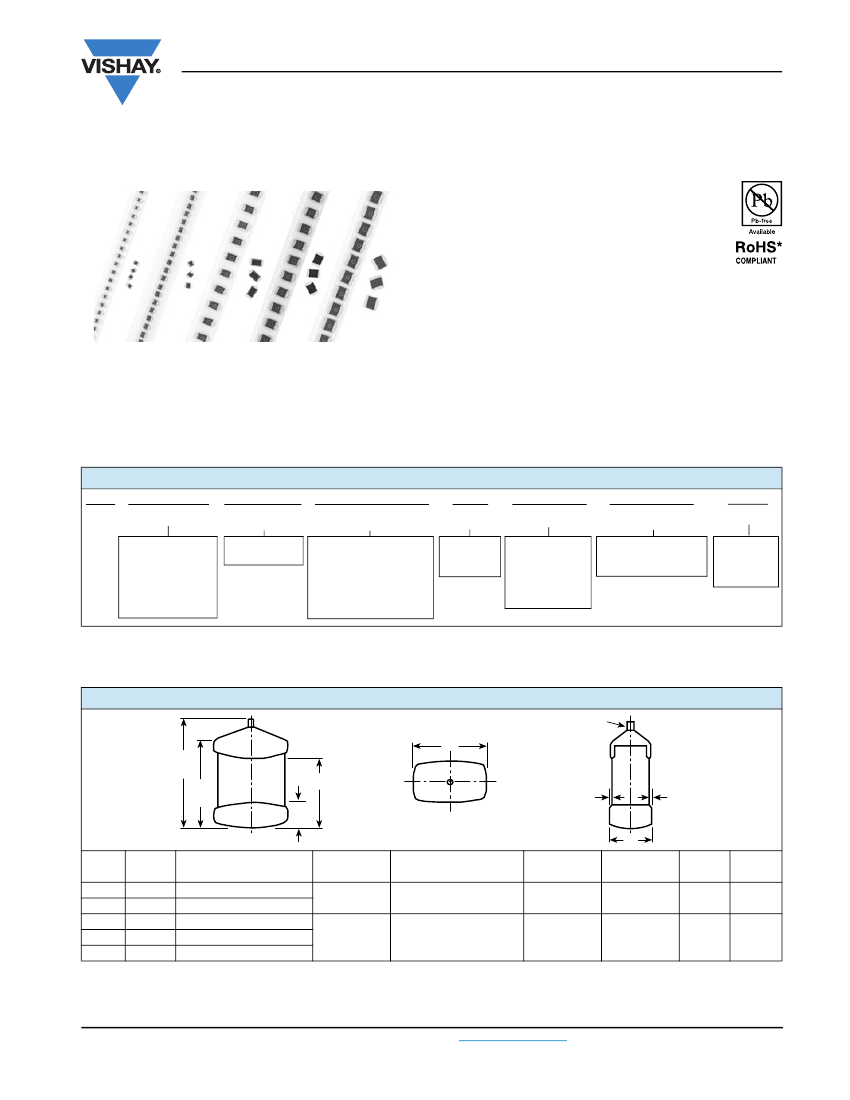

592D
Vishay Sprague
Solid Tantalum Chip Capacitors
T
ANTAMOUNT®
, Low Profile, Conformal Coated, Maximum CV
FEATURES
•
New robust 6.3 V ratings for battery operated
wireless applications
•
1.0 mm to 2.5 mm height
•
Terminations: Lead (Pb)-free (2) standard
•
Low impedance
•
8 mm, 12 mm tape and reel packaging available per
EIA 481-1 and reeling per IEC 286-3. 7" [178 mm]
standard. 13" [330 mm] available.
•
Case code compatibility with EIA 535BAAC and
CECC30801 molded chips
•
Compliant to RoHS directive 2002/95/EC
PERFORMANCE CHARACTERISTICS
Operating Temperature:
- 55 °C to + 85 °C
(To + 125 °C with voltage derating)
Note
• Refer to Doc. 40088
Capacitance Range:
1 µF to 2200 µF
Capacitance Tolerance:
± 10 %, ± 20 % standard
Voltage Rating:
4 WVDC to 50 WVDC
ORDERING INFORMATION
592D
TYPE
106
CAPACITANCE
This is expressed
in picofarads. The
first two digits are
the significant
figures. The third
is the number of
zeros to follow.
X0
010
CAPACITANCE DC VOLTAGE RATING
TOLERANCE
AT + 85 °C
X0 =
±
20 %
X9 = ± 10 %
This is expressed in
volts. To complete the
three-digit block, zeros
precede the voltage
rating. A decimal point
is indicated by an “R”
(6R3 = 6.3 V).
B
CASE
CODE
See ratings
and case
codes table
2
TERMINATION
2 = 100 % tin
4 = Gold plated
8 = Solder
plated
60/40
Special order
T
REEL SIZE AND
PACKAGING
T = Tape and reel
7" [178 mm] reel
W = 13" [330 mm] reel
15H
SUFFIX
Maximum
height (mm)
see
dimensions
Notes
• Preferred tolerance and reel sizes are in bold
• We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size.
• Voltage substitutions will be marked with the higher voltage rating
DIMENSIONS
in inches [millimeters]
Tantalum Wire
Nib Identifies
Anode (+)
Terminal
W
L
MAX.
D
REF.
A
B
J
MAX.
J
MAX.
H
CASE
CODE
SUFFIX
H
L
(MAX.)
W
A
0.031 ± 0.012
[0.80 ± 0.3]
0.031 ± 0.012
[0.80 ± 0.3]
B
0.087 ± 0.016
[2.2 ± 0.4]
0.097 ± 0.016
[2.5 ± 0.4]
D
(REF.)
0.115
[2.9]
0.139
[3.5]
J
(MAX.)
0.004
[0.1]
0.004
[0.1]
A
12H
0.047 [1.2] Max.
0.146
0.072 ± 0.012
[3.7]
[1.8 ± 0.3]
A
15H
0.047 ± 0.012 [1.2 ± 0.3]
B
15H
0.047 ± 0.012 [1.2 ± 0.3]
0.158
0.110 ± 0.012
B
20H
0.079 [2.0] Max.
[4.0]
[2.8 ± 0.3]
B
13H
0.057 [1.3] Max.
Note
• The anode termination (D less B) will be a minimum of 0.012" [0.3 mm]
* Pb containing terminations are not RoHS compliant, exemptions may apply
Document Number: 40004
Revision: 19-Mar-10
For technical questions, contact:
tantalum@vishay.com
www.vishay.com
89
592D
Vishay Sprague
Solid Tantalum Chip Capacitors T
ANTAMOUNT®
Low Profile, Conformal Coated, Maximum CV
DIMENSIONS
in inches [millimeters]
CASE
CODE
C
C
C
C
D
D
D
M
R
R
S
S
X
X
X
X
X
SUFFIX
14H
15H
16H
20H
15H
18H
20H
20H
15H
20H
12H
13H
16H
18H
20H
21H
25H
H
0.055 [1.4] Max.
0.047 ± 0.012 [1.2 ± 0.3]
0.063 [1.6] Max.
0.079 [2.0] Max.
0.047 ± 0.012 [1.2 ± 0.3]
0.071 [1.8] Max.
0.079 [2.0] Max.
0.079 [2.0] Max.
0.047 ± 0.012 [1.2 ± 0.3]
0.079 [2.0] Max.
0.047 [1.2] Max.
0.047 ± 0.012 [1.2 ± 0.3]
0.063 [1.6] Max.
0.071 [1.8] Max.
0.079 [2.0] Max.
0.083 [2.1] Max.
0.098 [2.5] Max.
0.285
[7.2]
0.126 ± 0.012
[3.2 ± 0.3]
L
(MAX.)
W
A
B
D
(REF.)
J
(MAX.)
0.281
[7.1]
0.126 ± 0.012
[3.2 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.180 ± 0.024
[4.4 ± 0.6]
0.238
[6.0]
0.004
[0.1]
0.298
[7.5]
0.170 ± 0.012
[4.3 ± 0.3]
0.247 ± 0.012
[6.3 ± 0.3]
0.235 + 0.012/- 0.024
[6.0 + 0.3/- 0.6]
0.063 ± 0.012
[1.6 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.180 ± 0.024
[4.6 ± 0.6]
0.254
[6.4]
0.264
[6.7]
0.004
[0.1]
0.051 ± 0.012
[1.3 ± 0.3]
0.031 ± 0.012
[0.8 ± 0.3]
0.180 ± 0.024
[4.6 ± 0.6]
0.079 ± 0.012
[2.0 ± 0.3]
0.246
[6.2]
0.087
[2.2]
0.004
[0.1]
0.004
[0.1]
0.575
[14.5]
0.290 + 0.010/- 0.020
[7.37 + 0.25/- 0.5]
0.051 ± 0.016
[1.3 ± 0.4]
0.470 ± 0.024
[11.9 ± 0.6]
0.524
[13.2]
0.004
[0.1]
Note
• The anode termination (D less B) will be a minimum of 0.012" [0.3 mm]
RATINGS AND CASE CODES
µF
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
120
150
220
330
470
680
1000
1500
2200
B/C/D/R
C/D/R
C/D/R
C/D/R
D/R
R
X
X
A/B
B
B
(1)
/C
B/C/D
A/B/C/D/R
B/C/S
C/D
C/D/B/R
D/R
C
D/C
C/D/R
C/D/R
C/D/R
R
R/X
M/X
X
X
D
(1)
D
D
D
R
A
A
B
A/C
C/D
B/D/R
B/C/C
(1)
/D/R
D/C
B
A/B
B/C
B/D
B/C/D
B/C/D/R
B/C/R
C/D
C/D
R
A/B
B/C
B/D
C/R
B/C
(1)
/D/R
4V
6.3 V
10 V
16 V
20 V
25 V
35 V
A/B
B
50 V
A/B
B/C
C
C/D
B/D/R
R
B
(1)
/C
C/D
B/C/D/R
D/R
R
R
D
(1)
/R
Note
(1)
Contact factory for availability
www.vishay.com
90
For technical questions, contact:
tantalum@vishay.com
Document Number: 40004
Revision: 19-Mar-10
592D
Solid Tantalum Chip Capacitors T
ANTAMOUNT®
Low Profile, Conformal Coated, Maximum CV
STANDARD RATINGS
CAPACITANCE
(µF)
CASE CODE
PART NUMBER
MAX. DCL
AT + 25 °C
(µA)
MAX. DF
AT + 25 °C
120 Hz (%)
MAX. ESR
AT + 25 °C
100 kHz (Ω)
2.40
1.60
1.60
1.5
(1)
0.40
1.40
0.35
0.27
1.00
0.80
(1)
0.20
0.45
0.35
0.26
0.45
0.20
0.45
0.36
0.25
0.45
0.20
0.20
0.19
0.12
0.12
0.18
0.15
0.14
0.14
0.10
0.10
0.10
0.10
0.10
0.20
0.04
0.04
0.055
5.50
2.70
2.50
1.70
1.50
4.00
1.50
1.50
MAX. RIPPLE
100 kHz
Irms (A)
0.16
0.22
0.22
0.23
(1)
0.50
0.24
0.53
0.68
0.24
0.27
(1)
0.87
0.42
0.53
0.69
0.42
0.87
0.42
0.52
0.71
0.42
0.87
0.78
0.76
1.08
1.12
0.91
0.86
0.94
0.95
1.05
1.18
1.32
1.32
1.18
0.94
2.10
2.30
2.30
0.10
0.15
0.15
0.22
0.23
0.39
0.20
0.20
Vishay Sprague
22
22
33
47
(1)
47
68
68
68
100
100
(1)
100
100
100
100
100
150
150
150
150
150
220
220
220
330
330
330
330
470
470
470
470
470
680
680
1000
1500
2200
2200
6.8
10
15
15
22
22
22
22
A
B
B
B
(1)
C
B
C
D
A
A
(1)
B
C
D
R
B
B
C
D
R
B
C
D
R
C
D
D
R
D
D
C
D
R
D
R
R
X
X
X
A
A
A
B
B
A
A
B
4 WVDC AT + 85 °C, 2.7 WVDC AT + 125 °C
592D226X_004A2_15H
0.9
6
592D226X_004B2_15H
0.9
6
592D336X_004B2_15H
1.3
6
(1)
(1)
592D476X_004B2_15H
1.9
6
(1)
592D476X_004C2_15H
1.9
6
592D686X_004B2_15H
2.7
6
592D686X_004C2_15H
2.7
6
592D686X_004D2_15H
2.7
6
592D107X_004A2_12H
4.0
24
(1)
(1)
592D107X_004A2_15H
4.0
8
(1)
592D107X_004B2_20H
4.0
8
592D107X_004C2_15H
4.0
8
592D107X_004D2_15H
4.0
8
592D107X_004R2_15H
4.0
8
592D107X_004B2_20H
4.0
8
592D157X_004B2_20H
6.0
8
592D157X_004C2_15H
6.0
8
592D157X_004D2_15H
6.0
8
592D157X_004R2_15H
6.0
8
592D157X_004B2_20H
6.0
8
592D227X_004C2_20H
8.3
8
592D227X_004D2_20H
8.3
8
592D227X_004R2_15H
8.3
8
592D337X_004C2_15H
13.2
8
592D337X_004D2_20H
13.2
8
592D337X_004D2_15H
13.2
8
592D337X_004R2_15H
13.2
8
592D477X_004D2_15H
18.8
8
592D477X_004D2_14H
18.8
8
592D477X_004C2_20H
18.8
8
592D477X_004D2_20H
18.8
8
592D477X_004R2_20H
18.8
10
592D687X_004D2_20H
27.2
12
592D687X_004R2_20H
27.2
12
592D108X_004R2_20H
40
14
592D158X_004X2_20H
60
20
592D228X_004X2_25H
88
25
592D228X_004X2_20H
88
25
6.3 WVDC AT + 85 °C, 4 WVDC AT + 125 °C
592D685X_6R3A2_15H
0.56
5
592D106X_6R3A2_15H
0.48
5
592D156X_6R3A2_15H
0.9
6
592D156X_6R3B2_15H
0.9
6
592D226X_6R3B2_15H
1.4
6
592D226X_6R3A2_10H
1.4
12
592D226X_6R3A2_13H
1.4
6
592D226X_6R3B2_15H
1.4
6
Note
(1)
Preliminary values contact factory for availability. For 10 % tolerance, specify “9”; for 20 % tolerance, change to “0”.
Document Number: 40004
Revision: 19-Mar-10
For technical questions, contact:
tantalum@vishay.com
www.vishay.com
91
592D
Vishay Sprague
STANDARD RATINGS
CAPACITANCE
(µF)
33
33
33
33
33
47
47
47
47
47
47
68
68
68
68
68
68
100
100
100
100
100
100
100
120
150
150
150
150
220
220
220
220
220
220
330
330
330
330
330
330
330
330
470
470
470
470
470
470
(1)
Solid Tantalum Chip Capacitors T
ANTAMOUNT®
Low Profile, Conformal Coated, Maximum CV
CASE CODE
A
B
C
S
S
A
A
B
B
C
D
B
B
C
C
D
R
B
B
C
C
D
R
R
C
C
D
R
R
C
C
C
D
D
R
C
C
D
D
D
D
R
R
C
C
D
R
R
R
MAX. DCL
MAX. DF
AT + 25 °C
AT + 25 °C
(µA)
120 Hz (%)
6.3 WVDC AT + 85 °C, 4 WVDC AT + 125 °C
592D336X_6R3A2_15H
2.1
6
592D336X_6R3B2_15H
2.1
6
592D336X_6R3C2_15H
2.1
6
592D336X_6R3S2_12H
2.1
10
592D336X_6R3S2_13H
2.1
8
592D476X_6R3A2_13H
2.7
14
592D476X_6R3A2_15H
2.7
14
592D476X_6R3B2_15H
3.0
8
592D476X_6R3B2_12H
3.0
8
592D476X_6R3C2_15H
3.0
6
592D476X_6R3D2_15H
3.0
6
592D686X_6R3B2_20H
4.3
6
592D686X_6R3B2_13H
4.3
8
592D686X_6R3C2_14H
3.87
6
592D686X_6R3C2_15H
4.3
6
592D686X_6R3D2_15H
4.3
6
592D686X_6R3R2_15H
4.3
6
592D107X_6R3B2_15H
4.3
6
592D107X_6R3B2_20H
6.3
8
592D107X_6R3C2_15H
6.3
8
592D107X_6W3C2_15H
6.3
8
592D107X_6R3D2_15H
6.3
8
592D107X_6R3R2_15H
6.3
8
592D107X_6W3R2_15H
6.3
8
592D127X_6R3C2_20H
6.50
8
592D157X_6R3C2_20H
9.5
8
592D157X_6R3D2_15H
9.5
8
592D157X_6W3R2_15H
9.5
8
592D157X_6R3R2_15H
9.5
8
592D227X_6R3C2_18H
13.9
8
592D227X_6R3C2_20H
13.9
8
592D227X_6W3C2_20H
13.9
8
592D227X_6R3D2_15H
13.9
8
592D227X_6R3D2_20H
13.9
8
592D227X_6R3R2_15H
13.9
8
592D337X_6R3C2_20H
20.8
8
592D337X_6R3C2_16H
20.8
10
592D337X_6R3D2_16H
20.8
8
592D337X_6R3D2_20H
20.8
8
592D337X_6W3D2_20H
20.8
8
592D337X_6R3D2_19H
20.8
8
592D337X_6R3R2_15H
20.8
8
592D337X_6R3R2_20H
20.8
8
592D477X_6R3C2_20H
29.6
14
592D477X_6R3C2_16H
29.6
14
592D477X_6R3D2_20H
29.6
10
592D477X_6R3R2_20H
29.6
10
592D477X_6W3R2_20H
29.6
10
592D477X_6R3R2_16H
29.6
10
PART NUMBER
MAX. ESR
AT + 25 °C
100 kHz (Ω)
1.70
1.40
0.40
2.00
1.30
2.00
2.00
1.40
1.40
0.40
0.30
0.50
0.60
0.38
0.38
0.27
0.20
1.00
0.45
0.38
0.38
0.26
0.20
0.20
0.20
0.19
0.25
0.20
0.20
0.15
0.15
0.15
0.22
0.12
0.18
0.10
0.15
0.12
0.10
0.10
0.10
0.18
0.10
0.10
0.20
0.10
0.10
0.10
0.12
MAX. RIPPLE
100 kHz
Irms (A)
0.32
0.24
0.50
0.17
0.24
0.17
0.17
0.24
0.24
0.50
0.65
0.40
0.36
0.46
0.51
0.68
0.87
0.28
0.42
0.51
0.51
0.69
0.87
0.87
0.74
0.76
0.71
0.87
0.87
0.86
0.86
0.86
0.75
1.08
0.91
1.05
0.82
1.02
1.18
1.18
1.18
0.91
1.32
1.05
0.71
1.18
1.32
1.32
1.32
Note
Preliminary values contact factory for availability. For 10 % tolerance, specify “9”; for 20 % tolerance, change to “0”.
www.vishay.com
92
For technical questions, contact:
tantalum@vishay.com
Document Number: 40004
Revision: 19-Mar-10
592D
Solid Tantalum Chip Capacitors T
ANTAMOUNT®
Low Profile, Conformal Coated, Maximum CV
STANDARD RATINGS
CAPACITANCE
(µF)
CASE CODE
PART NUMBER
MAX. DCL
AT + 25 °C
(µA)
42.8
42.8
63
63
95
95
95
95
95
139
139
139
139
1.0
1.0
2.2
2.2
2.2
2.2
3.3
3.3
4.7
4.7
4.7
6.8
6.8
6.8
(1)
6.8
6.8
10
10
10
10
15
15
15
15
22
22
22
33
33
100
MAX. DF
AT + 25 °C
120 Hz (%)
10
10
20
16
33
25
20
20
25
45
35
35
35
6
6
6
6
6
6
6
6
6
6
6
6
6
6
(1)
6
6
14
8
8
6
8
8
8
8
8
8
8
8
8
15
MAX. ESR
AT + 25 °C
100 kHz (Ω)
0.10
0.10
0.20
0.04
0.09
0.045
0.035
0.035
0.045
0.070
0.055
0.055
0.055
2.60
1.70
1.50
1.50
1.50
0.40
0.40
0.30
0.50
0.27
0.20
0.45
0.24
0.25
(1)
0.27
0.20
0.40
0.19
0.10
0.22
0.17
0.17
0.25
0.14
0.12
0.12
0.10
0.10
0.10
0.07
MAX. RIPPLE
100 kHz
Irms (A)
1.87
1.87
0.94
2.10
1.39
1.97
2.30
2.30
1.97
1.58
1.80
1.80
1.80
0.15
0.22
0.20
0.23
0.23
0.50
0.50
0.65
0.68
0.87
0.40
0.84
0.68
0.66
(1)
0.87
0.42
0.45
1.11
0.76
0.83
0.80
0.80
0.71
1.00
1.08
1.08
1.32
1.18
1.32
1.58
Vishay Sprague
6.3 WVDC AT + 85 °C, 4 WVDC AT + 125 °C
680
680
1000
1000
1500
1500
1500
1500
1500
2200
2200
2200
2200
10
10
22
22
22
22
33
33
47
47
47
68
68
68
(1)
68
68
100
100
100
100
150
150
150
150
220
220
220
330
330
680
R
R
R
X
M
X
X
X
X
X
X
X
X
A
B
A
B
B
C
C
D
B
D
R
B
C
C
(1)
D
R
B
C
D
R
C
C
D
D
D
D
R
D
R
X
592D687X_6R3R2_20H
592D687X_6R3R2_16H
592D108X_6R3R2_20H
592D108X_6R3X2_20H
592D158X_6R3M2_20H
592D158X_6R3X2_16H
592D158X_6R3X2_25H
592D158X_6W3X2_25H
592D158X_6R3X2_20H
592D228X_6R3X2_16H
592D228X_6R3X2_20H
592D228X_6R3X2_21H
592D228X_6R3X2_22H
592D106X_010A2_15H
592D106X_010B2_15H
592D226X_010A2_13H
592D226X_010B2_15H
592D226X_010B2_13H
592D226X_010C2_15H
592D336X_010C2_15H
592D336X_010D2_15H
592D476X_010B2_20H
592D476X_010D2_15H
592D476X_010R2_15H
592D686X_010B2_20H
592D686X_010C2_15H
592D686X_010C2_20H
(1)
592D686X_010D2_15H
592D686X_010R2_15H
592D107X_010B2T20H
592D107X_010C2_20H
592D107X_010D2_15H
592D107X_010R2_15H
592D157X_010C2_15H
592D157X_010C2_20H
592D157X_010D2_15H
592D157X_010D2_20H
592D227X_010D2_20H
592D227X_010D2_19H
592D227X_010R2_20H
592D337X_010D2_20H
592D337X_010R2_20H
592D687X_010X2_20H
10 WVDC AT + 85 °C, 7 WVDC AT + 125 °C
(1)
Note
Preliminary values contact factory for availability. For 10 % tolerance, specify “9”; for 20 % tolerance, change to “0”.
Document Number: 40004
Revision: 19-Mar-10
For technical questions, contact:
tantalum@vishay.com
www.vishay.com
93
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

592D158X96W3X8T25H Related Products

592D158X96W3X8T25H 592D158X06W3X8T25H 592D107X06W3C8T15H 592D107X06W3R8T15H 592D107X96W3C8T15H 592D107X96W3R8T15H
Description Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 10% +Tol, 10% -Tol, 1500uF, Surface Mount, 5729, CHIP Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 1500uF, Surface Mount, 5729, CHIP Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 2813, CHIP Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 2824, CHIP Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 10% +Tol, 10% -Tol, 100uF, Surface Mount, 2813, CHIP Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 10% +Tol, 10% -Tol, 100uF, Surface Mount, 2824, CHIP
Is it lead-free? Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible
Maker Vishay Vishay Vishay Vishay Vishay Vishay
package instruction , 5729 , 5729 , 2813 , 2824 , 2813 , 2824
Reach Compliance Code compliant compliant compli compli compli compli
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
capacitance 1500 µF 1500 µF 100 µF 100 µF 100 µF 100 µF
Capacitor type TANTALUM CAPACITOR TANTALUM CAPACITOR TANTALUM CAPACITOR TANTALUM CAPACITOR TANTALUM CAPACITOR TANTALUM CAPACITOR
dielectric materials TANTALUM (DRY/SOLID) TANTALUM (DRY/SOLID) TANTALUM (DRY/SOLID) TANTALUM (DRY/SOLID) TANTALUM (DRY/SOLID) TANTALUM (DRY/SOLID)
ESR 35 mΩ 35 mΩ 380 mΩ 200 mΩ 380 mΩ 200 mΩ
high 2.5 mm 2.5 mm 1.2 mm 1.2 mm 1.2 mm 1.2 mm
JESD-609 code e0 e0 e0 e0 e0 e0
leakage current 0.095 mA 0.095 mA 0.0063 mA 0.0063 mA 0.0063 mA 0.0063 mA
length 14.5 mm 14.5 mm 7.1 mm 7.2 mm 7.1 mm 7.2 mm
Manufacturer's serial number 592D 592D 592D 592D 592D 592D
Installation features SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
negative tolerance 10% 20% 20% 20% 10% 10%
Number of terminals 2 2 2 2 2 2
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Package shape RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE
Package form SMT SMT SMT SMT SMT SMT
method of packing TR, 7 INCH TR, 7 INCH TR, 7 INCH TR, 7 INCH TR, 7 INCH TR, 7 INCH
polarity POLARIZED POLARIZED POLARIZED POLARIZED POLARIZED POLARIZED
positive tolerance 10% 20% 20% 20% 10% 10%
Rated (DC) voltage (URdc) 6.3 V 6.3 V 6.3 V 6.3 V 6.3 V 6.3 V
ripple current 2300 mA 2300 mA 510 mA 870 mA 510 mA 870 mA
series 592D 592D 592D 592D 592D 592D
size code 5729 5729 2813 2824 2813 2824
surface mount YES YES YES YES YES YES
Delta tangent 0.2 0.2 0.08 0.08 0.08 0.08
Terminal surface Tin/Lead (Sn60Pb40) Tin/Lead (Sn60Pb40) Tin/Lead (Sn60Pb40) Tin/Lead (Sn60Pb40) Tin/Lead (Sn60Pb40) Tin/Lead (Sn60Pb40)
Terminal shape WRAPAROUND WRAPAROUND WRAPAROUND WRAPAROUND WRAPAROUND WRAPAROUND
width 7.37 mm 7.37 mm 3.2 mm 6 mm 3.2 mm 6 mm

Recommended Resources

T flip-flop circuit structure and its input-output signal waveform

The internal circuit of STK3102

Voltage regulator circuit diagram for converting 5V to 12V

Using bidirectional thyristor to control temperature circuit diagram

On-site signal optical fiber transmission and reception circuit

Triple voltage rectifier circuit

Design of driving fatigue detection system based on ADI's BF533
[font=Simsun]Seeing that everyone is very enthusiastic about DIY recently, since I don't have time to participate, I will share some ADI resource documents I collected before with you, hoping that the...
shower.xu ADI Reference Circuit
MCU Music Score Coding Software
[color=#252525][size=14px]Share a music score encoding software commonly used in single-chip microcomputers. It can easily convert music scores into single-chip microcomputer codes. It is a very conve...
2dsf 51mcu
Can the 10Mbps SPI data stream under WINCE be processed by using the interrupt receiving working mode (waiting for the interrupt and then reading the receiving SFR one by one)? Is it necessary to use the DMA working mode?
Can the 10Mbps SPI data stream under WINCE be processed by using the interrupt receiving working mode (waiting for the interrupt and then reading the receiving SFR one by one)? Is it necessary to use ...
sg256 Embedded System
Schematic diagram of homemade 4x4 keyboard
...
yuandayuan6999 DIY/Open Source Hardware
LM_LICENSE_FILE environment variable issue
When using actel, you need to set the LM_LICENSE_FILE environment variable. When using altera QII's modelsim, you also need to set the LM_LICENSE_FILE environment variable. You have to modify it every...
wanggq FPGA/CPLD
When operating a txt file under evc, the write operation after open is successful, but the txt file cannot be opened on the target machine. Why?
Directly in the initialization: CFile file; file.open(); file.write(); file.close(); After executing these processes, when opening the txt file on the target machine, a dialog box pops up saying "can'...
yuezhiguang.4 Embedded System
Shortcut:   L0 L1 L2 L3 L4 L5 L6 L7 L8 L9 LA LB LC LD LE LF LG LH LI LJ LK LL LM LN LO LP LQ LR LS LT LU LV LW LX LY LZ M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 MA MB MC MD ME MF MG MH MI MJ MK ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ N0 N1 N2 N3 N4 N5 N6 N7 N8 NA NB NC ND NE NF NG NH NI NJ NK NL NM NN NO NP NQ NR NS NT NU NV NX NZ O0 O1 O2 O3 OA OB OC OD OE OF OG OH OI OJ OK OL OM ON OP OQ OR OS OT OV OX OY OZ P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 PA PB PC PD PE PF PG PH PI PJ PK PL PM PN PO PP PQ PR PS PT PU PV PW PX PY PZ Q1 Q2 Q3 Q4 Q5 Q6 Q8 Q9 QA QB QC QE QF QG QH QK QL QM QP QR QS QT QV QW QX QY R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 RA RB RC RD RE RF RG RH RI RJ RK RL RM RN RO RP RQ RR RS RT RU RV RW RX RY RZ

Popular Components

  1. XC6115C022
  2. RNC60H8873BSB14
  3. CDR31BP470BJZPAJ
  4. JW-21-04-T-S-910-140
  5. MS27496Y17E08PA
  6. 91091-040
  7. M80-4T1024200-00-302-08-322
  8. SIT1602AI-23-25S-74.175824E
  9. BZQ5255A_R2_10001
  10. C6201WV-2P-UV
  11. A2541WR-2x14P-E381-G30
  12. C6351HFA-6P

Popular Articles

  1. About the Noise Floor of Oscilloscopes
  2. Xiaomi helps the OLED TV market explode
  3. Goldman Sachs: TSMC may revise up capital expenditure to boost equipment market growth forecast
  4. SmartSens launches first 16MP image sensor based on QCell technology and 1-micron pixel unit
  5. Yangzhou Jingxin Microelectronics' 6-inch chip factory is now online
  6. Global App/Game Data Analysis: TikTok’s Most Popular Chicken Game is Loved by Everyone
  7. iQOO 9 appears on Geekbench: Snapdragon 8 Gen 1 + 12GB RAM
  8. Mitsubishi PLC selection criteria
  9. Reasons and solutions for electric vehicle battery power failure
  10. Why did Tesla "kill" fuses and relays?

Technical ResourceMore

  1. DCDC wiring rules
  2. AG6320 design PCB file | DP to HDMI/VGA solution design data
  3. Amo\'s collection of programming tools
  4. New energy pure electric vehicle energy storage high and low voltage wiring harness connector-distribution box
  5. MATLAB Case 6 PID Neural Network Decoupling Control Algorithm_Multivariable System Control.rar
  6. MATLAB Case 17 SOM Neural Network Data Classification - Diesel Engine Fault Diagnosis.rar
  7. Fudan Microelectronics 2017 written examination questions
  8. MATLAB Case 1 BP Neural Network Data Classification-Speech Feature Signal Classification.rar
  9. 2008 Shandong Province Competition Outstanding Papers Collection
  10. FIR filter design

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2073  755  1626  1913  72  42  16  33  39  2
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
