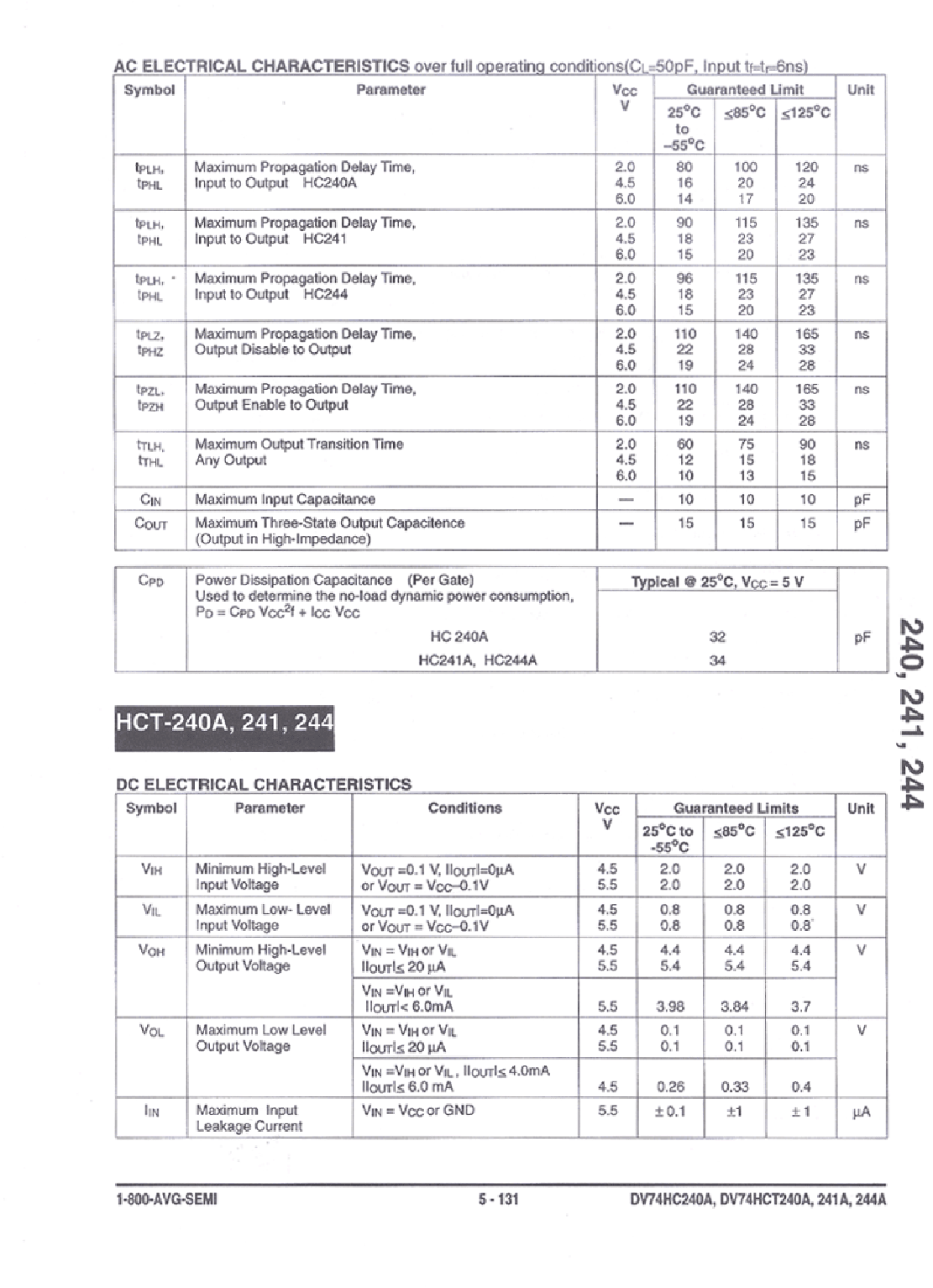

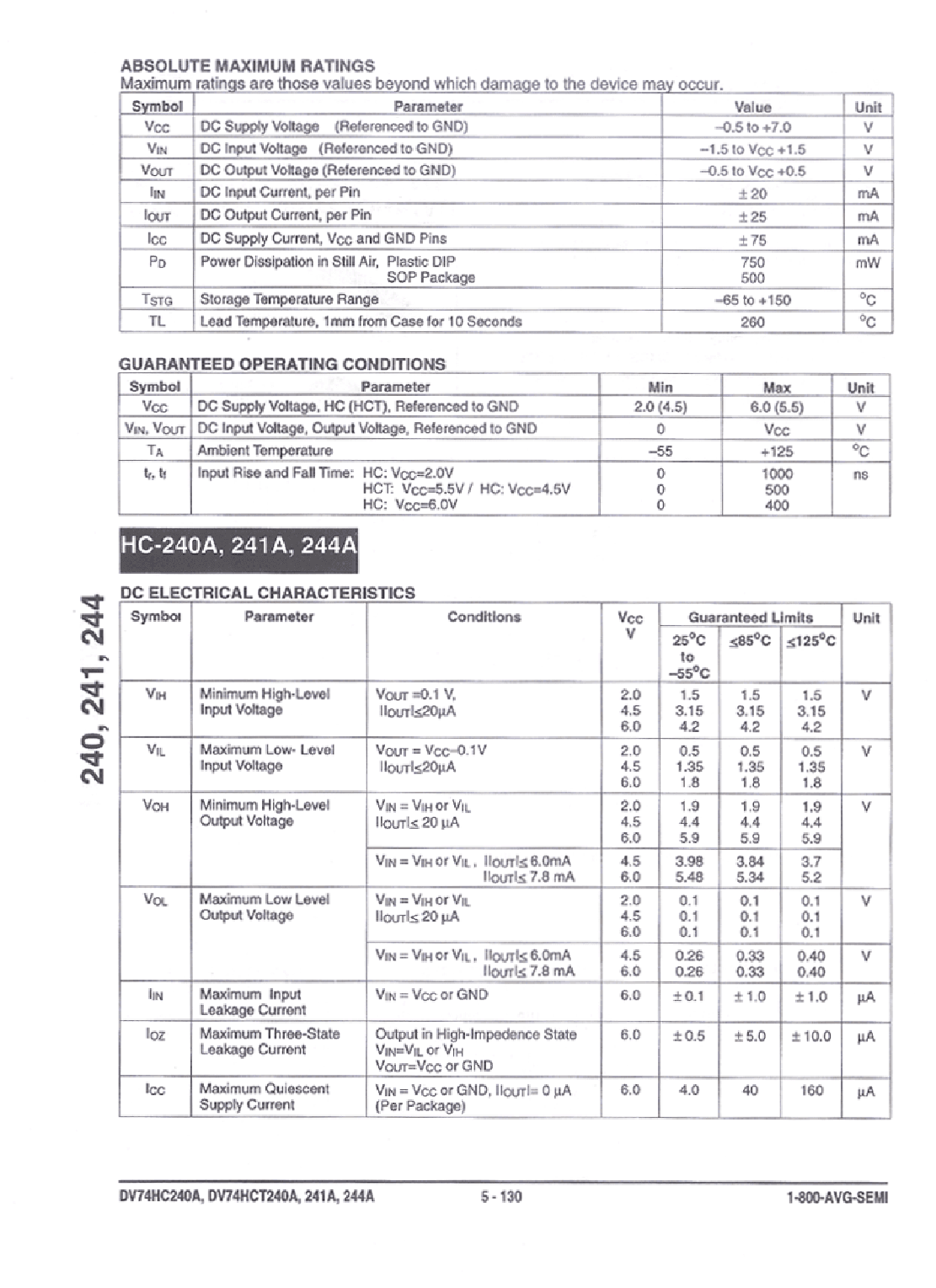

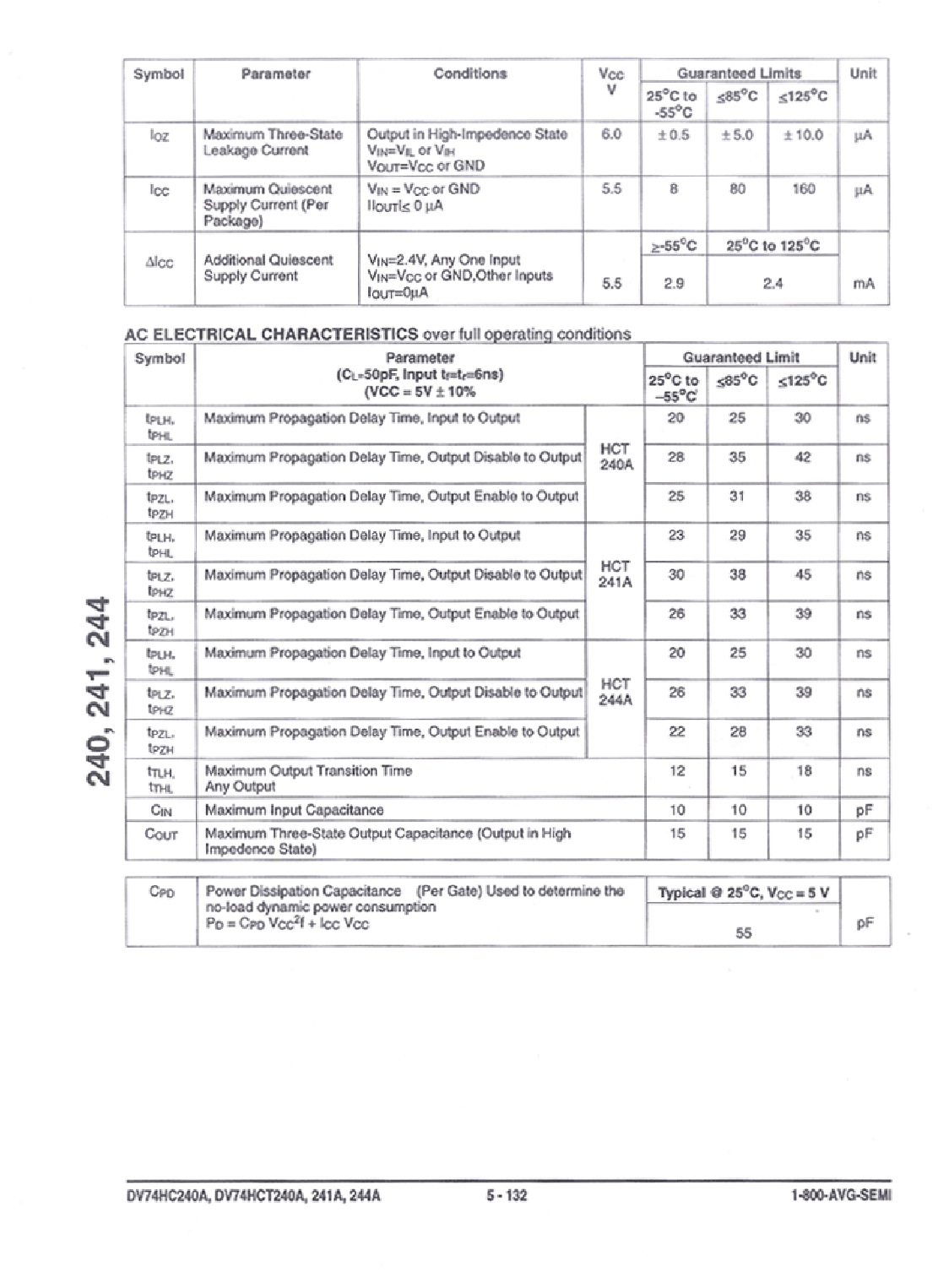

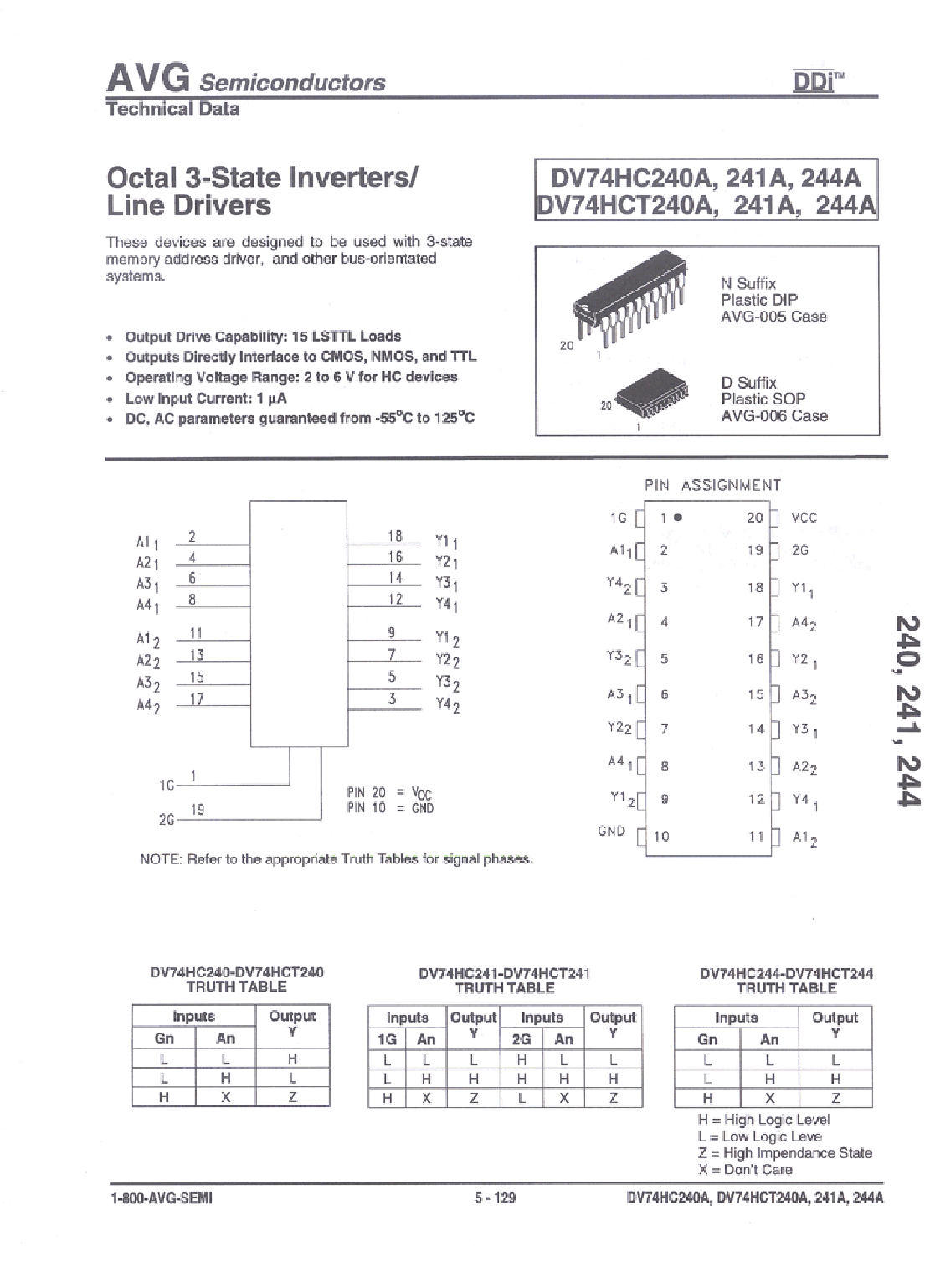

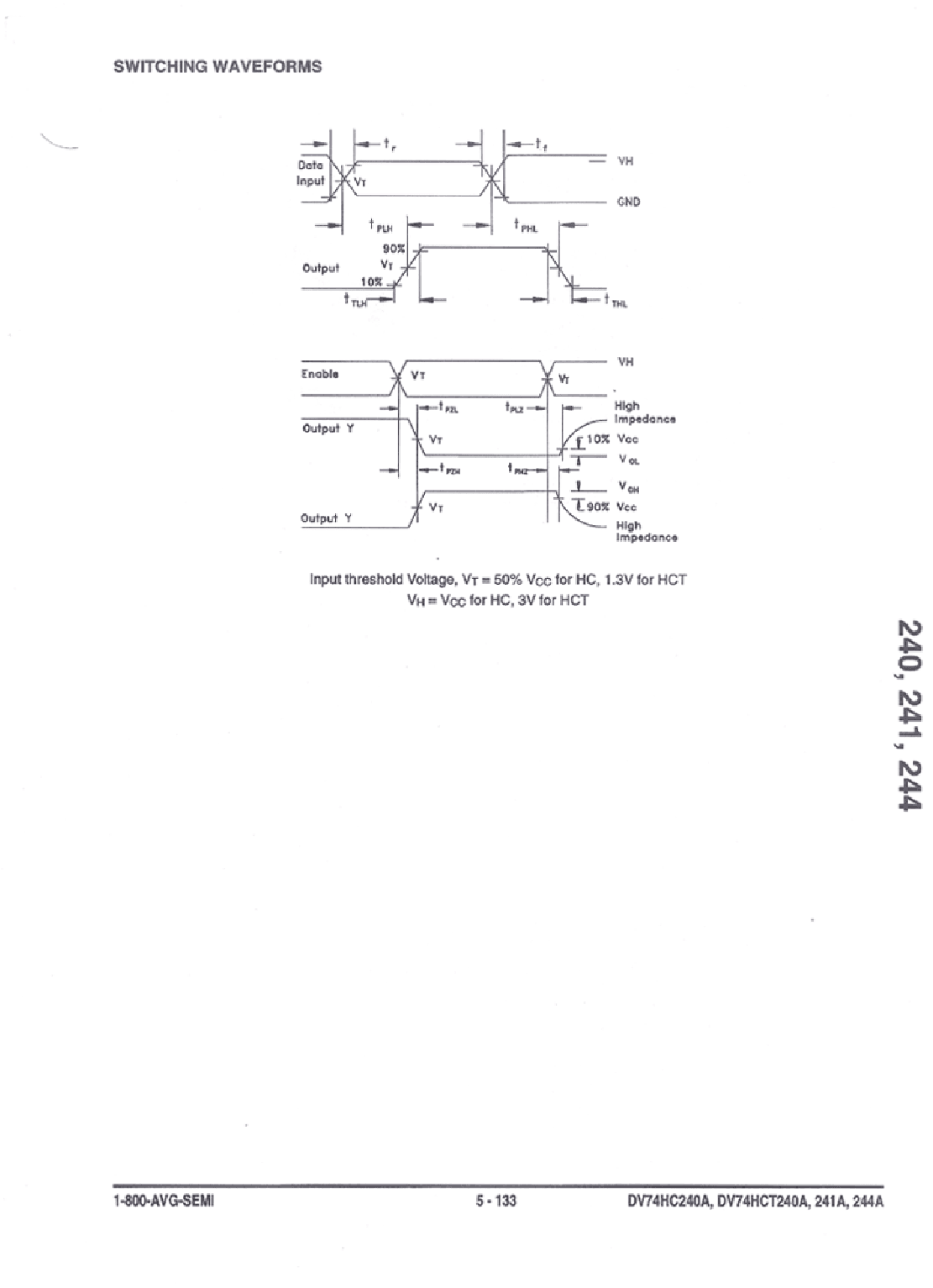

Preview

DV74HCT240AN: DescriptionBus Driver, HCT Series, 2-Func, 4-Bit, Inverted Output, CMOS, PDIP20, PLASTIC, DIP-20; Categorylogic logic; File Size726KB，5 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74HCT240AN Overview

Bus Driver, HCT Series, 2-Func, 4-Bit, Inverted Output, CMOS, PDIP20, PLASTIC, DIP-20

DV74HCT240AN Parametric

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP
package instruction	PLASTIC, DIP-20
Contacts	20
Reach Compliance Code	unknown
Other features	VOH SPECIFIED @ VCC=5.5V
series	HCT
JESD-30 code	R-PDIP-T20
length	26.415 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	30 ns
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

Preview

Download Datasheet

View All

DV74HCT240AN Related Products

	DV74HCT240AN	DV74HCT244AD	DV74HC241AD	DV74HCT241AN	DV74HC244AN	DV74HC240AN	DV74HCT244AN	DV74HC241AN	DV74HC244AD
Description	Bus Driver, HCT Series, 2-Func, 4-Bit, Inverted Output, CMOS, PDIP20, PLASTIC, DIP-20	Bus Driver, HCT Series, 2-Func, 4-Bit, True Output, CMOS, PDSO20, PLASTIC, SOP-20	Bus Driver, HC/UH Series, 2-Func, 4-Bit, True Output, CMOS, PDSO20, PLASTIC, SOP-20	Bus Driver, HCT Series, 2-Func, 4-Bit, True Output, CMOS, PDIP20, PLASTIC, DIP-20	Bus Driver, HC/UH Series, 2-Func, 4-Bit, True Output, CMOS, PDIP20, PLASTIC, DIP-20	Bus Driver, HC/UH Series, 2-Func, 4-Bit, Inverted Output, CMOS, PDIP20, PLASTIC, DIP-20	Bus Driver, HCT Series, 2-Func, 4-Bit, True Output, CMOS, PDIP20, PLASTIC, DIP-20	Bus Driver, HC/UH Series, 2-Func, 4-Bit, True Output, CMOS, PDIP20, PLASTIC, DIP-20	Bus Driver, HC/UH Series, 2-Func, 4-Bit, True Output, CMOS, PDSO20, PLASTIC, SOP-20
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP	SOIC	SOIC	DIP	DIP	DIP	DIP	DIP	SOIC
package instruction	PLASTIC, DIP-20	SOP,	SOP,	DIP,	DIP,	DIP,	DIP,	DIP,	SOP,
Contacts	20	20	20	20	20	20	20	20	20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
series	HCT	-	-	HCT	HC/UH	HC/UH	HCT	HC/UH	HC/UH
JESD-30 code	R-PDIP-T20	-	-	R-PDIP-T20	R-PDIP-T20	R-PDIP-T20	R-PDIP-T20	R-PDIP-T20	R-PDSO-G20
length	26.415 mm	-	-	26.415 mm	26.415 mm	26.415 mm	26.415 mm	26.415 mm	12.8 mm
Load capacitance (CL)	50 pF	-	-	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	-	-	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	4	-	-	4	4	4	4	4	4
Number of functions	2	-	-	2	2	2	2	2	2
Number of ports	2	-	-	2	2	2	2	2	2
Number of terminals	20	-	-	20	20	20	20	20	20
Maximum operating temperature	125 °C	-	-	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	-	-	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	-	-	TRUE	TRUE	INVERTED	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	-	-	DIP	DIP	DIP	DIP	DIP	SOP
Package shape	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	-	-	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE
propagation delay (tpd)	30 ns	-	-	35 ns	135 ns	120 ns	30 ns	135 ns	135 ns
Certification status	Not Qualified	-	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	-	-	4.57 mm	4.57 mm	4.57 mm	4.57 mm	4.57 mm	2.65 mm
Maximum supply voltage (Vsup)	5.5 V	-	-	5.5 V	6 V	6 V	5.5 V	6 V	6 V
Minimum supply voltage (Vsup)	4.5 V	-	-	4.5 V	2 V	2 V	4.5 V	2 V	2 V
Nominal supply voltage (Vsup)	5 V	-	-	5 V	4.5 V	4.5 V	5 V	4.5 V	4.5 V
surface mount	NO	-	-	NO	NO	NO	NO	NO	YES
technology	CMOS	-	-	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	-	-	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	-	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	-	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	-	-	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	-	-	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.5 mm
