IDT72255L20PFI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> IDT72255L20PFI

IDT72255L20PFI: DescriptionFIFO, 8KX18, 12ns, Synchronous, CMOS, PQFP64, TQFP-64; Categorystorage storage; File Size851KB，24 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT72255L20PFI Overview

FIFO, 8KX18, 12ns, Synchronous, CMOS, PQFP64, TQFP-64

IDT72255L20PFI Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	QFP
package instruction	TQFP-64
Contacts	64
Reach Compliance Code	not_compliant
ECCN code	EAR99
Maximum access time	12 ns
Other features	RETRANSMIT; AUTO POWER DOWN; EASY EXPANDABLE IN DEPTH AND WIDTH
Maximum clock frequency (fCLK)	50 MHz
period time	20 ns
JESD-30 code	S-PQFP-G64
JESD-609 code	e0
length	14 mm
memory density	147456 bit
Memory IC Type	OTHER FIFO
memory width	18
Humidity sensitivity level	3
Number of functions	1
Number of terminals	64
word count	8192 words
character code	8000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	8KX18
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	LQFP
Encapsulate equivalent code	QFP64,.66SQ,32
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum standby current	0.015 A
Maximum slew rate	0.18 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm

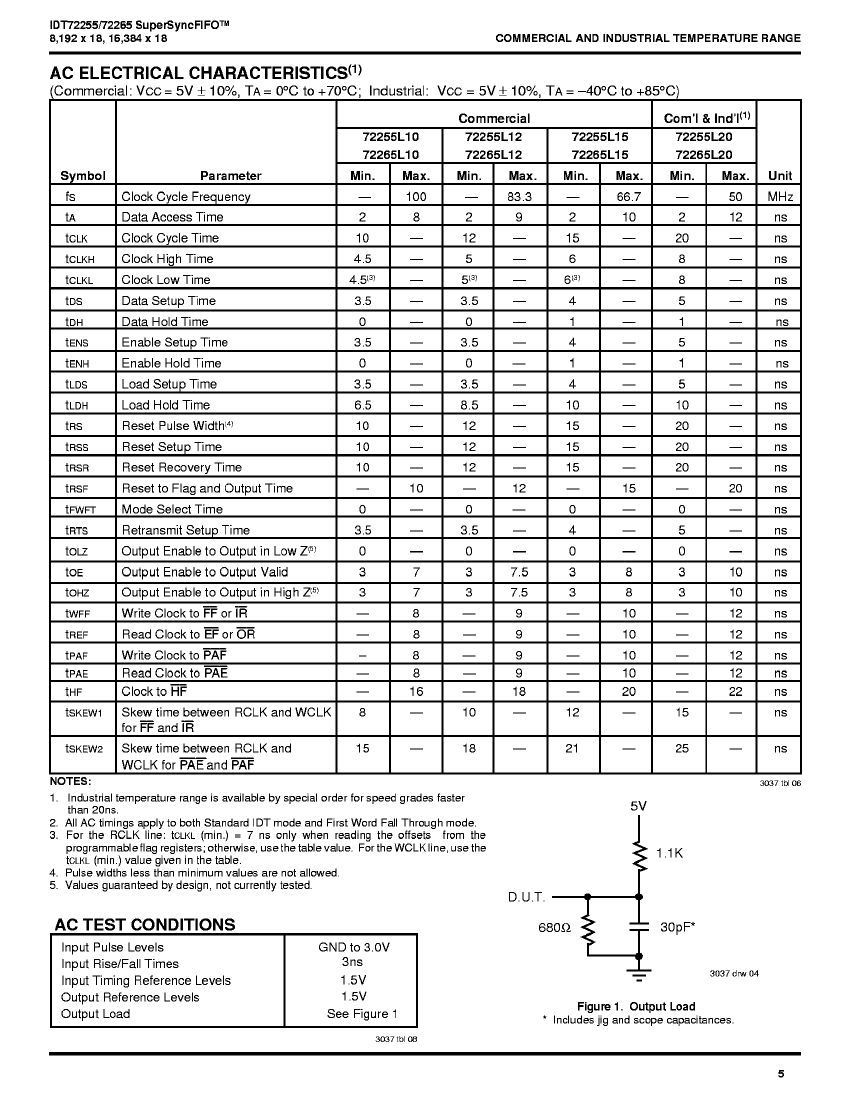

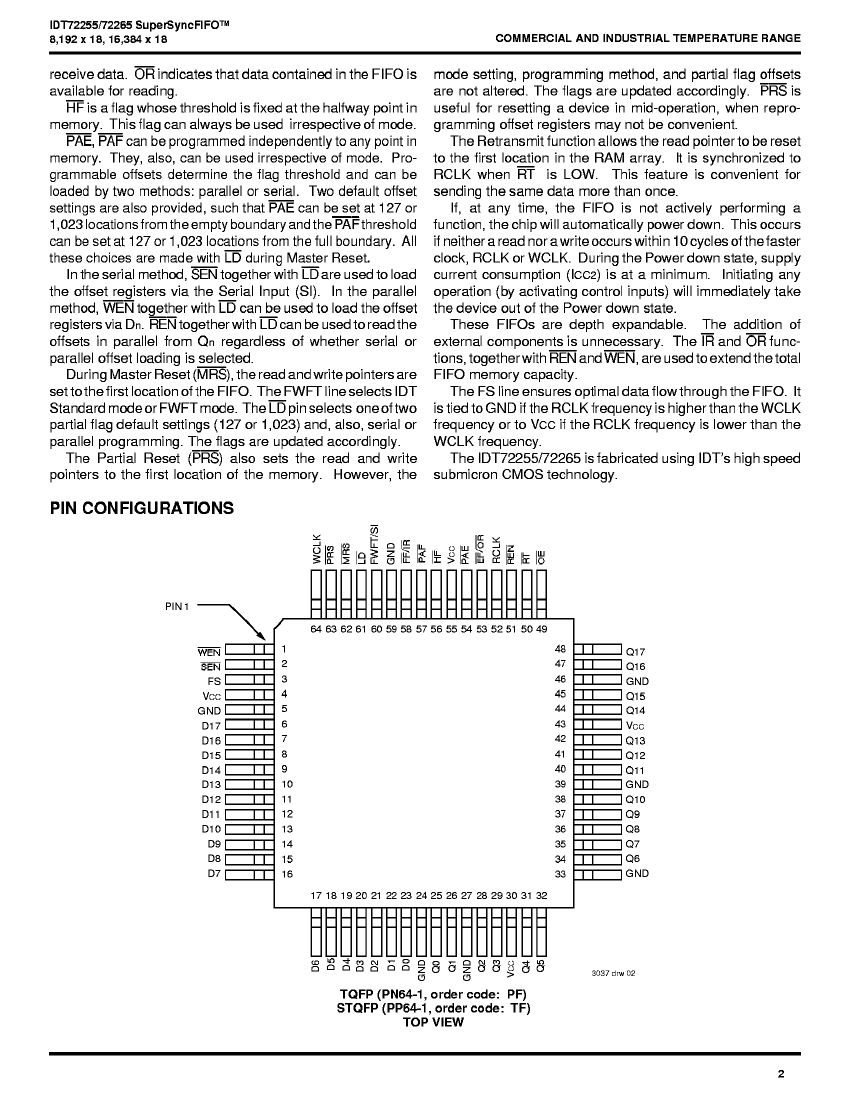

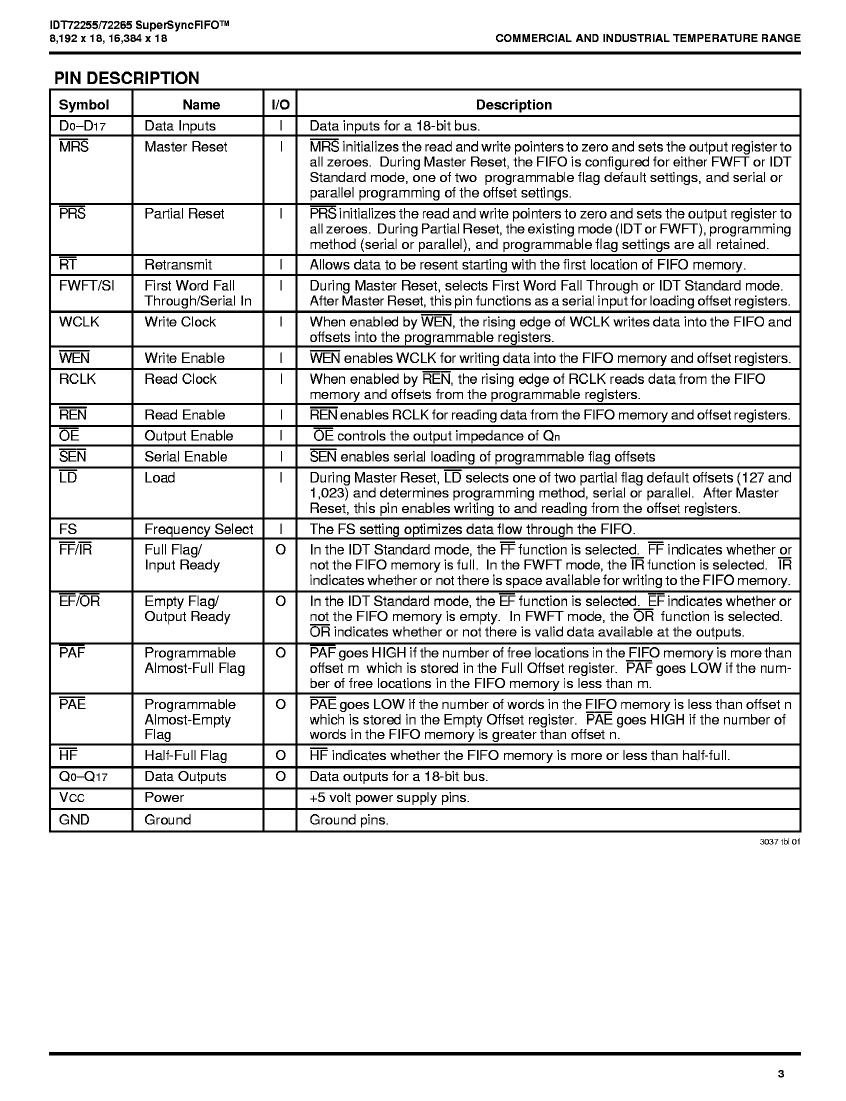

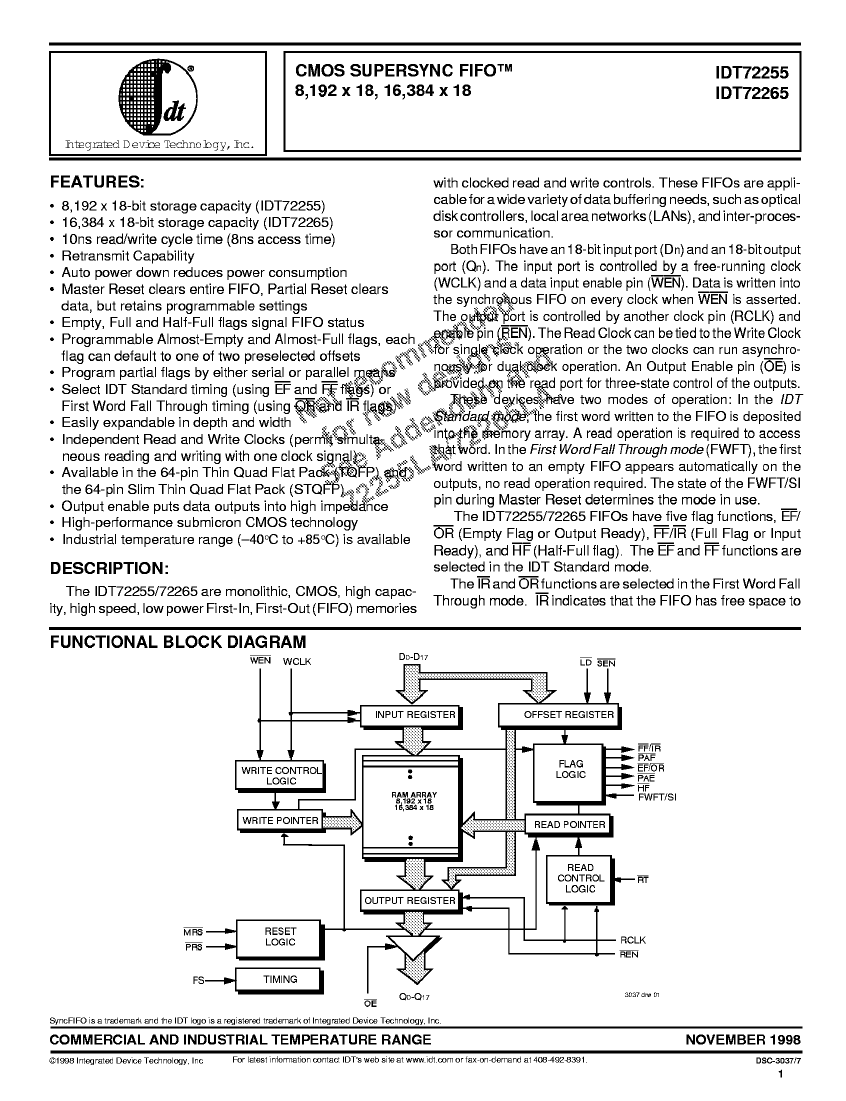

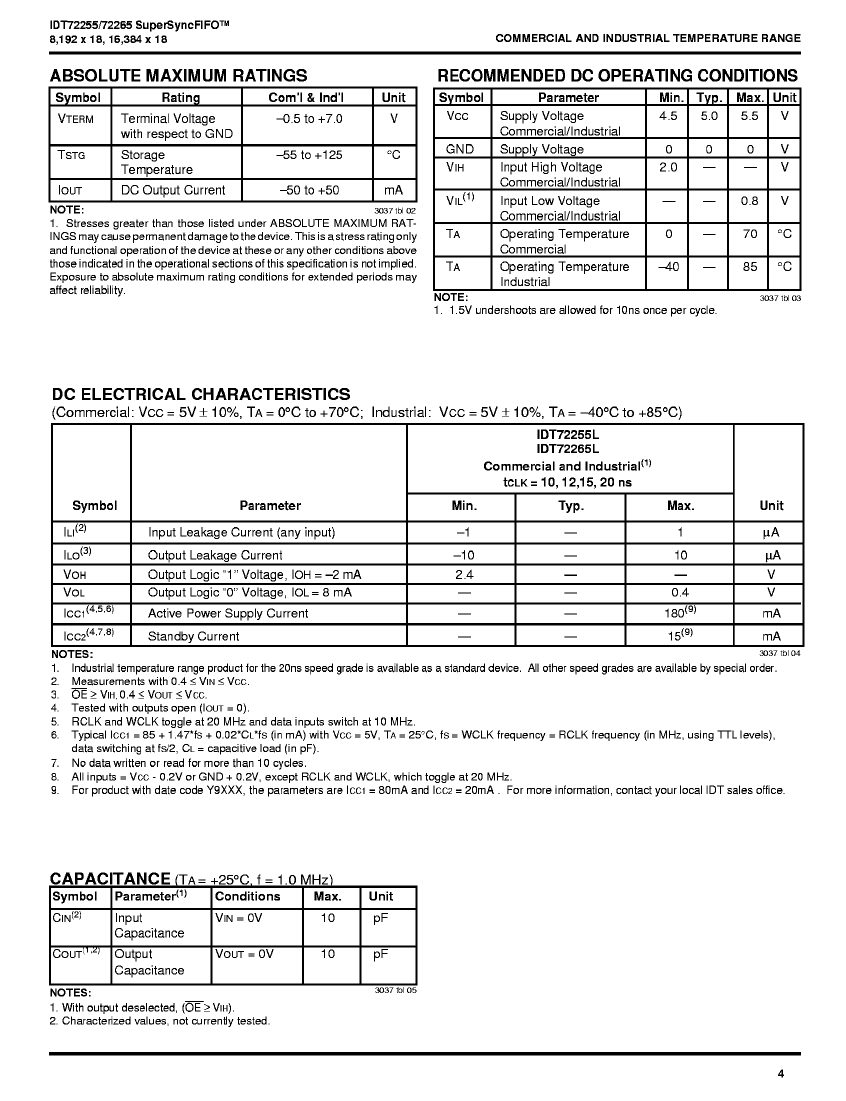

IDT72255L20PFI Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

IDT72255L20PFI Related Products

	IDT72255L20PFI	IDT72265L20PFI	IDT72265L20TFI	IDT72255L20TFI
Description	FIFO, 8KX18, 12ns, Synchronous, CMOS, PQFP64, TQFP-64	FIFO, 16KX18, 12ns, Synchronous, CMOS, PQFP64, TQFP-64	FIFO, 16KX18, 12ns, Synchronous, CMOS, PQFP64, STQFP-64	FIFO, 8KX18, 12ns, Synchronous, CMOS, PQFP64, STQFP-64
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	QFP	QFP	QFP	QFP
package instruction	TQFP-64	TQFP-64	STQFP-64	STQFP-64
Contacts	64	64	64	64
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum access time	12 ns	12 ns	12 ns	12 ns
Other features	RETRANSMIT; AUTO POWER DOWN; EASY EXPANDABLE IN DEPTH AND WIDTH	RETRANSMIT; AUTO POWER DOWN; EASY EXPANDABLE IN DEPTH AND WIDTH	RETRANSMIT; AUTO POWER DOWN; EASY EXPANDABLE IN DEPTH AND WIDTH	RETRANSMIT; AUTO POWER DOWN; EASY EXPANDABLE IN DEPTH AND WIDTH
Maximum clock frequency (fCLK)	50 MHz	50 MHz	50 MHz	50 MHz
period time	20 ns	20 ns	20 ns	20 ns
JESD-30 code	S-PQFP-G64	S-PQFP-G64	S-PQFP-G64	S-PQFP-G64
JESD-609 code	e0	e0	e0	e0
length	14 mm	14 mm	10 mm	10 mm
memory density	147456 bit	294912 bit	294912 bit	147456 bit
Memory IC Type	OTHER FIFO	OTHER FIFO	OTHER FIFO	OTHER FIFO
memory width	18	18	18	18
Humidity sensitivity level	3	3	3	3
Number of functions	1	1	1	1
Number of terminals	64	64	64	64
word count	8192 words	16384 words	16384 words	8192 words
character code	8000	16000	16000	8000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
organize	8KX18	16KX18	16KX18	8KX18
Exportable	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LQFP	LQFP	LFQFP	LFQFP
Encapsulate equivalent code	QFP64,.66SQ,32	QFP64,.66SQ,32	QFP64,.47SQ,20	QFP64,.47SQ,20
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	1.6 mm	1.6 mm	1.6 mm
Maximum standby current	0.015 A	0.015 A	0.015 A	0.015 A
Maximum slew rate	0.18 mA	0.18 mA	0.18 mA	0.18 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.5 mm	0.5 mm
Terminal location	QUAD	QUAD	QUAD	QUAD
width	14 mm	14 mm	10 mm	10 mm
