74AC138LCX datasheet, PDF - EEWORLD Datasheet

74AC138LCX: DescriptionDecoder/Driver, AC Series, Inverted Output, CMOS, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size100KB，5 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

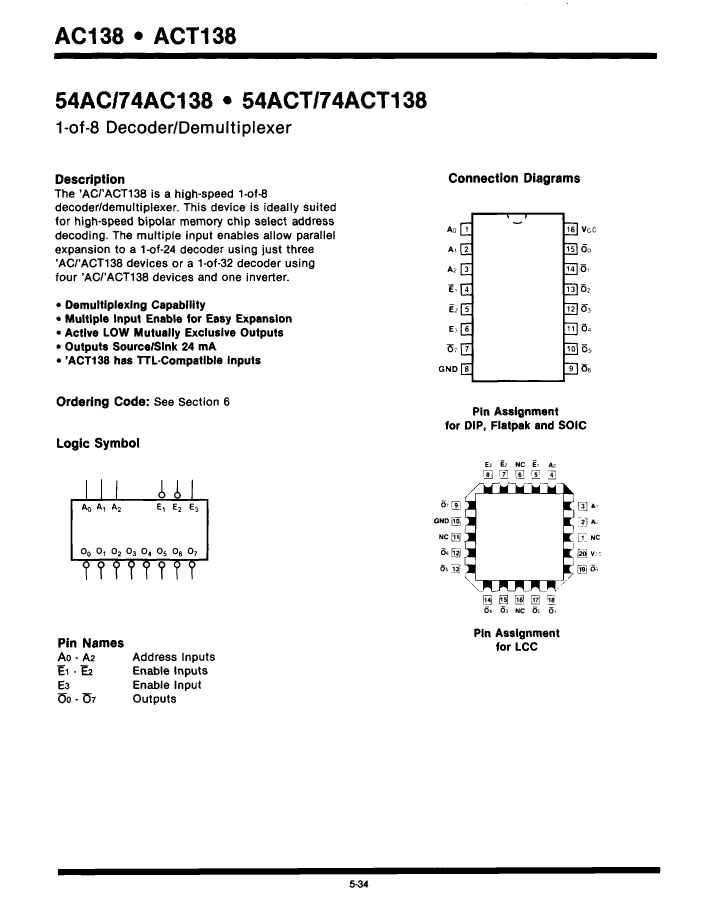

74AC138LCX Overview

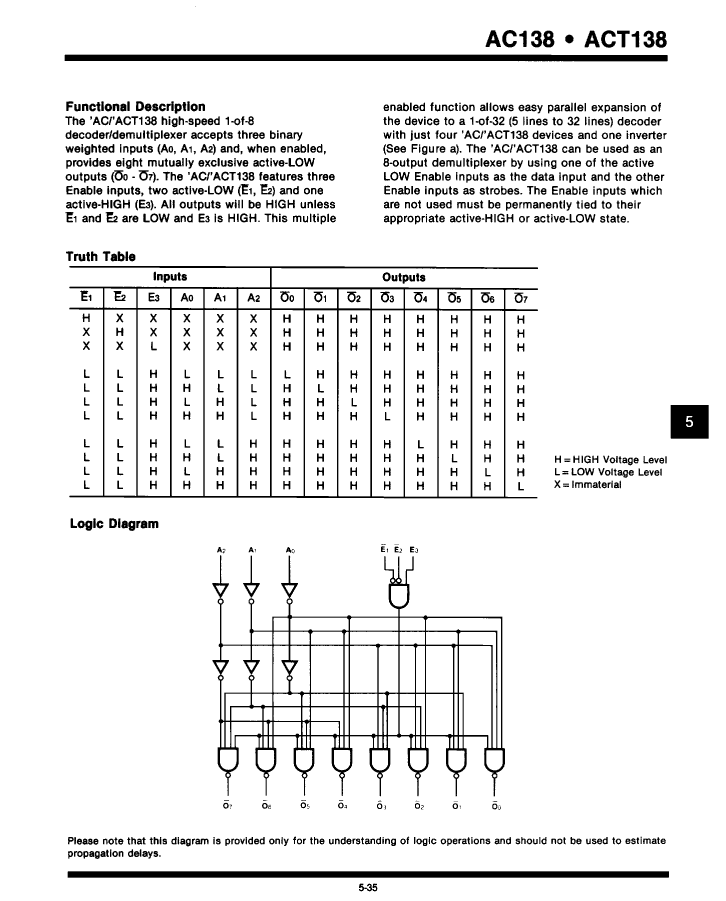

Decoder/Driver, AC Series, Inverted Output, CMOS, CQCC20, CERAMIC, LCC-20

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	QLCC
package instruction	CERAMIC, LCC-20
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99

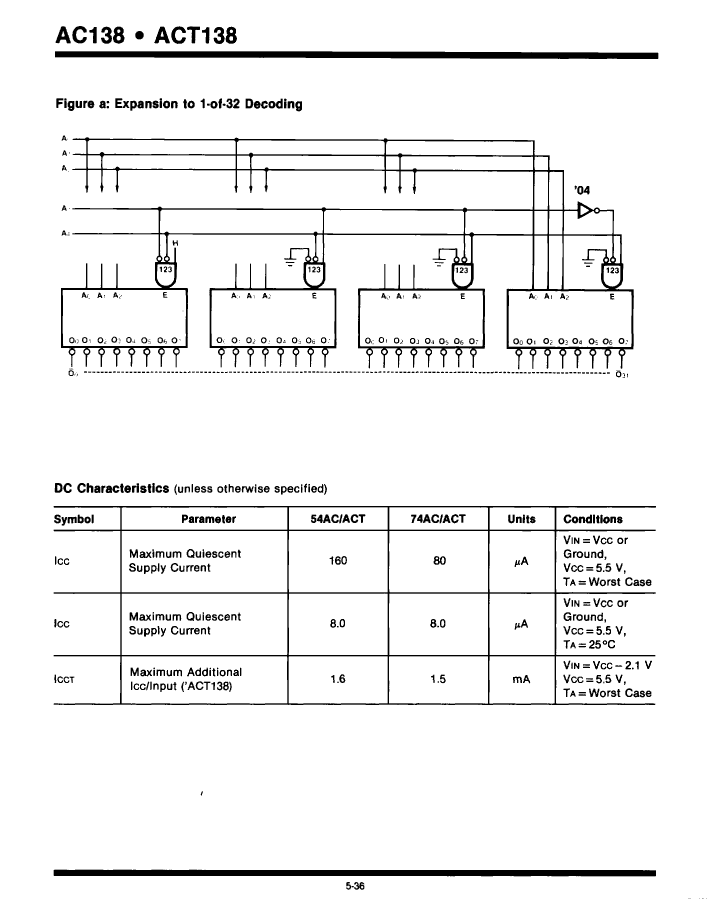

Other features	3 ENABLE INPUTS
series	AC
JESD-30 code	S-CQCC-N20
length	8.89 mm
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER

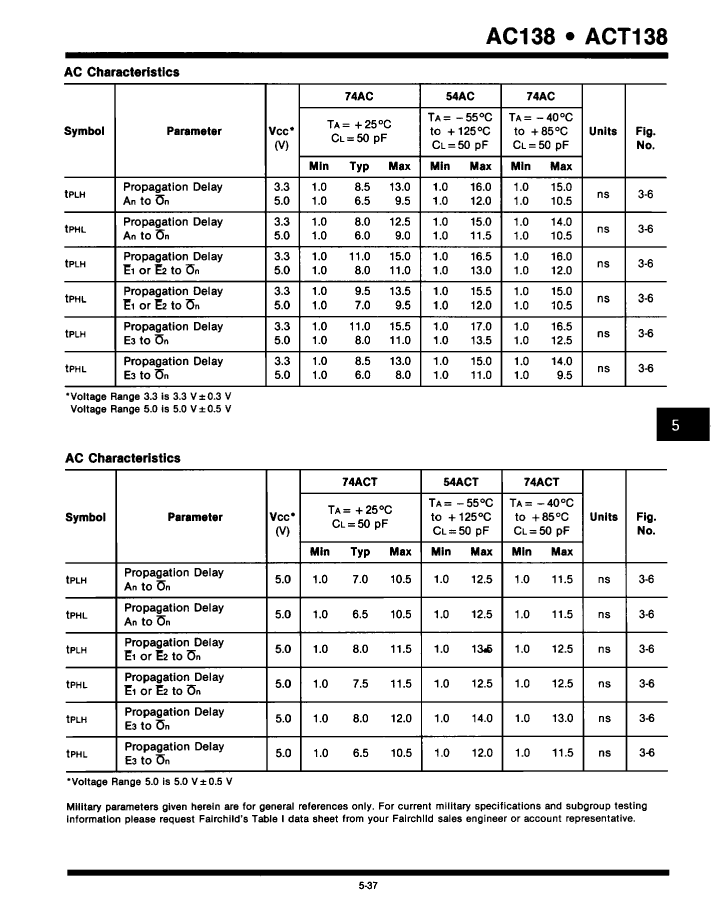

propagation delay (tpd)	14 ns
Certification status	Not Qualified
Maximum seat height	2.54 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.89 mm
