8-2810-90TWR: DescriptionIC Socket, DIP8, 8 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size208KB，1 Pages; ManufacturerAries Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

8-2810-90TWR Overview

IC Socket, DIP8, 8 Contact(s), ROHS COMPLIANT

8-2810-90TWR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Aries Electronics
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: UL 94V-0
Contact to complete cooperation	MATTE TIN (200) OVER NICKEL
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Device slot type	IC SOCKET
Type of equipment used	DIP8
Shell material	NYLON46
JESD-609 code	e3
Number of contacts	8

Preview

Download Datasheet

View All

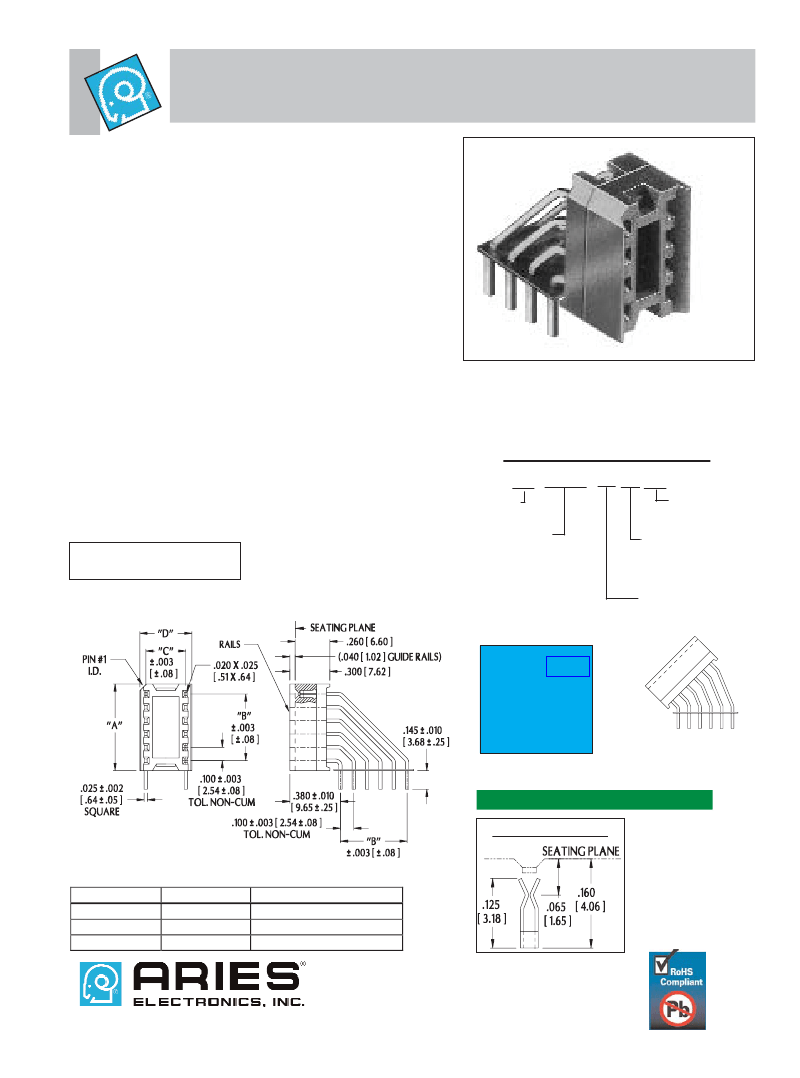

Series 800 Vertisockets

™

Vertical Mounting with Bifurcated Contacts

FEATURES:

• Aries offers a full line of Vertisockets

for DIP packaging of LEDs, incandes-

cent lamps, DIP switches, test points, etc. The variations of mounting posi-

tion and pin configuration provide exceptional design freedom.

• Restricted entry for contact protection.

• Accepts standard LEDs and incandescent displays as well as .500 [12.70]

and .600 [15.24] high large displays.

SPECIFICATIONS:

• Standard body material is black UL 94V-0 4/6 Nylon.

• Bifurcated contacts are Grade A spring-tempered Phosphor Bronze per QQ-

B-750.

• Standard contact plating is 10μ [.25μm] min. Gold per MIL-G-45204, over 50

[1.27μm] min. Nickel per QQ-N-290.

Plating Options:

“T” = 200μ” min Matte Tin per ASTM B545-97 over 50μ” min. Nickel per QQ-

N-290.

Note: Aries specializes in custom design and production. In addition to

“TL” = 200μ” min Bright 90/10 Tin/Lead per MIL-T-10727 Type 1 over 50μ”

the standard products shown on this page, special materials, platings,

min. Nickel per QQ-N-290.

sizes, and configurations can be furnished, depending on quantities.

• Contact current rating=1.5 Amps.

Aries reserves the right to change product specifications without notice.

• Operating temperature=221 °F [105°C] Tin & Tin/Lead plating,

=257°F [125°C] Gold plating.

• Insertion Force=110 grams/pin average; Withdrawal Force=75 grams/pin

average.

ORDERING INFORMATION

• Accepts flat leads up to .014 [.36] thick and .020 [.51] wide; round leads up

XX-X810-90XXXX

to .020 [.51] in diameter.

Optional suffix:

• Accepts lead lengths: .075-.160 [1.91-4.06].

No. of pins

WR=With out

MOUNTING CONSIDERATIONS:

(see table)

rails

• Suggested PCB hole size=.044 ± .002 [1.12 ± .05] dia.

All tolerances ± .005 [.13]

unless otherwise specified

“A”=(NO. OF PINS PER ROW X .100 [2.54]) + .050 [1.27]

“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]

Series:

2810: “C”=.200 [5.08]

810: “C”=.300 [7.62]

6810: “C”=.600 [15.24]

T=Tin plating

TL=Tin/Lead plating

No suffix=Gold plating

Display angle

90° ± 2°

Consult Data

Sheet No. 13001

for Horizontal

Mounting

Vertisockets

with bifurcated

contacts.

Consult factory for other

display angles

LL DIMENSIONS

INCHES

[

MILLIMETERS

]

CONTACT DETAIL

Consult factory for non-standard sizes

Centers “C”

.200 [5.08]

.300 [7.62]

.600 [15.24]

Dim. “D”

.290 [7.37]

.390 [9.91]

.690 [17.53]

Available Sizes

8, 10

8, 14, 16, 18, 20

8, 10, 12, 14, 16, 18, 20

13002

http://www.arieselec.com • info@arieselec.com

REV. D

PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED

Bristol, PA USA

TEL: (215) 781-9956

FAX: (215) 781-9845

abc

8-2810-90TWR Related Products

	8-2810-90TWR	14-6810-90WR	16-6810-90WR	10-6810-90WR	18-6810-90WR	20-6810-90WR	20-810-90WR	10-2810-90WR
Description	IC Socket, DIP8, 8 Contact(s), ROHS COMPLIANT	IC Socket, DIP16, 14 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder, ROHS COMPLIANT	IC Socket, DIP16, 16 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder, ROHS COMPLIANT	IC Socket, DIP12, 10 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder, ROHS COMPLIANT	IC Socket, DIP18, 18 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder, ROHS COMPLIANT	IC Socket, DIP20, 20 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder, ROHS COMPLIANT	IC Socket, DIP20, 20 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder, ROHS COMPLIANT	IC Socket, DIP10, 10 Contact(s), 2.54mm Term Pitch, 0.2inch Row Spacing, Solder, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compli	compli	compli	compli	compli	compli	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0
Contact to complete cooperation	MATTE TIN (200) OVER NICKEL	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrie	Gold (Au) - with Nickel (Ni) barrie	Gold (Au) - with Nickel (Ni) barrie	Gold (Au) - with Nickel (Ni) barrie	Gold (Au) - with Nickel (Ni) barrie	Gold (Au) - with Nickel (Ni) barrie	Gold (Au) - with Nickel (Ni) barrier
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	DIP8	DIP16	DIP16	DIP12	DIP18	DIP20	DIP20	DIP10
Shell material	NYLON46	NYLON46	NYLON46	NYLON46	NYLON46	NYLON46	NYLON46	NYLON46
JESD-609 code	e3	e4	e4	e4	e4	e4	e4	e4
Number of contacts	8	14	16	10	18	20	20	10
Is it lead-free?	-	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
body width	-	0.69 inch	0.69 inch	0.69 inch	0.69 inch	0.69 inch	0.39 inch	0.29 inch
subject depth	-	0.94 inch	1.04 inch	0.74 inch	1.14 inch	1.24 inch	1.24 inch	0.74 inch
body length	-	0.75 inch	0.85 inch	0.55 inch	0.95 inch	1.05 inch	1.05 inch	0.55 inch
Contact material	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact style	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
current rating	-	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Plug contact pitch	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	-	VERTICAL R/A	VERTICAL R/A	VERTICAL R/A	VERTICAL R/A	VERTICAL R/A	VERTICAL R/A	VERTICAL R/A
Maximum operating temperature	-	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
PCB contact pattern	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	-	0.6 mm	0.6 mm	0.6 mm	0.6 mm	0.6 mm	0.3 mm	0.2 mm
Terminal pitch	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	-	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	-	1	1	1	1	1	1	1
