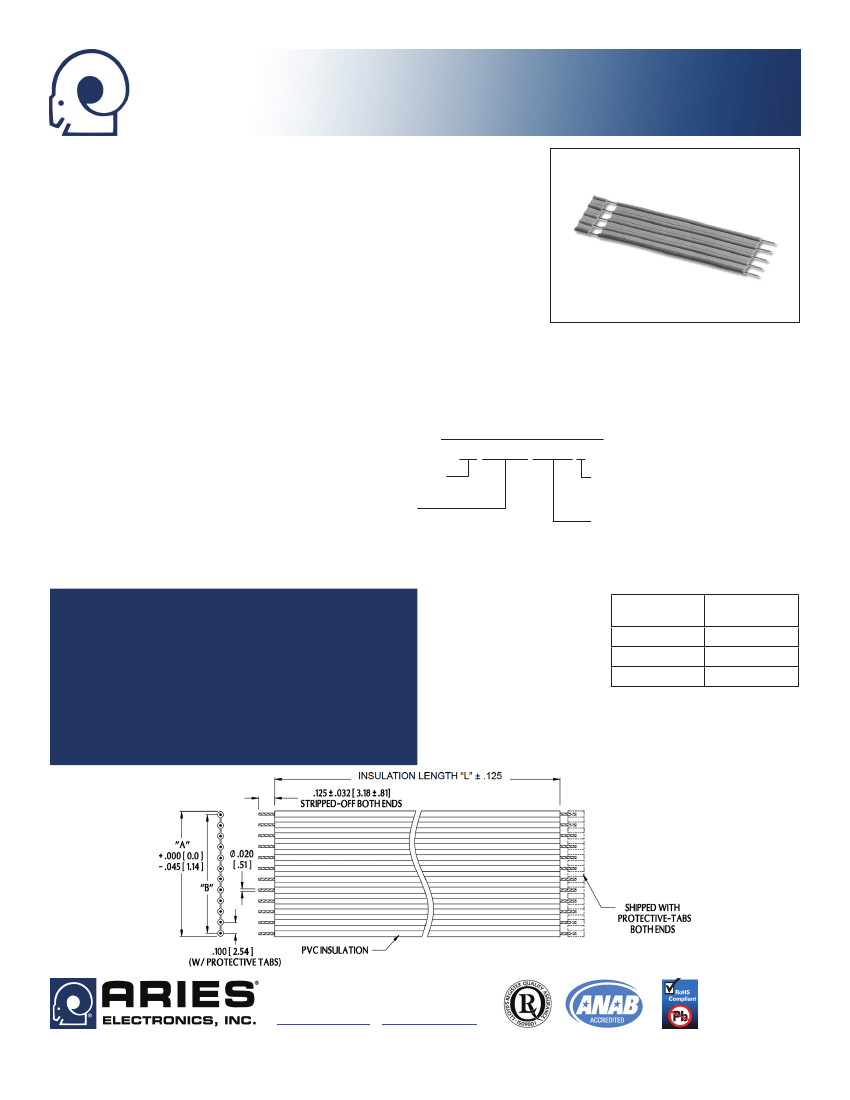

Series 152FB
Fusion Bonded Cable Jumpers
FEATURES
• Series 152FB fusion-bonded Cable Jumpers are flexible – plug them directly into PC
boards or sockets.
• Stranded wire conductors are fusion bonded with an overcoat of Sn for easy solder-
ing or socketing.
• Each jumper is shipped with protective tabs on both ends for maintaining proper
conductor spacing.
GENERAL SPECIFICATIONS
• INSULATION: UL VW-1, Style 2651 Polyvinyl Chloride (PVC) with optional Polar-
ization Stripe on one side
• NOMINAL INSULATION: Thickness 0.009 [0.23]
CUSTOMIZATION:
In addition to the standard products shown
• CONDUCTORS: 26-gauge, 7-strand Cu with Sn fusion-bonded overcoat
on this page, Aries specializes in custom design and production.
• OPERATING TEMPERATURE: -4°F to 221°F [-20°C to 105°C]
Special materials, platings, sizes, and configurations can be
furnished, depending on the quantity.
NOTE:
Aries reserves the
• Voltage Rating: 300Vrms
right to change product general specifications without notice.
• DIELECTRIC WITHSTANDING VOLTAGE: 1500Vrms
• INSULATION RESISTANCE: 10,000 mΩ per 10 feet [3.05 meters]
• RESISTANCE: 40.3Ω per 1000 feet [304.8
ORDERING INFORMATION
meters]
XX-XXXXX-152FB X
• PROPAGATION DELAY: 1.3ns/ft.
No. of Conductors
Option
MOUNTING CONSIDERATIONS
(4 thru 22)
P = Polarization Stripe along
• SUGGESTED PCB HOLE SIZE: 0.033
Cable Length
one edge of cable*
±0.002 [0.84 ±0.05] dia.
Example: 2" = -002-
Jumper Series
2.5" = -002.5-
* Aries reserves the right to ship with
2.25" = -002.25-
or without polarization stripe unless
2.125" = -002.125-
specified by customer.
ALL DIMENSIONS IN INCHES [MILLIMETERS]
ALL TOLERANCES ±0.005 [±0.13] UNLESS OTHERWISE SPECIFIED
“A” # CONDUCTORS x 0.100 [2.54]
“B” (# CONDUCTORS -1) x 0.100 [2.54]
ALL CABLES SHIP WITH Pb-FREE MATERIAL UNLESS SPECIFIED
BY CUSTOMER WHEN ORDERING
CONSULT FACTORY FOR OTHER SIZES & CONFIGURATIONS
# Conductors
4 thru 8
9 and 10
11 thru 22
Min. Insulation
Length
1.000 [25.40]
1.250 [31.75]
