DATA SHEET
PART NO. : A-2301UB B/W
REV :
A/0
CUSTOMER’S APPROVAL : _______________
DRAWING NO. : DS-11-10-0020
DCC : ___________
Page : 1
DATE : 2010-04-12
Release
by
PARALIGHTDCC
2.24
INCH SINGLE DIGIT DISPLAY
A-2301UB B/W
REV:A / 0

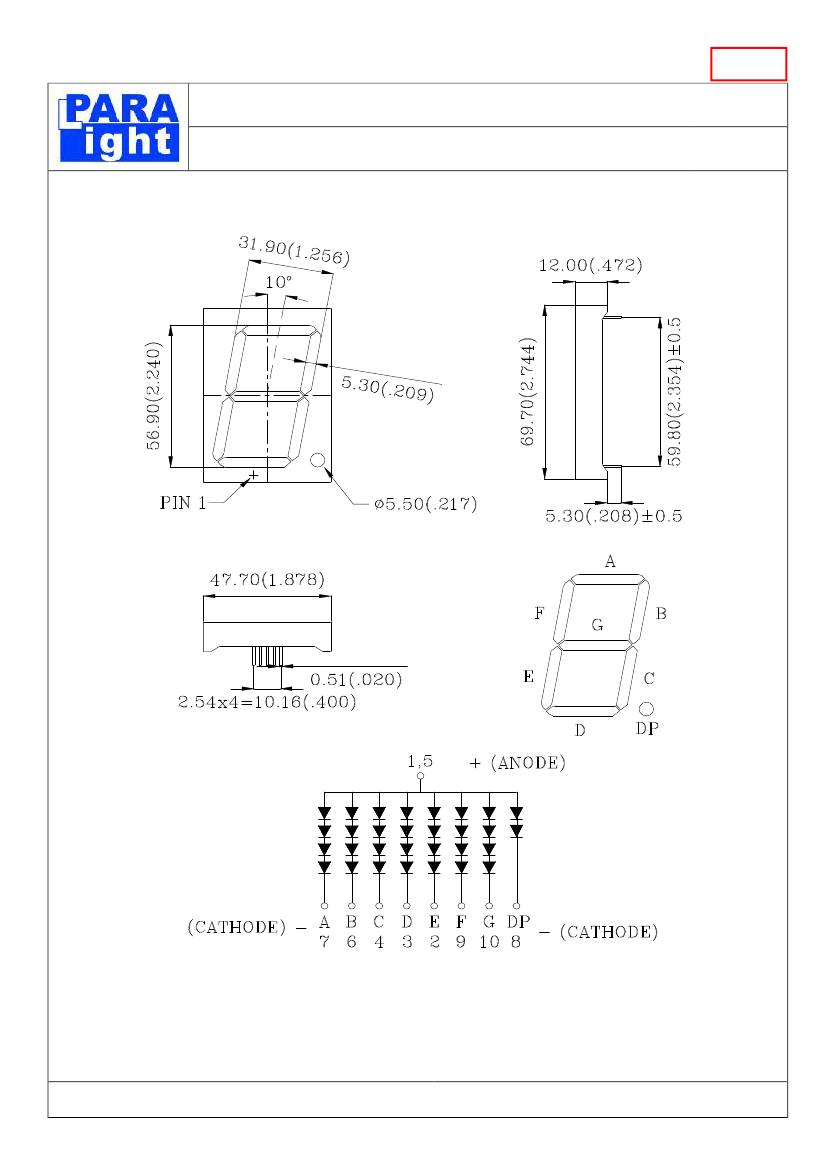

PACKAGE DIMENSIONS
NOTES : 1. All dimensions are in millimeters. (inches)
2. Tolerance is
6
0.25(0.010") unless otherwise specified.
3. Pls. contact with us when your production need to be
operated under the Pb free process.
DRAWING NO. : DS-11-10-0020
DATE : 2010-04-12
Page : 2
Release
by
PARALIGHTDCC
2.24
FEATURES
INCH SINGLE DIGIT DISPLAY
A-2301UB B/W
RE:A / 0
56.90mm (2.24 inch ) DIGIT HEIGHT
COMMON ANODE
LOW POWER CONSUMPTION
Pb FREE PRODUCTS
ROHS COMPLIANCE
BLACK FACE, WHITE SEGMENTS
HIGHLIGHT<400V THE LED CAN WITHSTAND THE MAX STATIC LEVEL
WHEN ASSEMBLING OR OPERATION
Raw Material : GaInN/GaN
ABSOLUTE MAXIMUM RATING : ( Ta = 25BC )
SYMBOL
P
D
V
R
I
AF
I
PF
－
Topr
Tstg
PARAMETER
Power Dissipation Per Segment
Reverse Voltage Per Segment(DP)
Continuous Forward Current Per Segment
Peak Forward Current Per Segment
(1/10 Duty Cycle,0.1ms Pulse Width)
Derating
Linear From 25BC Per Segment
ULTRA BLUE
320
20(10)
20
60
0.4
UNIT
mW
V
mA
mA
mA/BC
Û
Û
Û
Û
Û
Û
Û
Operating Temperature Range
Storage Temperature Range
－35BC
to 85BC
－35BC
to 85BC
ELECTRO-OPTICAL CHARACTERISTICS : ( Ta = 25BC )
SYMBOL
V
F
I
R
l
P
l
D
Δ
l
I
V
PARAMETER
Forward Voltage , Per Segment(DP)
Peak Emission Wavelength
Dominant Wavelength
Spectral Line Half－Width
Luminous Intensity Per Segment
L
22.4-32.15
M
32.16-45.75
N
45.76-61.38
TEST
MIN.
CONDITION
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
I
F
= 10mA
O
61.39-83.71
TYP.
MAX.
UNIT
V
mA
nm
nm
nm
mcd
Q
14.0(7.0) 16.0(8.0)
100
458
462
30
22.4
56.0
P
83.72-107.2
Reverse Current , Per Segment(DP) V
R
= 20(10)V
BIN CODE ( I
F
= 10mA )
BIN
CODE
IV(mcd)
107.21-140
DRAWING NO. : DS-11-10-0020
DATE : 2010-04-12
Page : 3
Release
by
PARALIGHTDCC
2.24
INCH SINGLE DIGIT DISPLAY
A-2301UB B/W
REV:A / 0

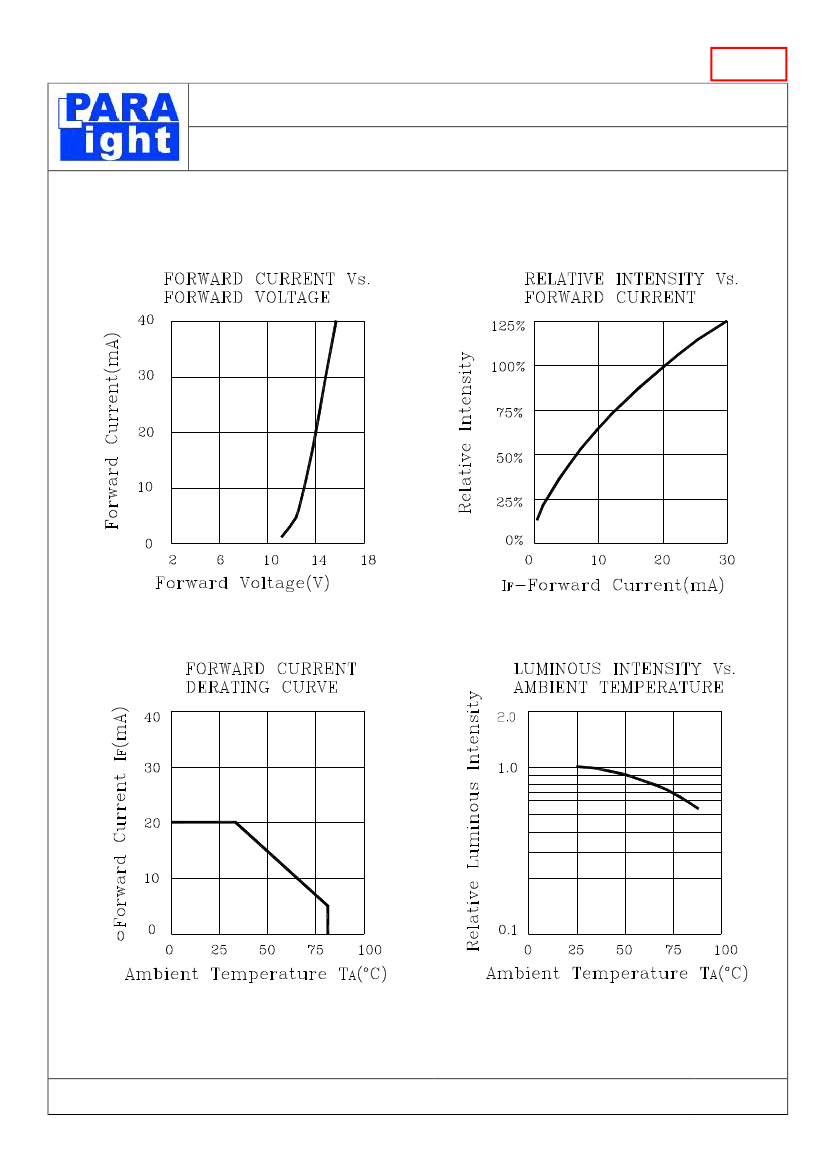

DRAWING NO. : DS-11-10-0020
DATE : 2010-04-12
Page : 4
Release
by
PARALIGHTDCC
2.24
—SOLDERING
METHOD
INCH SINGLE DIGIT DISPLAY
A-2301UB B/W
REV:A / 0
SOLDERING CONDITIONS
REMARK
—
Solder no closer than 2mm from
DIP
SOLDERING
Bath temperature: 260 max
Immersion time: with 5 sec
the base of the package
—
Using soldering flux,” RESIN FLUX”
is recommended.
—
During soldering, take care not to
Soldering iron: 30W or smaller
press the tip of iron against the
SOLDERING
Temperature at tip of iron: 260
℃
or lower PIN.
IRON
Soldering time: within 5 sec.
(To prevent heat from being
transferred directly to the PIN.)

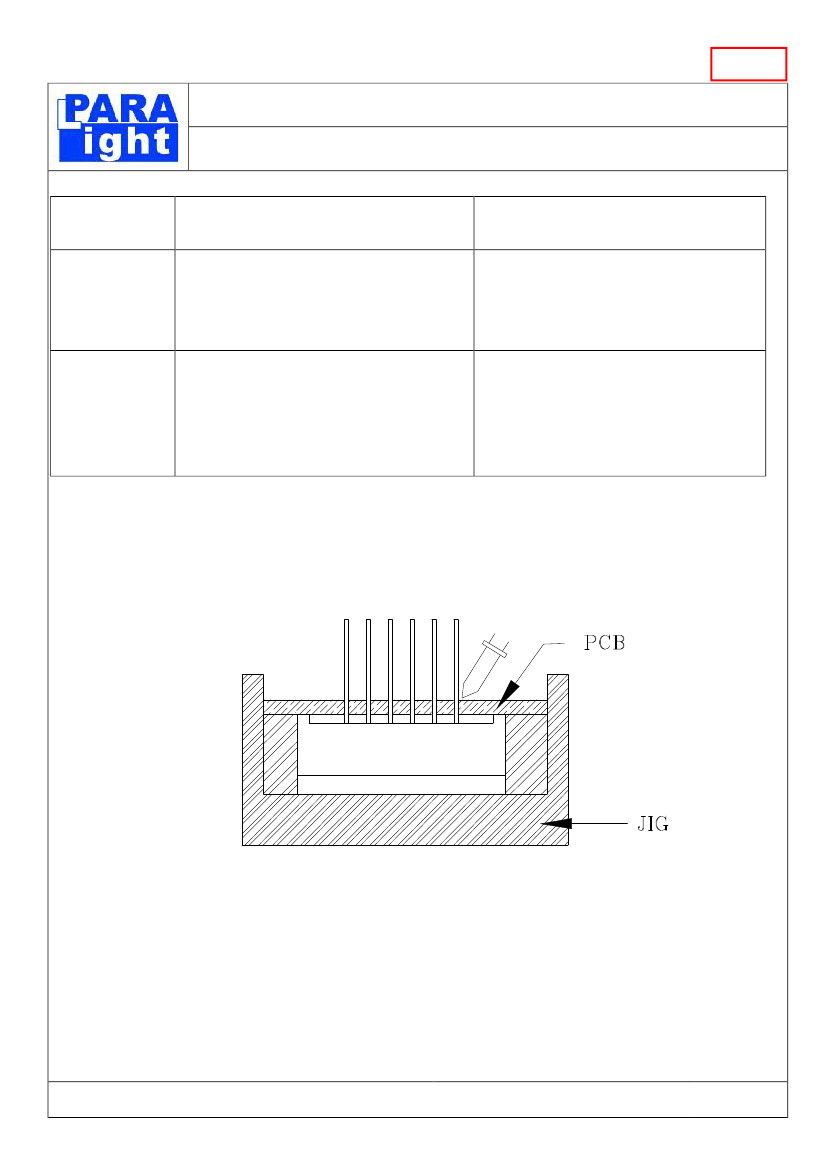

1) When soldering the PIN of Display in a jig that the package is fixed with a panel (See fIg.1), be
careful not to stress the PIN with iron tip. When soldering Display in a condition that the package
is fixed with a panel, be careful not to cling and stress the surface of Display on the panel to avoid
damaging the Display.
Fig.1
Regarding solution in the tinning oven for product-tinning, compound sub-solution made of tin &
copper and silver is proposed with the temperature of Celsius 260. The proportion of the
alloyed solution is tin 95.5: copper 3.5: silver 0.5 by percentage. The time of tinning is constantly
3 seconds.
DRAWING NO. : DS-11-10-0020
DATE : 2010-04-12
Page : 5
