INT ERNET DAT A SHEET for Article Number 7000-08101-2110750
M8 f emale 90° wit h cable
PVC 4x0.25 gy UL/CSA 7,5m
Female 90°
M8, 4-pole
Art.-No. 7005 - M8 Lite - (plastic hexagonal screw) on request
with cable sleeves
Plastic housings with good resistance against chemicals and oils. The resistance to
aggressive media should be individually tested for your application. Further details on
request. Further cable lengths on request.
Link t o Product

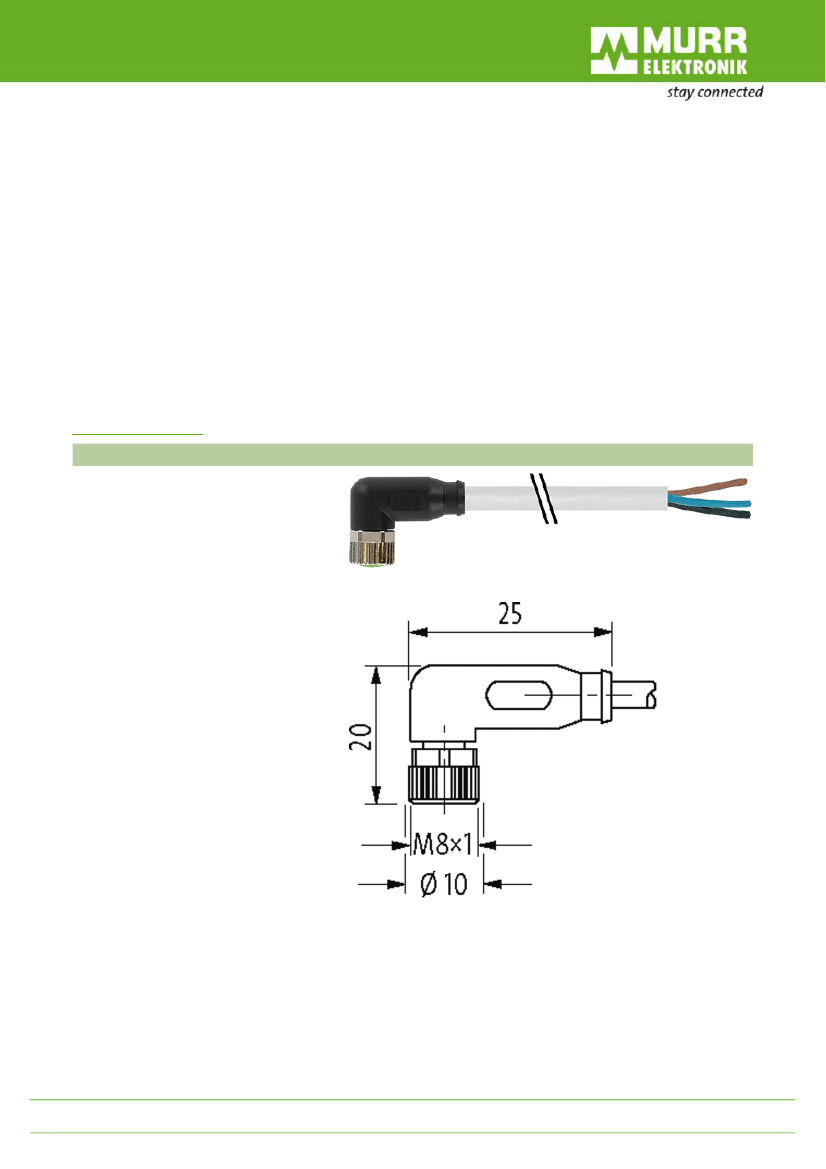

Illustra tio n
The info rmatio n in this b ro c hure has b e e n c o mp ile d with the utmo s t c are .
Liab ility fo r the c o rre c tne s s c o mp le te ne s s and to p ic ality o f the info rmatio n is re s tric te d to g ro s s ne g lig e nc e . Ve rs io n: 02/19
Mu r r e l e ktr o n i k G m b H | Fa l ke n s tr a ße 3 | 71570 O p p e n we i l e r | Fo n +49 ( 71 91) 47-0 | Fa x +49 ( 71 91) 47-491000 | s h o p @ m u r r e l e ktr o n i k.co m |
s h o p .m u r r e l e ktr o n i k.co m
INT ERNET DAT A SHEET for Article Number 7000-08101-2110750
Pro d uc t may d iffe r fro m Imag e
Appro va ls
* only for products with UL/CSA approved cable
cCSAus
Fo rm
Fo rm
Ca bles
Cab le id entificatio n
Cab le typ e
Ap p ro val (cab le)
Cab le weig ht [g /m]
Material (wire)
Resisto r (co re)
211
1 (PVC)
UL (AWM-Style 2464/1731), CSA
34,76
Cu wire, b are
max. 79
Ω/km
(20 °C)
08101
The info rmatio n in this b ro c hure has b e e n c o mp ile d with the utmo s t c are .
Liab ility fo r the c o rre c tne s s c o mp le te ne s s and to p ic ality o f the info rmatio n is re s tric te d to g ro s s ne g lig e nc e . Ve rs io n: 02/19
Mu r r e l e ktr o n i k G m b H | Fa l ke n s tr a ße 3 | 71570 O p p e n we i l e r | Fo n +49 ( 71 91) 47-0 | Fa x +49 ( 71 91) 47-491000 | s h o p @ m u r r e l e ktr o n i k.co m |
s h o p .m u r r e l e ktr o n i k.co m
INT ERNET DAT A SHEET for Article Number 7000-08101-2110750
Sing le wire Ø (co re)
Co nstructio n (co re)
Diameter (co re)
AWG
Material (wire iso latio n)
Material p ro p erty (wire iso latio n)
Sho re hard ness (wire iso latio n)
Wire-Ø incl. iso latio n
Co lo r/numb ering o f wires
Strand ing co mb inatio n
Shield
Material (jacket)
Material p ro p erty (jacket)
Sho re hard ness (jacket)
Outer-Ø (jacket)
Co lo r (jacket)
chemical resistance
No minal vo ltag e
T est vo ltag e
Current lo ad cap acity
T emp erature rang e (fixed )
T emp erature rang e (mo b ile)
Bend rad ius (fixed )
Bend rad ius (mo ving )
No ./d iameter o f wires
Wire iso latio n
Jacket Co lo r
Material (jacket)
Outer Ø
Bend rad ius (mo ving )
T emp erature rang e (fixed )
T emp erature rang e (mo b ile)
T ec hnic a l da ta
Op erating vo ltag e
Op erating vo ltag e (o nly UL listed )
Rated surg e vo ltag e
Op erating current p er co ntact
No . o f p o les
Material g ro up
LED d isp lay
Lo cking o f p o rts
0.15 mm
14 × 0.15 mm (multi-strand wire class 5)
4 × 0.25 mm²
similar to AWG 24
PVC
CFC-, cad mium-, silico ne- and lead -free
45 ±5 D
1.25 mm ±5%
b r, b k, b l, wh
4 wires twisted
no
PVC
CFC-, cad mium-, silico ne- and lead -free
85 ±5 A
4.8 mm ±5%
g ray
g o o d resistance to o il, g aso line and chemicals
UL 300 V AC
2 000 V AC
to DIN VDE 0298-4
-30...+80 °C
-5...+80 °C
5 × o uter Ø
10 × o uter Ø
4 × 0.25 mm²
PVC (b r, wh, b l, b k)
g ray
PVC (UL/CSA)
4.8 mm ±5%
10 × o uter Ø
-30...+80 °C
-5...+80 °C
max. 50 V AC/60 V DC
max. 30 V AC/DC
1.5 kV
max. 4 A
4
IEC 60664-1, categ o ry I
no
Screw thread M8 × 1 mm (reco mmend ed to rq ue 0.4 Nm) self-
securing
The info rmatio n in this b ro c hure has b e e n c o mp ile d with the utmo s t c are .
Liab ility fo r the c o rre c tne s s c o mp le te ne s s and to p ic ality o f the info rmatio n is re s tric te d to g ro s s ne g lig e nc e . Ve rs io n: 02/19
Mu r r e l e ktr o n i k G m b H | Fa l ke n s tr a ße 3 | 71570 O p p e n we i l e r | Fo n +49 ( 71 91) 47-0 | Fa x +49 ( 71 91) 47-491000 | s h o p @ m u r r e l e ktr o n i k.co m |
s h o p .m u r r e l e ktr o n i k.co m
INT ERNET DAT A SHEET for Article Number 7000-08101-2110750
Co mp ressio n g land
Pro tectio n
Lo cking material
Material
suitab le fo r co rrug ated tub e (internal Ø)
Genera l da ta
Stand ard s
Mo unting metho d
Material (co ntact)
Material (co ntact surface)
Material (g asket)
Po llutio n Deg ree
Strip p ing leng th (jacket)
T emp erature rang e
Co m m erc ia l da ta
co untry o f o rig in
custo ms tariff numb er
EAN
eClass
Packag ing unit
M8 (SW9)
IP65, IP66K, IP67 inserted and tig htened (EN 60529)
Zinc d ie casting , matte nickel p lated
PUR
6.5 mm
DIN EN 61076-2-104 (M8)
inserted , tig htened
Co p p er allo y
Au
FKM
3
20 mm
-25...+85 °C, d ep end ing o n cab le q uality
DE
85444290
4048879227872
27279218
1
