CLC409AJP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> CLC409AJP

CLC409AJP: DescriptionOperational Amplifier, 1 Func, 4500uV Offset-Max, BIPolar, PDIP8,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size404KB，4 Pages; ManufacturerComlinear Corporation

Download Datasheet Parametric Compare View All

CLC409AJP Overview

Operational Amplifier, 1 Func, 4500uV Offset-Max, BIPolar, PDIP8,

CLC409AJP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Comlinear Corporation
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	CURRENT-FEEDBACK
Maximum average bias current (IIB)	22 µA
Maximum bias current (IIB) at 25C	22 µA
Minimum Common Mode Rejection Ratio	45 dB
Nominal Common Mode Rejection Ratio	50 dB
frequency compensation	YES
Maximum input offset voltage	4500 µV
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
low-bias	NO
low-dissonance	NO
micropower	NO
Negative supply voltage upper limit	-7 V
Nominal Negative Supply Voltage (Vsup)	-5 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power	NO
power supply	+-5 V
Programmable power	NO
Certification status	Not Qualified
minimum slew rate	1000 V/us
Nominal slew rate	1200 V/us
Maximum slew rate	14.2 mA
Supply voltage upper limit	7 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Minimum voltage gain	1
broadband	YES

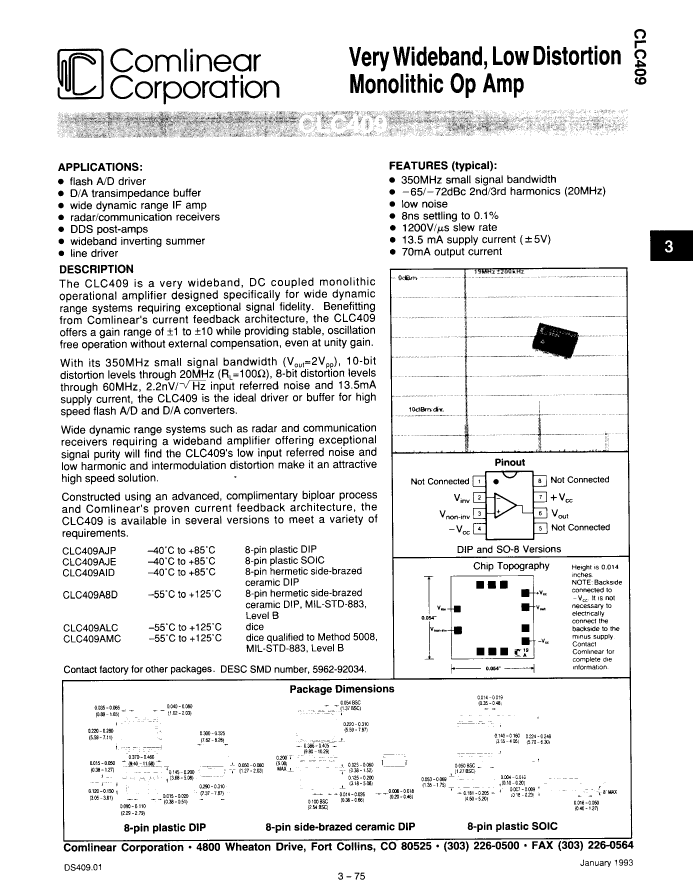

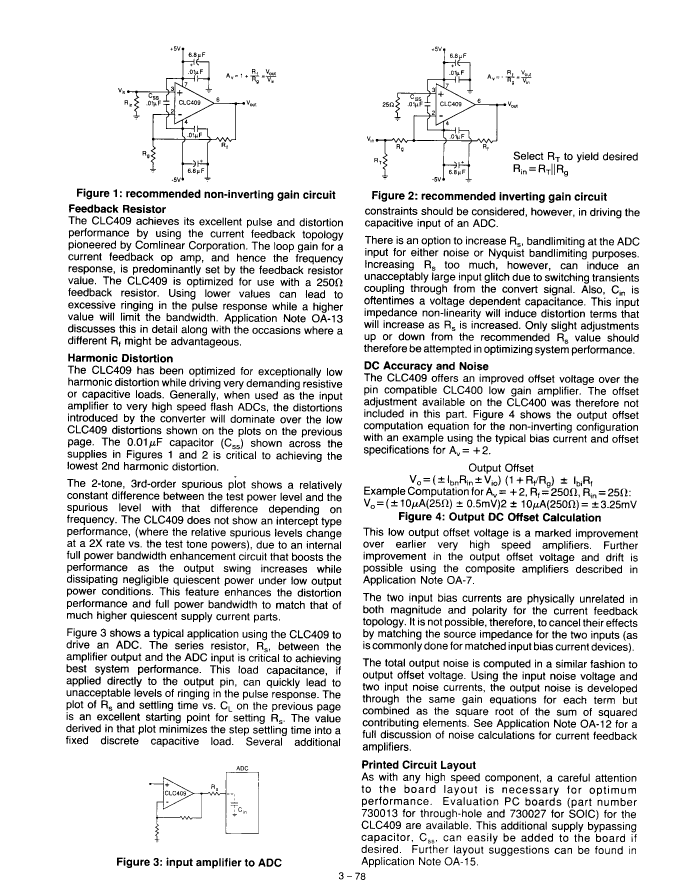

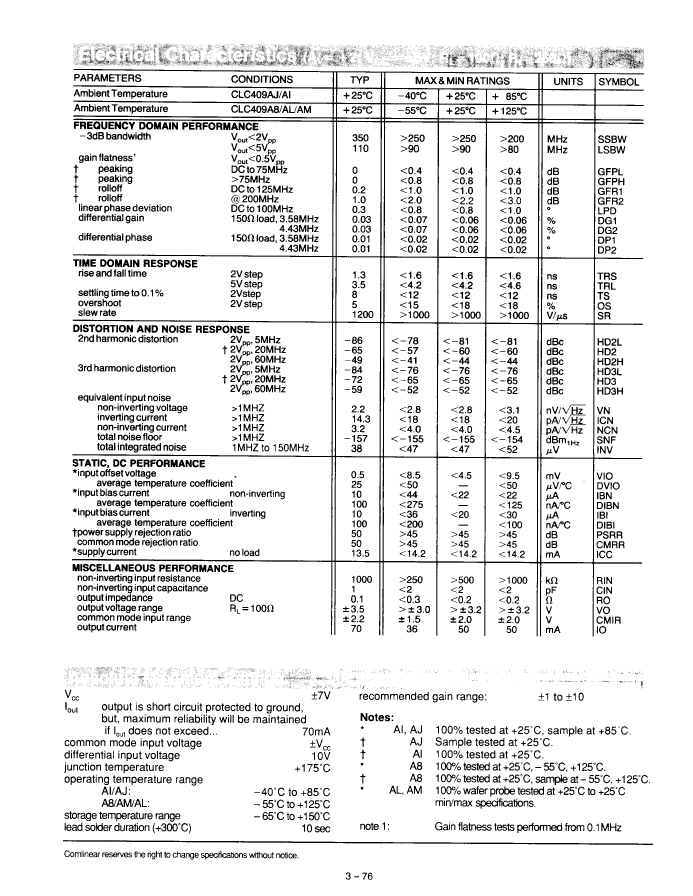

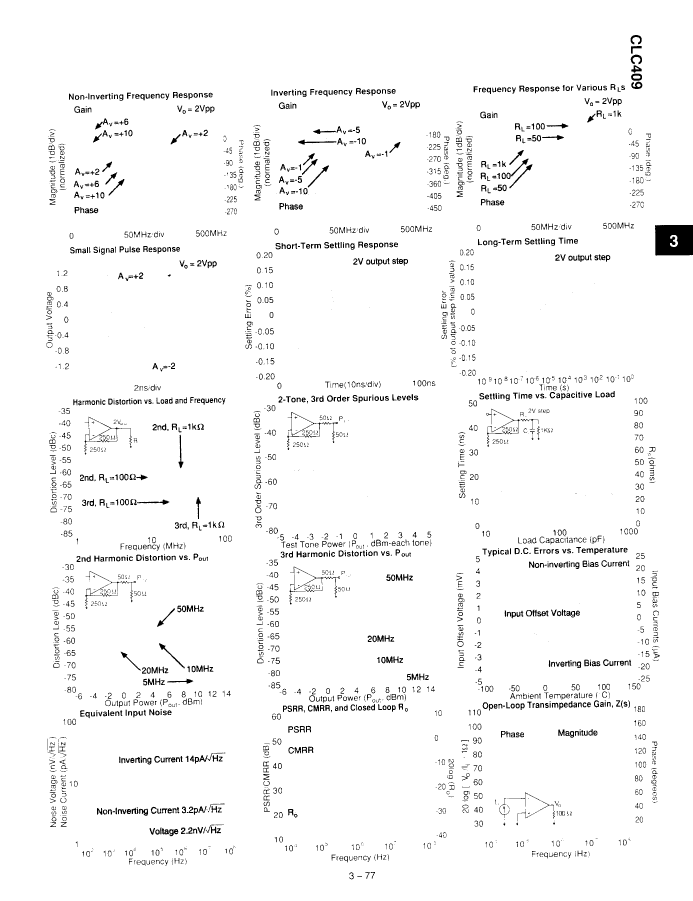

Preview

Download Datasheet

View All

CLC409AJP Related Products

	CLC409AJP	CLC409AJE	CLC409AMC	CLC409A8D	CLC409AID	CLC409ALC
Description	Operational Amplifier, 1 Func, 4500uV Offset-Max, BIPolar, PDIP8,	Operational Amplifier, 1 Func, 4500uV Offset-Max, BIPolar, PDSO8,	Operational Amplifier, 1 Func, 4500uV Offset-Max, BIPolar,	Operational Amplifier, 1 Func, 4500uV Offset-Max, BIPolar, CDIP8,	Operational Amplifier, 1 Func, 4500uV Offset-Max, BIPolar, CDIP8,	Operational Amplifier, 1 Func, 4500uV Offset-Max, BIPolar,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	CURRENT-FEEDBACK	CURRENT-FEEDBACK	CURRENT-FEEDBACK	CURRENT-FEEDBACK	CURRENT-FEEDBACK	CURRENT-FEEDBACK
Maximum bias current (IIB) at 25C	22 µA	22 µA	22 µA	22 µA	22 µA	22 µA
Nominal Common Mode Rejection Ratio	50 dB	50 dB	50 dB	50 dB	50 dB	50 dB
frequency compensation	YES	YES	YES	YES	YES	YES
Maximum input offset voltage	4500 µV	4500 µV	4500 µV	4500 µV	4500 µV	4500 µV
JESD-30 code	R-PDIP-T8	R-PDSO-G8	X-XUUC-N8	R-GDIP-T8	R-GDIP-T8	X-XUUC-N8
low-bias	NO	NO	NO	NO	NO	NO
low-dissonance	NO	NO	NO	NO	NO	NO
micropower	NO	NO	NO	NO	NO	NO
Nominal Negative Supply Voltage (Vsup)	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V
Number of functions	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8
Maximum operating temperature	85 °C	85 °C	125 °C	125 °C	85 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-55 °C	-55 °C	-40 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	UNSPECIFIED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	UNSPECIFIED
encapsulated code	DIP	SOP	DIE	DIP	DIP	DIE
Encapsulate equivalent code	DIP8,.3	SOP8,.25	DIE OR CHIP	DIP8,.3	DIP8,.3	DIE OR CHIP
Package shape	RECTANGULAR	RECTANGULAR	UNSPECIFIED	RECTANGULAR	RECTANGULAR	UNSPECIFIED
Package form	IN-LINE	SMALL OUTLINE	UNCASED CHIP	IN-LINE	IN-LINE	UNCASED CHIP
power	NO	NO	NO	NO	NO	NO
power supply	+-5 V	+-5 V	+-5 V	+-5 V	+-5 V	+-5 V
Programmable power	NO	NO	NO	NO	NO	NO
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
minimum slew rate	1000 V/us	1000 V/us	1000 V/us	1000 V/us	1000 V/us	1000 V/us
Maximum slew rate	14.2 mA	14.2 mA	14.2 mA	14.2 mA	14.2 mA	14.2 mA
Supply voltage upper limit	7 V	7 V	7 V	7 V	7 V	7 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	INDUSTRIAL	MILITARY	MILITARY	INDUSTRIAL	MILITARY
Terminal form	THROUGH-HOLE	GULL WING	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	DUAL	UPPER	DUAL	DUAL	UPPER
broadband	YES	YES	YES	YES	YES	YES
Is it Rohs certified?	incompatible	incompatible	-	incompatible	incompatible	-
Maximum average bias current (IIB)	22 µA	-	22 µA	22 µA	22 µA	22 µA
Minimum Common Mode Rejection Ratio	45 dB	-	45 dB	45 dB	45 dB	45 dB
JESD-609 code	e0	e0	-	e0	e0	-
Negative supply voltage upper limit	-7 V	-	-7 V	-7 V	-7 V	-7 V
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-
Nominal slew rate	1200 V/us	-	1200 V/us	1200 V/us	1200 V/us	1200 V/us
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal pitch	2.54 mm	1.27 mm	-	2.54 mm	2.54 mm	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-
Minimum voltage gain	1	-	1	1	1	1
