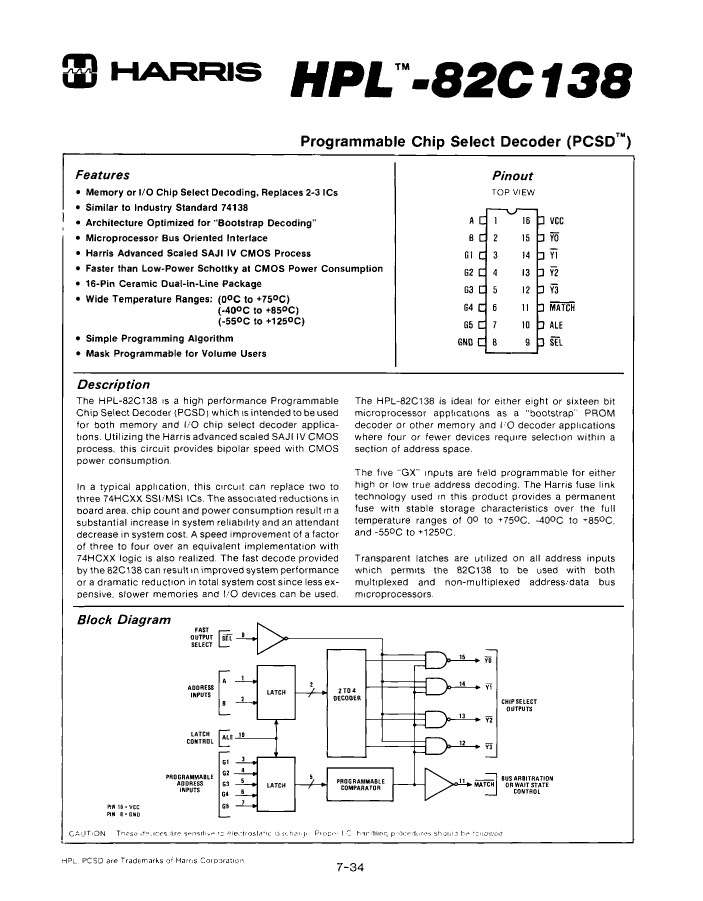

HPL3-82C138-5 datasheet, PDF - EEWORLD Datasheet

HPL3-82C138-5: DescriptionCMOS SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDIP16; Categorylogic logic; File Size174KB，5 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

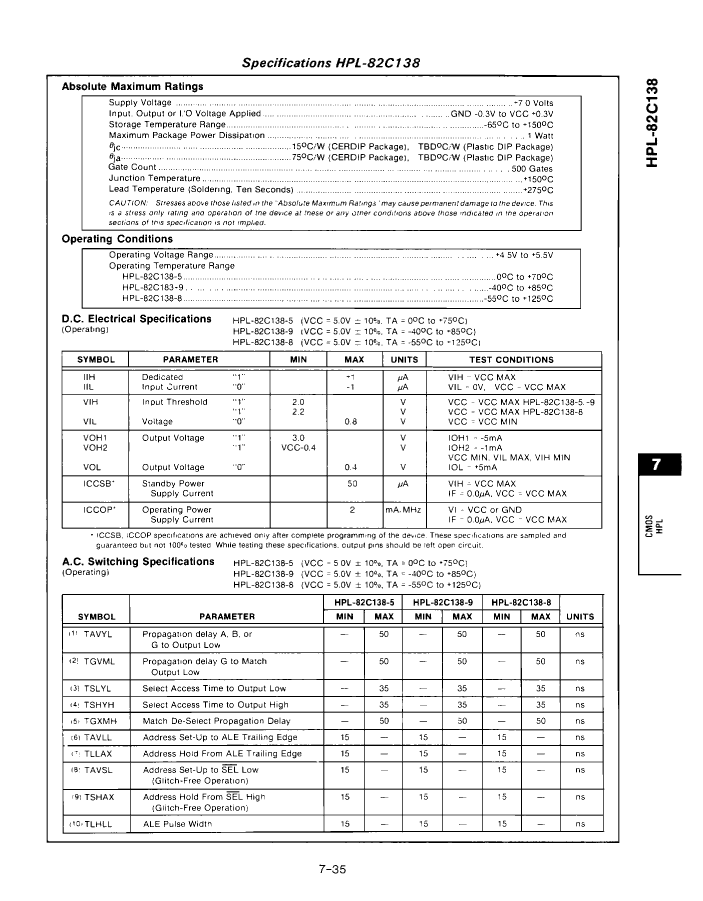

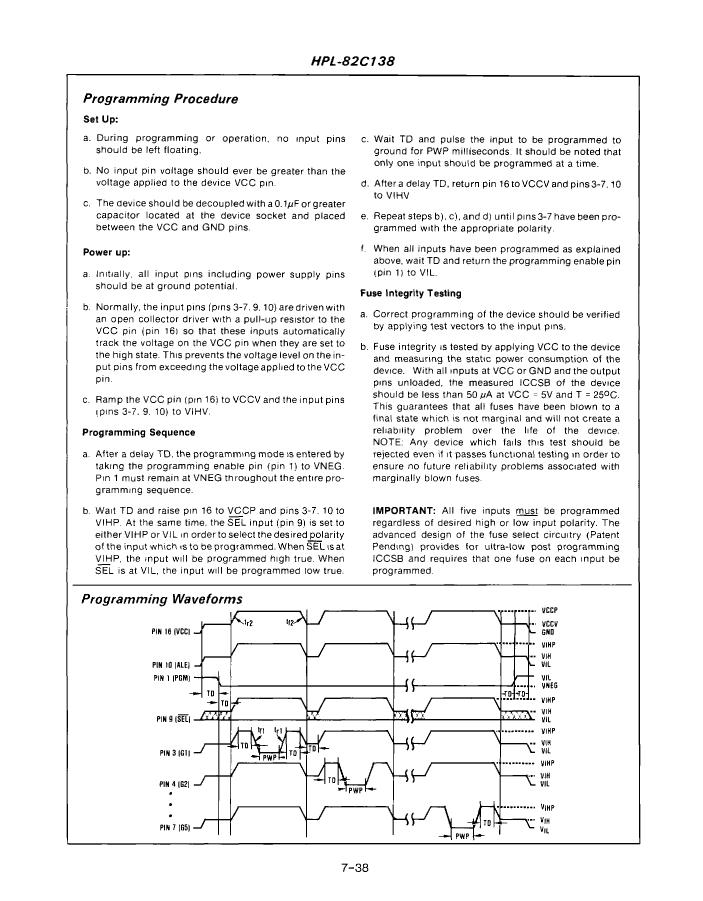

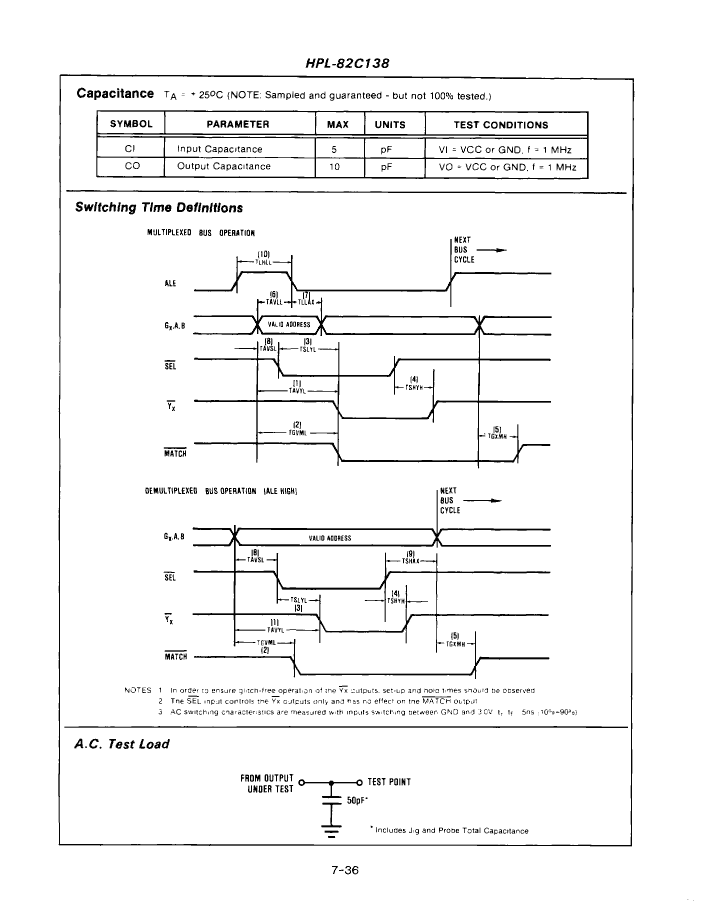

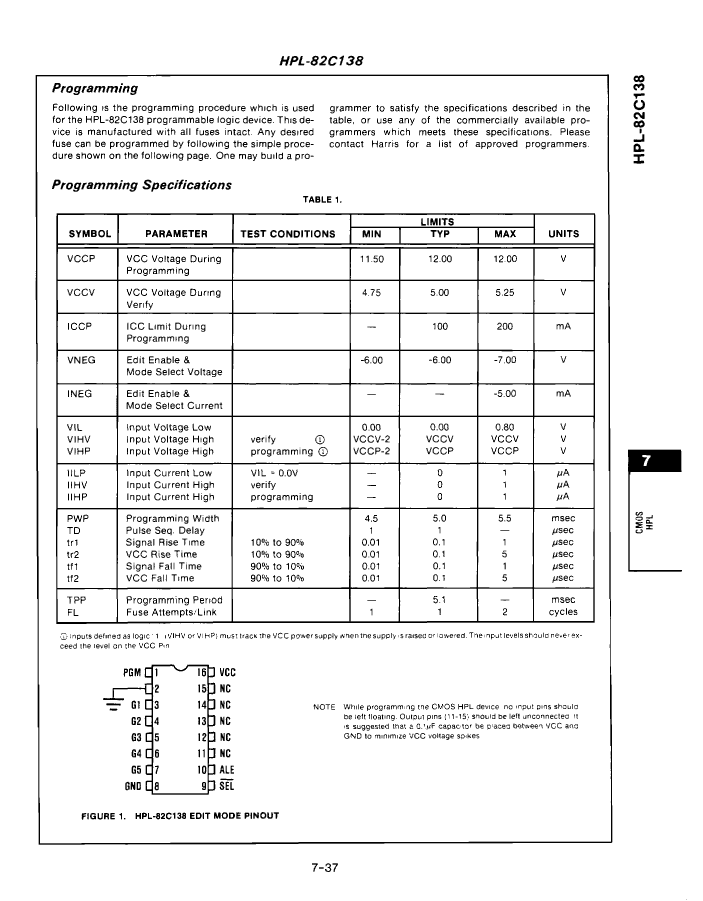

HPL3-82C138-5 Overview

CMOS SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDIP16

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
series	CMOS
JESD-30 code	R-PDIP-T16
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	50 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL

	HPL3-82C138-5	HPL3-82C138-9	HPL1-82C138-9	HPL1-82C138-5	HPL1-82C138-8
Description	CMOS SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDIP16	CMOS SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDIP16	IC,ADDRESS DECODER,CMOS,DIP,16PIN,CERAMIC	IC,ADDRESS DECODER,CMOS,DIP,16PIN,CERAMIC	IC,ADDRESS DECODER,CMOS,DIP,16PIN,CERAMIC
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
package instruction	,	,	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	compliant	compliant	compliant
JESD-30 code	R-PDIP-T16	R-PDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16
Number of terminals	16	16	16	16	16
Maximum operating temperature	70 °C	85 °C	85 °C	70 °C	125 °C
Minimum operating temperature	-	-40 °C	-40 °C	-	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
encapsulated code	-	-	DIP	DIP	DIP
Encapsulate equivalent code	-	-	DIP16,.3	DIP16,.3	DIP16,.3
power supply	-	-	5 V	5 V	5 V
Terminal pitch	-	-	2.54 mm	2.54 mm	2.54 mm
