242A26380X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 242A26380X

242A26380X: DescriptionD Subminiature Connector, 9 Contact(s), Female, Solder Terminal,; CategoryThe connector The connector; File Size159KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com; Environmental Compliance

Download Datasheet Parametric View All

242A26380X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	242A26380X	-	-	View	Buy Now

242A26380X Overview

D Subminiature Connector, 9 Contact(s), Female, Solder Terminal,

242A26380X Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	NO
insulator material	PLASTIC
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

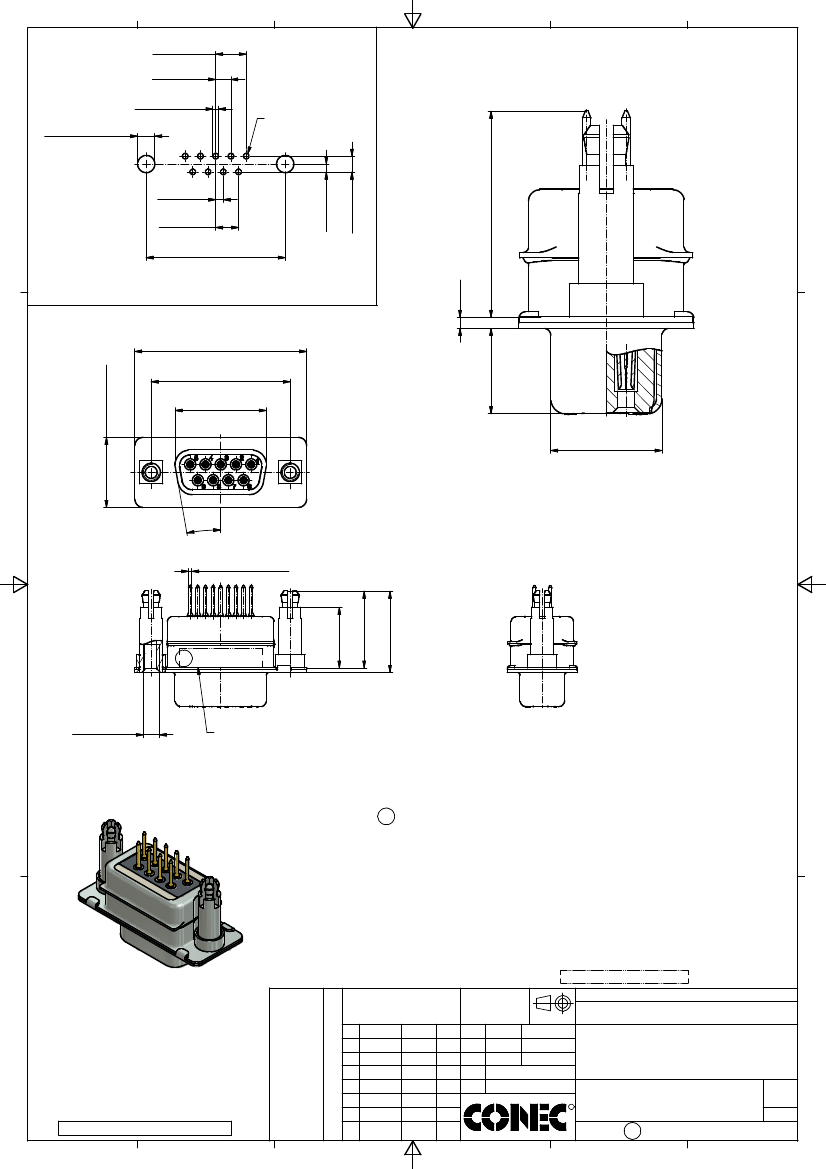

5,49

0,1

2,74

0,1

+ 0,1

(9x)

-0

3,1

0,1

(2x)

(5:1)

1,42

0,1

4,11

0,1

24,99

+ 0,13

- 0,12

( P.C.B. TOP SIDE )

12,6

+ 0,33

- 0,43

24,99

+ 0,13

- 0,12

16,41

+ 0,05

- 0,2

6,13

+ 0,17

- 0,08

30,88

+ 0,31

- 0,45

0,8

PCB HOLE DRILLINGS

14,81

0,3

1,37

0,1

2,84

0,1

+ 0,23

0,02

10°

Ø0,6

0,05

(9x)

10,9

0,25

13,8

0,3

242

26380X

b CONEC ABC

4-40 UNC

14,6

SEE NOTE 10

NOTES:

1. FOR WAVESOLDERING (SOLDER BATH TEMPERATURE 260° FOR 5 SEC.

AND SOLDER PREHEAT 100°C FOR 30 SEC.)

2. METALSHELLS: STEEL; min. 315µin TIN over 40-80µin NICKEL

3. INSULATOR: HIGH TEMPERATURE PLASTIC UL 94 V-0; BLACK

4. CONTACTS: COPPER ALLOY; PLATING (SEE PART NO.):

PLEASE ADD A for GOLD FLASH over NICKEL (PREFERRED TYPE)

PLEASE ADD B for 20µin HARD GOLD over min. 50µin NICKEL

PLEASE ADD C for 30µin HARD GOLD over min. 50µin NICKEL

CONTACT TAILS PRETINNED

5. THREADED SPACER CLIPS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL

PCB-HOLE:

3,1

0,1; PCB THICKNESS 1,6mm

6. COLLARS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL

7. CAPACITANCE: 2 x 1300pF

20%

8. DIELECTRIC WITHSTANDING VOLTAGE: 300 VDC

9. MAXIMUM TORQUE VALUE FOR THREAD: 6 in.LB

10. CONNECTOR IS PART MARKED: 242

26380X CONEC ABC

THIS DRAWING MAY NOT BE COPIED OR

REPRODUCED IN ANY WAY, AND MAY NOT

BE PASSED ON TO A THIRD PARTY WITHOUT

WRITTEN PERMISSION.

OWNERSHIP AND COPYRIGHT OF CONEC GmbH

(see note 4)

2:1 (5:1)

DO NOT ALTER CAD DRAWING BY HAND

tolerance

dim. in mm

date

name

scale:

material:

title:

SEE NOTES

drawn

22.03.07 Lehmenkühler

appd.

22.03.07 Mickenbecker

norm

d-old

D-SUB PI FILTER FEMALE

9pos. SOLDER PIN STRAIGHT

with threaded spacer clip

dwg no:

DIN-

sh:

(see note 4)

3xb

Ä5135

Original

18.03.2014 K.H.

24K1A984

part no:

Directive 2002/95/EC RoHS compliant

rev. description

date

name

242

26380X
