MAOC-009261 Overview

Voltage Controlled Oscillator

MAOC-009261
Voltage Controlled Oscillator
7.1 - 7.9 GHz
Features









Low Phase Noise
Wide Tuning Range
Divide-by-Two Output
Integrated Buffer Amplifier
Excellent Temperature Stability
+5V Bias
Lead-Free 5 mm 32-Lead PQFN Package
Halogen-Free “Green” Mold Compound
RoHS* Compliant and 260°C Reflow Compatible
Rev. V2

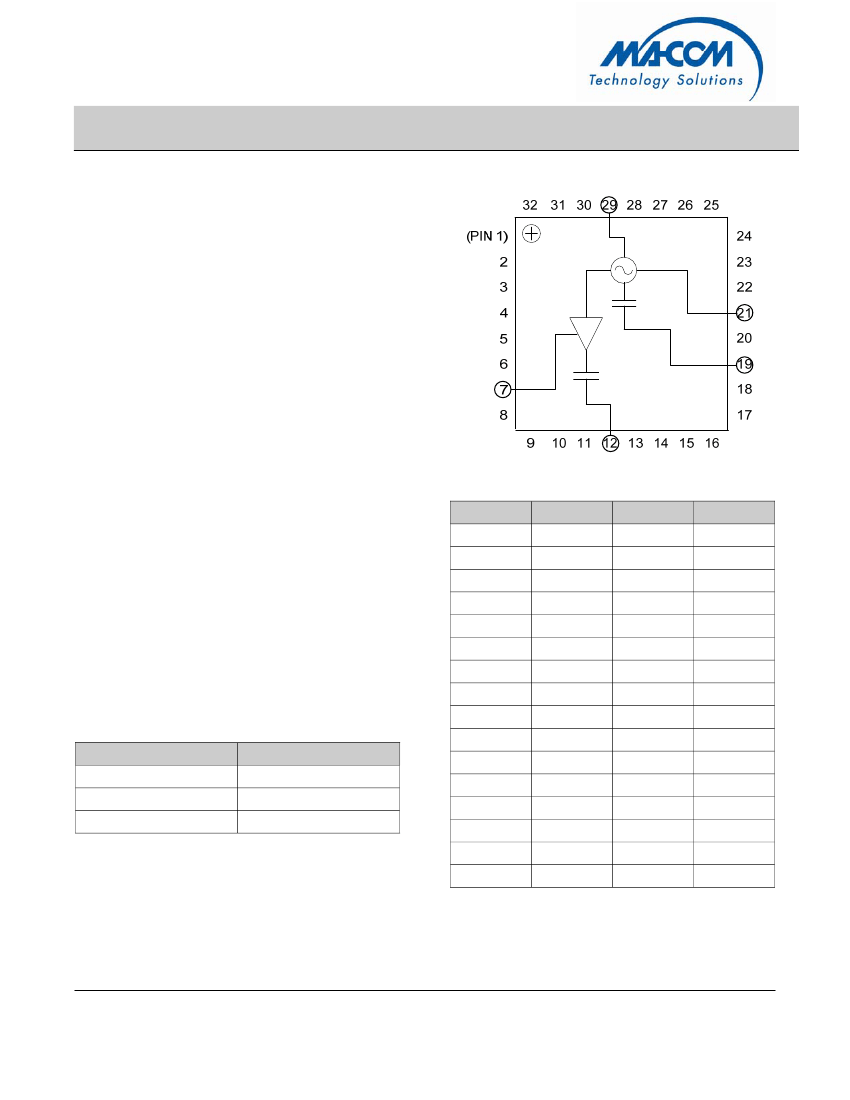

Block Diagram

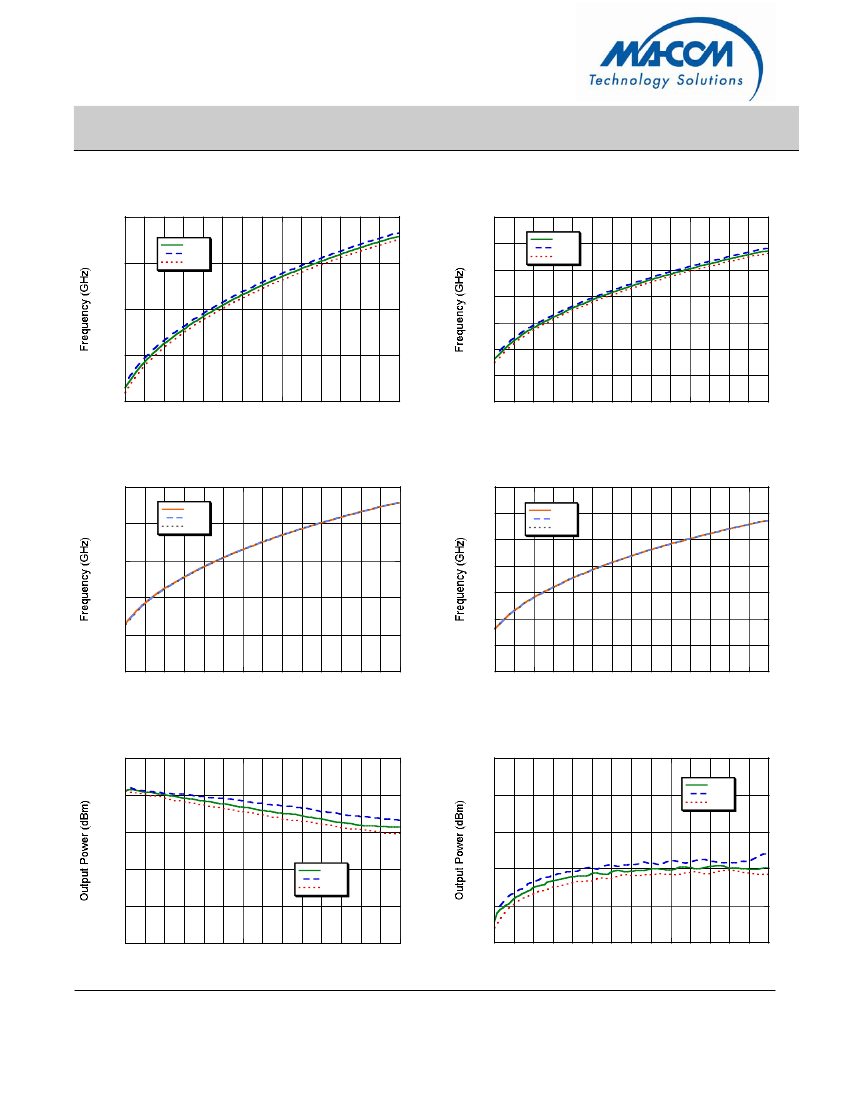

Description
The MAOC-009261 is an InGaP HBT-based voltage
controlled oscillator for frequency generation. No
external matching components are required. This
VCO is easily integrated into a phase lock loop using

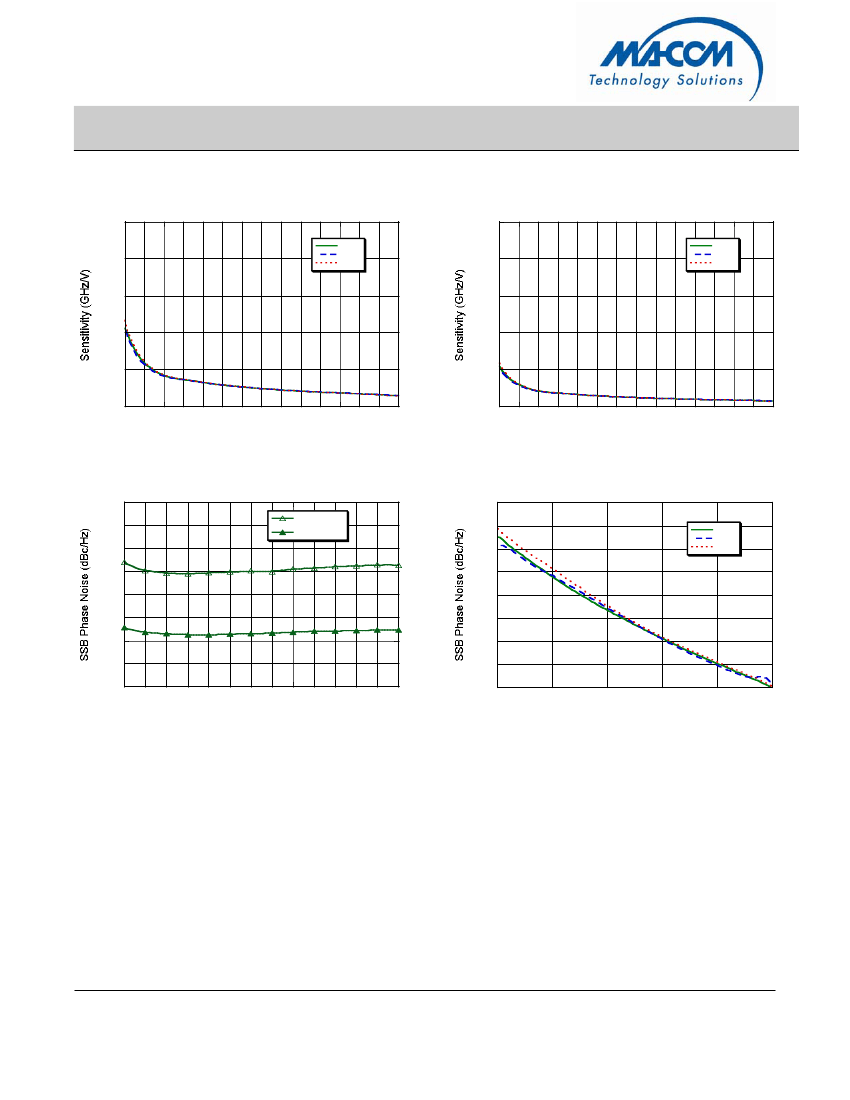

the divide-by-two output. The extremely low phase
noise makes this part ideal for many radio
applications including high capacity digital radios.
The MAOC-009261 primary applications are
Point-to-Point Radio, Point-to-Multipoint Radio,
Communications Systems, and Low Phase Noise
applications.
The 5 mm PQFN package has a lead-free finish that
is RoHS compliant and compatible with a 260ºC
reflow temperature. The package also features low
lead inductance and an excellent thermal path.
Pin Designations
2
Pin
1
2
3
4
5
6
7
8
Function
N/C
N/C
N/C
N/C
N/C
N/C
V
BUFFER
N/C
N/C
N/C
N/C
RF/2
N/C
N/C
N/C
N/C
Pin
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Function
N/C
N/C
RF
N/C
V
CC
N/C
N/C
N/C
N/C
N/C
N/C
N/C
V
TUNE
N/C
N/C
N/C
Ordering Information
1
Part Number
MAOC-009261-TR0500
MAOC-009261-TR1000

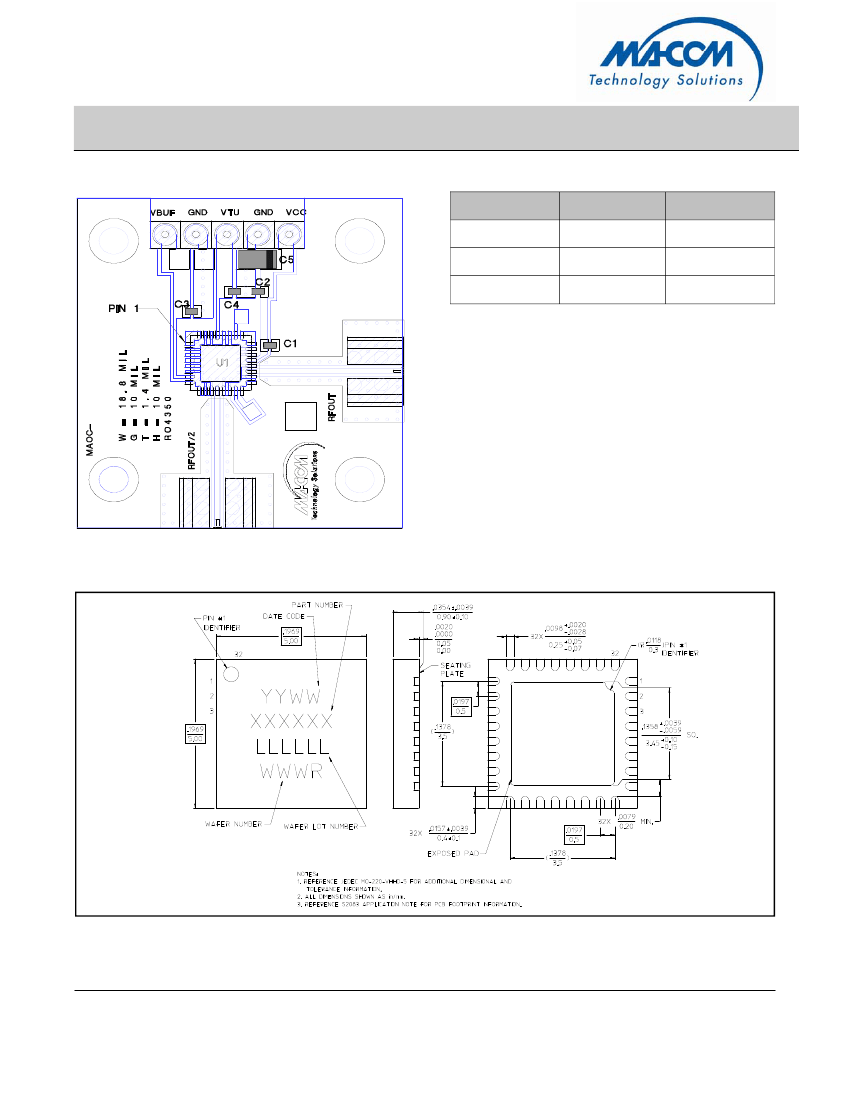

MAOC-009261-SMB003
Package
500 piece reel
1000 piece reel
Sample Board
9
10
11
12
13
14
15
16
1. Reference Application Note M513 for reel size information.
The
exposed pad centered on the package bottom must be
connected to RF and DC ground. Connecting all N/C pins to
RF/DC Ground in the layout is also recommended.
*
Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
India
Tel: +91.80.43537383
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
