SINTEL386EX20 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> SINTEL386EX20

Preview

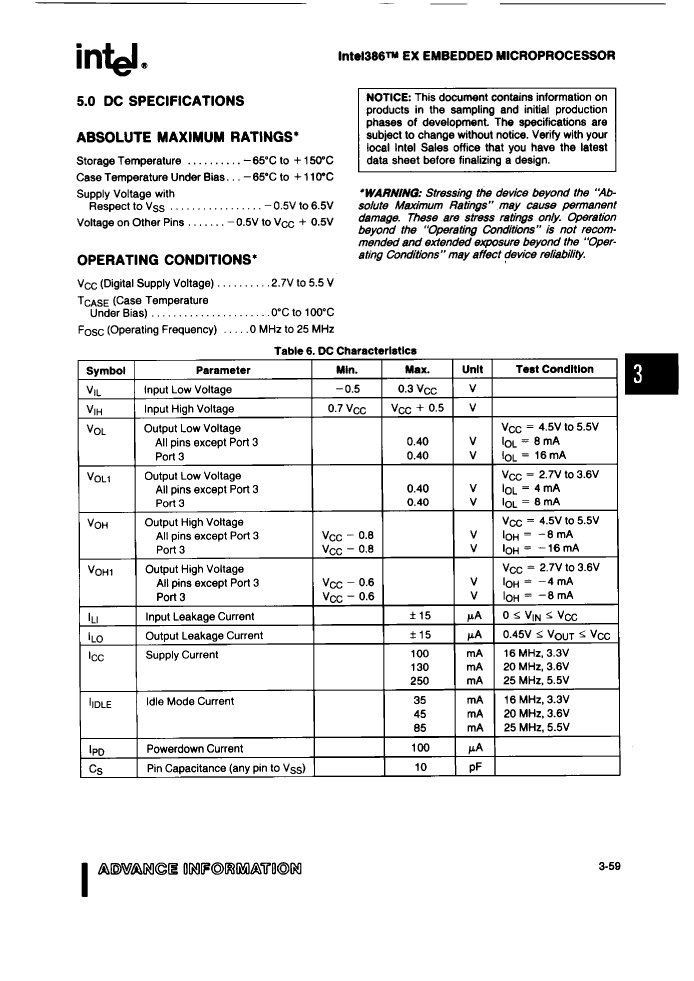

SINTEL386EX20: DescriptionMicroprocessor, 32-Bit, 20MHz, CMOS, PQFP144, THIN, QFP-144; CategoryThe embedded processor and controller Microcontrollers and processors; File Size36KB，1 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

SINTEL386EX20 Overview

Microprocessor, 32-Bit, 20MHz, CMOS, PQFP144, THIN, QFP-144

SINTEL386EX20 Parametric

Parameter Name	Attribute value
Maker	Intel
Parts packaging code	QFP
package instruction	LFQFP,
Contacts	144
Reach Compliance Code	compliant
ECCN code	3A991.A.2
Other features	DRAM REFRESH CONTROLLER; NUMERIC COPROCESSOR INTERFACE
Address bus width	26
bit size	32
boundary scan	YES
maximum clock frequency	40 MHz
External data bus width	16
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQFP-G144
length	20 mm
low power mode	YES
Number of DMA channels	2
Number of external interrupt devices	10
Number of serial I/Os	2
Number of terminals	144
On-chip data RAM width
Maximum operating temperature	78 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	1.7 mm
speed	20 MHz
Maximum slew rate	130 mA
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
width	20 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR

Preview

Download Datasheet

View All

SINTEL386EX20 Related Products

	SINTEL386EX20	KUINTEL386EX25	KDINTEL386EX16	KDINTEL386EX25	KDINTEL386EX20	KUINTEL386EX20	SINTEL386EX16	KUINTEL386EX16
Description	Microprocessor, 32-Bit, 20MHz, CMOS, PQFP144, THIN, QFP-144	Microprocessor, 32-Bit, 25MHz, CMOS, PQFP132, PLASTIC, QFP-132	Microprocessor, 32-Bit, 16MHz, CMOS, PQFP132, PLASTIC, QFP-132	Microprocessor, 32-Bit, 25MHz, CMOS, PQFP132, PLASTIC, QFP-132	Microprocessor, 32-Bit, 20MHz, CMOS, PQFP132, PLASTIC, QFP-132	Microprocessor, 32-Bit, 20MHz, CMOS, PQFP132, PLASTIC, QFP-132	Microprocessor, 32-Bit, 16MHz, CMOS, PQFP144, THIN, QFP-144	Microprocessor, 32-Bit, 16MHz, CMOS, PQFP132, PLASTIC, QFP-132
Maker	Intel	Intel	Intel	Intel	Intel	Intel	Intel	Intel
Parts packaging code	QFP	QFP	QFP	QFP	QFP	QFP	QFP	QFP
package instruction	LFQFP,	BQFP,	BQFP,	BQFP,	BQFP,	BQFP,	LFQFP,	BQFP,
Contacts	144	132	132	132	132	132	144	132
Reach Compliance Code	compliant	compliant	unknown	compliant	compliant	compliant	compliant	unknown
ECCN code	3A991.A.2	3A001.A.3	3A991.A.2	3A001.A.3	3A991.A.2	3A991.A.2	3A991.A.2	3A991.A.2
Other features	DRAM REFRESH CONTROLLER; NUMERIC COPROCESSOR INTERFACE	DRAM REFRESH CONTROLLER; NUMERIC COPROCESSOR INTERFACE	DRAM REFRESH CONTROLLER; NUMERIC COPROCESSOR INTERFACE	DRAM REFRESH CONTROLLER; NUMERIC COPROCESSOR INTERFACE	DRAM REFRESH CONTROLLER; NUMERIC COPROCESSOR INTERFACE	DRAM REFRESH CONTROLLER; NUMERIC COPROCESSOR INTERFACE	DRAM REFRESH CONTROLLER; NUMERIC COPROCESSOR INTERFACE	DRAM REFRESH CONTROLLER; NUMERIC COPROCESSOR INTERFACE
Address bus width	26	26	26	26	26	26	26	26
bit size	32	32	32	32	32	32	32	32
boundary scan	YES	YES	YES	YES	YES	YES	YES	YES
maximum clock frequency	40 MHz	50 MHz	32.26 MHz	50 MHz	40 MHz	40 MHz	32.26 MHz	32.26 MHz
External data bus width	16	16	16	16	16	16	16	16
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	S-PQFP-G144	S-PQFP-G132	S-PQFP-G132	S-PQFP-G132	S-PQFP-G132	S-PQFP-G132	S-PQFP-G144	S-PQFP-G132
length	20 mm	24.13 mm	24.13 mm	24.13 mm	24.13 mm	24.13 mm	20 mm	24.13 mm
low power mode	YES	YES	YES	YES	YES	YES	YES	YES
Number of DMA channels	2	2	2	2	2	2	2	2
Number of external interrupt devices	10	10	10	10	10	10	10	10
Number of serial I/Os	2	2	2	2	2	2	2	2
Number of terminals	144	132	132	132	132	132	144	132
Maximum operating temperature	78 °C	64 °C	80 °C	64 °C	74 °C	74 °C	83 °C	80 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LFQFP	BQFP	BQFP	BQFP	BQFP	BQFP	LFQFP	BQFP
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, BUMPER	FLATPACK, BUMPER	FLATPACK, BUMPER	FLATPACK, BUMPER	FLATPACK, BUMPER	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, BUMPER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.7 mm	4.32 mm	4.32 mm	4.32 mm	4.32 mm	4.32 mm	1.7 mm	4.32 mm
speed	20 MHz	25 MHz	16 MHz	25 MHz	20 MHz	20 MHz	16 MHz	16 MHz
Maximum slew rate	130 mA	250 mA	100 mA	250 mA	130 mA	130 mA	100 mA	100 mA
Maximum supply voltage	3.6 V	5.5 V	3.3 V	5.5 V	3.6 V	3.6 V	3.3 V	3.3 V
Minimum supply voltage	3 V	4.5 V	2.7 V	4.5 V	3 V	3 V	2.7 V	2.7 V
Nominal supply voltage	3.3 V	5 V	3 V	5 V	3.3 V	3.3 V	3 V	3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL	COMMERCIAL EXTENDED	COMMERCIAL	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.5 mm	0.635 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	20 mm	24.13 mm	24.13 mm	24.13 mm	24.13 mm	24.13 mm	20 mm	24.13 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR
