CAT25256VI-T3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> CAT25256VI-T3

CAT25256VI-T3: DescriptionEEPROM, 32KX8, Serial, CMOS, PDSO8, 0.150 INCH, GREEN, MS-012, SOIC-8; Categorystorage storage; File Size258KB，17 Pages; ManufacturerCatalyst; Websitehttp://www.catalyst-semiconductor.com/; Environmental Compliance

Download Datasheet Parametric View All

CAT25256VI-T3 Overview

EEPROM, 32KX8, Serial, CMOS, PDSO8, 0.150 INCH, GREEN, MS-012, SOIC-8

CAT25256VI-T3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Catalyst
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum clock frequency (fCLK)	5 MHz
JESD-30 code	R-PDSO-G8
JESD-609 code	e3
length	4.9 mm
memory density	262144 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	32768 words
character code	32000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	32KX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.75 mm
Serial bus type	SPI
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.8 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	3.9 mm
Maximum write cycle time (tWC)	5 ms

Preview

Download Datasheet

View All

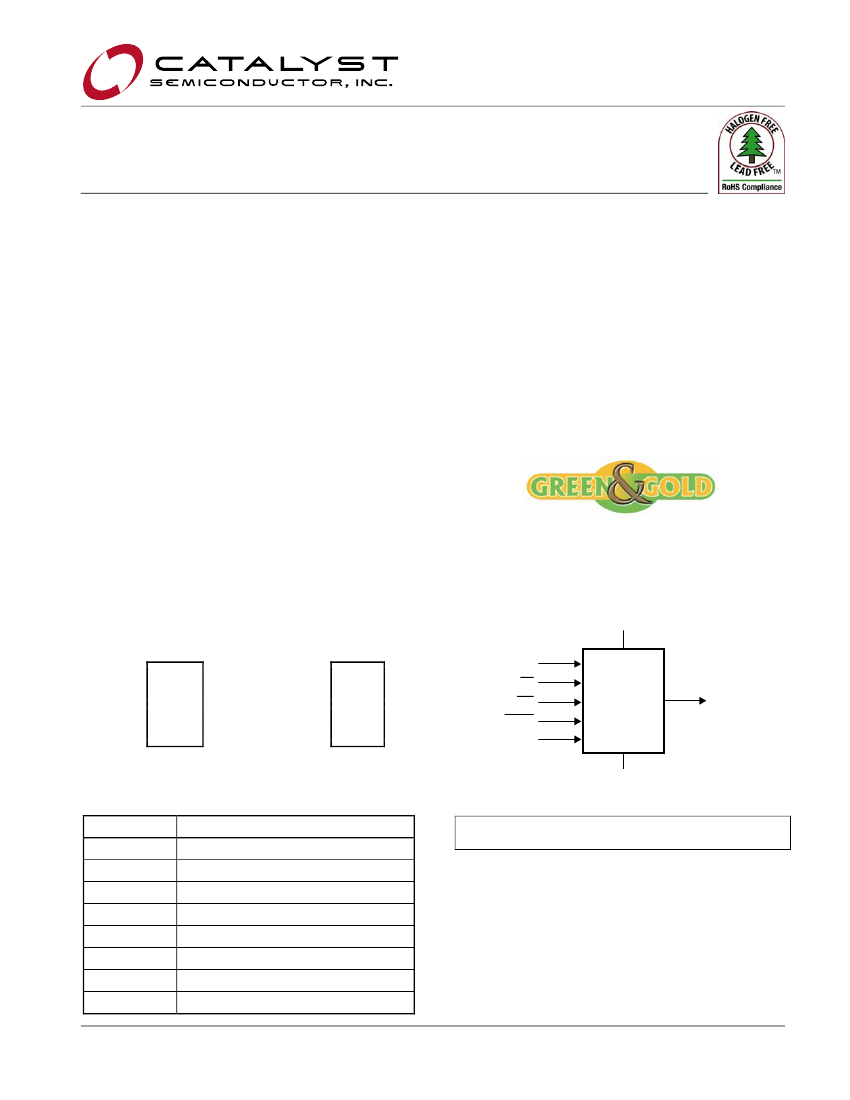

CAT25256

256-Kb SPI Serial CMOS EEPROM

FEATURES

10 MHz SPI compatible

1.8V to 5.5V supply voltage range

SPI modes (0,0) & (1,1)

64-byte page write buffer

Self-timed write cycle

Hardware and software protection

Block write protection

– Protect 1/4, 1/2 or entire EEPROM array

Low power CMOS technology

1,000,000 program/erase cycles

100 year data retention

Industrial and Extended temperature range

RoHS-compliant 8 lead PDIP, SOIC, TSSOP and

8-pad TDFN packages

8-ball Chip Scale Package (CSP)

DESCRIPTION

The CAT25256 is a 256-Kb Serial CMOS EEPROM

device internally organized as 32Kx8 bits. This

features a 64-byte page write buffer and supports the

Serial Peripheral Interface (SPI) protocol. The device

¯¯

is enabled through a Chip Select (CS) input. In

addition, the required bus signals are clock input

(SCK), data input (SI) and data output (SO) lines. The

¯¯¯¯¯ input may be used to pause any serial

HOLD

communication with the CAT25256 device. The

device features software and hardware write protec–

tion, including partial as well as full array protection.

PIN CONFIGURATION

PDIP (L)

SOIC (V, X)

TSSOP (Y)

TDFN (ZD2)

¯¯

¯¯¯

8 V

¯¯¯¯¯

7 HOLD

6 SCK

5 SI

¯¯¯¯¯

HOLD

SCK

CSP-8B

(Top View)

¯¯

8 CS

7 SO

6 ¯¯¯

5 V

FUNCTIONAL SYMBOL

HOLD

SCK

CAT25256

PIN FUNCTION

Pin Name

¯¯

¯¯¯

SCK

¯¯¯¯¯

HOLD

Function

Chip Select

Serial Data Output

Write Protect

Ground

Serial Data Input

Serial Clock

Hold Transmission Input

Power Supply

Doc. No. MD-1127 Rev. A

For Ordering Information details, see page 16.

Characteristics subject to change without notice
