FOX924B-14.7456 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> FOX924B-14.7456

FOX924B-14.7456: DescriptionFOX ELECTRONICS - FOX924B-10.000 - TCXO OSCILLATOR; 10MHz; SMD; CategoryPassive components oscillator; File Size78KB，3 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric Compare View All

FOX924B-14.7456 Overview

FOX ELECTRONICS - FOX924B-10.000 - TCXO OSCILLATOR; 10MHz; SMD

FOX924B-14.7456 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	TR, 10 INCH
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	2.5%
Installation features	SURFACE MOUNT
Nominal operating frequency	14.7456 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	5.0mm x 3.2mm x 1.5mm
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

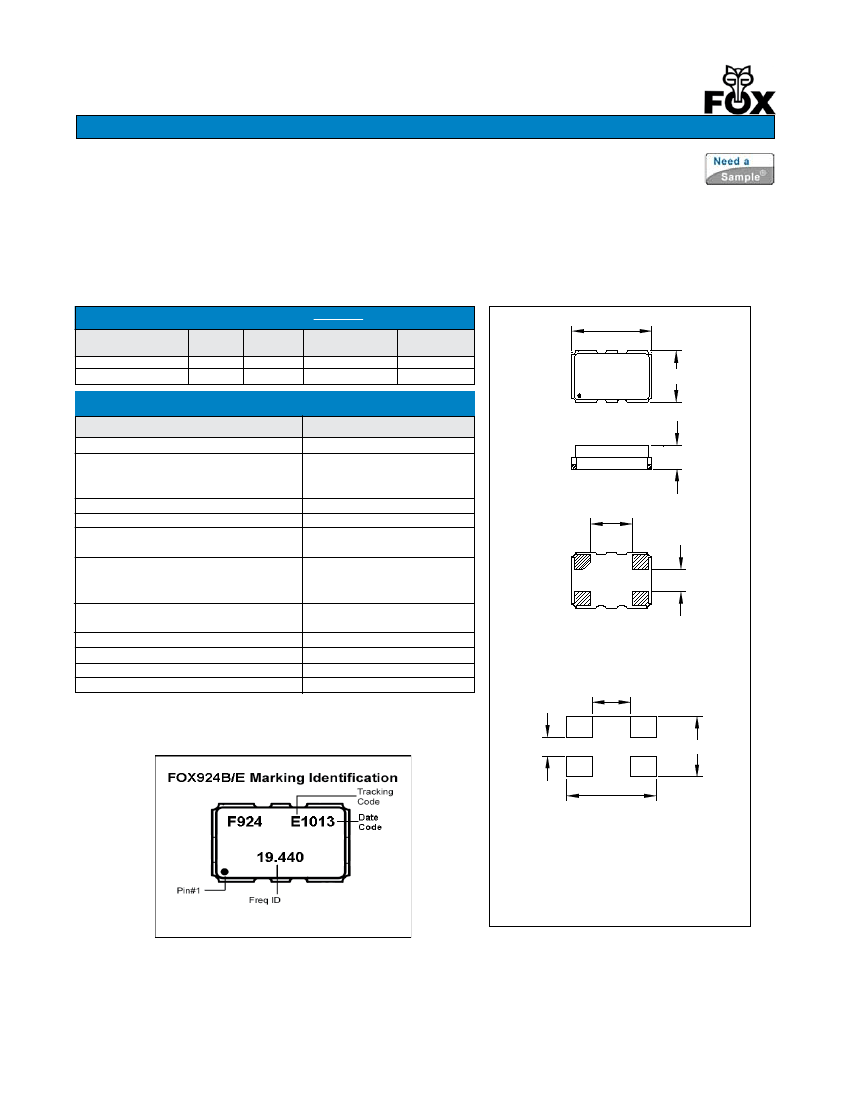

3.3V Ultra Miniature SMD HCMOS TCXO/VCTCXO

Model: FOX924 SERIES

Page 1 of 2

RoHS Compliant / Pb Free

Rev. 5/8/2007

http://www.foxonline.com/need_a_sample.htm

FEATURES

•

3.3V Operation

1.5mm Height Max

HCMOS Output

Low Cost

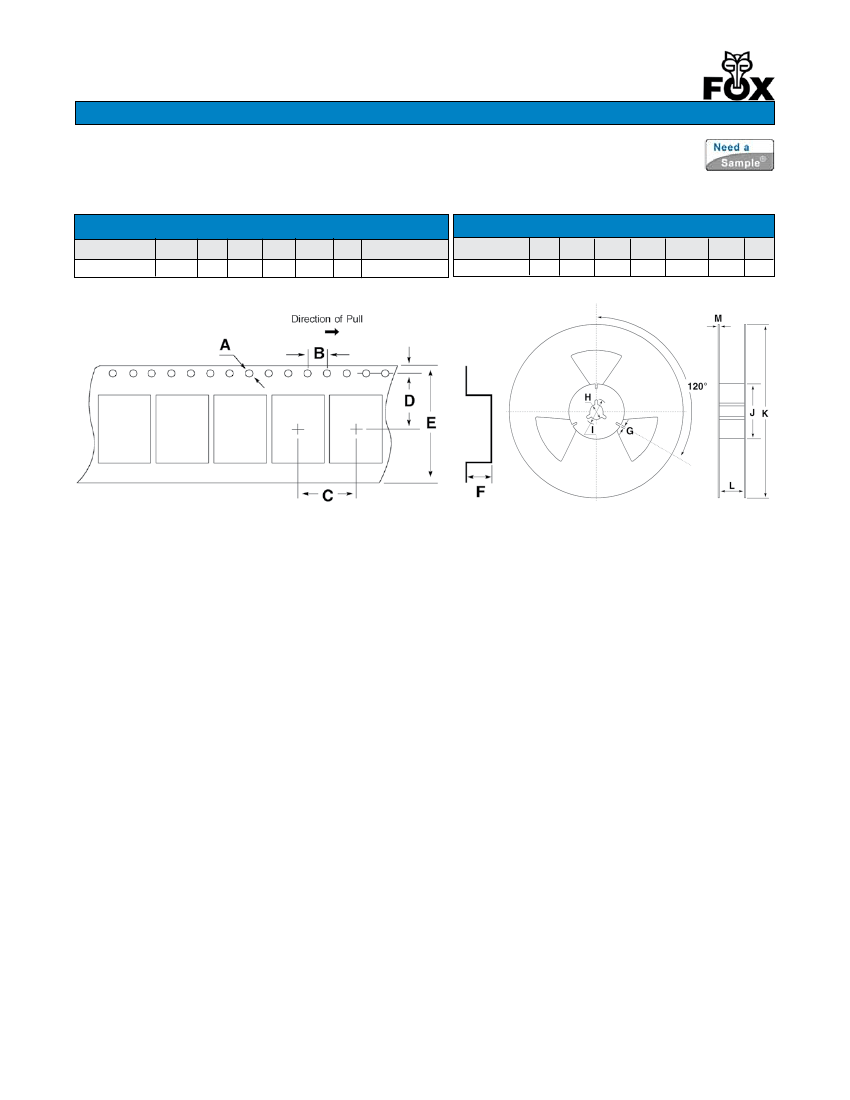

Tape and Reel (2,000 pcs. STD)

OPTIONS

• Voltage Control (FOX924E)

• PART NUMBER SELECTION

Learn More - Internet Required

Model Frequency

Frequency

Operating

Part Number

Number Stability Temperature(ºC) Range (MHz)

718-Frequency-xxxxx FOX924B

See table

10.000~30.000

-30 ~ +85

719-Frequency-xxxxx FOX924E

See table

10.000~30.000

-30 ~ +85

5 .0±0.2

3 .2±0.2

• ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range (F

)

Temperature Range

Operating

opr

)

Storage

stg

)

Supply Voltage

)

Input Current

)

Initial Frequency Tolerance

@ 25ºC

(after 2 reflows)

Frequency Stability

Over Temperature Range

Over Supply Voltage Change

(3.3V ± 5%)

Output Voltage

(HCMOS) (V

)

Output Load

Aging per year

Startup Time

(Ts)

Pullability

(Vc = 1.65 ± 1.5V)

All specifications subject to change without notice.

MAX

(unless otherwise noted)

10.000 ~ 30.000 MHz

-30ºC ~ +85ºC

-40ºC ~ +85ºC

3.3V ± 5%

6.0mA

±1.5PPM

±2.5PPM

±0.3PPM

0.5V

80% V

Min

15pF

±1.0PPM

5mS Max

±5.0 ~ ±15.0 PPM

1 .5 M ax

2.6

1.4

Recommended

Solder Pad Layout

2 .4

1.2

5.6

3.8

FOX924B

#1 NC

# 3 O u tp u t

# 2 G N D # 4 V

Pin Connections

All dimensions are in millimeters.

FOX924E

#1 Vc

# 3 O u tp u t

# 2 G N D # 4 V

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554

http://www.foxonline.com

EMEA

Tel/Fax: +44 .1767.312632 |

Asia

Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282 |

Taiwan

Tel: +886.2.22073427 Fax +886.2.22073486

Japan

Tel: +81.3.3374/2079 Fax: +81.3.3374.5221
