Dip Switches “End to End Stackable”
Through Hole and Surface Mount
FEATURES:
• Conventional gold wiping contact system
• Available in PC and surface mount configurations
• Traditional tape seal standard
• 95% Minimum solder coverage (90/10 tin lead)
• Withstands wave soldering temperature of 245°C for 3-5 seconds
• Heat deflection temperature of 260°C for surface mount compatibility
• End stackable (GDS version)
• Auto-insertable (GDS and GDB version)
• Vacuum pick and place compatible (GDS, GDB and GDH)
• Half pitch .050” terminal spacing (GDH version)
• Available in optional tape & reel packaging
Contact Rating
Initial Contact Resistance
Insulation Resistance
Dielectric Strength
Life Expectancy
Operating Force
GD Series
A
MATERIAL SPECIFICATIONS:
Moving Contact
Fixed Contact
Base Material
Cover Material
Actuator Material
Terminal
Gold over nickel over copper alloy
Gold over copper alloy
PPS UL94V-0
PPS UL94V-0
High temperature polyester/polyamide
Tin lead plated over nickel over
copper alloy
TYPICAL PERFORMANCE CHARACTERISTICS:
0.4 VA 25ma @ 24 VDC
100 Milliohms max.
100 Megohms min. @ 250 VDC
300 VAC
1,000 Cycles
60-600 Grams
ENVIRONMENTAL SPECIFICATIONS:
Operating Temperature
Storage Temperature
Solder Heat Resistance
-30°C to +85°C
-45°C to +100°C
See page M6-7

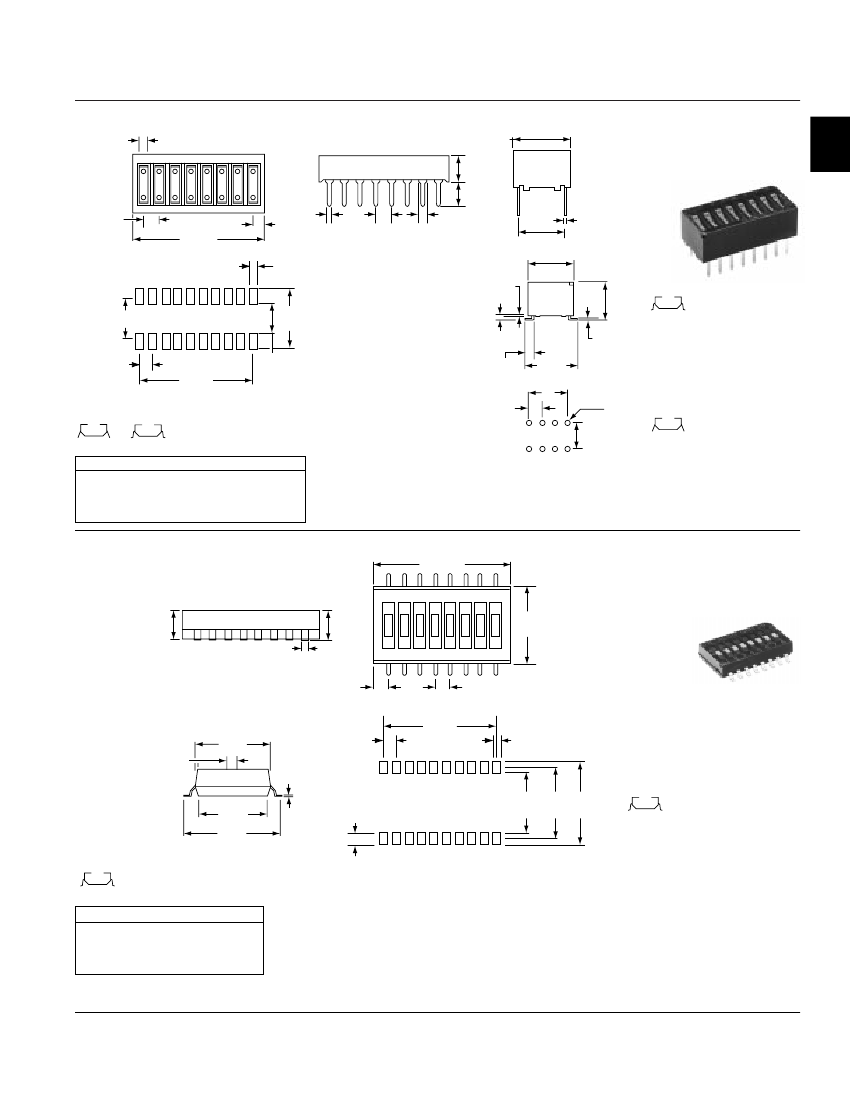

End to End Stackable!
GDS
Low Profile Slide Actuator
.106
(2.70)
.244
(6.20)
.232
(5.90)
.047
(1.20)
ON
.024
(0.60)
.169
(4.30)
.047
(1.20)
.015
(0.40)
.100
(2.54)
.047
(1.20)
.106
(2.70)
.004/.012
(0.10/0.30)
.024±.004
(0.61)±(0.10)
TYP.
.047±.008
(1.20)±(0.20)
TYP.
.228
(5.79)
.228
(5.80)
.335
(8.50)
.232
(5.89)
.010
(0.25)
1
LENGTH
8
GDS08
.024
(0.60)
.060
(1.52)
MIN.
.035±.008
(0.89) (±0.20)
.100
(2.54)
DIM. M
.325 .409
(8.26) (10.39)
MIN.
S
.100
(2.54)
TYP.
.366±.020
(9.30) (±0.51)
.240
(6.10)
MAX.
L
PC
S
.100
(2.54)
TYP.
ø.031
(0.80)
TYP.
.300
(7.60)
PC
PC Model
GDS02
GDS04
GDS06
GDS08
GDS10
S Model
GDS02S
GDS04S
GDS06S
GDS08S
GDS10S
Poles
2
4
6
8
10
Length
.194(4.94)
.394(10.02)
.594(15.10)
.794(20.18)
.994(25.26)
Dim. M
.100 (2.54)
.300(7.62)
.500(12.7)
.700(17.78)
.900(22.86)
See pages M2-M4 for application specific indexing.
Need more technical information?
Consult your Thomas & Betts
sales office listed on the back cover
Thomas & Betts
8155 T&B Blvd.
Memphis, TN 38125
(901) 252-5000 FAX (901) 252-1380
A3
GD Series
A

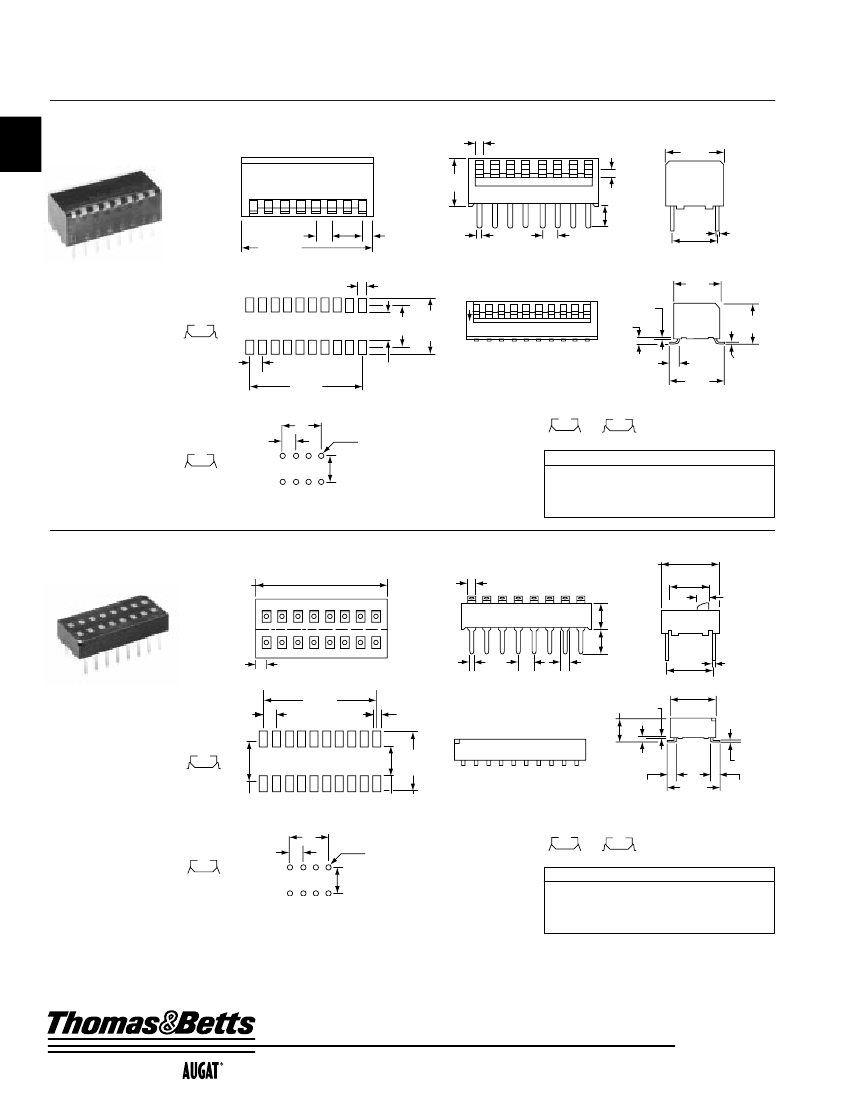

GDP
Classic Profile Piano Actuator
Dip Switches “Piano and Rocker” Actuator
Through hole and Surface Mount
.047
(1.20)
.051
(1.30)
.303
(7.70)
.378
(9.60)
o
n 1
2
3
4
5
6
7
8
.140
(3.56)
.010
(0.25)
.300
(7.62)
.378
(9.60)
.008
(0.20)
.100
(2.54)
LENGTH
.069
(1.75)
.024
(0.60)
.100
(2.54)
GDP08
.060
(1.52)
MIN.
.325 .476
(8.26) (12.10)
MIN.
S
.100
(2.54)
TYP.
DIM. M
.240
(6.10)
MAX.
.071
(1.82)
TYP.
O
N1 2 3 4 5 6 7 8 9 10
.040
(1.00)
.343
(8.710)
.010
(0.25)
.433
(11.00)
L
.100
(2.54)
TYP.
PC
ø0.03
(0.80)
TYP.
.300
(7.60)
PC
S
PC Model
GDP02
GDP04
GDP06
GDP08
GDP10
S Model
GDP02S
GDP04S
GDP06S
GDP08S
GDP10S
Poles
Length
2
.238(6.04)
4
.438(11.12)
6
.638(16.20)
8
.838(22.28)
10 1.038(26.36)
Dim. M
.100 (2.54)
.300(7.62)
.500(12.7)
.700(17.78)
.900(22.86)
GDB
Flush Rocker Actuator
LENGTH
1
O
N
O
F
F
.055
(1.40)
2
3
4
5
6
7
8
.169
(4.30)
.152
(3.85)
.024
(0.60)
.100
(2.54)
.100
(2.54)
TYP.
DIM. M
.060
(1.52)
MIN. TYP.
.047
(1.20)
.378
(9.60)
.203
(5.16)
.055
(1.40)
.069
(1.75)
GDB08
.300
(7.62)
.209 .008
(5.30) (0.20)
.010
(0.25)
.378
(9.60)
S
.325
(8.26)
.476
(12.1)
MIN.
.240
(6.10)
MAX.
L
.100
(2.54)
TYP.
ø.031
(0.80)
TYP.
.300
(7.60)
PC
S
.039
(1.00)
.072
(1.82)
TYP.
.433
(11.0)
.010
(0.25)
TYP.
.072
(1.82)
TYP.
PC
PC Model
GDB02
GDB04
GDB06
GDB08
.700(17.78)
GDB10
.900(22.86)
S Model
GDB02S
GDB04S
GDB06S
GDB08S
GDB10S
Poles
2
4
6
8
10
Length
.238(6.04)
.438(11.12)
.638(16.20)
.838(21.28)
1.038(26.36)
Dim. M
.100 (2.54)
.300(7.62)
.500(12.7)
Quality & Innovation From
Name Brand Products
A4
Thomas & Betts
8155 T&B Blvd.
Memphis, TN 38125
(901) 252-5000 FAX (901) 252-1380
Dip Switches “Recessed Rocker”
Surface Mount “Half Pitch” .050" Low Profile
.047
(1.20)
ON
1
2
3
4
5
6
7
8
.270
(6.85)
.152
(3.85)
OFF
.100
(2.54)
TYP.
.024
(0.60)
.069
(1.75)
.060
(1.52)
MIN. TYP.
.010
(0.25)
.378
(9.60)
GD Series
GDR
Classic Profile
Recessed Rocker Actuator
A
LENGTH
.100
(2.54)
.047
(1.20)
.300
(7.62)
.378
(9.60)
.008
(0.20)
.309
(7.85)
GDR08
S
.325
(8.26)
.476
(12.1)
MIN.
.039
(1.00)
.100
(2.54)
TYP.
DIM. M
.240
(6.10)
MAX.
.072
(1.82)
TYP.
.100
(2.54)
TYP.
.433
(11.00)
L
.010
(0.25)
TYP.
ø0.03
(0.80)
TYP.
.300
(7.60)
PC
PC
S
PC Model
GDR02
GDR04
GDR06
GDR08
GDR10
S Model
GDR02S
GDR04S
GDR06S
GDR08S
GDR10S
Poles
Length
2
.238(6.04)
4
.438(11.12)
6
.638(16.20)
8
.838(21.28)
10 1.038(26.36)
Dim. M
.100 (2.54)
.300(7.62)
.500(12.70)
.700(17.78)
.900(22.86)
LENGTH
GDH
Half Pitch .050” Terminal Spacing
.087
(2.20)
.091
(2.30)
.014
(0.35)
2.36
(6.00)
.047
(1.20)
.050
(1.27)
TYP.
.050
(1.27)
DIM. M
.030
(0.76)
TYP.
GDH08S
.244
(6.20)
.031
(0.80)
.006
(0.15)
.236
(6.00)
.320
(8.12)
.250 .299 .350
(6.35) (7.60) (8.89)
MAX. REF. MIN.
.050
(1.27)
REF.
TYP.
S
S
S Model
GDH02S
GDH04S
GDH06S
GDH08S
GDH10S
Poles
2
4
6
8
10
Length
.144(3.66)
.244(6.20)
.344(8.75)
.444(11.29)
.544(13.82)
Dim. M
.050(1.27)
.150(3.81)
.250(6.35)
.350(8.89)
.450(11.43)
Need more technical information?
Consult your Thomas & Betts
sales office listed on the back cover
A5
Thomas & Betts
8155 T&B Blvd.
Memphis, TN 38125
(901) 252-5000 FAX (901) 252-1380
