DATA SHEET
PART NO.: L-C192KRCT
REV: B / 3
CUSTOMER’S APPROVAL : _______________
DCC : ____________
DRAWING NO. : DS-75-03-0004
DATE : 2009-11-23
PAGE 1 of 14
PARA-FOR-065
Release
by
PARA LIGHT DCC
SURFACE MOUNT DEVICE LED
Part No. : L-C192KRCT

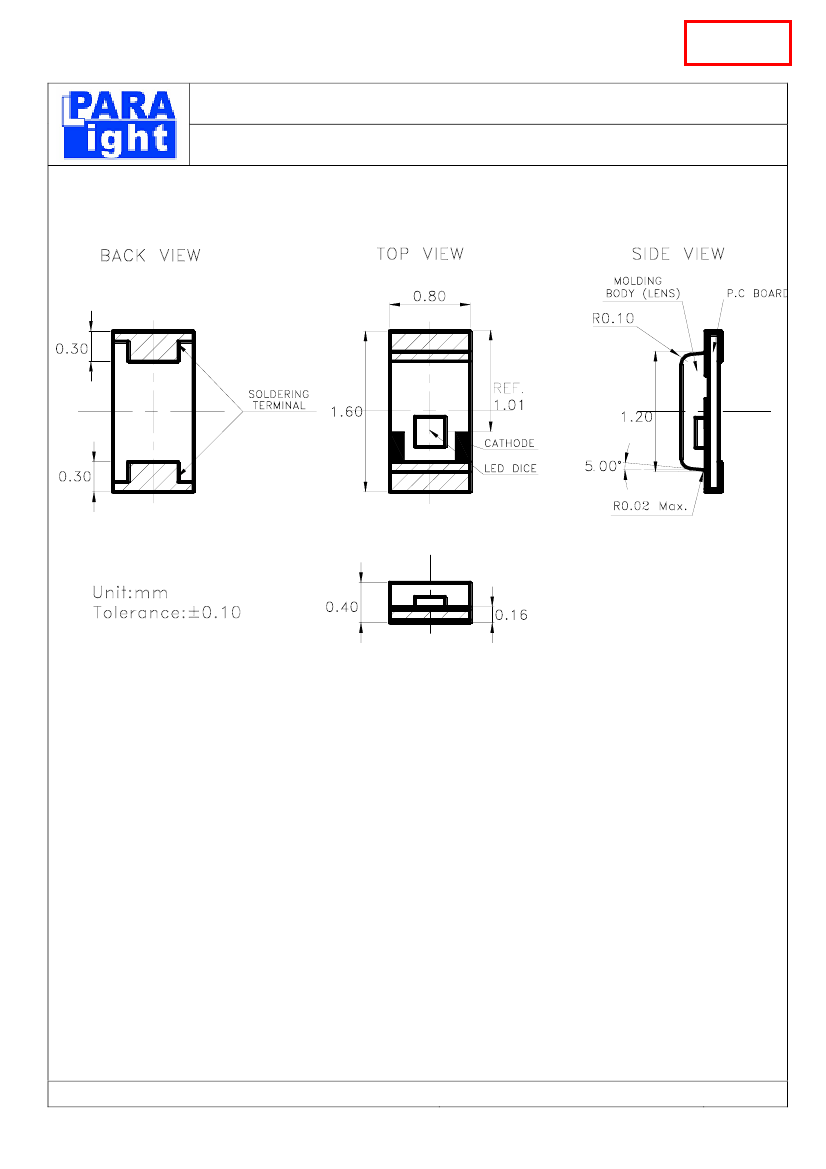

PACKAGE OUTLINE DIMENSIONS
REV:B / 3
Notes:
1. All dimensions are in millimeters.
2. Tolerance is
±
0.1mm (.004") unless otherwise noted.
Features
Top view, wide view angle, single color Chip LED.
Package in 8mm tape on 7" diameter reels.
Compatible with automatic Pick & Place equipment.
Compatible with Infrared and Wave soldering reflow solder processes.
EIA STD package.
I.C. compatible.
Pb free product.
Meet RoHS Green Product
DRAWING NO. : DS-75-03-0004
PARA-FOR-068
DATE : 2009-11-23
PAGE
2 of 14
Release
by
PARA LIGHT DCC
SURFACE MOUNT DEVICE LED
Part No. : L-C192KRCT
Chip Materials
Dice Material : AlInGaP
Light Color : Super Red
Lens Color : Water Clear
REV:B / 3
Absolute Maximum Ratings(Ta=25℃)
Symbol
P
D
I
PF
I
F
-
V
R
ESD
Topr
Tstg
Power Dissipation
Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)
Continuous Forward Current
De-rating Linear From 25
℃
Reverse Voltage
Electrostatic Discharge Threshold(HBM)
Note A
Operating Temperature Range
Storage Temperature Range
Parameter
Rating
75
80
30
0.25
5
2000
-40 ~ +85
-40 ~ +85
Unit
mW
mA
mA
mA/
℃
V
V
℃
℃
Note A :
HBM : Human Body Model. Seller gives no other assurances regarding the ability of to
withstand ESD.
Electro-Optical Characteristics(Ta=25℃)
Parameter
Luminous Intensity
Viewing Angle
Peak Emission
Wavelength
Dominant Wavelength
Spectral Line
Half-Width
Forward Voltage
Reverse Current
Symbol
IV
2θ1/2
λp
λd
Δλ
VF
IR
Min.
25.0
Typ.
50.0
130
639
631
17
1.9
2.4
10
Max.
Unit
mcd
deg
nm
nm
nm
V
μA
IF =20mA
VR = 5V
Test Condition
IF=20mA
Note 2
Measurement @Peak
IF=20mA
DRAWING NO. : DS-75-03-0004
PARA-FOR-068
DATE : 2009-11-23
PAGE
3 of 14
Release
by
PARA LIGHT DCC
SURFACE MOUNT DEVICE LED
Part No. : L-C192KRCT
Bin Code List
Luminous Intensity(IV), Unit:mcd@20mA
Bin Code
N
P
Q
Min
28
45
71
Tolerance of each bin are±10%
Max
45
71
112
REV:B / 3
Notes:
1. Luminous intensity is measured with a light sensor and filter combination that
proximities the CIE eye-response curve.
2.
θ1/2
is the off-axis angle at which the luminous intensity is half the axial luminous
intensity.
3. The dominant wavelength
λd
is derived from the CIE chromaticity diagram and
represents the single wavelength which defines the color of the device.
4. Caution in ESD :
Static Electricity and surge damages the LED. It is recommended use a wrist band or
anti-electrostatic glove when handling the LED. All devices, equipment and machinery
must be properly grounded.
5. Major standard testing equipment by “Instrument System” Model : CAS140B Compact
Array Spectrometer and “KEITHLEY” Source Meter Model : 2400.
DRAWING NO. : DS-75-03-0004
PARA-FOR-068
DATE : 2009-11-23
PAGE
4 of 14
Release
by
PARA LIGHT DCC
SURFACE MOUNT DEVICE LED
Part No. : L-C192KRCT

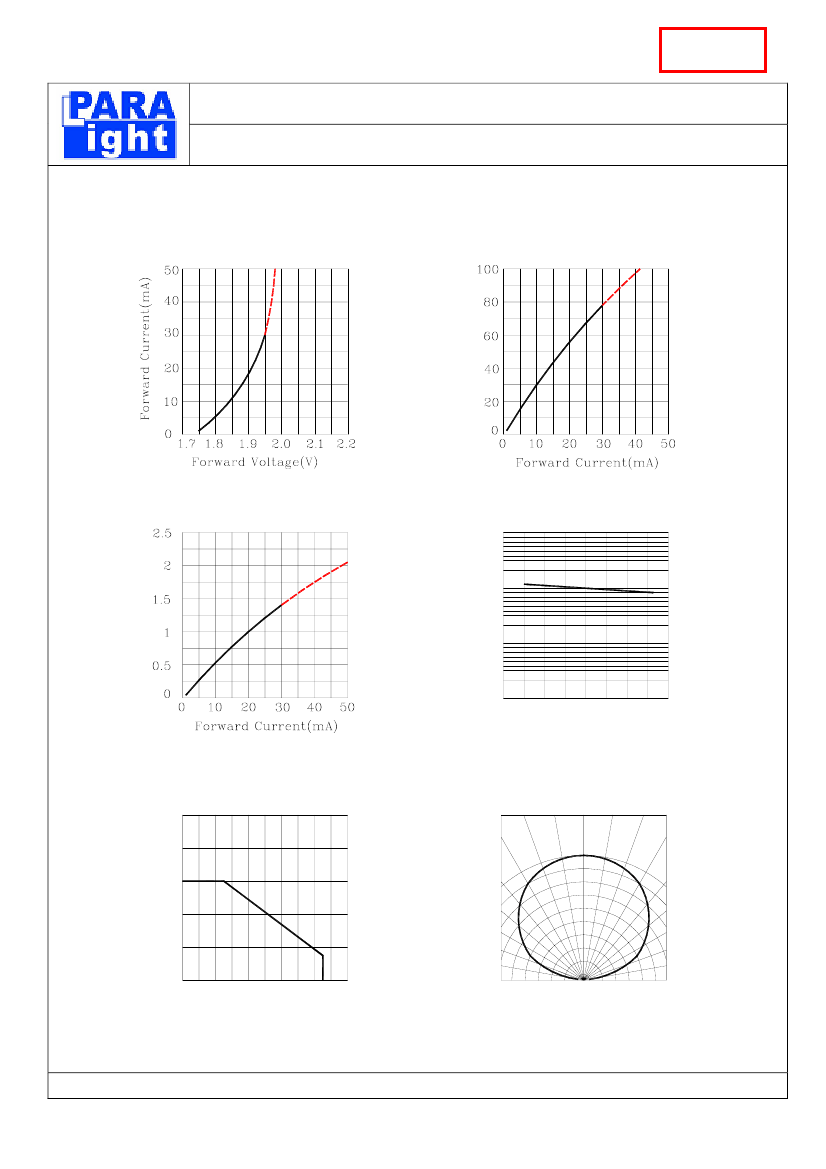

Typical Electro-Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)
REV:B / 3
Fig.2 Forward Current vs.Forward Voltage
Luminous lntensity(mcd)
Fig.3 Luminous Intensity vs.Forward Current
1000
Relative Luminous lntensity
Normalized of 20mA
Relative luminous intensity(%)
100
10
1
-60 -
4
0 -20 -0 20
4
0 60 80 100
Ambient Temperature Ta(
℃
)
Fig.
4
Relative Luminous Intensity vs.Forward Current
Fig.5 Luminous Intensity vs.Ambient Temperature
50
Forward Current IF(mA)
40
30
20
10
0.7
0
0
20
40
60
80
100
0.5 0.3
1.0
0.9
0.8
0°
10°
20°
30°
40°
50°
60°
70°
80°
90°
0.1 0.2 0.4 0.6
Ambient Temperature Ta(
℃
)
Fig.6 Forward Current Derating Curve
Fig.7 Relative Intensity vs.Angle
DRAWING NO. : DS-75-03-0004
PARA-FOR-068
DATE : 2009-11-23
PAGE
5 of 14
