85100RG107SW50 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 85100RG107SW50

85100RG107SW50: DescriptionMIL Series Connector, 7 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle,; CategoryThe connector The connector; File Size174KB，1 Pages; ManufacturerSOURIAU

Download Datasheet Parametric View All

85100RG107SW50 Overview

MIL Series Connector, 7 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle,

85100RG107SW50 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Maker	SOURIAU
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: MIL-C-26482, COMPATIBLE CONTACT: 8500-1758A900
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT/VIBRATION RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	10
Termination type	CRIMP
Total number of contacts	7

Preview

Download Datasheet

View All

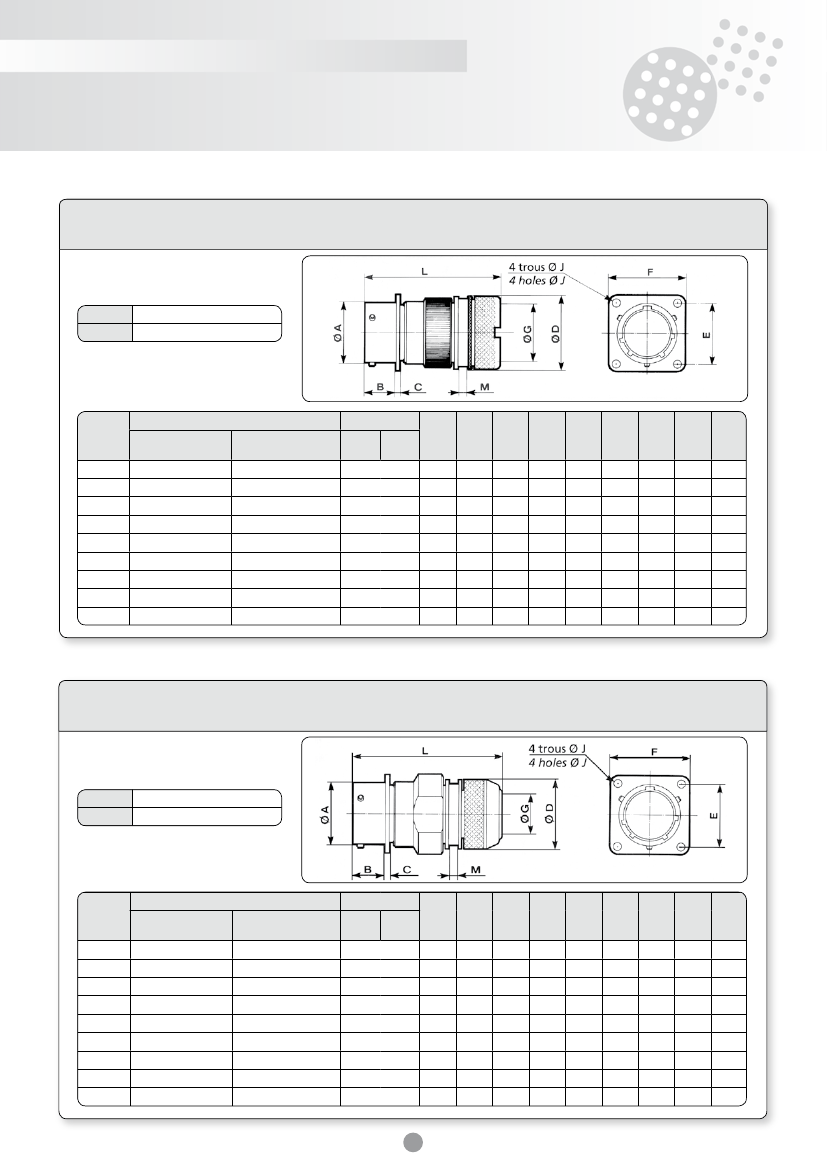

851

Embase à collerette carrée avec raccord droit démontable pour reprise de tresse et gaine ther-

morétractable (spécifications 38 & 42) /

Square flange receptacle with removable backshell for

screen termination and heatshrink sleeving (38 & 42 suffix)

00 T

00 RT

Taille de

boîtier

Shell size

Références /

Part numbers

contacts à souder

solder contacts

851 00 T 8..

L max

souder

solder

contacts à sertir

crimp contacts

851 00 RT 8..

sertir

crimp

2.03

5.01

19.07

22.25

25.42

28.60

31.77

34.95

38.1

max

1.70

4.35

5.20

max

1.32

2.1

max

18.25

20.25

24.75

27.75

30.05

34.1

37.25

40.45

43.65

5.09

18.26

20.62

23.00

24.61

26.97

29.36

31.75

34.92

max

20.99

24.19

26.54

28.89

31.29

33.69

36.89

39.99

43.1

max

7.45

9.00

3.30

16.50

18.50

21.90

25.10

28.20

31.40

3.1

3.81

max

3.70

. 50

51.60

52.00

55.10

851 00 T 10..

851 00 T 1

2..

851 00 T 1

4..

851 00 T 16..

851 00 T 18..

851 00 T 20..

851 00 T 22..

851 00 T 24..

. 50

851 00 RT 10..

. 50

851 00 RT 1

2..

. 50

851 00 RT 1

4..

851 00 RT 16..

. 50

851 00 RT 18..

. 50

851 00 RT 20..

. 50

851 00 RT 22..

. 50

851 00 RT 24..

Embase à collerette carrée avec raccord droit démontable pour reprise de tresse et gaine ther-

morétractable /

Square flange receptacle with removable straight backshell for screen termina-

tion and heatshrink sleeving

00 G

00 RG

VG 95328 R

Taille de

boîtier

Shell size

Références /

Part numbers

contacts à souder

solder contacts

851 00 G 8..

L max

souder

solder

sertir

crimp

2.03

5.01

19.07

22.25

25.42

28.60

31.77

34.95

38.1

contacts à sertir

crimp contacts

851 00 RG 8..

.50 ..

851 00 RG 10..

.50..

851 00 RG 1

2..

851 00 RG 1

4..

max

1.70

4.35

5.20

max

1.32

2.1

max

16.30

18.30

22.30

25.30

28.30

32.30

34.30

38.30

41.30

5.09

18.26

20.62

23.00

24.61

26.97

29.36

31.75

34.92

max

20.99

24.19

26.54

28.89

31.29

33.69

36.89

39.99

43.1

max

7.45

10.30

3.20

16.50

19.35

21.60

24.80

27.90

31.00

3.1

3.81

max

3.60

.50..

54.00

59.30

851 00 G 10..

851 00 G 1

2..

851 00 G 1

4..

851 00 G 16..

851 00 G 18..

851 00 G 20..

851 00 G 22..

851 00 G 24..

.50..

851 00 RG 16..

.50..

851 00 RG 18..

.50..

851 00 RG 20..

.50..

851 00 RG 22..

.50..

851 00 RG 24..

.50..

Note : toutes les dimensions sont en mm / all dimensions are in mm
