Model PD1722J5050D2HF
Rev A
Ultra Low Profile 0805 Power Divider
50 to 50
Description
The PD1722J5050D2HF is a low profile, sub-miniature Wilkinson power divider in
an easy to use surface mount package. The PD1722J5050D2HF is ideal for high
volume manufacturing and delivers higher performances than traditional printed and
lumped element solutions. The PD1722J5050D2HF is matched to 50
Ω
and has a
height profile of 0.5 mm which is ideal for high level integrations in the following
markets: WCDMA, and GSM, The PD1722J5050D2HF does not include the
resistive element and therefore, requires an external resistor for operation. The
PD1722J5050D2HF is available on tape and reel for high volume manufacturing
pick and place.
Detailed Electrical Specifications:
Specifications subject to change without notice.
ROOM (25°C)
°
Features:
•
•
•
•
•
•
•
•
•
•
•
1700-2200 MHz
19 dB Isolation (output ports)
0.5mm Height Profile
50
Input / 50 Outputs
Low Insertion Loss
Surface Mountable
Tape & Reel
Non-conductive Surface
RoHS Compliant
External resistors required
Halogen Free
Parameter
Frequency
Input Port Impedance
Output Port Impedance
Return Loss
Insertion Loss*
Amplitude Balance
Phase Balance
Isolation (Output Ports)
Power Handling
Operating Temperature
Min.
1700
Typ.
50
50
14
0.5
0.1
1
19
Max
2200
Unit
MHz
11
0.7
0.3
3
2
+85
17
-55
dB
dB
dB
Degrees
dB
Watts
ºC
* Insertion Loss stated at room temperature (Insertion Loss is approximately 0.1 dB higher at +85 ºC)

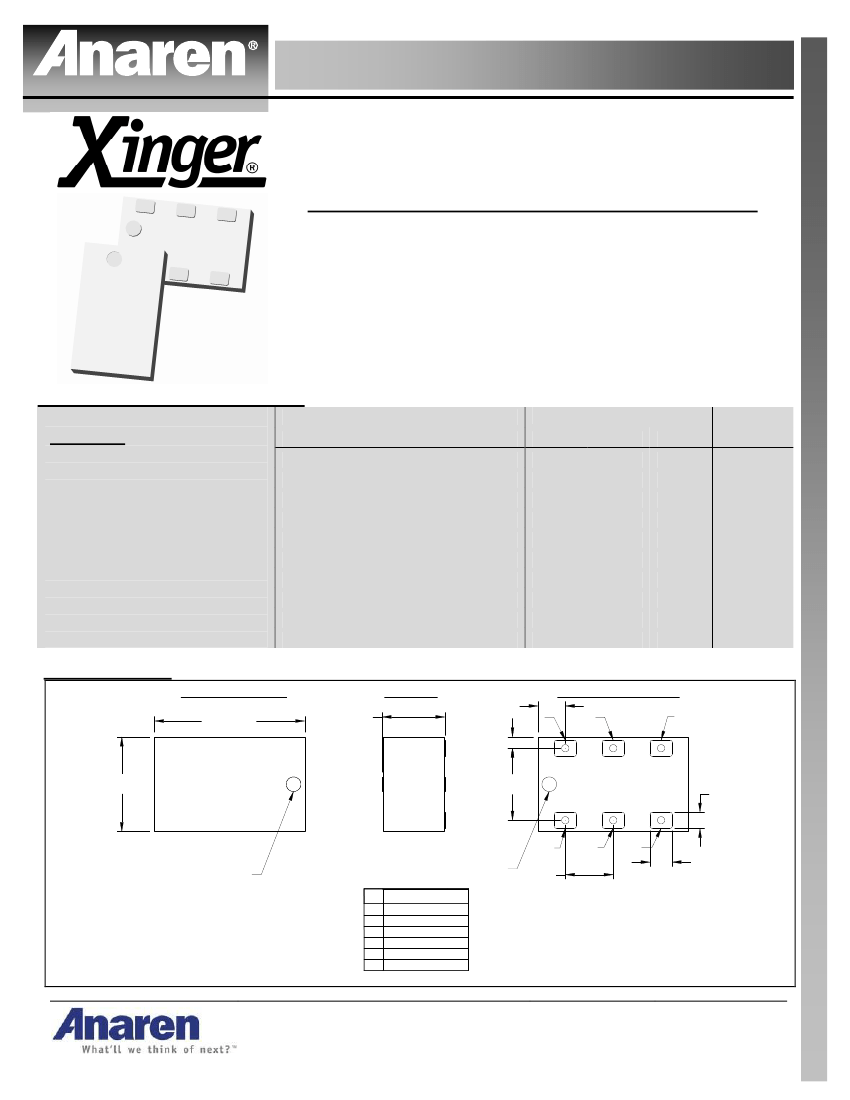

Outline Drawing
TOP VIEW (Near Side)
2.04±0.10
0.85±0.08
2x 0.15
SIDE VIEW
4x 0.37
1
BOTTOM VIEW (Far Side)
2
3
1.29±0.10
6x 0.98
6x
0.22
Orientation Marker
Denotes Pin Location
Orientation Marker
Denotes Pin Location
6
4x 0.65
5
4
6x
0.30
Mechanical Outline
-Dimensions are in Millimeters
Pin
1
2
3
4
5
6
Designation
Output 1
Input
Mid 2
Mid 1
GND
Output 2
Visit us at
www.anaren.com
USA/Canada:
Toll Free:
Europe:
Asia:
(315) 432-8909
(800) 411-6596
+44 2392-232392
+86 512-62749282
Model PD1722J5050D2HF
Rev A

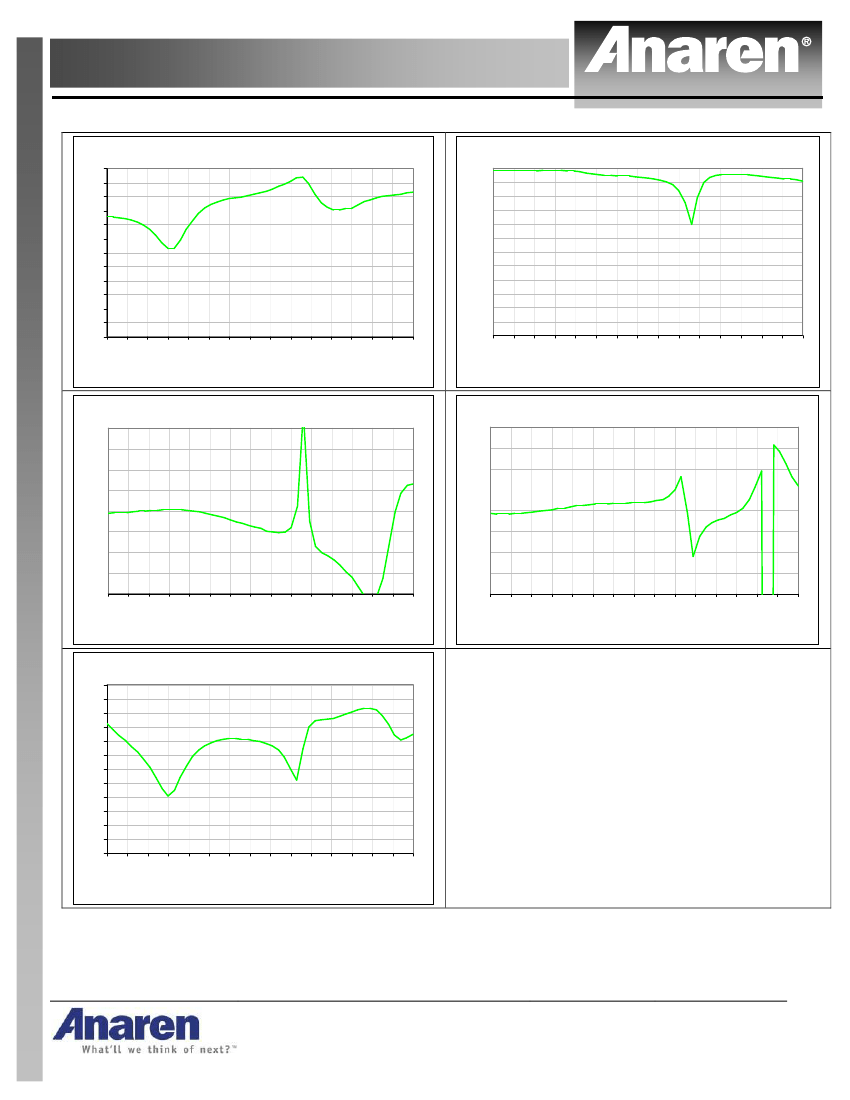

Typical Broadband Performance: 500 MHz. to 6.0 GHz.
Return Loss - Input
0
-3
-6
-9
-12
-15
[dB]
Insertion Loss
0
-3
-6
-9
-12
-15
[dB]
-18
-21
-24
-27
-30
-33
-36
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
5500
6000
6500
7000
7500
8000
-18
-21
-24
-27
-30
-33
-36
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
5500
6000
6500
7000
7500
7500
Frequency [MHz]
Frequency [MHz]
Amplitude Balance
2
1.5
1
0.5
[dB]
Phase Balance
20
15
10
5
deg
0
-0.5
-1
-1.5
-2
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
5500
6000
6500
7000
7500
8000
0
-5
-10
-15
-20
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
5500
6000
6500
7000
8000
Frequency [MHz]
Frequency [MHz]
Isolation
0
-3
-6
-9
-12
-15
[dB]
-18
-21
-24
-27
-30
-33
-36
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
5500
6000
6500
7000
7500
8000
Frequency [MHz]
Visit us at
www.anaren.com
USA/Canada:
Toll Free:
Europe:
Asia:
(315) 432-8909
(800) 411-6596
+44 2392-232392
+86 512-62749282
8000
Model PD1722J5050D2HF
Rev A

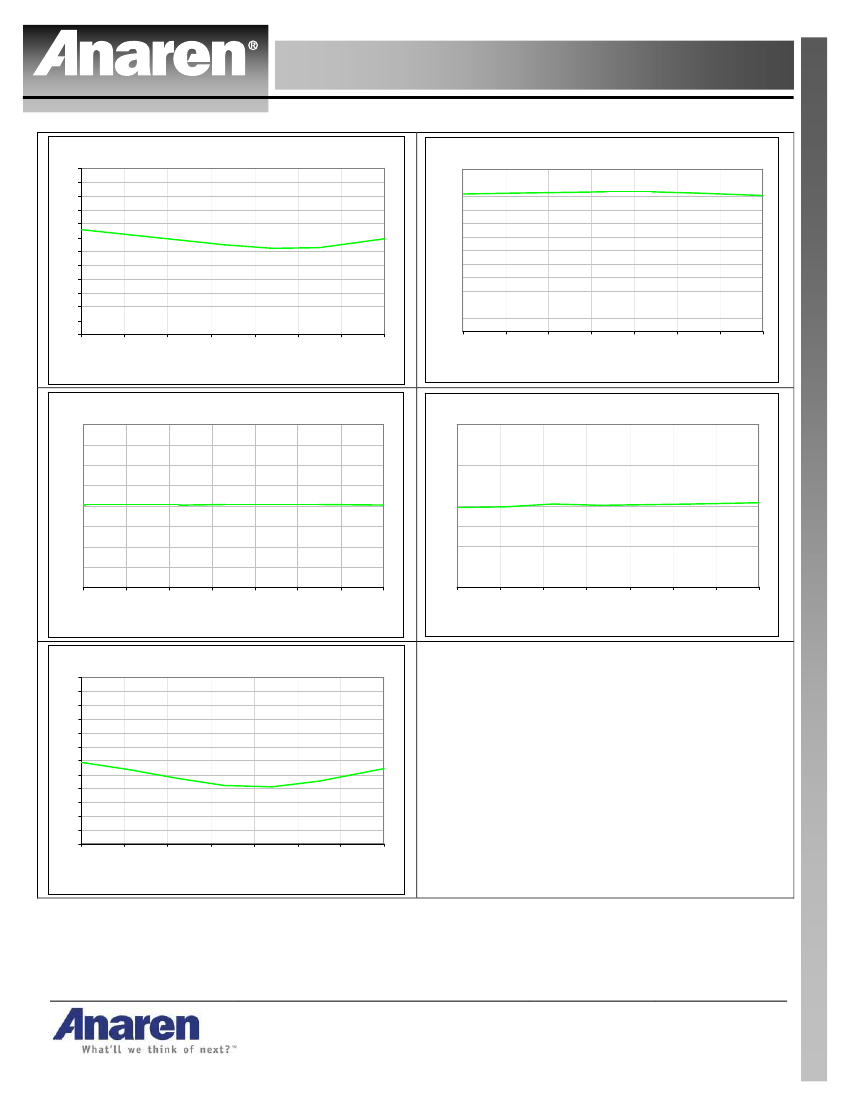

Typical Performance: 1600 MHz. to 2300 MHz.
Return Loss - Input
0
-3
-6
-9
-12
-15
[dB]
[dB]
Insertion Loss
0.0
-0.3
-0.6
-0.9
-1.2
-1.5
-1.8
-2.1
-2.4
-2.7
-3.0
-3.3
-3.6
1600
1700
1800
1900
2000
2100
2200
-18
-21
-24
-27
-30
-33
-36
1600
1700
1800
1900
2000
2100
2200
2300
Frequency [MHz]
Frequency [MHz]
Amplitude Balance
2
1.5
1
0.5
[dB]
Phase Balance
20
15
10
5
deg
0
-0.5
-1
-1.5
-2
1600
1700
1800
1900
2000
2100
2200
2300
0
-5
-10
-15
-20
1600
1700
1800
1900
2000
2100
2200
2300
Frequency [MHz]
Frequency [MHz]
Isolation
0
-3
-6
-9
-12
-15
[dB]
-18
-21
-24
-27
-30
-33
-36
1600
1700
1800
1900
2000
2100
2200
2300
Frequency [MHz]
Visit us at
www.anaren.com
USA/Canada:
Toll Free:
Europe:
Asia:
(315) 432-8909
(800) 411-6596
+44 2392-232392
+86 512-62749282
2300
Model PD1722J5050D2HF
Rev A
Mounting Configuration:
In order for Xinger surface mount components to work optimally, the proper impedance transmission lines must be
used to connect to the RF ports. If this condition is not satisfied, insertion loss, Isolation and VSWR may not meet
published specifications.
All of the Xinger components are constructed from organic PTFE based composites which possess excellent
electrical and mechanical stability. Xinger components are compliant to a variety of ROHS and Green standards and
ready for Pb-free soldering processes. Pads are Gold plated with a Nickel barrier.
An example of the PCB footprint used in the testing of these parts is shown below. In specific designs, the
transmission line widths need to be adjusted to the unique dielectric coefficients and thicknesses as well as varying
pick and place equipment tolerances. In addition, since the PD1722J5050D2HF is a Wilkinson power divider,
external 0402
100 and 200 resistors must be mounted in locations R1 and R2 respectively, as shown in the
Figure below.

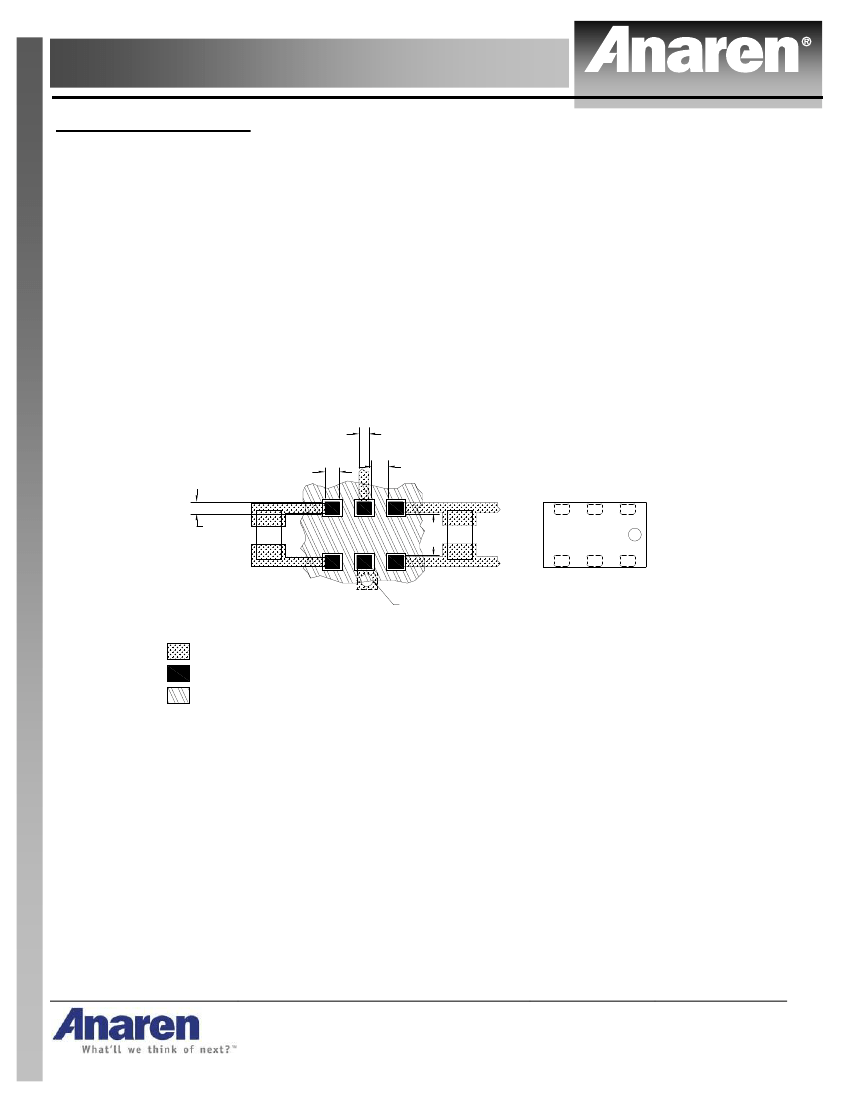

Pad Footprint w/ 0402 Resistor Locations
3X Transmission
Line
6X .014
[0.35]
4X .012
[0.30]
6X .013
[0.33]
R1
.026
[0.66]
R2
Plated thru
hole to
ground
Circuit Pattern
Footprint Pad (s)
Solder Resist
Dimensions are in Inches [Millimeters]
Mounting Footprint
Visit us at
www.anaren.com
USA/Canada:
Toll Free:
Europe:
Asia:
(315) 432-8909
(800) 411-6596
+44 2392-232392
+86 512-62749282
Model PD1722J5050D2HF
Rev A

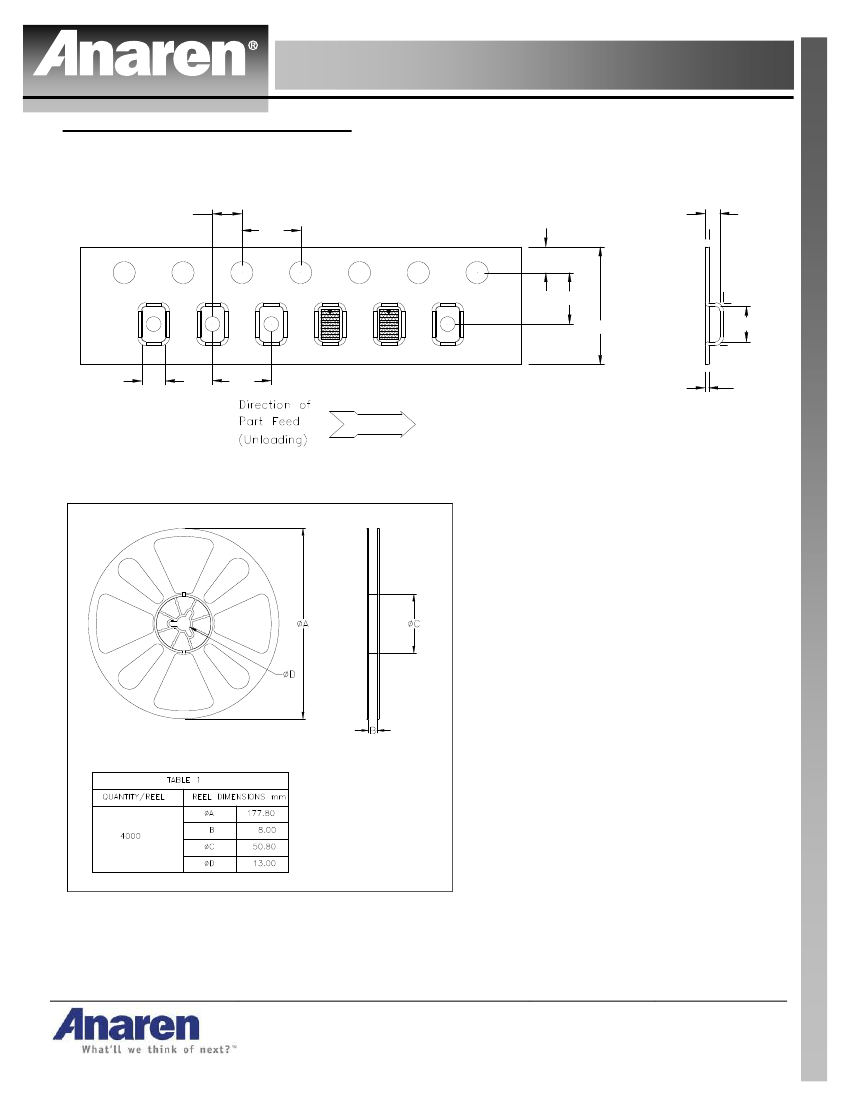

Packaging and Ordering Information
Parts are available in reel and are packaged per EIA 481-2. Parts are oriented in tape and reel as shown below. Minimum order
quantities are 4000 per reel. See Model Numbers below for further ordering information
.
2.00
4.00
1.75
1.00
3.50
8.00
2.41
1.60
4.00
.25
Visit us at
www.anaren.com
USA/Canada:
Toll Free:
Europe:
Asia:
(315) 432-8909
(800) 411-6596
+44 2392-232392
+86 512-62749282
