Model PD2425N5050S2
Rev C

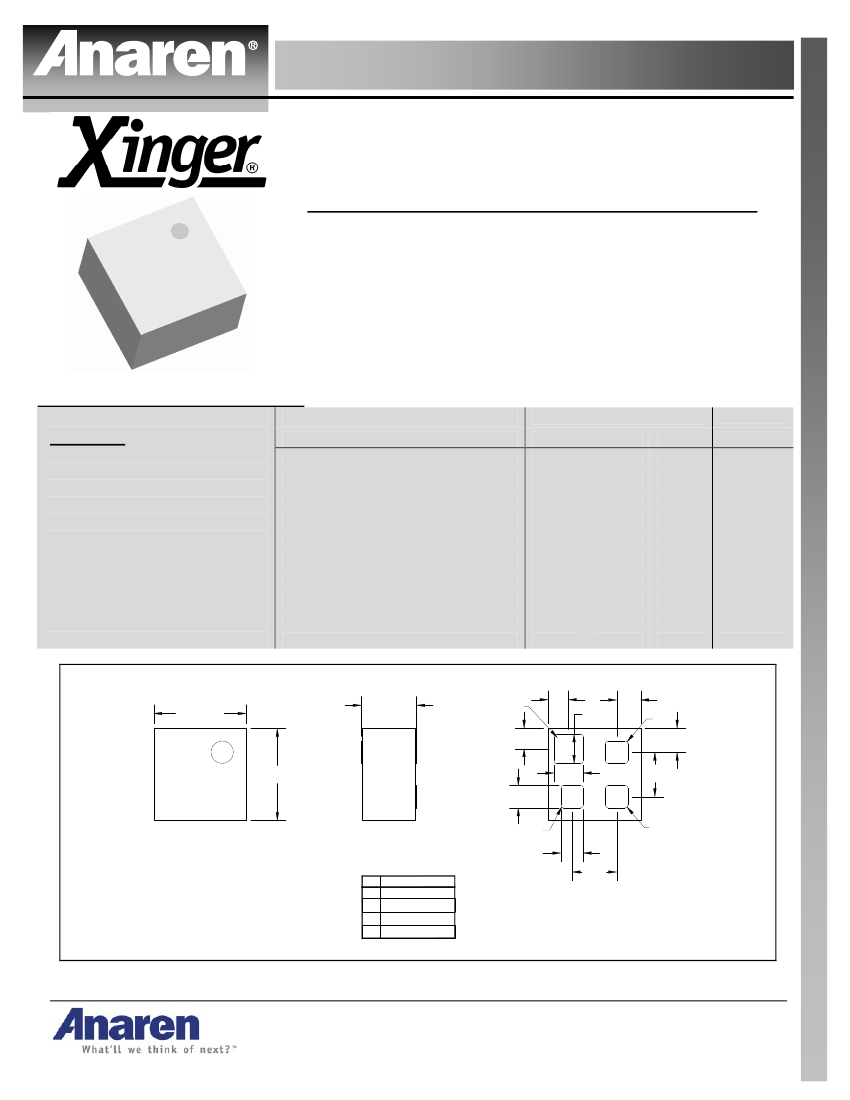

Ultra Low Profile 0404 Power Divider
50 to 50
Description
The PD2425N5050S2 is a low profile 1mm square, sub-miniature Wilkinson power
divider in an easy to use surface mount package. The PD2425N5050S2 is ideal for
high volume manufacturing and delivers higher performances than traditional printed
and lumped element solutions. The PD2425N5050S2 is matched to 50 and has a
height profile of 0.6 mm with an LGA interface which is ideal for high level
integrations in module level solutions in the following markets: WiMAX (2.3 - 2.7
GHz), 802.11b, g & n, 2.4 GHz ISM band, Bluetooth (LE), Bluetooth and ZigBee.
The PD2425N5050S2 does not include the resistive element and therefore, requires
an external resistor for operation. The PD2425N5050S2 is available on tape and
reel for high volume manufacturing pick and place.
Detailed Electrical Specifications:
Specifications subject to change without notice.
ROOM (25°C)
°
Features:
•
•
•
•
•
•
•
•
•
•
•
•
2400-2500 MHz
23 dB Isolation (output ports)
Good Return Loss
0.6 mm Height Profile
50
Input / 50 Outputs
Low Insertion Loss
Surface Mountable
Tape & Reel
Non-conductive Surface
RoHS Compliant
External Resistor Required
Halogen Free
Top View (Near-side)
1.04
±.10
Parameter
Frequency
Input Port Impedance
Output Port Impedance
Return Loss
Insertion Loss*
Amplitude Balance
Phase Balance
Isolation (Output Ports)
Power Handling
Operating Temperature
Side View
.62
±.05
1
.23
1.04
±.10
3x .25
4
3x .25
Pin
1
2
3
4
Designation
GND
Input
Output 1
Output 2
Min.
2400
Typ.
50
50
27
0.39
0.01
0.5
23
Max
2500
Unit
MHz
21
0.46
0.35
1.3
0.5
+85
20
-55
dB
dB
dB
Degrees
dB
Watts
ºC
* Insertion Loss stated at room temperature (Insertion Loss is approximately 0.1 dB higher at +85 ºC)
Bottom View (Far-side)
.23
.33
3x .27
2
3x .27
.33
.50
3
.50
Dimensions are in Millimeters
Mechanical Outline
Tolerances are Non-Cumulative
Visit us at
www.Anaren.com
USA/Canada:
Toll Free:
Europe:
Asia:
(315) 432-8909
(800) 411-6596
+44 2392-232392
+86 512-62749282

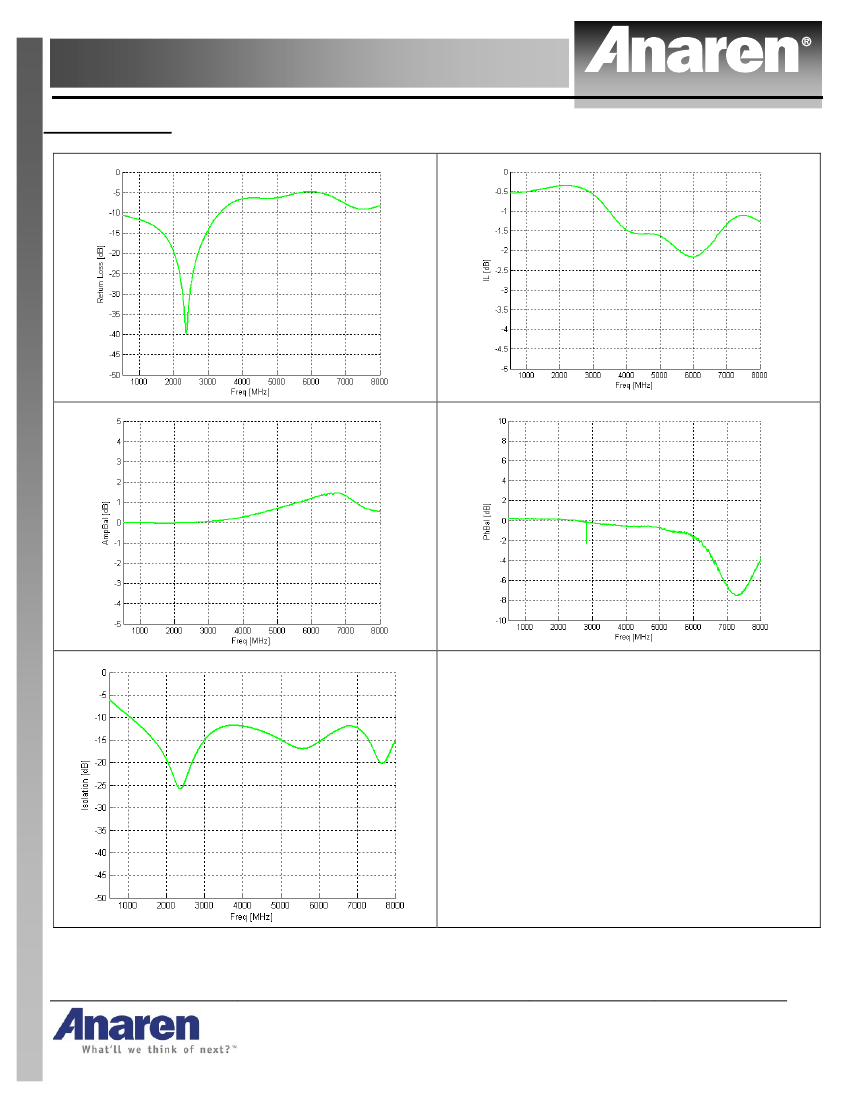

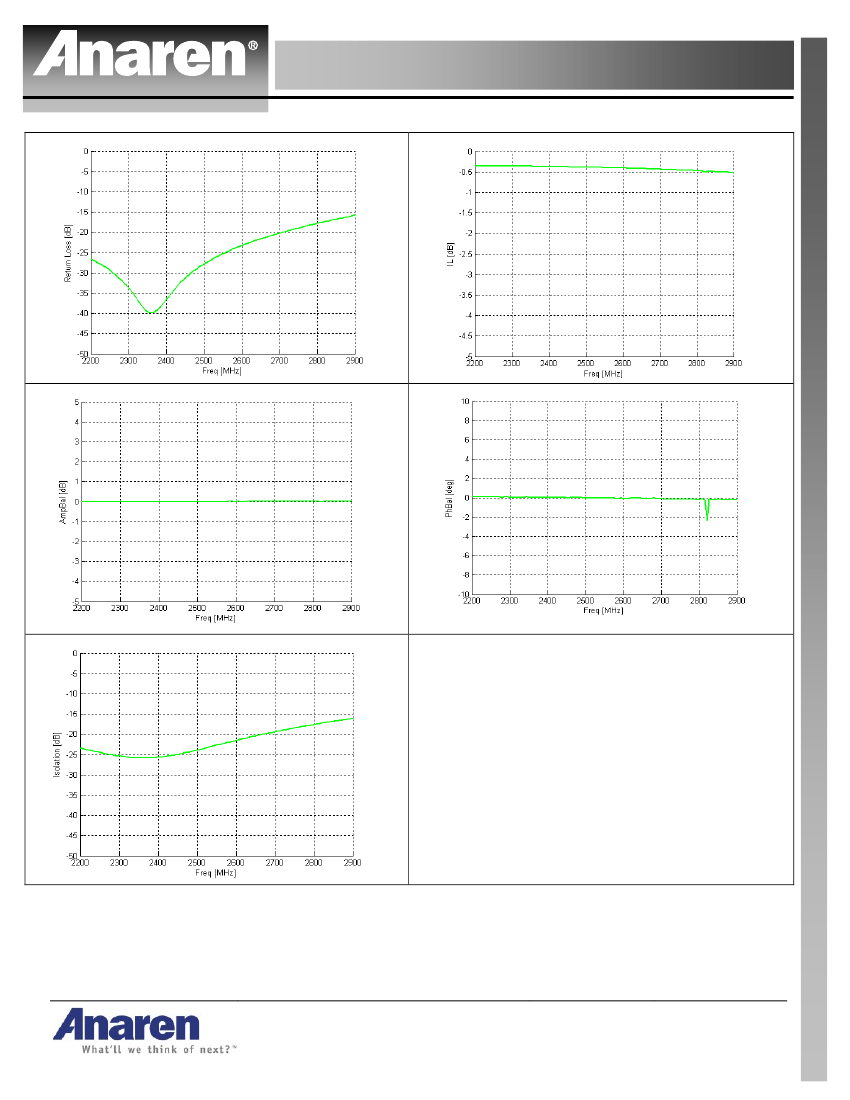

Model PD2425N5050S2
Rev C
Mounting Configuration:
In order for Xinger surface mount components to work optimally, the proper impedance transmission lines must be
used to connect to the RF ports. If this condition is not satisfied, insertion loss, Isolation and VSWR may not meet
published specifications.
All of the Xinger components are constructed from organic PTFE based composites which possess excellent
electrical and mechanical stability. Xinger components are compliant to a variety of ROHS and Green standards and
ready for Pb-free soldering processes. Pads are Gold plated with a Nickel barrier.
An example of the PCB footprint used in the testing of these parts is shown below. In specific designs, the
transmission line widths need to be adjusted to the unique dielectric coefficients and thicknesses as well as varying
pick and place equipment tolerances. In addition, since the PD2425S5050S2 is a Wilkinson power divider, an
external 0201 100 resistor must be mounted in locations R1 as shown in the Figure below.

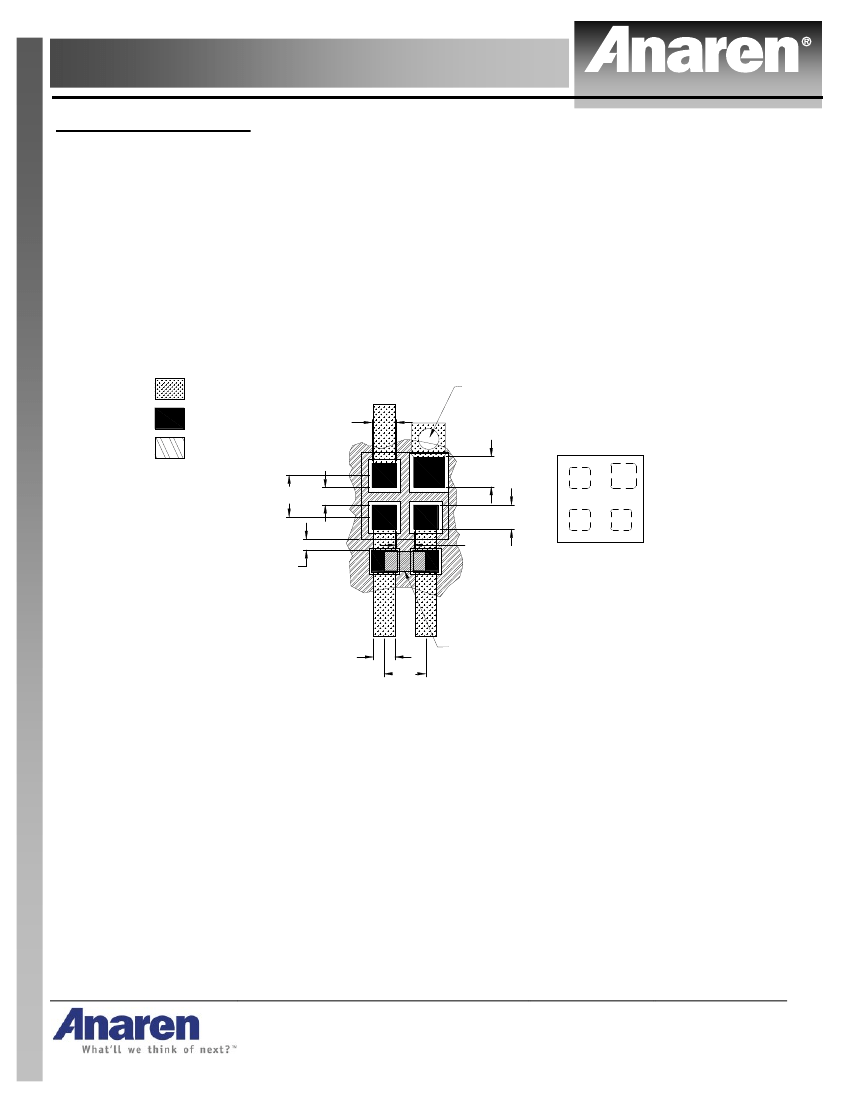

Pad Footprint w/ 0201 Resistor Locations
Circuit Pattern
Footprint Pad (s)
Solder Resist
.36 SQ.
.50
2x .21
3x .29 SQ.
.21
.13
3x .29
Plated thru
hole to
ground
3x Transmission
Line
0201
Resistor
.50
Dimensions are in Millimeters
Mounting Footprint
Visit us at
www.Anaren.com
USA/Canada:
Toll Free:
Europe:
Asia:
(315) 432-8909
(800) 411-6596
+44 2392-232392
+86 512-62749282
Model PD2425N5050S2
Rev C
Packaging and Ordering Information

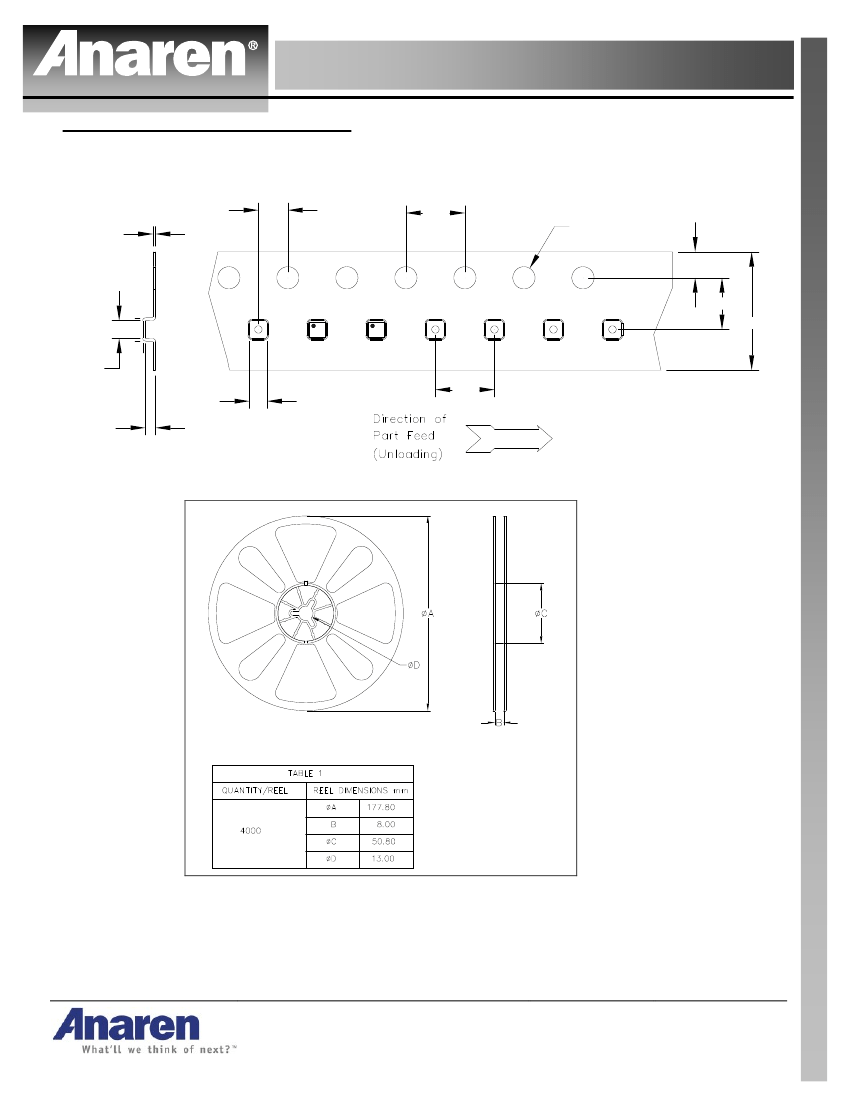

Parts are available in reels and are packaged per EIA 481-2. Parts are oriented in tape and reel as shown below. Minimum order
quantities are 4000 per reel. See Model Numbers below for further ordering information
.
2.00
.18
4.00
Ø1.50
1.75
3.50
8.00
1.21
1.21
.70
4.00
Visit us at
www.Anaren.com
USA/Canada:
Toll Free:
Europe:
Asia:
(315) 432-8909
(800) 411-6596
+44 2392-232392
+86 512-62749282
