PS7904-1A
OCMOS FET
Specifications in this document are tentative and subject to change.
Preliminary
Data Sheet
Mar 7, 2012
4-PIN SMALL FLAT-LEAD, LOW ON-STATE RESISTANCE
1-ch Optical Coupled MOS FET
DESCRIPTION
The PS7904-1A is a low output capacitance solid state relay containing a GaAs LED on the light emitting side (input
side) and MOS FETs on the output side.
A small flat-lead package has been provided which realizes a reduction in mounting area of about 50% compared with
the PS78xx series.
It is suitable for high-frequency signal control, due to its low C R, low output capacitance, and low off-state leakage
current.
FEATURES
Small flat-lead package (2.5 (L) 2.3 (W) 2.9 (H) mm)
Low C R (C R = 29.7 pF • )
Low on-state resistance (R
on
= 1.1 TYP.)
Large continuous load current (I
L
= 400 mA)
1 channel type (1 a output)
Designed for AC/DC switching line changer
Low offset voltage
Embossed tape product : PS7904-1A-F3
: 3 500 pcs/reel
Pb-Free product
APPLICATIONS
Measurement equipment
Mar 7, 2012
Page 1 of 6
Preliminary document
Specifications in this document are tentative and subject to change.
A Business Partner of Renesas Electronics Corporation.
PS7904-1A
Chapter Title

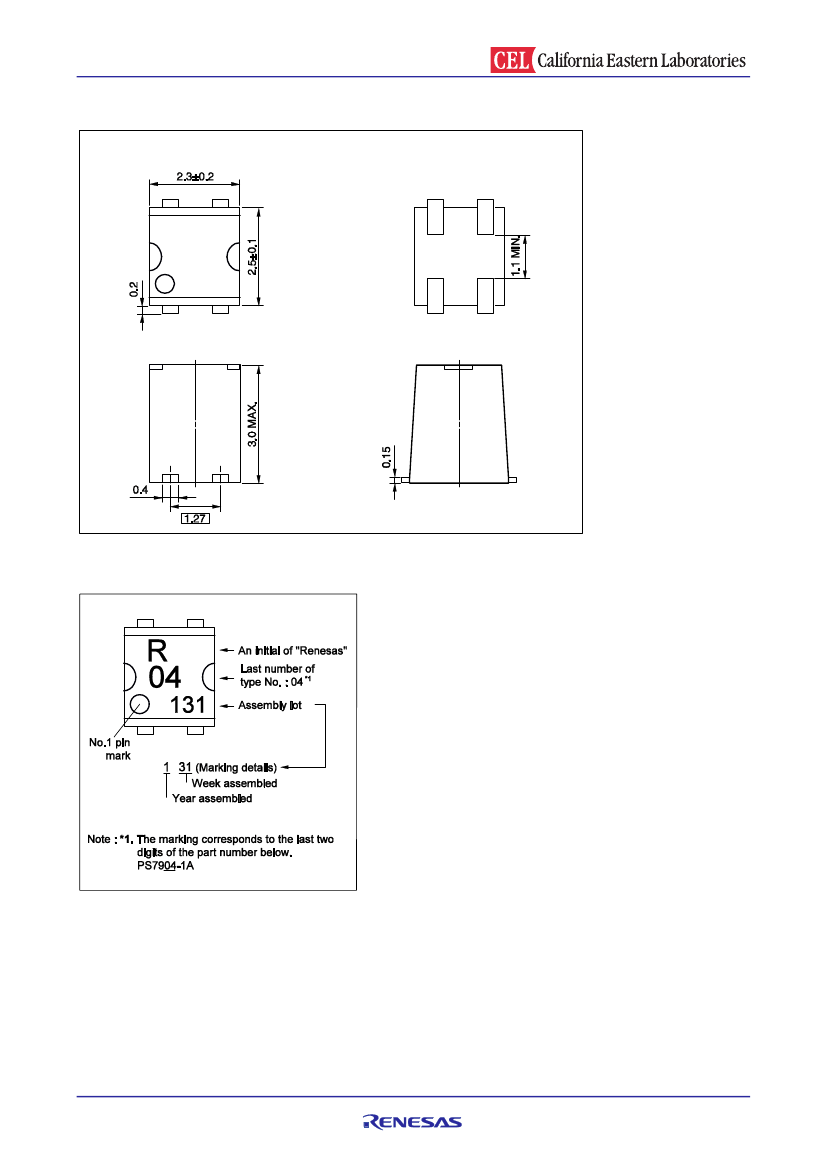

PACKAGE DIMENSIONS (UNIT: mm)
MARKING EXAMPLE
Mar 7, 2012
Page 2 of 6
Preliminary document
Specifications in this document are tentative and subject to change.
A Business Partner of Renesas Electronics Corporation.
PS7904-1A
Chapter Title
ABSOLUTE MAXIMUM RATINGS (T
A
= 25 C, unless otherwise specified)
Diode
Parameter
Forward Current (DC)
Reverse Voltage
Power Dissipation
Symbol
V
R
P
D
I
FP
V
L
I
L
I
F
Ratings
5.0
50
1
50
Unit
mA
V
MOS FET Break Down Voltage
Continuous Load
Current
Peak Forward
*1
Current
mW
A
400
800
250
300
60
mA
mA
mW
mW
C
C
V
Pulse Load Current
(AC/DC Connection)
Isolation Voltage
Power Dissipation
*3
*2
*2
I
LP
P
D
P
T
Total Power Dissipation
Storage Temperature
BV
T
A
500
Vr.m.s.
Operating Ambient Temperature
Notes:
*1.
PW = 100 s, Duty Cycle = 1%
*2.
PW = 100 ms, 1 shot
*3.
AC voltage for 1 minute at T
A
= 25 C, RH = 60% between input and output.
Pins 1-2 shorted together, 3-4 shorted together.
T
stg
40 to +100
40 to +85
RECOMMENDED OPERATING CONDITIONS (T
A
= 25 C)
LED Operating Current
LED Off Current
Parameter
Symbol
I
F
I
F
MIN.
4.5
0.1
TYP.
5
MAX.
20
Unit
mA
mA
Mar 7, 2012
Page 3 of 6
Preliminary document
Specifications in this document are tentative and subject to change.
A Business Partner of Renesas Electronics Corporation.
PS7904-1A
Chapter Title
ELECTRICAL CHARACTERISTICS (T
A
= 25 C)
Diode
Forward Voltage
Parameter
Symbol
V
F
I
R
I
F
= 5 mA
V
R
= 5 V
Conditions
MIN.
TYP.
1.1
MAX.
1.4
10
5.0
35
Unit
V
A
MOS FET Off-state Leakage Current
Coupled
LED On-state Current
On-state Resistance
Turn-on Time
Turn-off Time
*1
*1
Reverse Current
Output Capacitance
C
out
R
on
t
on
I
Fon
I
Loff
V
L
= 60 V
V
L
= 0 V, f = 1 MHz
I
F
= 5 mA, I
L
= 400 mA,
t 10 ms
I
F
= 5 mA, V
O
= 5 V,
R
L
= 500
V
I-O
= 0.5 kV
DC
, PW
1 ms
I
L
= 400 mA
0.1
27
nA
pF
1.1
0.15
1.5
4.0
mA
Isolation Resistance
Isolation Capacitance
Notes:
*1.
Test Circuit for Switching Time
R
I-O
C
I-O
t
off
V = 0 V, f = 1 MHz
10
9
0.15
0.3
0.5
0.5
ms
pF
Mar 7, 2012
Page 4 of 6
Preliminary document
Specifications in this document are tentative and subject to change.
A Business Partner of Renesas Electronics Corporation.
PS7904-1A
Chapter Title
USAGE CAUTIONS
1.
Protect against static electricity when handling.
2.
Avoid storage at a high temperature and high humidity.
Mar 7, 2012
Page 5 of 6
