87632-7003 datasheet, PDF - EEWORLD Datasheet

87632-7003: DescriptionRectangular Power Connector, 28 Contact(s), Female, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size180KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

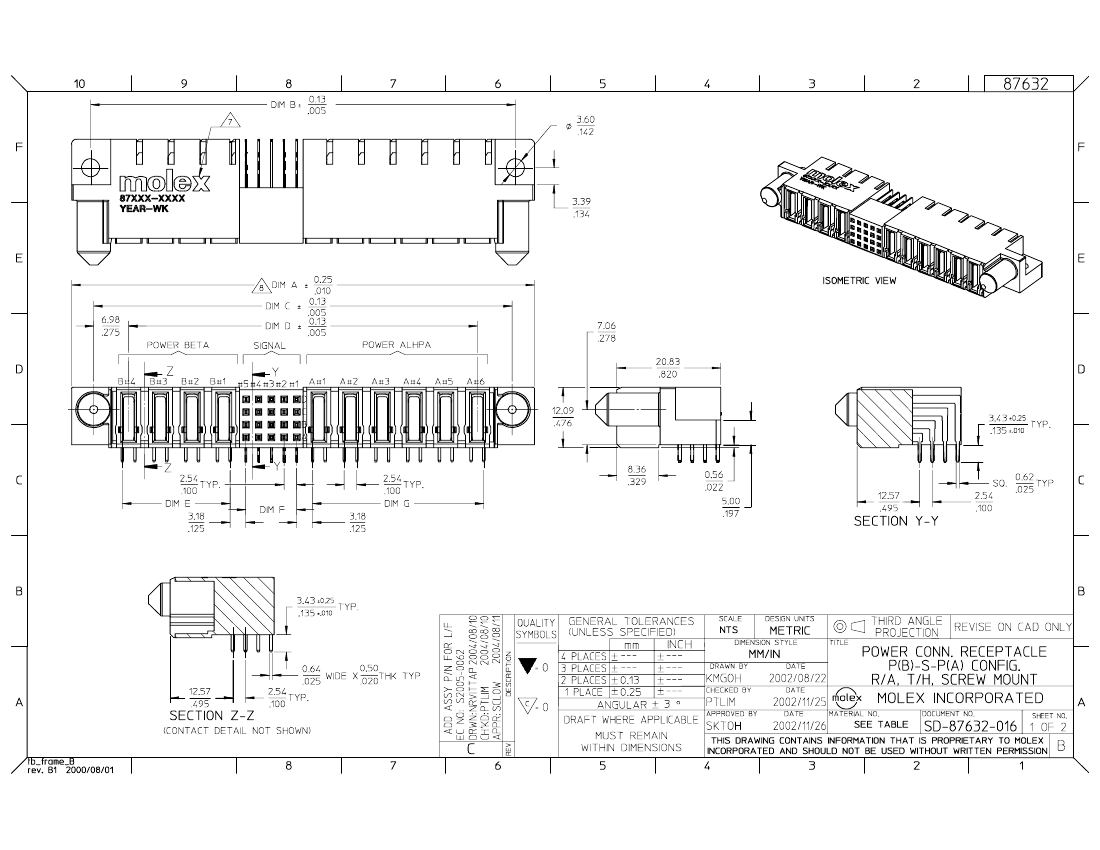

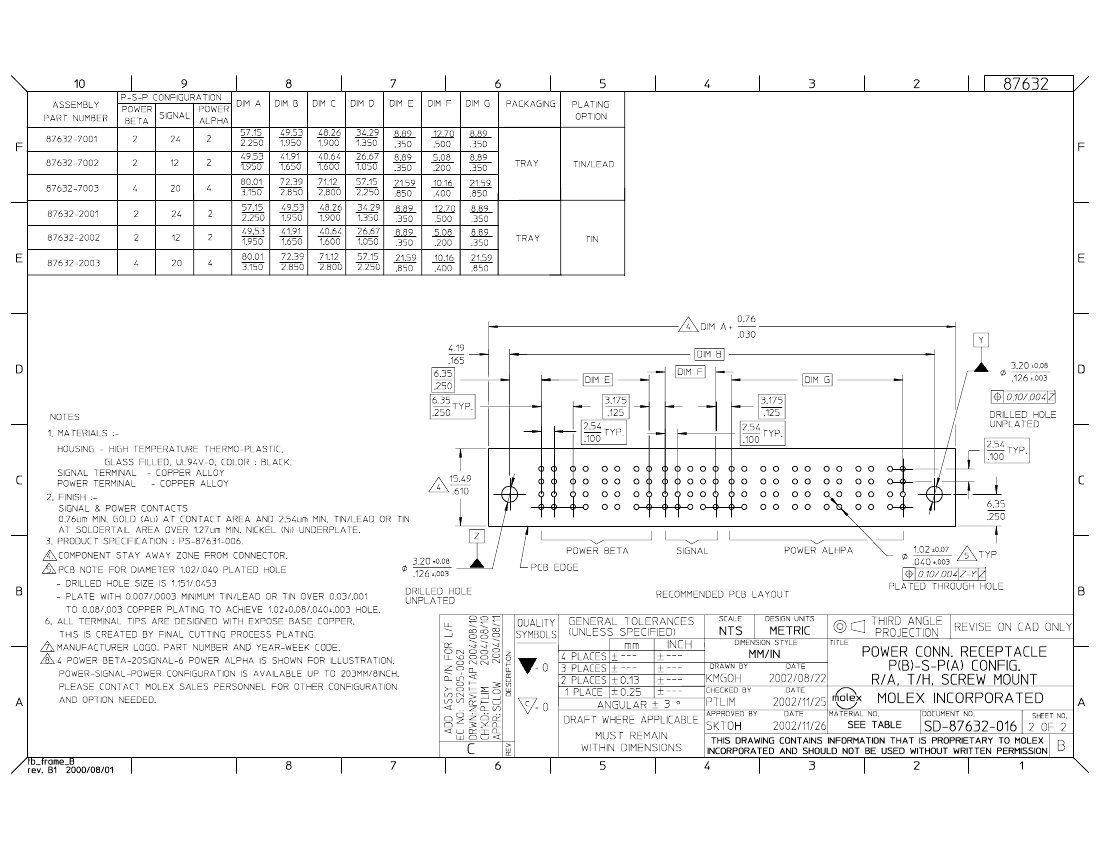

87632-7003 Overview

Rectangular Power Connector, 28 Contact(s), Female, Solder Terminal, Receptacle

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	87632
Mixed contacts	YES
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYETHYLENE
Termination type	SOLDER
Total number of contacts	28
UL Flammability Code	94V-0

	87632-7003	87632-7001	87632-7002
Description	Rectangular Power Connector, 28 Contact(s), Female, Solder Terminal, Receptacle	Rectangular Power Connector, 28 Contact(s), Female, Solder Terminal, Receptacle	Rectangular Power Connector, 16 Contact(s), Female, Solder Terminal, Receptacle
Maker	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Manufacturer's serial number	87632	87632	87632
Mixed contacts	YES	YES	YES
Installation type	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	28	28	16
UL Flammability Code	94V-0	94V-0	94V-0
