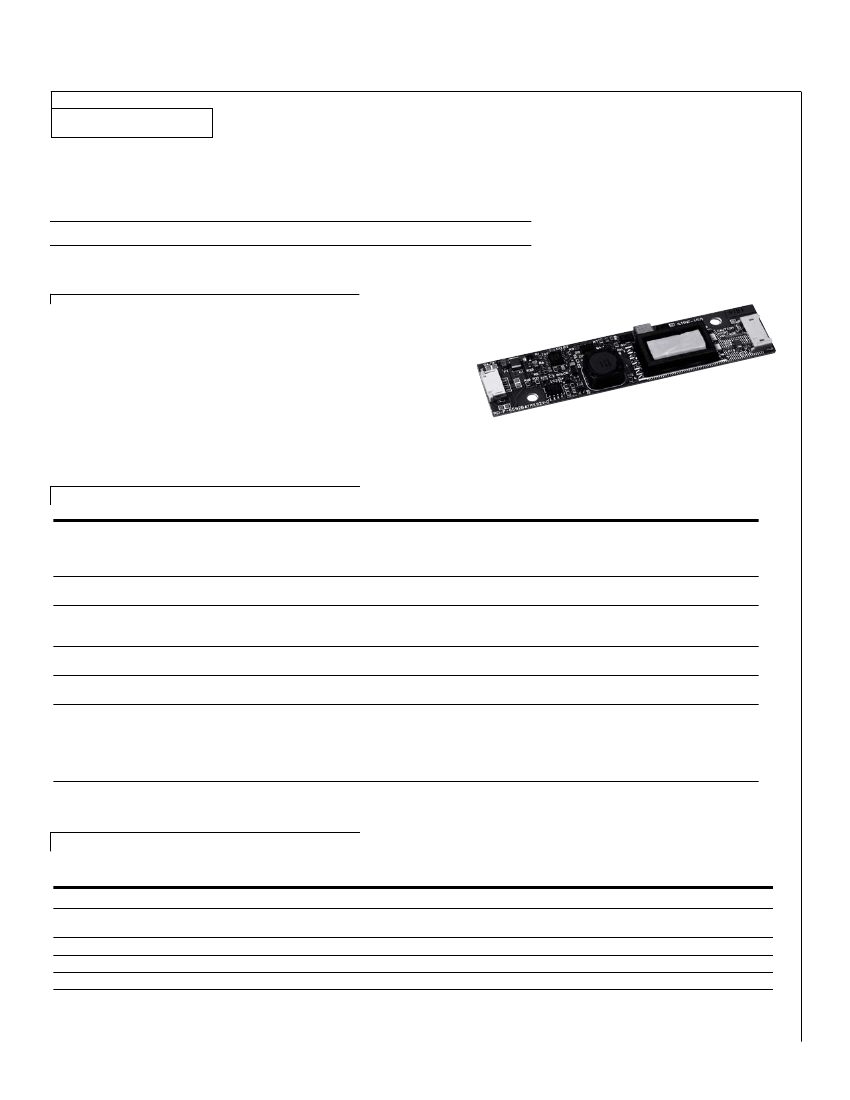

TAIYO YUDEN
SIPF150-RH
RoHS
Model
LCD Backlight Driver
5 Volt Input
Industrial Grade Single Tube CCFT Inverter
Brightness Control
Physical Specifications
Dimensions:
Weight:
Operating Temp:
Relative Humidity:
Storage:
Impact Resistance:
Vibration Resistance:
22.7mm x 96.5mm x 7.3mm
(0.894" x 3.79" x 0.287")
18g (0.634 oz.)
0 to 55°C
20% to 90%, non-condensing
-20 to 85°C/5-95% RH
50G half wave per 2 msec
10-55-10 Hz/min @ 1.5mm
COMPLIANT
Input Specifications*
Item
Condition
Standard
Input Voltage
Rated
Tolerance
Max. Input Current
Input Leak Current
—
Continuous Operation
Starting Condition (Discharge Starting Voltage)
V
IN
= 4.5 Vdc
Luminance @ Max.
V
IN
= 7.0 Vdc
Control terminal = H(V
IN
)
On/Off
V
IN
= 7.0 Vdc
Luminance @ Max.
V
IN
= 4.5 Vdc
Luminance @ Max.
Control Terminal
L = 0.0 - 0.4 Vdc
V
IN
= 7.0 Vdc
Control Terminal
H = Open or V
IN
5.0 Vdc
4.5 Vdc - 7.0 Vdc
4.5 Vdc - 7.0 Vdc
1.3 A
4.0 µA (Lamp Off)
6.5 Azero-p/50 µS
5.85 W
I
LOW
= 2.0 mA
(Lamp Lighting)
—
(Lamp Off)
Max. Rush Current
Max. Input Power
On/Off Control Terminal
Input Current
*Above specifications occur @ 25 ± 5ºC.
Output Specifications*
Item
Condition
Standard
MIN
TYP
MAX
Output Voltage (Vrms)
Tube Current (mArms)
Max. Power Output (W)
Ignition Frequency (kHz)
DC/DC Converter Frequency (kHz)
V
IN
= 4.5 Vdc
Luminance @ Max.
Luminance @ Min.
V
IN
= 5.0 Vdc/Luminance @ Max.
Luminance @ Max.
Luminance @ Max.
1500
5.5
2.5
—
—
—
—
6.0
—
—
45
80
—
6.5
—
4.0
—
—
*Above specifications occur @ 25 ± 5ºC & V
IN
= 4.5 - 7.0 Vdc.
Model
SIPF150-RH
Luminance Variance
Item
Condition
Applied Voltage
Output Current
Luminance @ Max.
Luminance @ Min.
Btwn. pin 5 & pin 6
Btwn. pin 5 & pin 6
0.0 Vdc
4.5 Vdc
6.0 mA
2.5 mA
No component and no pattern
on both sides
96.5±0.5
(14.0)
+1.0
–0
67.5±0.3
2–Ø 7.5
(15.0)
2–Ø 3.5
(4.0)
(8. 2)
(1.2)
OUTPUT
7.3
7 +
0.1
–
0.05
1±
0.15
1±
0.05
5±
0.05
0.7 +
0.1
–
0.05
2–CD.3
Lot Symbol
22.7±0.3
(11.5)
1PIN
INPUT
1.0TYP
© Copyright 2007 TAIYO YUDEN (U.S.A.), INC. Specifications subject to change without notice.
TAIYO YUDEN (U.S.A.), INC.
440 Stevens Avenue, Suite 300 Solana Beach, CA 92075
(858) 350-6800 / Fax: (858) 350-6854
(800) 263-4532
www.t-yuden.com
inverters@t-yuden.com
2.7 MIN.
(2)
MAX
(4.0)
14.7±0.3
1PIN
FM 32227
Model
SIPF150-RH
Tech Notes
Connection Diagram
SIPF-150-RH
CN1
Molex 52207-0685
Output Current Optimization Method
CN2
JST SM02(8.0)B-BHS-1-TB(LF)
Corresponding Housing:
JST BHR-03VS-1
Maximum output current can be adjusted by applying bias
voltage between brightness control pins as shown below.
1 V(in)
2 V(in)
3 On/Off
Brightness
Control DC Bias
(0-4.5 Vdc)
DC Bias
Voltage
Luminance Max.
Luminance Min.
Output
Current
0 Vdc
4.5 Vdc
6.0 mA
2.5 mA
4 GND
5 GND
6 Brightness
On/Off Control
The on/off control is achieved by using the on/off pin on the input
side of SIPF150. The circuit for the remote on/off circuitry consists
of an active low TTL switch. When the circuit is open, the IC Vcc
is cut off. When the circuit is closed, IC Vcc is activated. A
mechanical switch or a TTL/CMOS gate needs to be placed
between the remote on/off pin and ground creating a condition
where the circuit is closed to activate the inverter. Either one of the
following will be required for the inverter to operate:
One recommended use of logic switch for remote on/off is shown
in the diagram below. Electrical specification for on/off terminal is
Low 0 to 0.4V, -0.4 mA or higher when switch is closed.
V(in)
V(in)
On/Off Pin
On/Off Pin
0V Inverter Off
5V Inverter On
SW (External)
To IC Vcc
To IC Vcc
1. Tie on/off pin to ground.
2. Add mechanical switch between on/off pin and ground, close switch.
3. Add TTL/CMOS switch between on/off and ground. Circuit must be closed for
unit to operate (as shown above right).
PCB Design
