2110-2-00-50-7 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 2110-2-00-50-7

Preview

2110-2-00-50-7: DescriptionPCB Terminal; CategoryThe connector terminals; File Size68KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

2110-2-00-50-7 Overview

PCB Terminal

2110-2-00-50-7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
ECCN code	EAR99
Manufacturer's serial number	2110
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

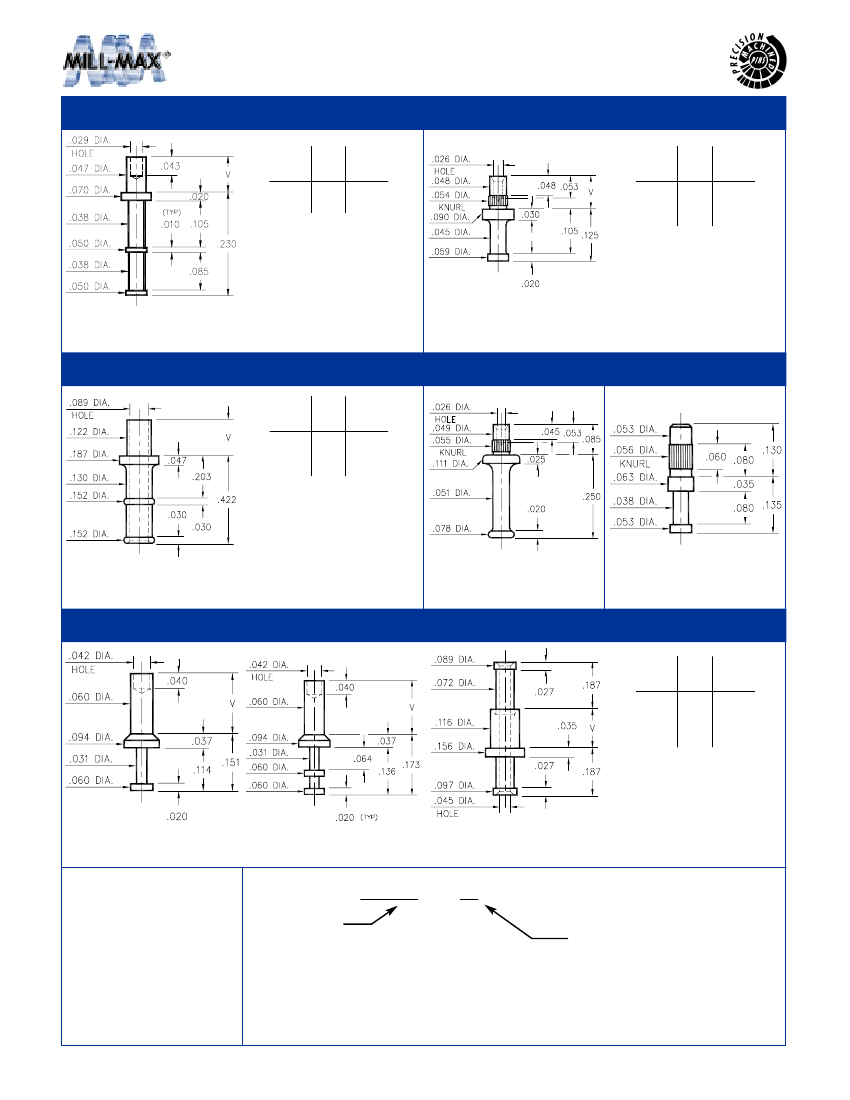

SOLDER TERMINALS

TURRETS

2110

-X-

1

2

Board

Thick-

ness

.031

.062

Length

V

.049

.082

2333

-X-

1

2

3

Board

Thick-

ness

.078

.062

.047

Length

V

.103

.087

.072

2110-X-00-XX-00-00-07-0

Swage mount in .052 hole

2333-X-00-XX-00-00-07-0

Press-fit and swage in .052

mounting hole

2821

-X-

2

3

4

Board

Thick-

ness

.062

.094

.125

Length

V

.109

.141

.172

2533

2101

2821-X-00-XX-00-00-07-0

Swage mount in .125 hole

2533-0-00-XX-00-00-07-0

Press-fit & swage in .052 mtg.

hole. For .062 thick board

2101-3-00-XX-00-00-07-0

Press-fit in .053 mtg.

hole. For .062 to .094 thick board

2316/2317/2708

-X-

1

2

3

4

Board

Thick-

ness

.031

.062

.094

.125

Length

V

.062

.094

.125

.156

2316-X-00-XX-00-00-07-0

Swage mount in .064 hole

2317-X-00-XX-00-00-07-0

Swage mount in .064 hole

2708-X-00-XX-00-00-07-0

Swage mount in .120 hole

SPECIFICATIONS

PIN MATERIAL:

Brass Alloy 360, 1/2 Hard

Swage pins are annealed

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: 2XXX - X - 00 - XX - 00 - 00 - 07 - 0

BASIC PART #

SPECIFY PIN FINISH:

01

200µ"

TIN/LEAD OVER

NICKEL

44

300µ"

SILVER OVER

COPPER

50

300µ" ELECTRO-SOLDER

(60/40 SnPb)

Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253
