BC848CQ-7-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BC848CQ-7-F

BC848CQ-7-F: DescriptionSmall Signal Bipolar Transistor, 0.1A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, GREEN,PLASTIC PACKAGE-3; CategoryDiscrete semiconductor The transistor; File Size299KB，7 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric Compare View All

BC848CQ-7-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BC848CQ-7-F	-	-	View	Buy Now

BC848CQ-7-F Overview

Small Signal Bipolar Transistor, 0.1A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, GREEN,PLASTIC PACKAGE-3

BC848CQ-7-F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Diodes Incorporated
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	13 weeks
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	30 V
Configuration	SINGLE
Minimum DC current gain (hFE)	420
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.35 W
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	40
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	300 MHz

Preview

Download Datasheet

View All

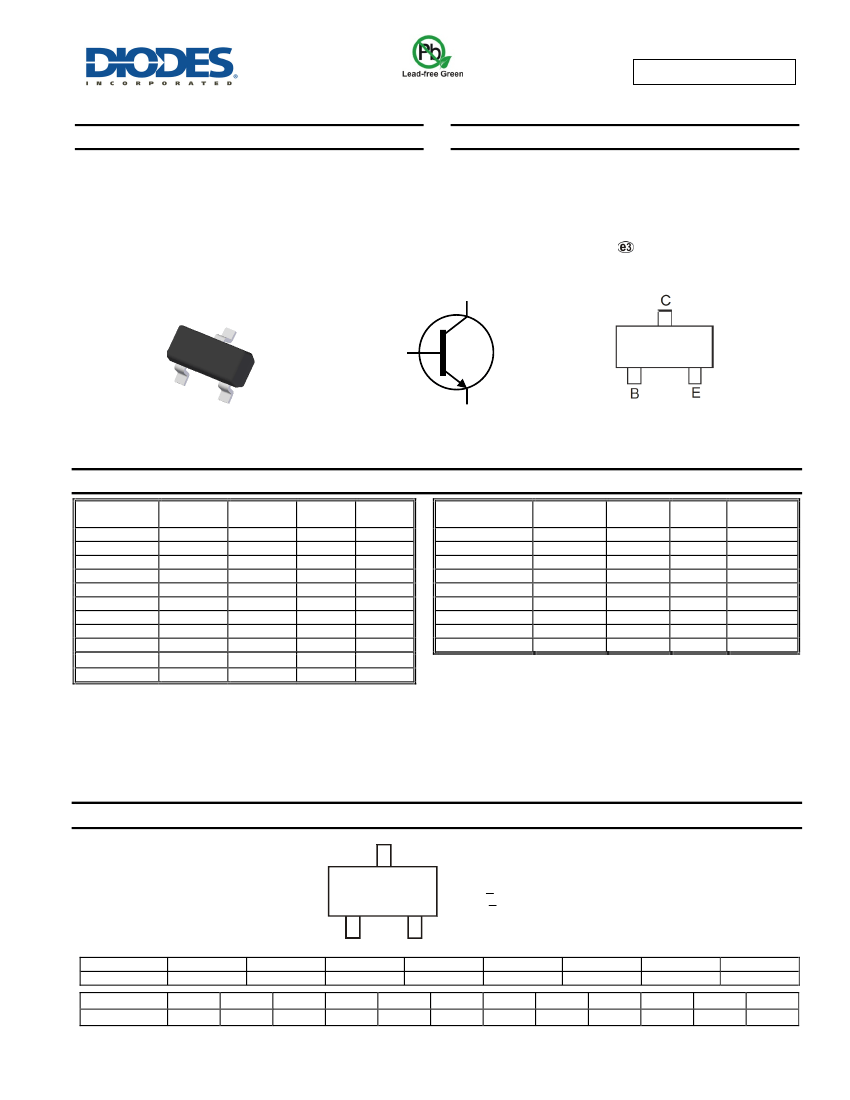

BC846A-BC848C

NPN SMALL SIGNAL TRANSISTOR IN SOT23

Features



Ideally Suited for Automatic Insertion

Complementary PNP Types: BC856 – BC858

For switching and AF Amplifier Applications

Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

Halogen and Antimony Free. "Green" Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

PPAP capable (Note 4)

Mechanical Data



Case: SOT23

Case material: molded plastic, “Green” molding compound

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish – Matte Tin Plated Leads, Solderable per

MIL-STD-202, Method 208

Weight: 0.008 grams (Approximate)

SOT23

Top View

Device Symbol

Top View

Pin-Out

Ordering Information

(Notes 4 & 5)

Product

BC846A-7-F

BC846AQ-7-F

BC846B-7-F

BC846BQ-7-F

BC846B-13-F

BC846BQ-13-F

BC847A-7-F

BC847AQ-7-F

BC847A-13-F

BC847B-7-F

BC847BQ-7-F

Notes:

Compliance

AEC-Q101

Automotive

AEC-Q101

Automotive

AEC-Q101

Automotive

AEC-Q101

Automotive

AEC-Q101

Automotive

Marking

K1Q

K1R

K1Q

K1R

Reel size

(inches)

Quantity

per reel

3,000

10,000

3,000

10,000

3,000

Product

BC847B-13-F

BC847C-7-F

BC847CQ-7-F

BC847C-13-F

BC848A-7-F

BC848B-7-F

BC848B-13-F

BC848C-7-F

BC848CQ-7-F

Compliance

AEC-Q101

Automotive

AEC-Q101

Automotive

Marking

K1R

K1M

K1Q

K1R

K1M

Reel size Quantity per

(inches)

reel

10,000

3,000

10,000

3,000

10,000

3,000

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen and Antimony free, "Green"

and Lead-Free.

3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl)

and <1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally

the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

xxx

xxx = Product Type Marking Code

YM = Date Code Marking

Y or Y = Year (ex: Y = 2011)

M or M = Month (ex: 9 = September)

Date Code Key

Year

Code

Month

Code

2010

Jan

Feb

2011

Mar

2012

Apr

May

2013

2014

Jul

Aug

2015

Sep

2016

Oct

Nov

2017

Dec

Jun

BC846A – BC848C

Document Number: DS11108 Rev. 26 - 2

1 of 7

www.diodes.com

December 2013

BC848CQ-7-F Related Products

	BC848CQ-7-F	BC847CQ-7-F	BC847BQ-7-F	BC847AQ-7-F	BC846BQ-13-F	BC846BQ-7-F
Description	Small Signal Bipolar Transistor, 0.1A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, GREEN,PLASTIC PACKAGE-3	Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, GREEN,PLASTIC PACKAGE-3	Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, GREEN,PLASTIC PACKAGE-3	Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, GREEN,PLASTIC PACKAGE-3	Small Signal Bipolar Transistor, 0.1A I(C), 65V V(BR)CEO, 1-Element, NPN, Silicon, GREEN, PLASTIC PACKAGE-3	Small Signal Bipolar Transistor, 0.1A I(C), 65V V(BR)CEO, 1-Element, NPN, Silicon, GREEN,PLASTIC PACKAGE-3
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	GREEN,PLASTIC PACKAGE-3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	13 weeks	13 weeks	13 weeks	13 weeks	13 weeks	13 weeks
Maximum collector current (IC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Collector-emitter maximum voltage	30 V	45 V	45 V	45 V	65 V	65 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	420	420	200	110	200	200
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e3	e3	e3	e3	e3	e3
Humidity sensitivity level	1	1	1	1	1	1
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN
Maximum power dissipation(Abs)	0.35 W	0.35 W	0.35 W	0.35 W	0.35 W	0.35 W
surface mount	YES	YES	YES	YES	YES	YES
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	40	40	40	40	30	40
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	300 MHz	300 MHz	300 MHz	300 MHz	300 MHz	300 MHz
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	-	Lead free
Maker	Diodes Incorporated	-	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
Minimum operating temperature	-65 °C	-	-	-65 °C	-65 °C	-65 °C
